Library ／ Cleaning ／ Dust detection method and apparatus for cleaning robot
Source reports Expired

Dust detection method and apparatus for cleaning robot

US-7920941-B2

Abstract

A dust detection method and apparatus of a cleaning robot. The dust detection method involves acquiring a floor image as a current floor image of a predetermined place at a current location of the cleaning robot in the predetermined place; obtaining a difference image between the current floor image and a background image selected from a feature map consisting of a plurality of floor images of the predetermined place; and detecting a dusty area based on the difference image and adjusting a cleaning power of the cleaning robot.

Patent figures（8）

US-7920941-B2 figure 1
1
US-7920941-B2 figure 2
2
US-7920941-B2 figure 3
3

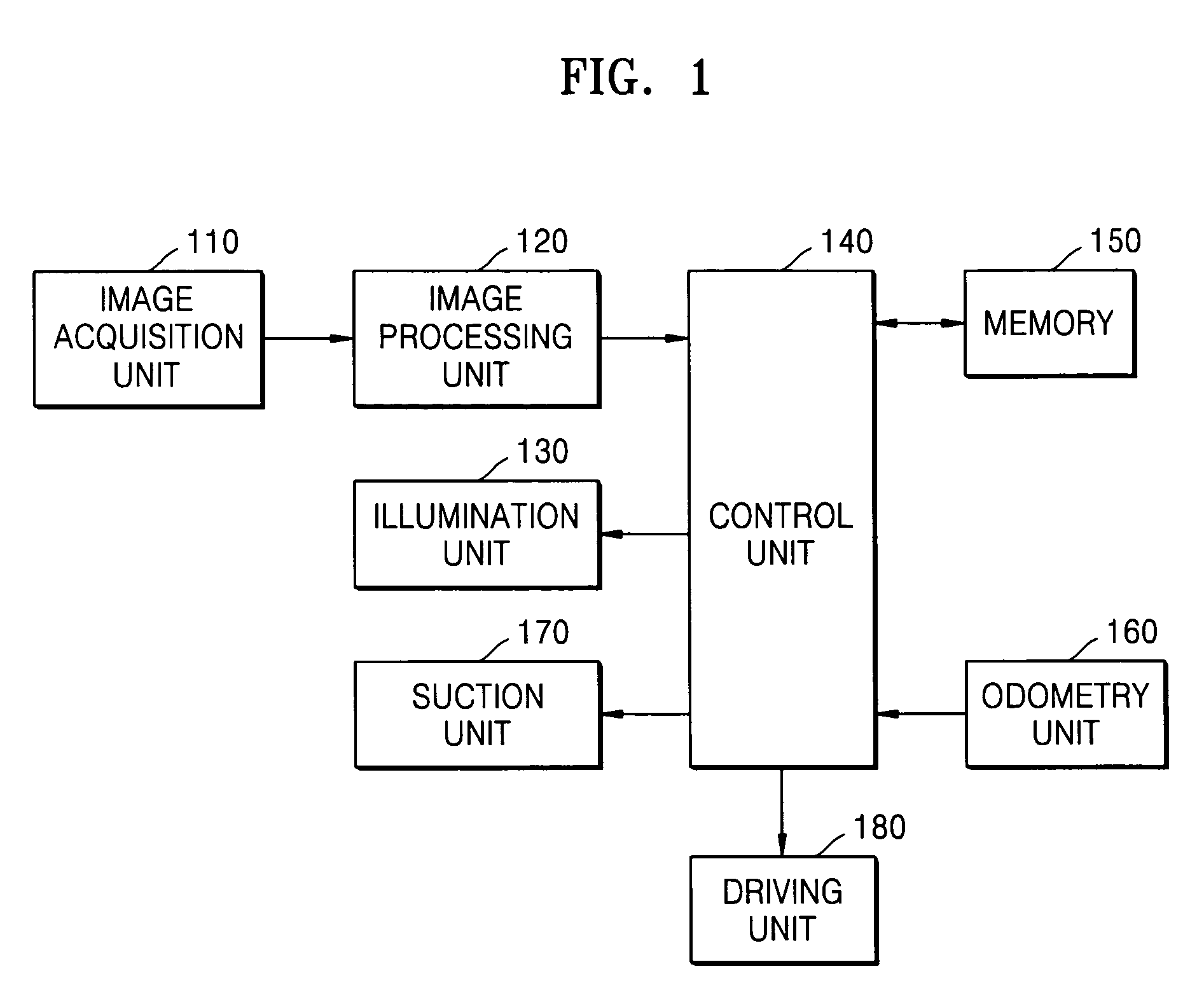

US-7920941-B2 figure 4
4
US-7920941-B2 figure 5
5

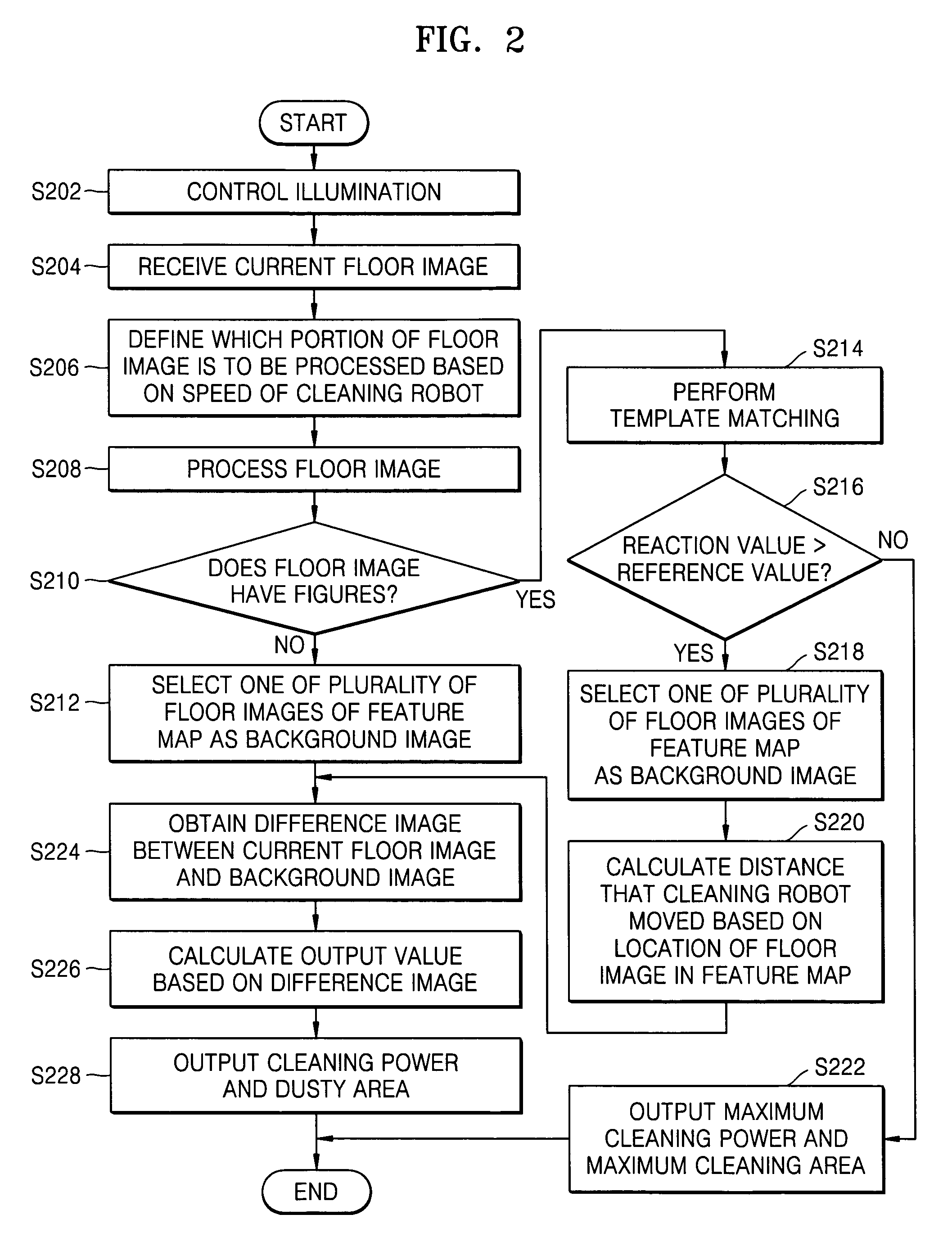

US-7920941-B2 figure 6
6

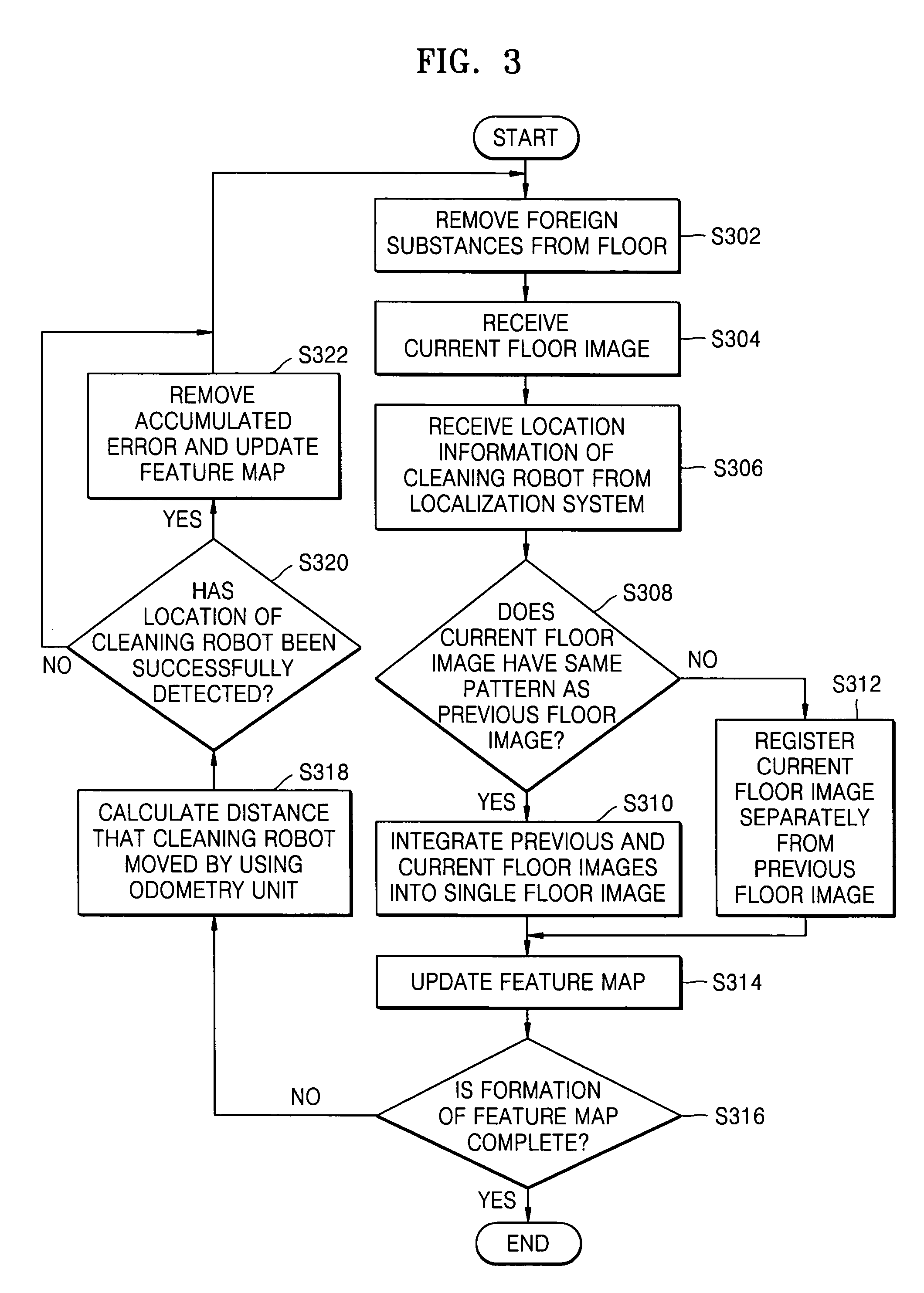

US-7920941-B2 figure 7
7
US-7920941-B2 figure 8
8
