Abstract

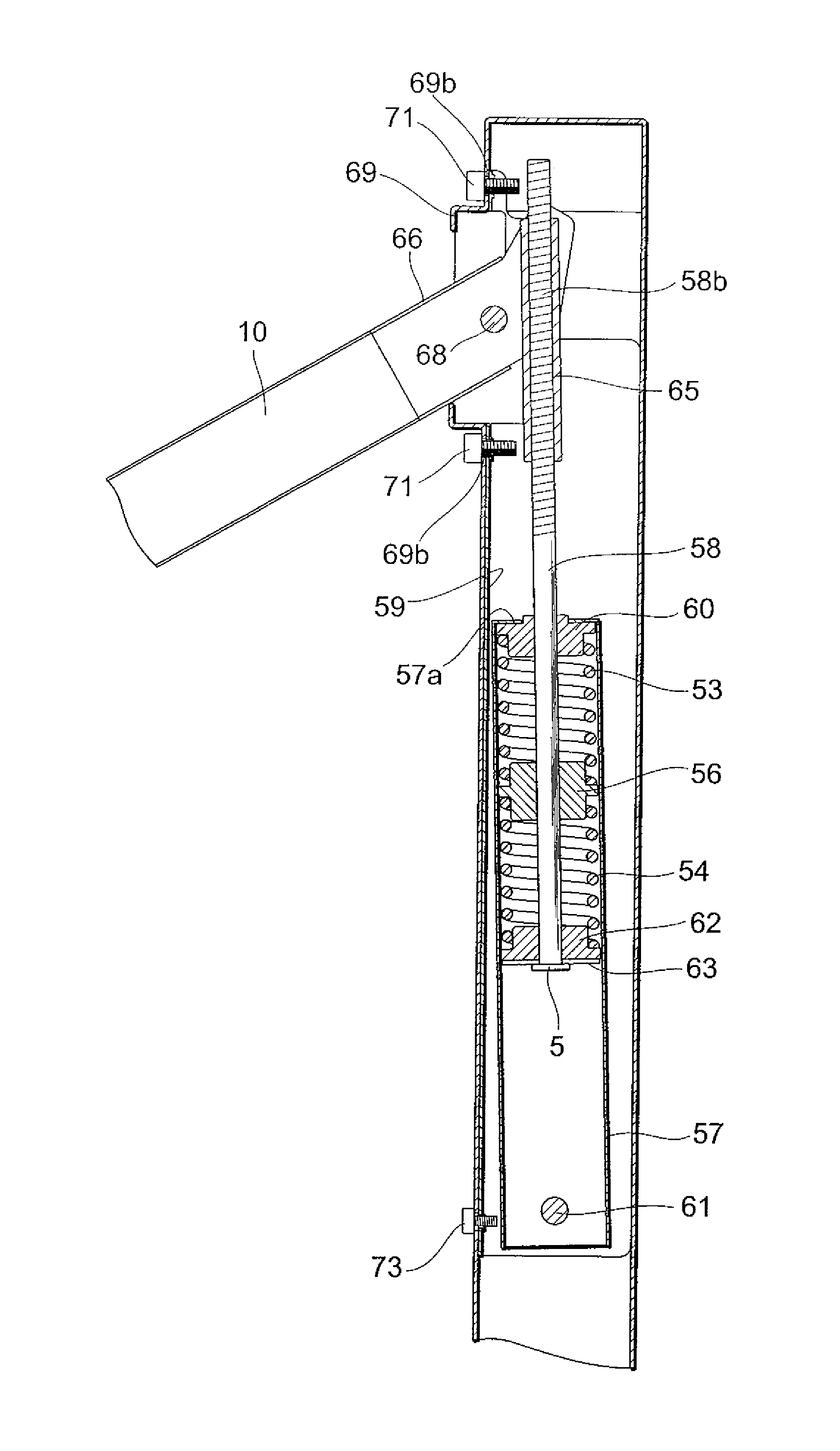

This dishwasher utilizes a rod 58 whose upper end is linked to the proximal end of a rotary arm 10 , and compression springs 53 and 54 linked to the proximal end of the rotary arm 10 via the rod 58 . Thus, even if the compression springs 53 and 54 break, the elastic force of the compression springs 53 and 54 themselves is maintained, and furthermore, the compression springs 53 and 54 continue to be supported by the lower end of the rod 58 in a state of being positionally restricted with respect to a dishwasher main body 2 . This prevents a door 7 in an open state from suddenly falling.
Patent figures（8）
