Wafer level packaging cap and fabrication method thereof
US-7579685-B2Abstract

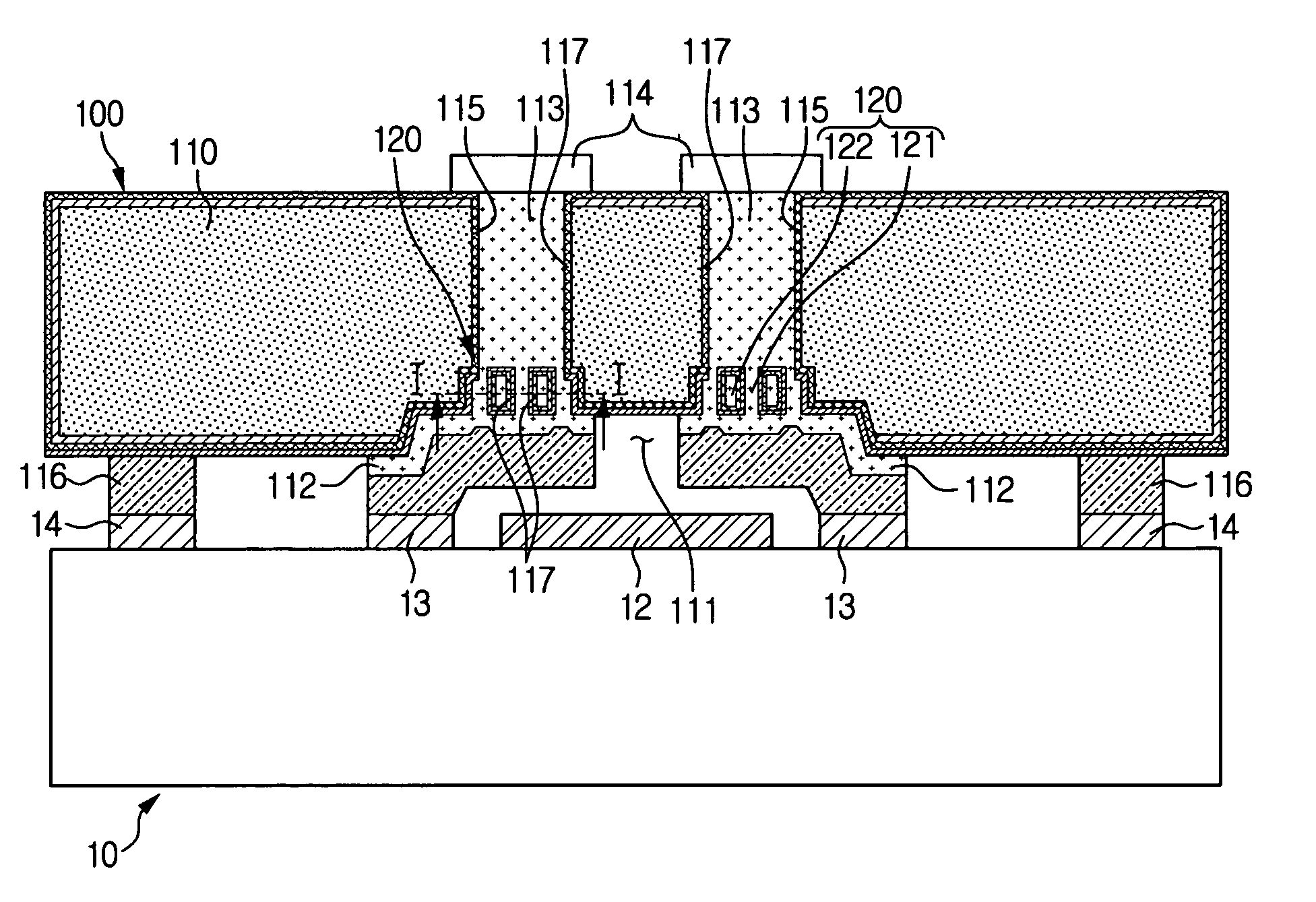

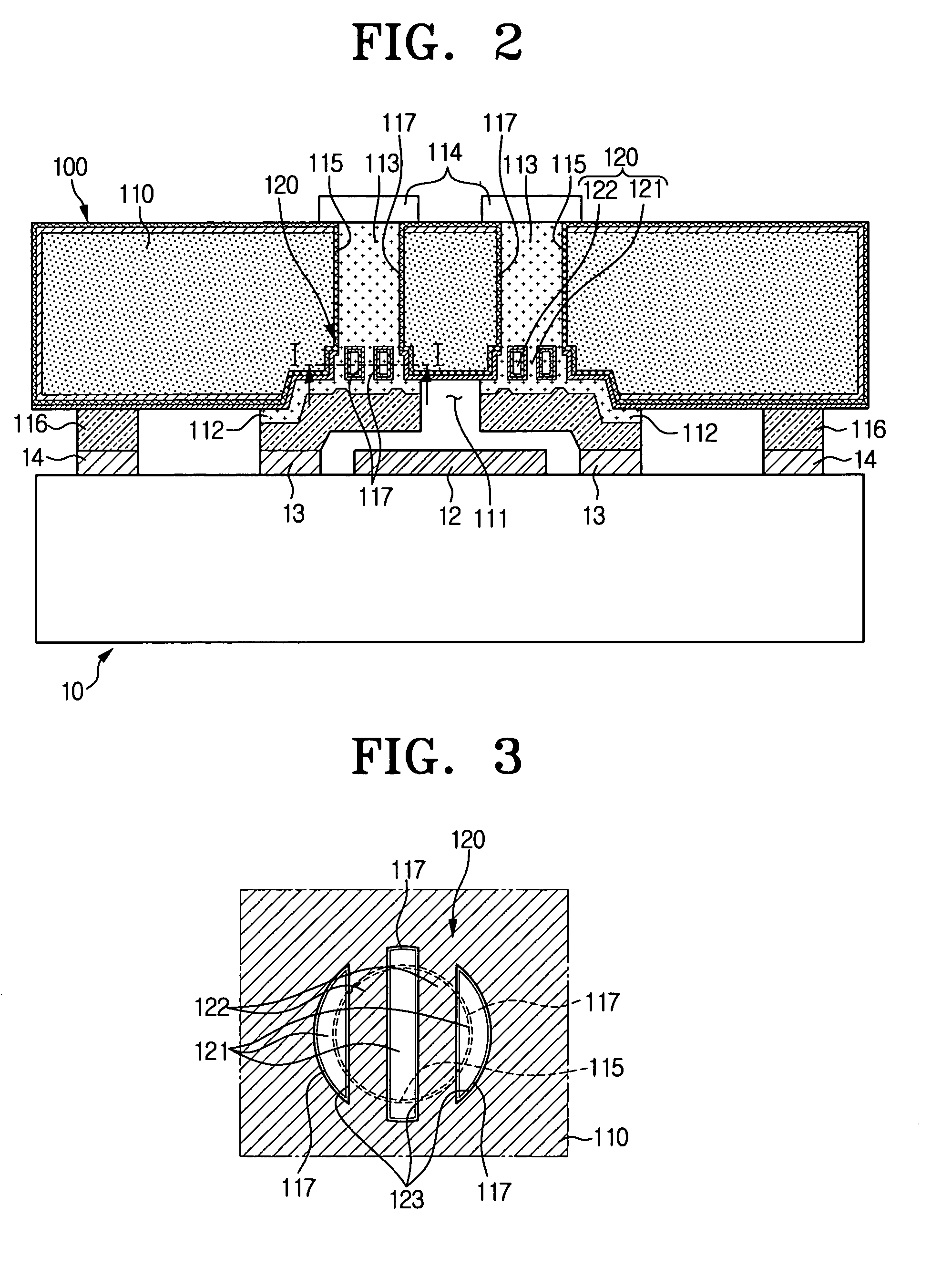

A wafer level packaging cap and method thereof for a wafer level packaging are provided. The wafer level packaging cap covering a device wafer with a device thereon, includes a cap wafer having on a bottom surface a cavity providing a space for receiving the device, and integrally combined with the device wafer, a plurality of metal lines formed on the bottom surface of the cap wafer to correspond to a plurality of device pads formed on the device wafer to be electrically connected to the device, a plurality of buffer portions connected to the plurality of metal lines and comprising a buffer wafer with a plurality of grooves and a metal filled in the plurality of grooves, a plurality of connection rods electrically connected to the plurality of buffer portions and penetrating the cap wafer from a top portion of the buffer portion, and a plurality of cap pads formed on a top surface of the cap wafer and electrically connected to a plurality of connection rods.
