Indicator for garment hangers

US-9173515-B2

Abstract

An indicator for a hanger includes a body having side walls and joining end walls, openings at opposing top and bottom ends, and a passage extending through the body and joining the openings. The indicator may be positioned around a hook of the hanger such that the hook extends from the opening at the top end of the body. The indicator may also include an attachment mechanism for securing the indictor to the hanger. Alternatively or in addition, the hanger may include a mechanism for securing the indictor to the hanger. Information may be displayed on one or more of the side walls and end walls of the indicator.

Patent figures（8）

US-9173515-B2 figure 1
1

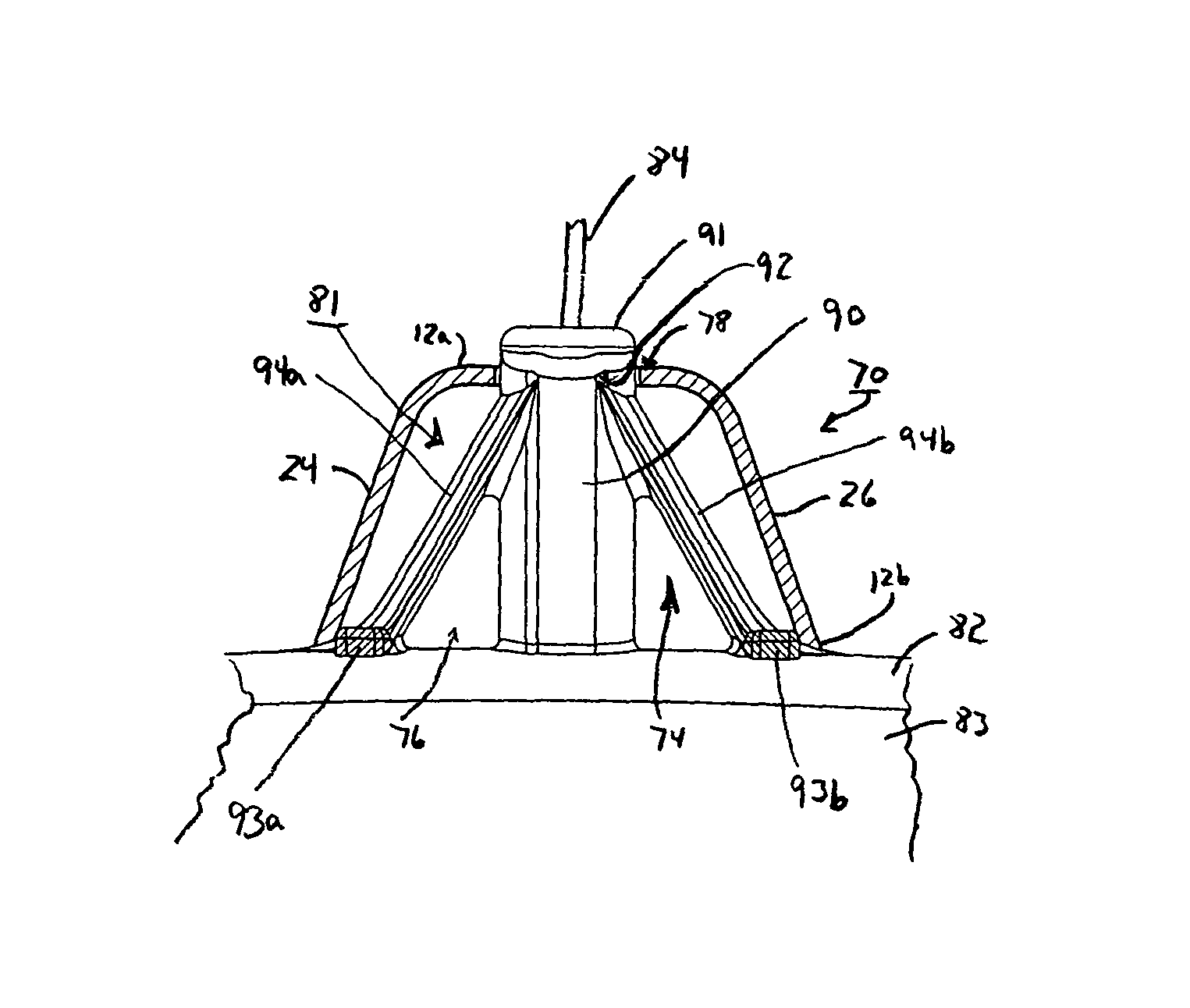

US-9173515-B2 figure 2
2
US-9173515-B2 figure 3
3

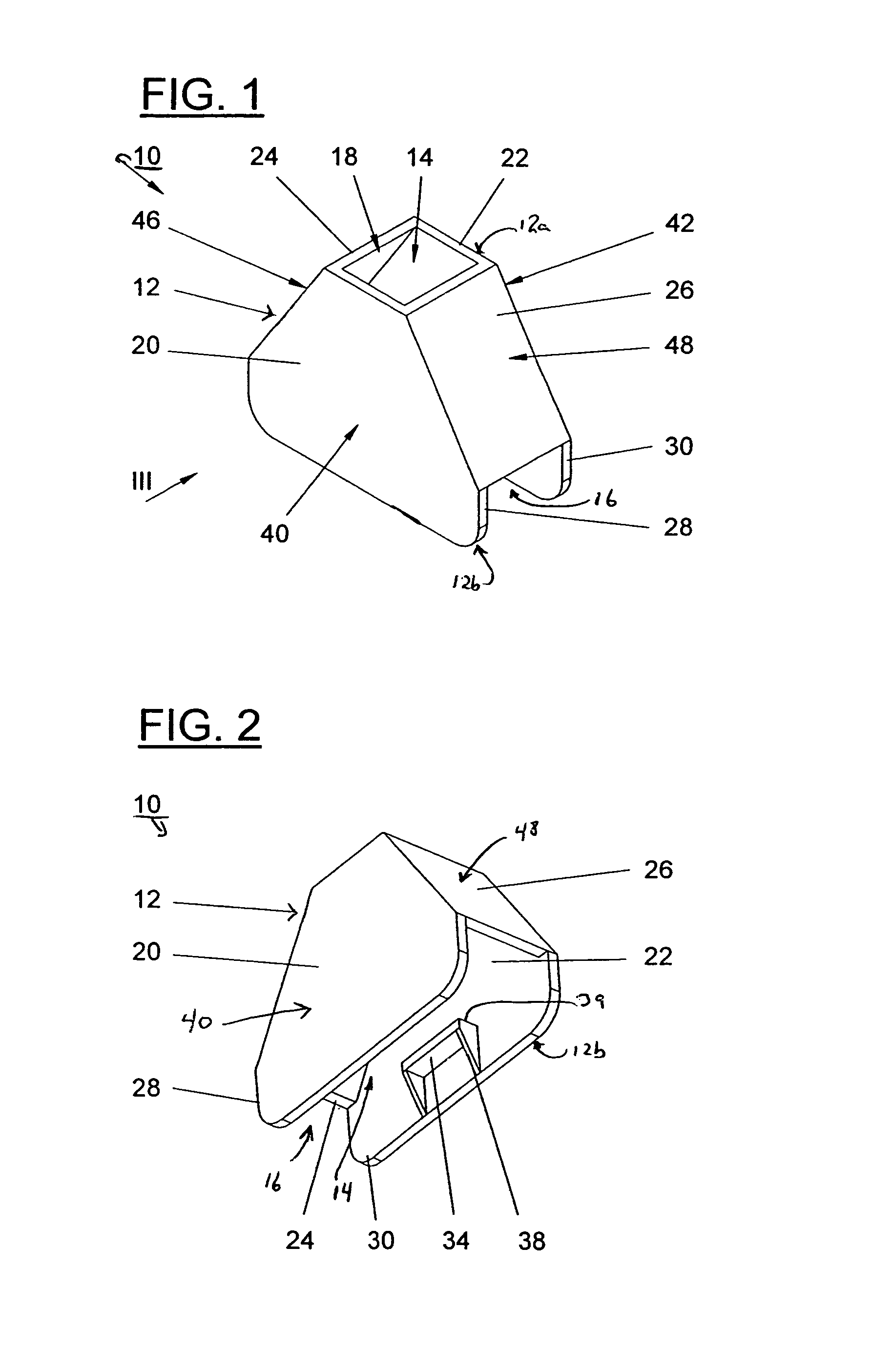

US-9173515-B2 figure 4
4
US-9173515-B2 figure 5
5

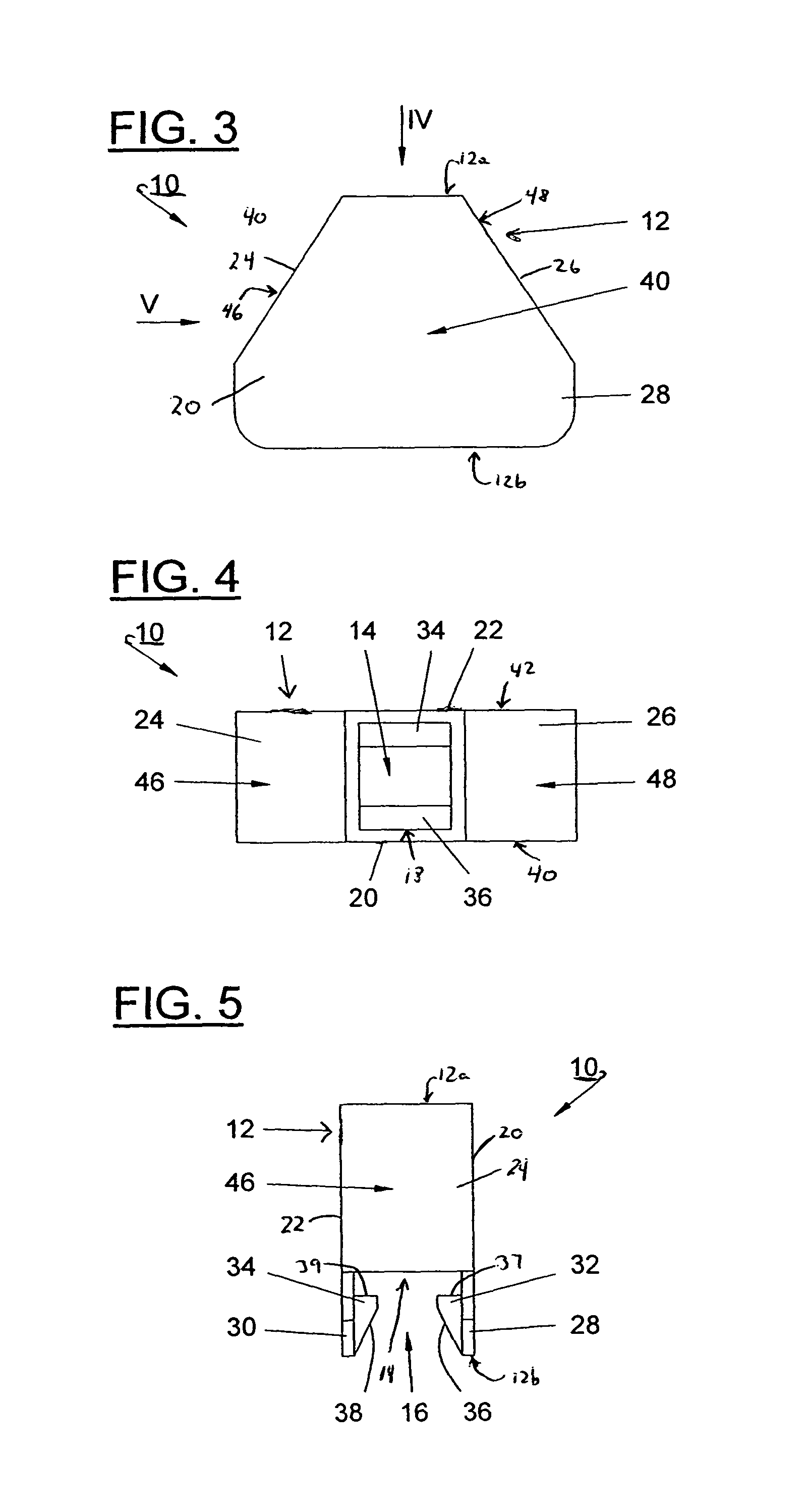

US-9173515-B2 figure 6
6
US-9173515-B2 figure 7
7

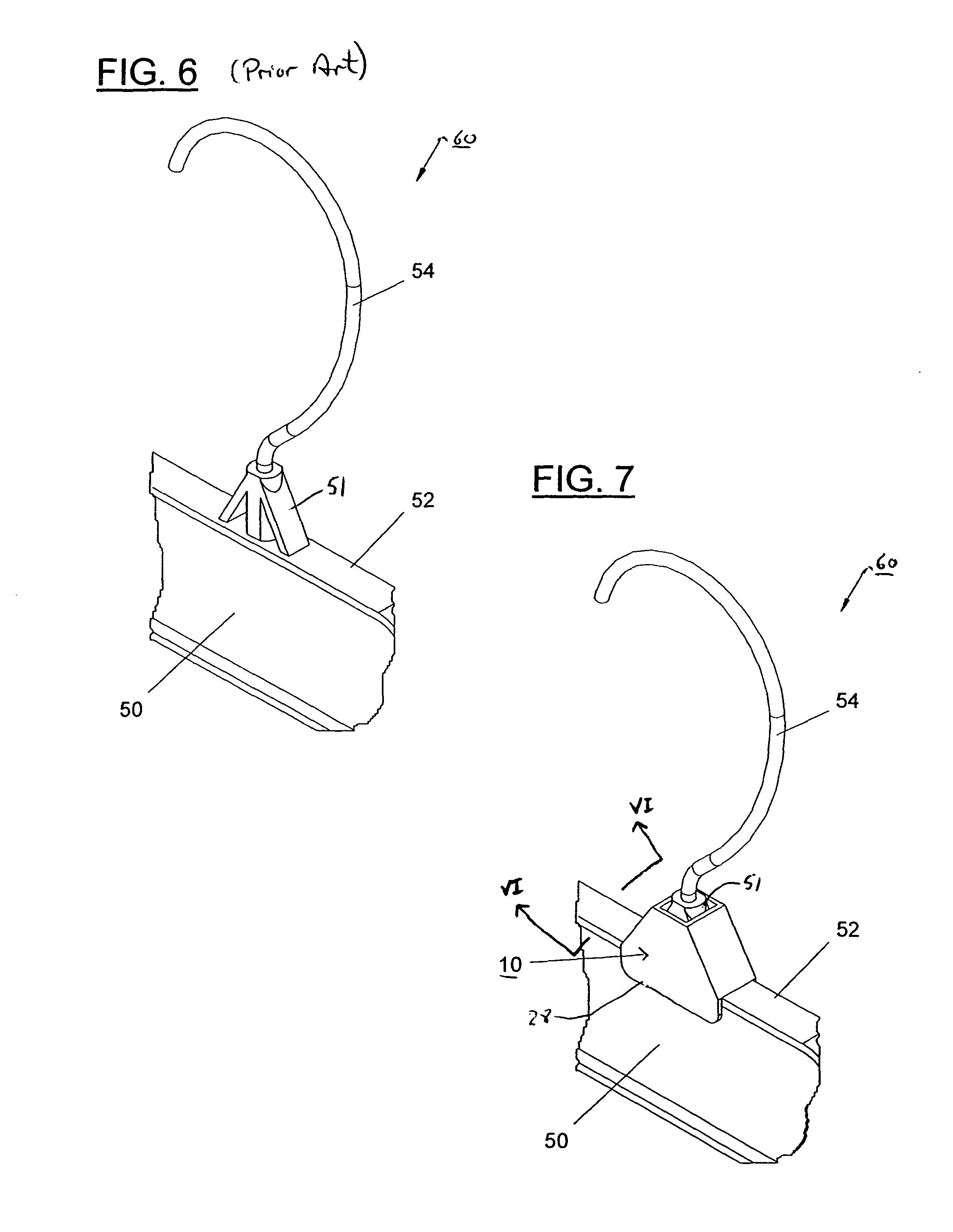

US-9173515-B2 figure 8
8
