Mobile storage unit

US-8191908-B2

Abstract

A mobile storage unit is disclosed. The mobile storage unit includes a rigid exo-skeletal frame and a flexible storage bag that couples to the rigid exo-skeletal frame while within an open storage region framed by the exo-skeletal frame. The mobile storage unit also includes a top seat portion and stabilizing features that extend and retract from the rigid exo-skeletal frame to support the mobile storage unit in the upright position. The mobile storage unit can also include a monitoring device for transmitting signals that are used to determine the location of the mobile storage unit.

Patent figures（8）

US-8191908-B2 figure 1
1

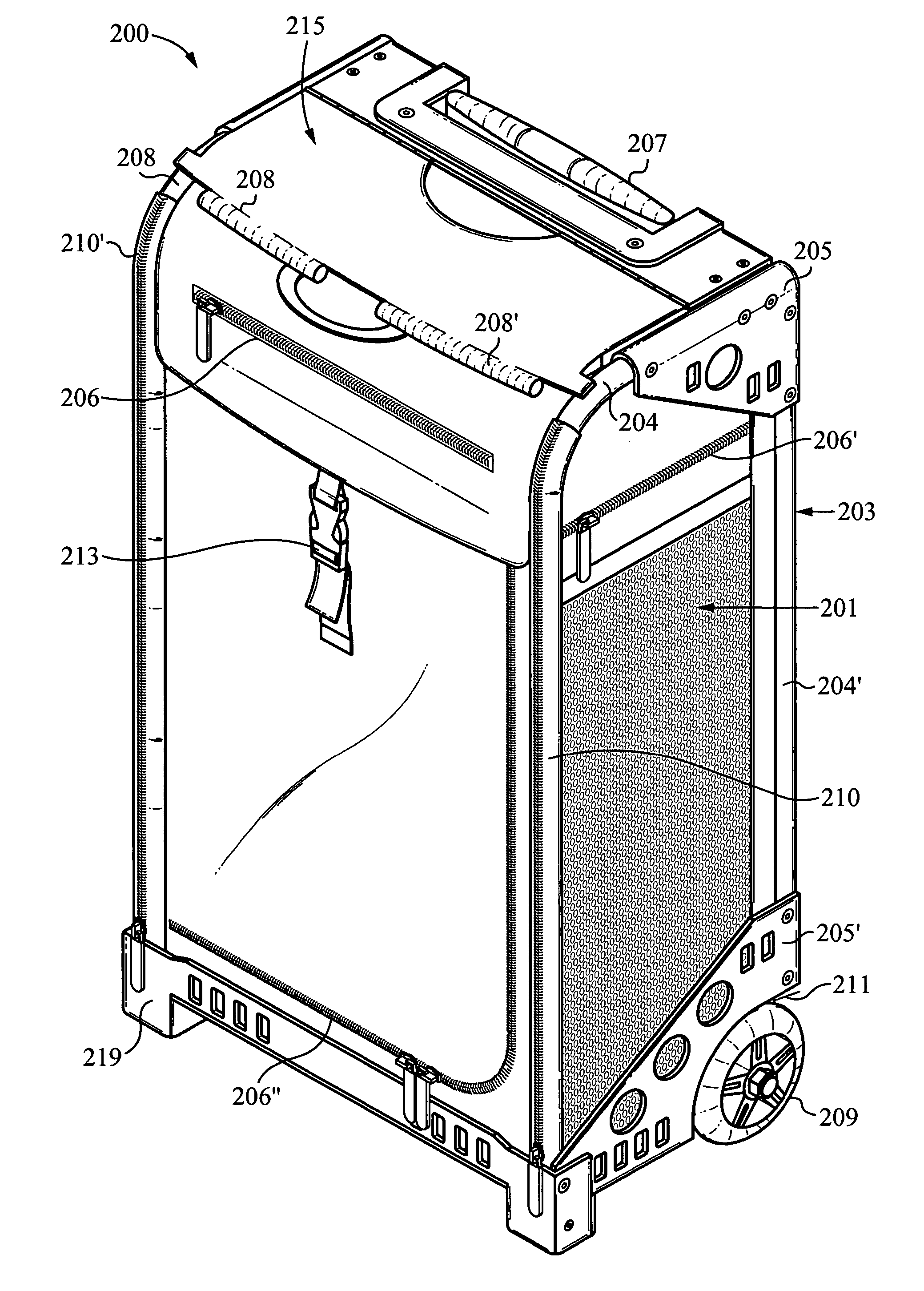

US-8191908-B2 figure 2
2
US-8191908-B2 figure 3
3

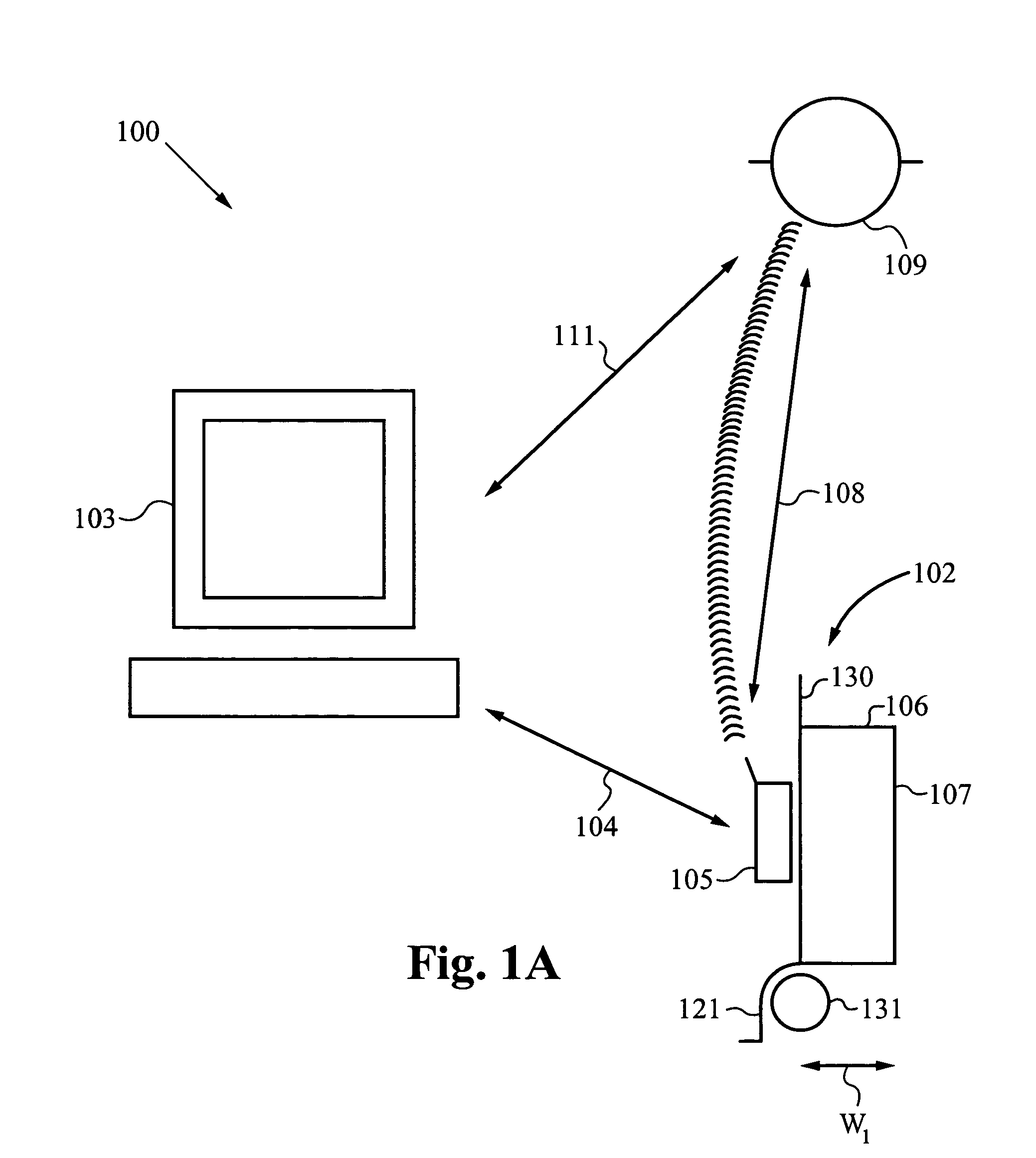

US-8191908-B2 figure 4
4
US-8191908-B2 figure 5
5

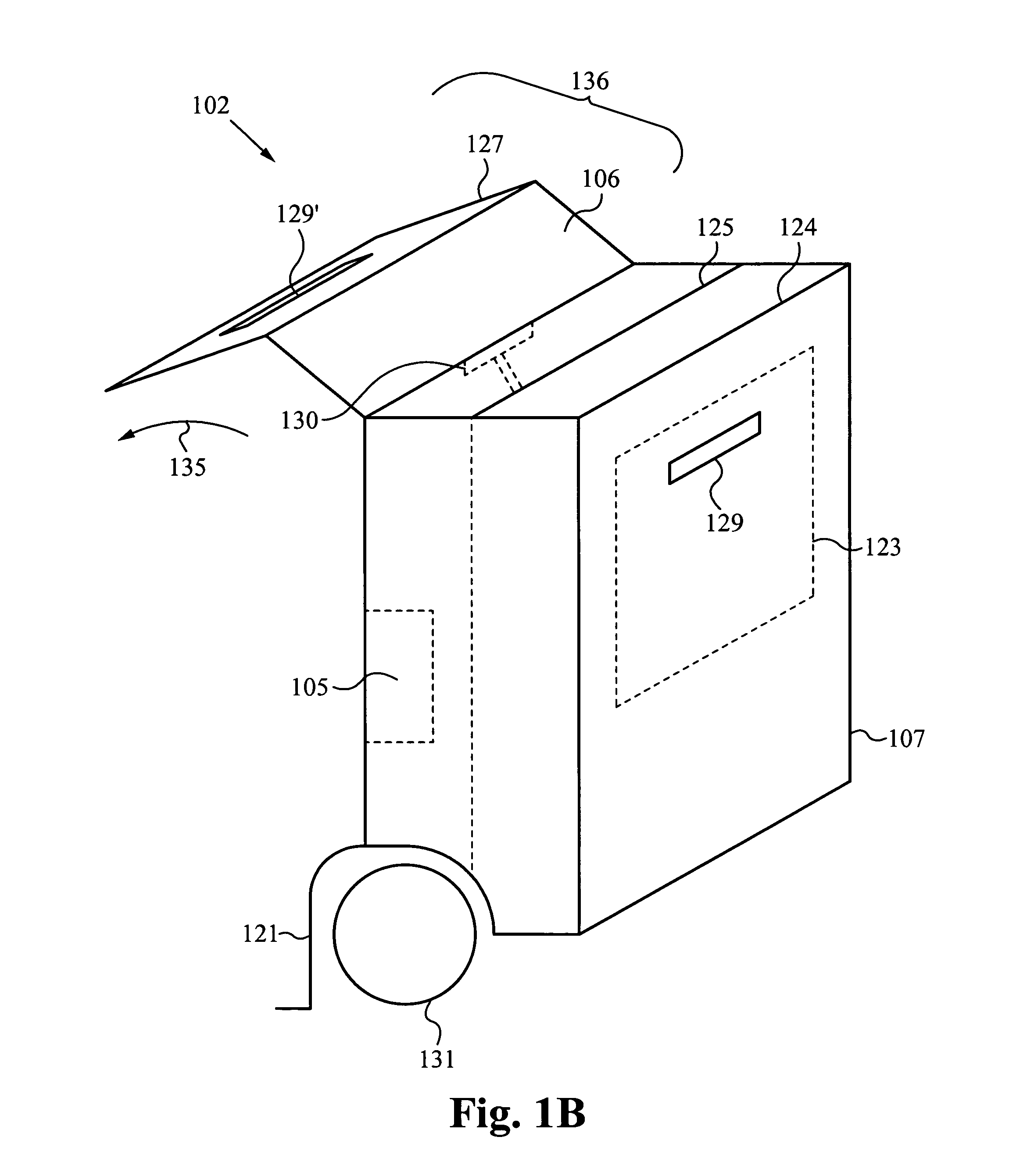

US-8191908-B2 figure 6
6
US-8191908-B2 figure 7
7

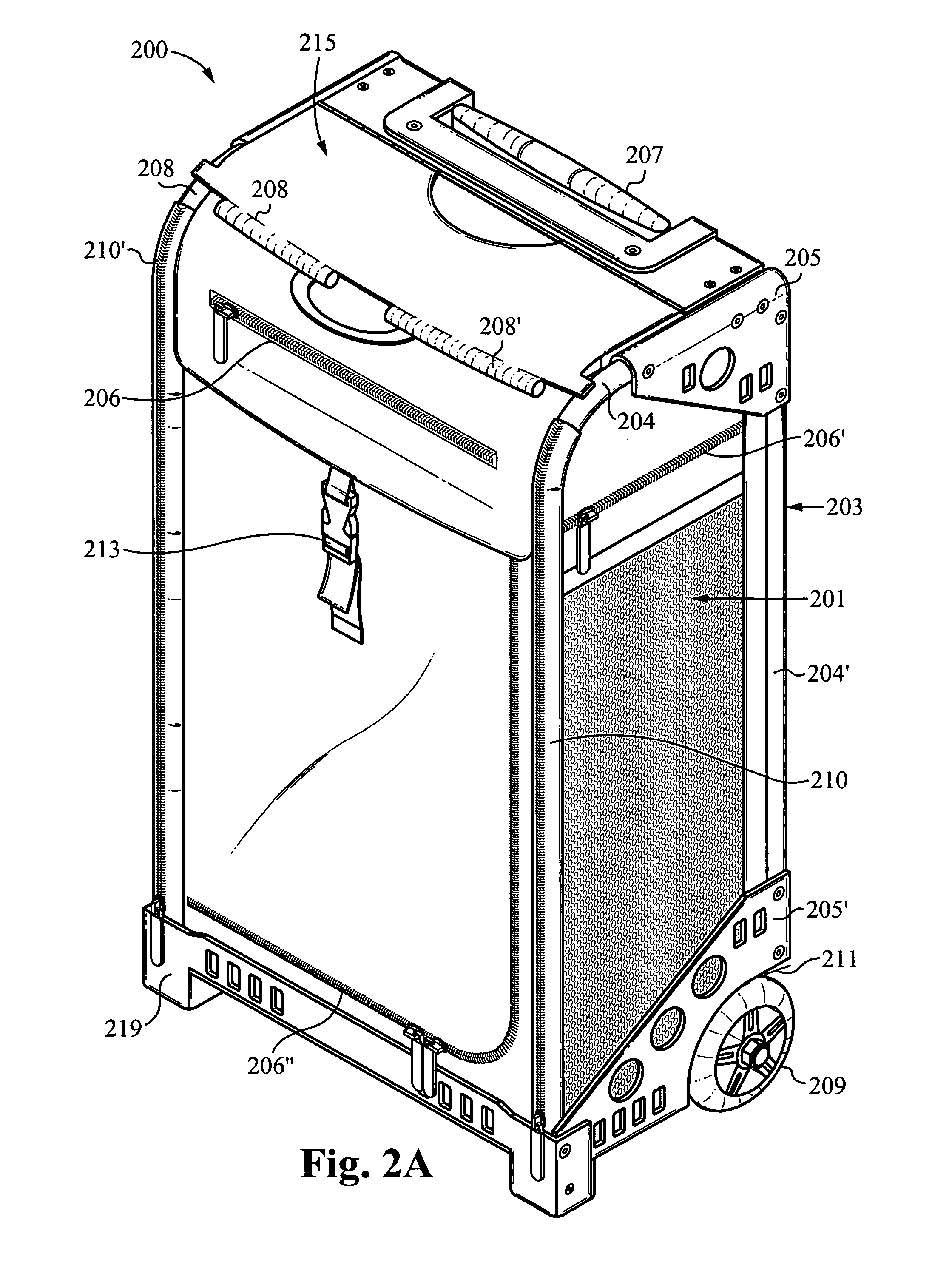

US-8191908-B2 figure 8
8
