Cupcake securement device

US-8167128-B2

Abstract

An individual cupcake holder having prongs extending inwardly from the outside shell walls in order to secure a cupcake in place within the cupcake holder, either above the baking liner or anywhere below the lip edge of the cupcake baking liner so that the frosting of the cupcake remains unmarred during transport in lunch boxes and the like. It is also disclosed to include a plurality of prongs that secure a cupcake both above and through the baking liner. Of course, other pastries may be transported in this little container, as well as pieces of fruit and other assorted food items.

Patent figures（8）

US-8167128-B2 fig 1
1

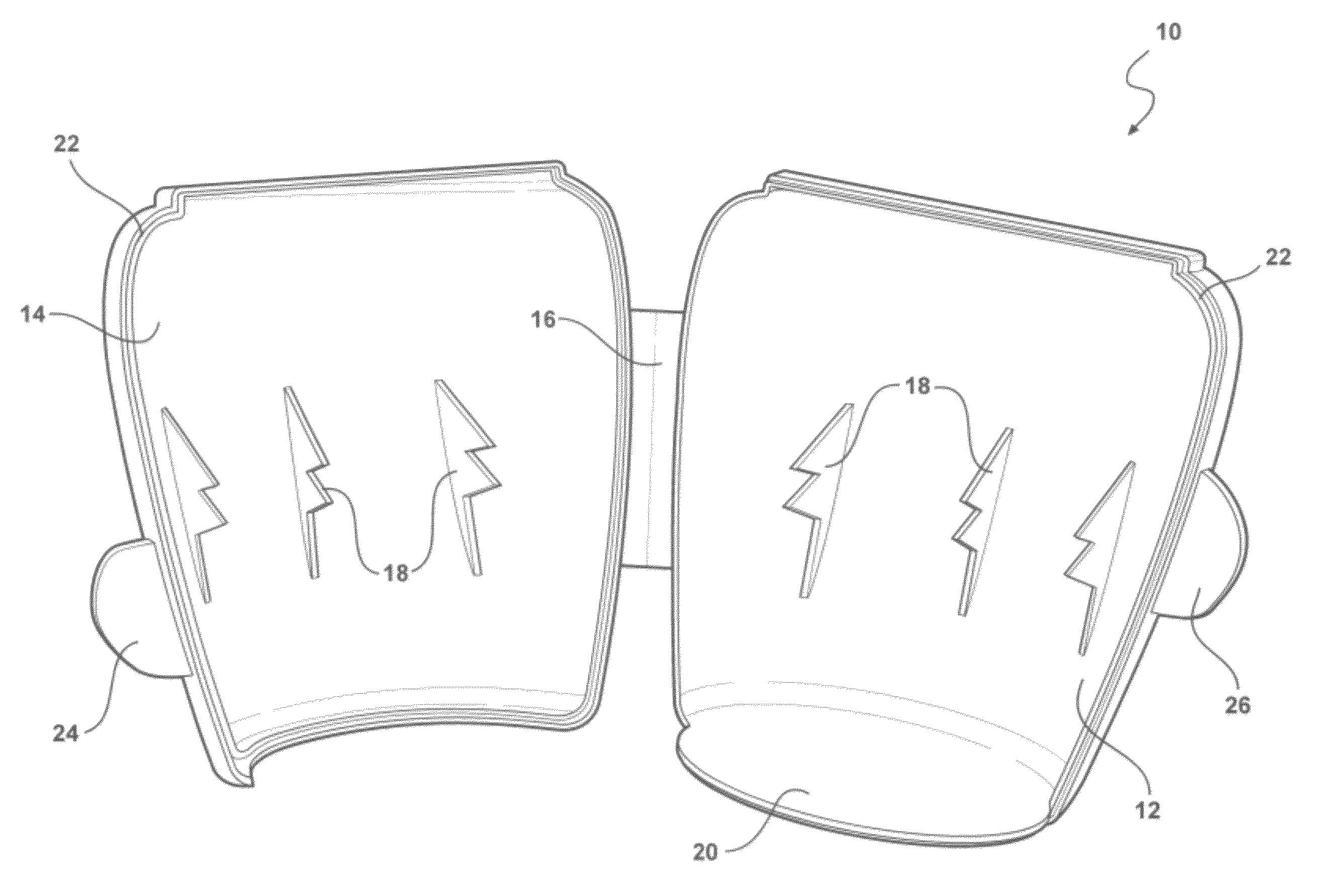

US-8167128-B2 fig 2
2
US-8167128-B2 fig 3
3

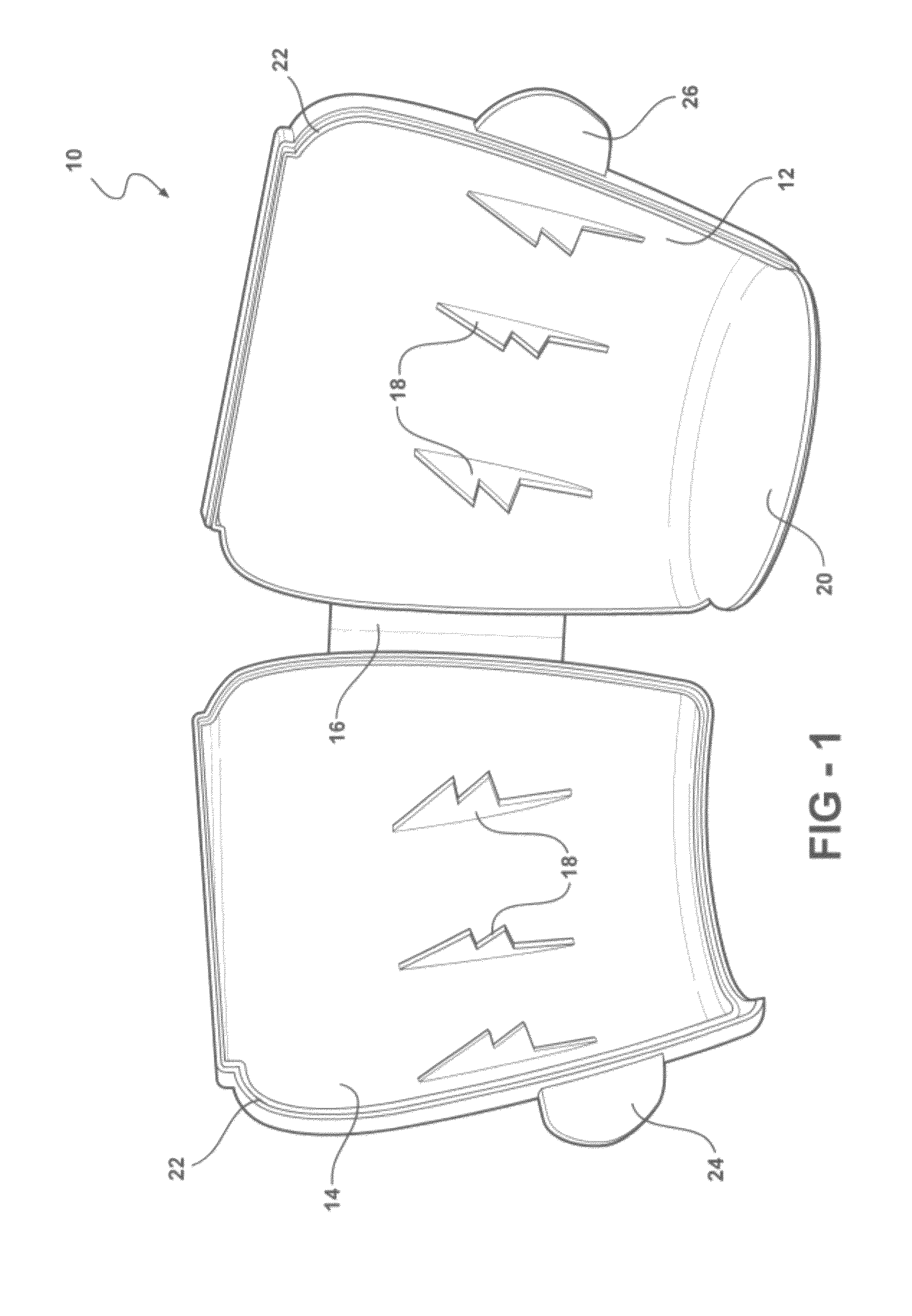

US-8167128-B2 fig 4
4
US-8167128-B2 fig 5
5

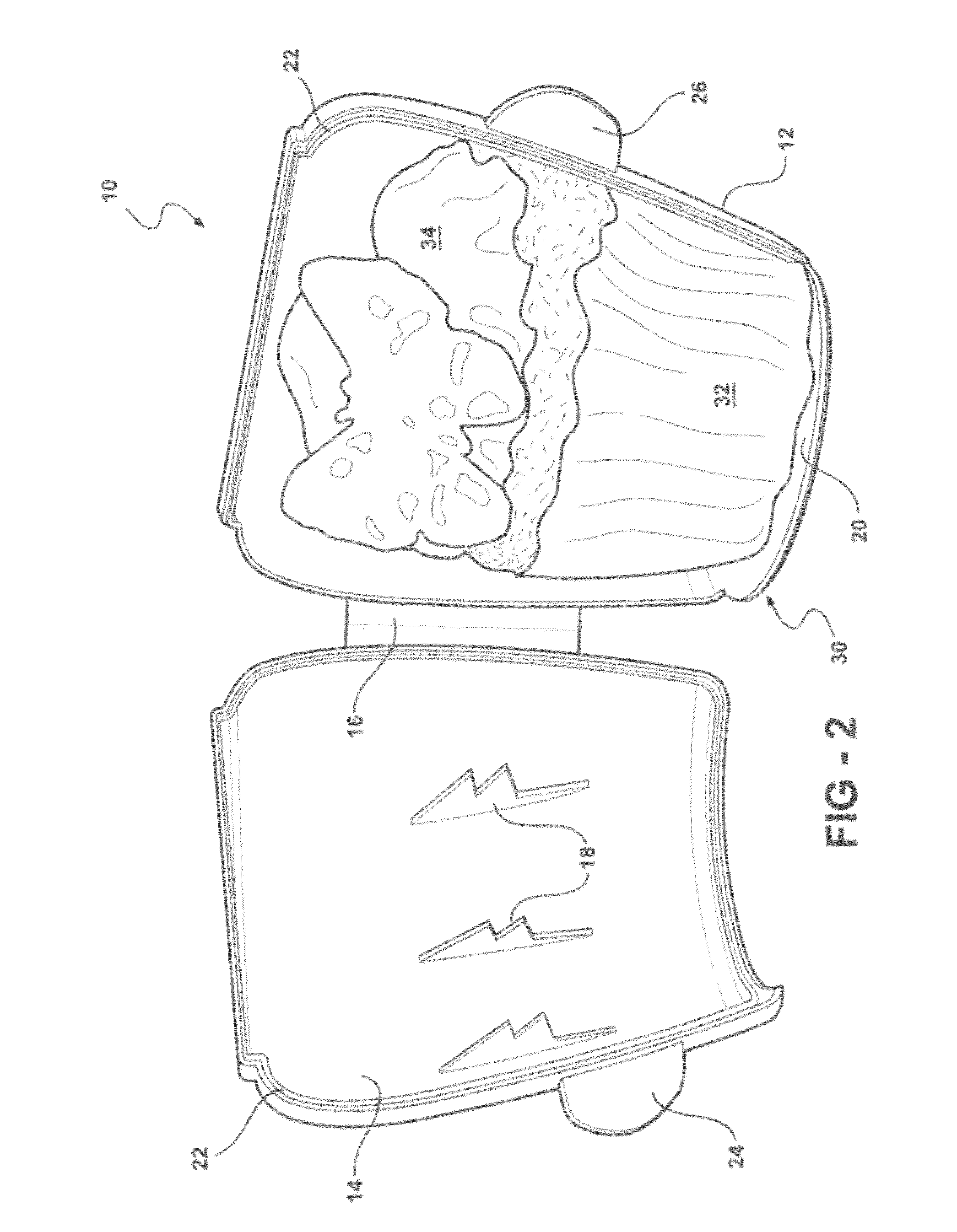

US-8167128-B2 fig 6
6
US-8167128-B2 fig 7
7

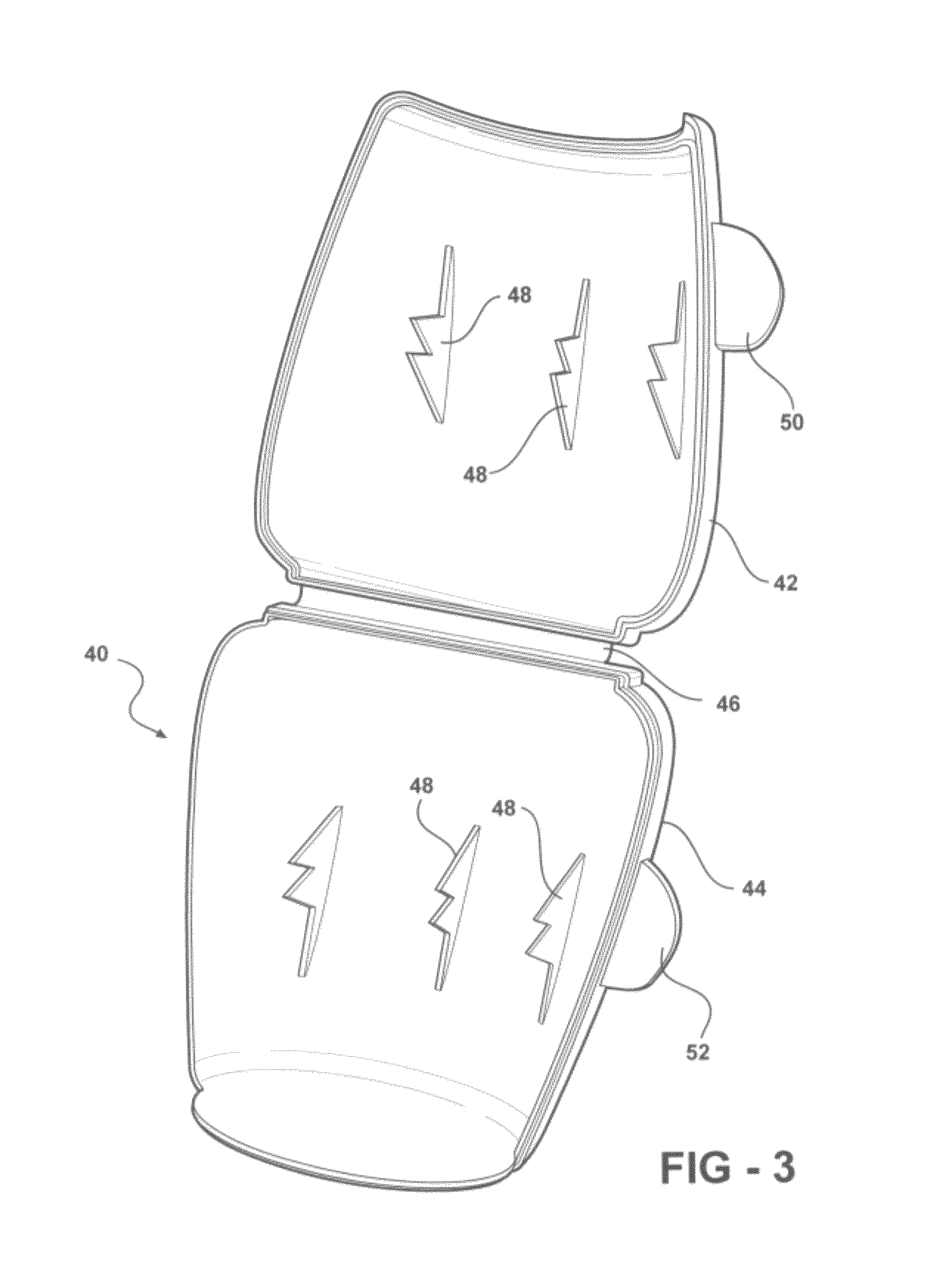

US-8167128-B2 fig 8
8
