Library ／ Cleaning ／ Surface cleaning pad having zoned absorbency and method of making same
Source reports Expired

Surface cleaning pad having zoned absorbency and method of making same

US-7962993-B2

Abstract

A floor cleaning pad is provided having a pad body comprising a cleaning surface configured for contact with a floor to be cleaned and an opposed surface configured to be coupled to a floor cleaning implement. The cleaning surface and the opposed surface defining a thickness of the pad body and superabsorbent polymer particles maintained within a zone of the pad body, and the zone of the superabsorbent polymer particles occupying a portion of the thickness and an area less than an area of the cleaning surface.

Patent figures（8）

US-7962993-B2 figure 1
1
US-7962993-B2 figure 2
2
US-7962993-B2 figure 3
3

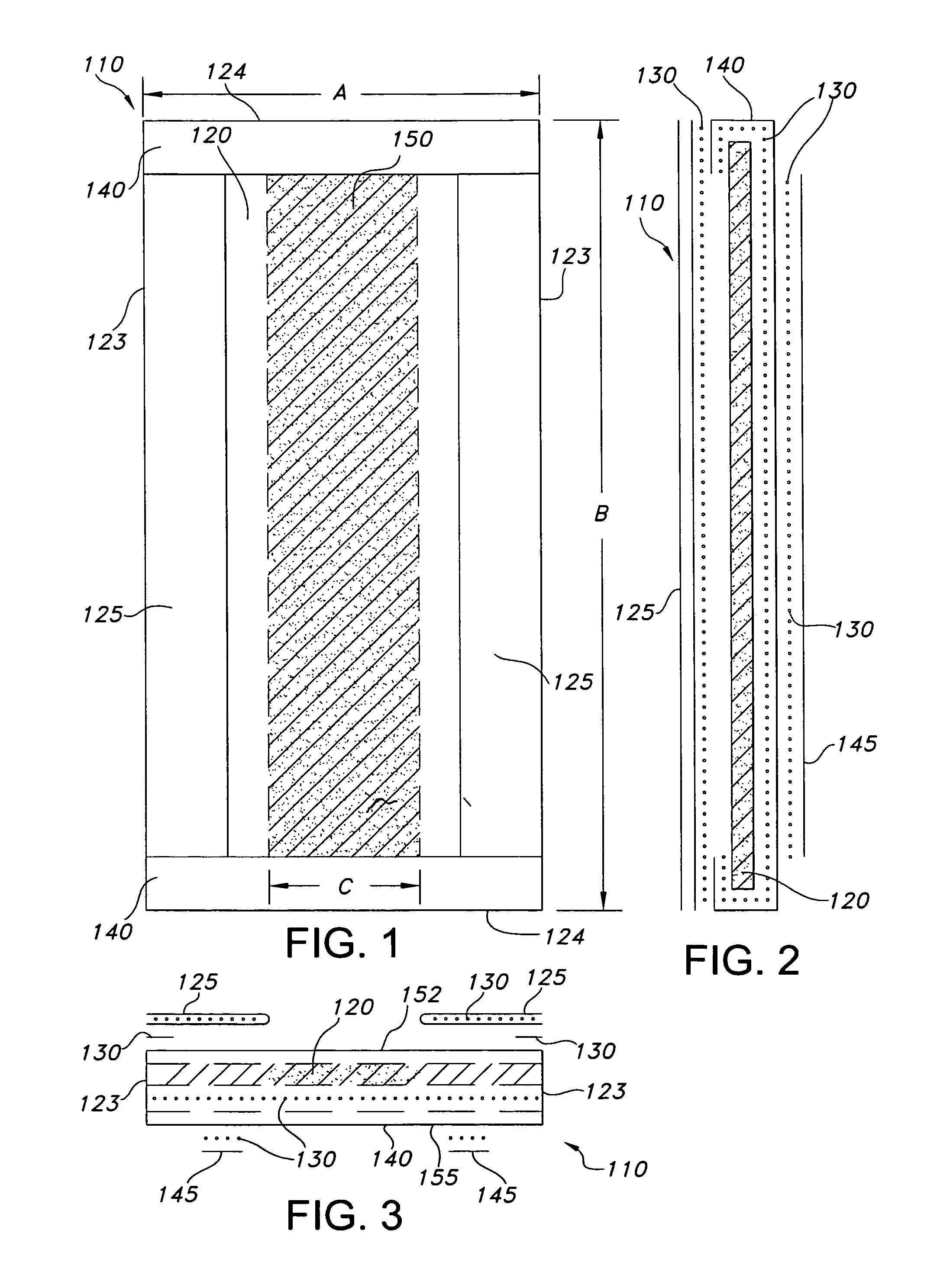

US-7962993-B2 figure 4
4
US-7962993-B2 figure 5
5

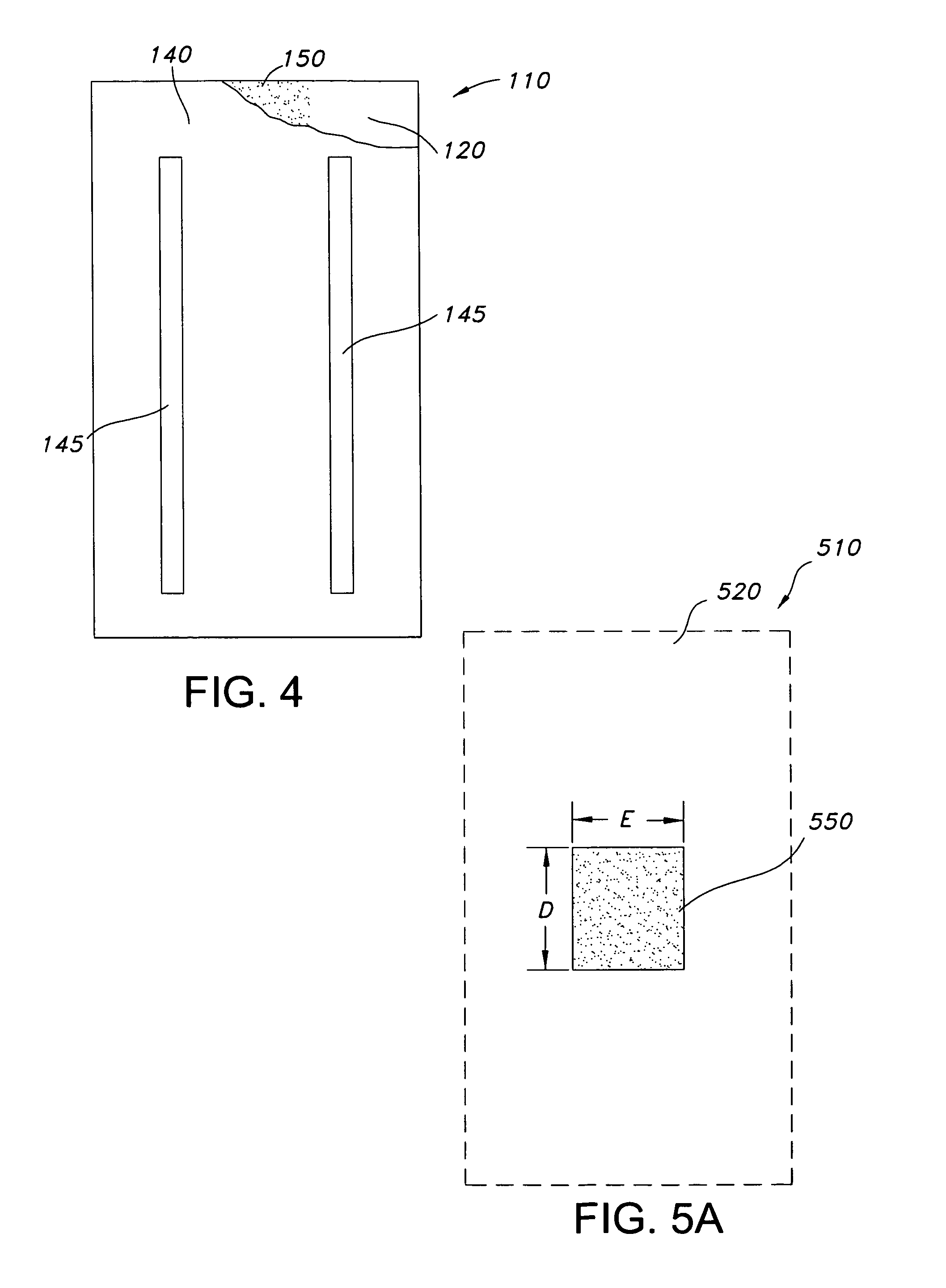

US-7962993-B2 figure 6
6
US-7962993-B2 figure 7
7

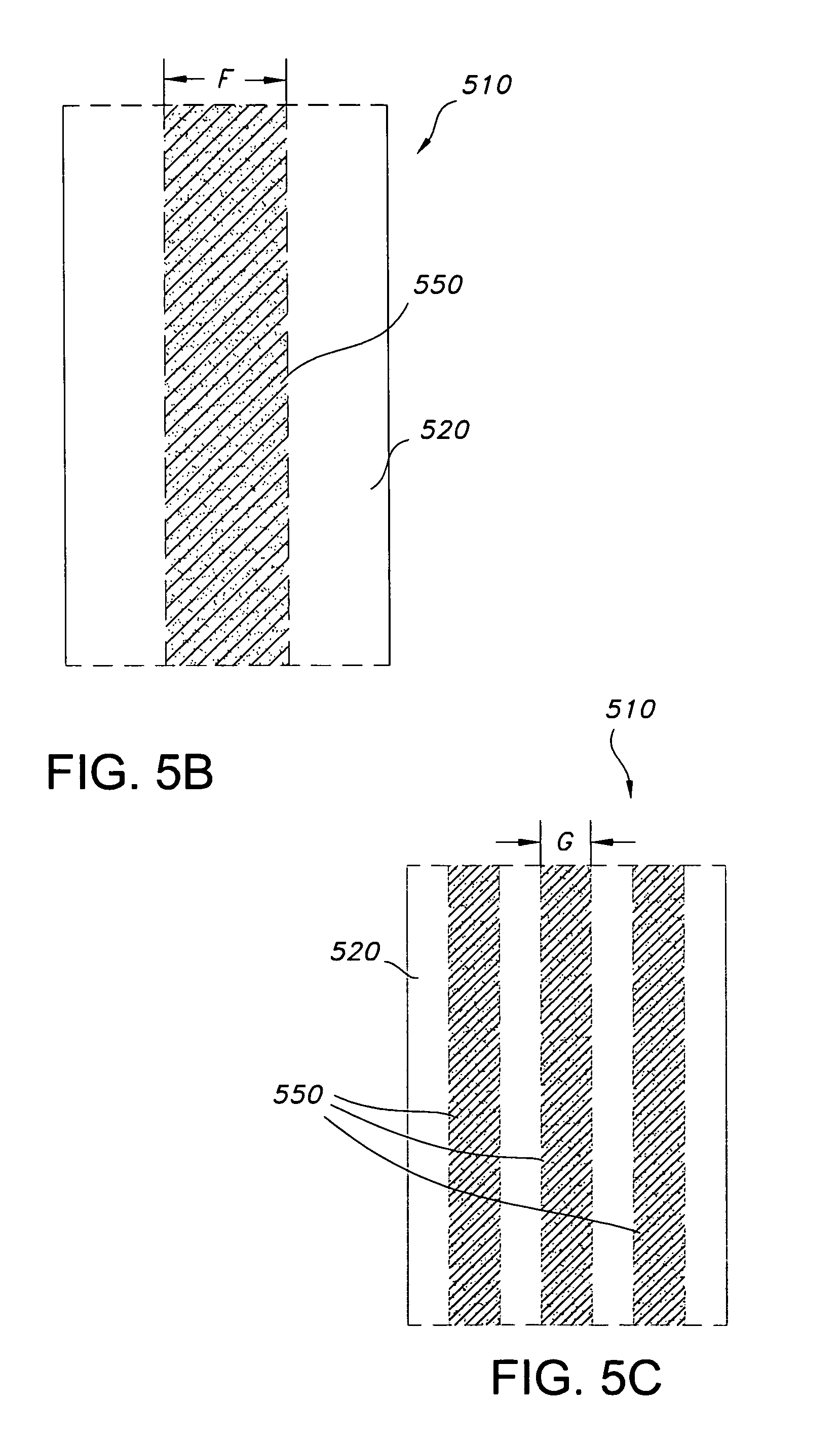

US-7962993-B2 figure 8
8

Source status & events

No source-status events are recorded.
