Library ／ Bags & Storage ／ Device and method for packaging and merchandising personal healthcare products
Public domain · Fee lapsed

Device and method for packaging and merchandising personal healthcare products

US-7942279-B2

Abstract

The invention provides a device and method for packaging and merchandising personal healthcare products. A first aspect of the invention provides a device for storing health care products, comprising: a plurality of product containers, each product container including: a body; a dispensing portion; and an attachment feature; and a housing including a mating feature adapted to be compatible with the attachment feature of each of the plurality of product containers, wherein connection of the attachment feature of a product container and the mating feature of the housing substantially and non-fixedly secures the product container to the housing.

Patent figures（8）

US-7942279-B2 fig 1
1

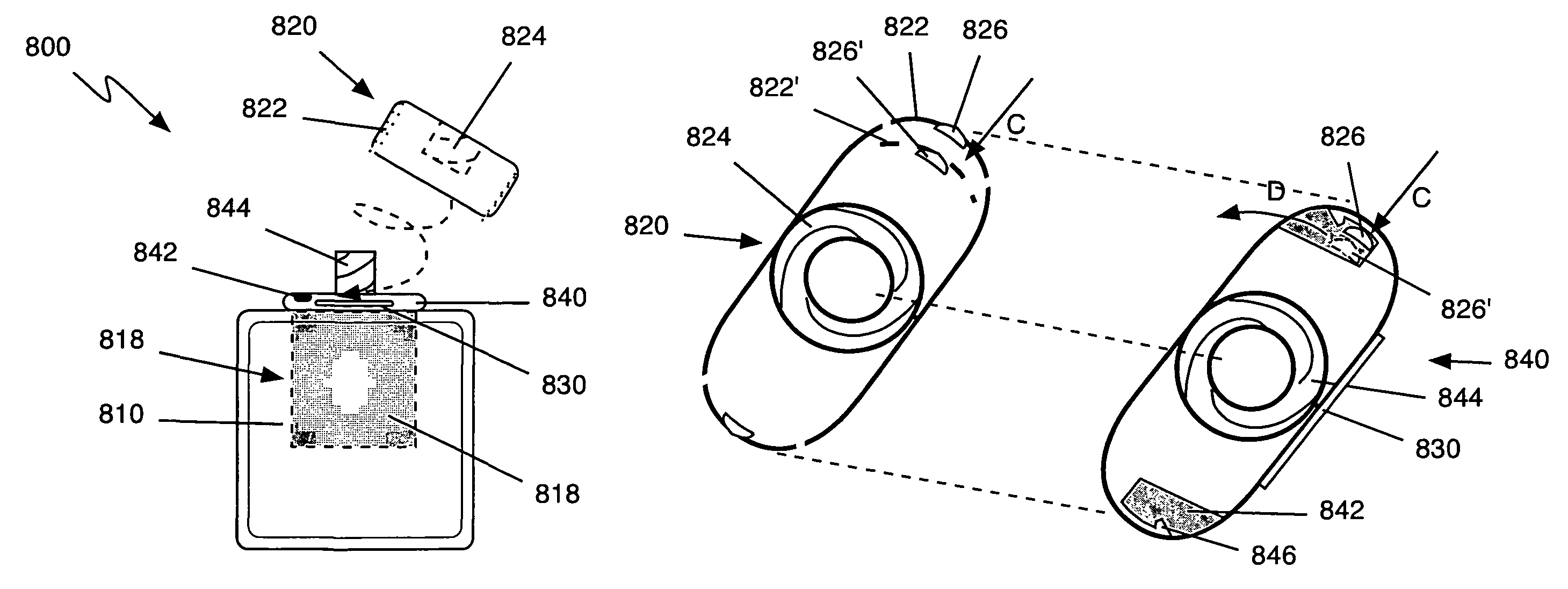

US-7942279-B2 fig 2
2
US-7942279-B2 fig 3
3

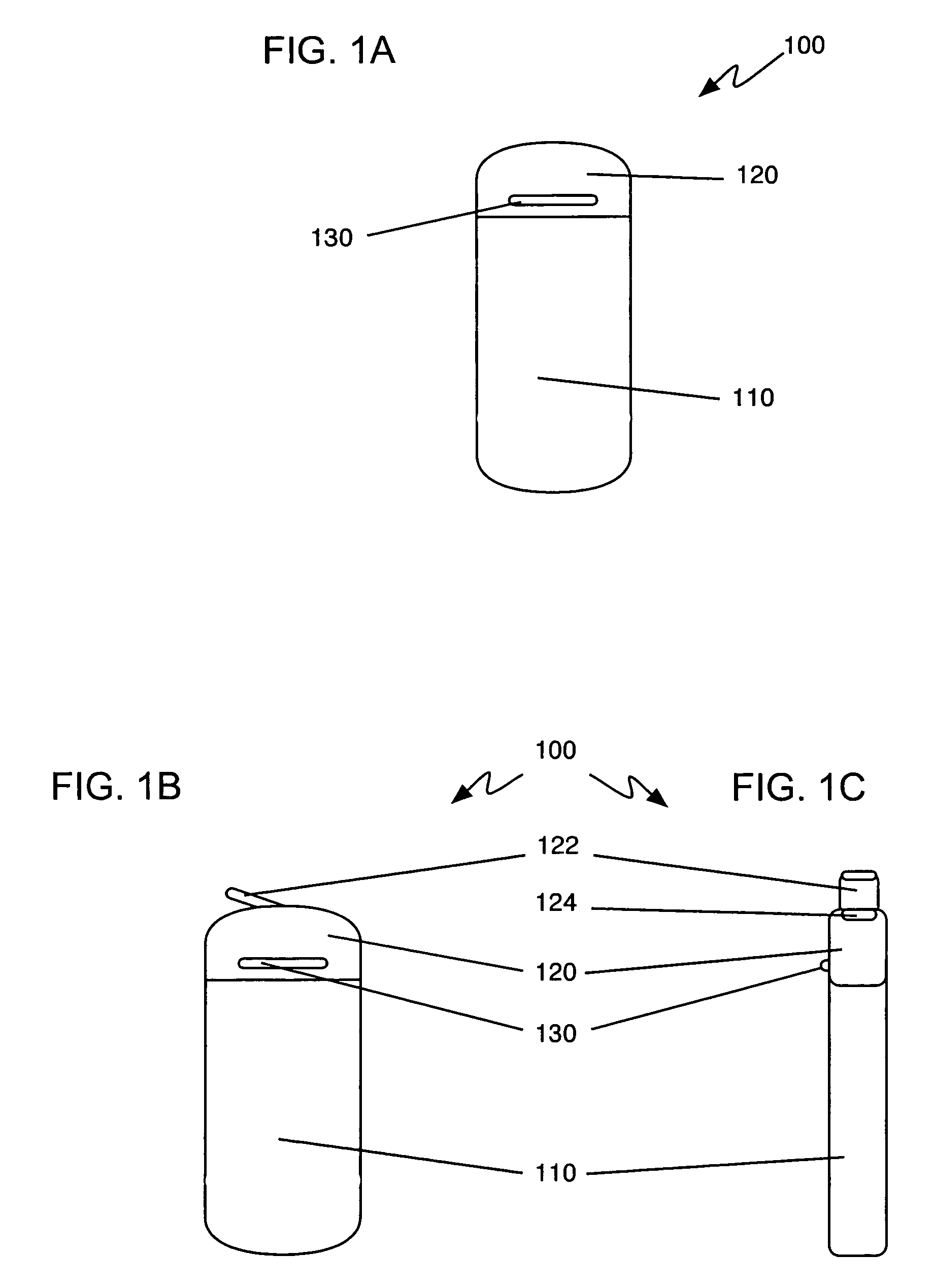

US-7942279-B2 fig 4
4
US-7942279-B2 fig 5
5

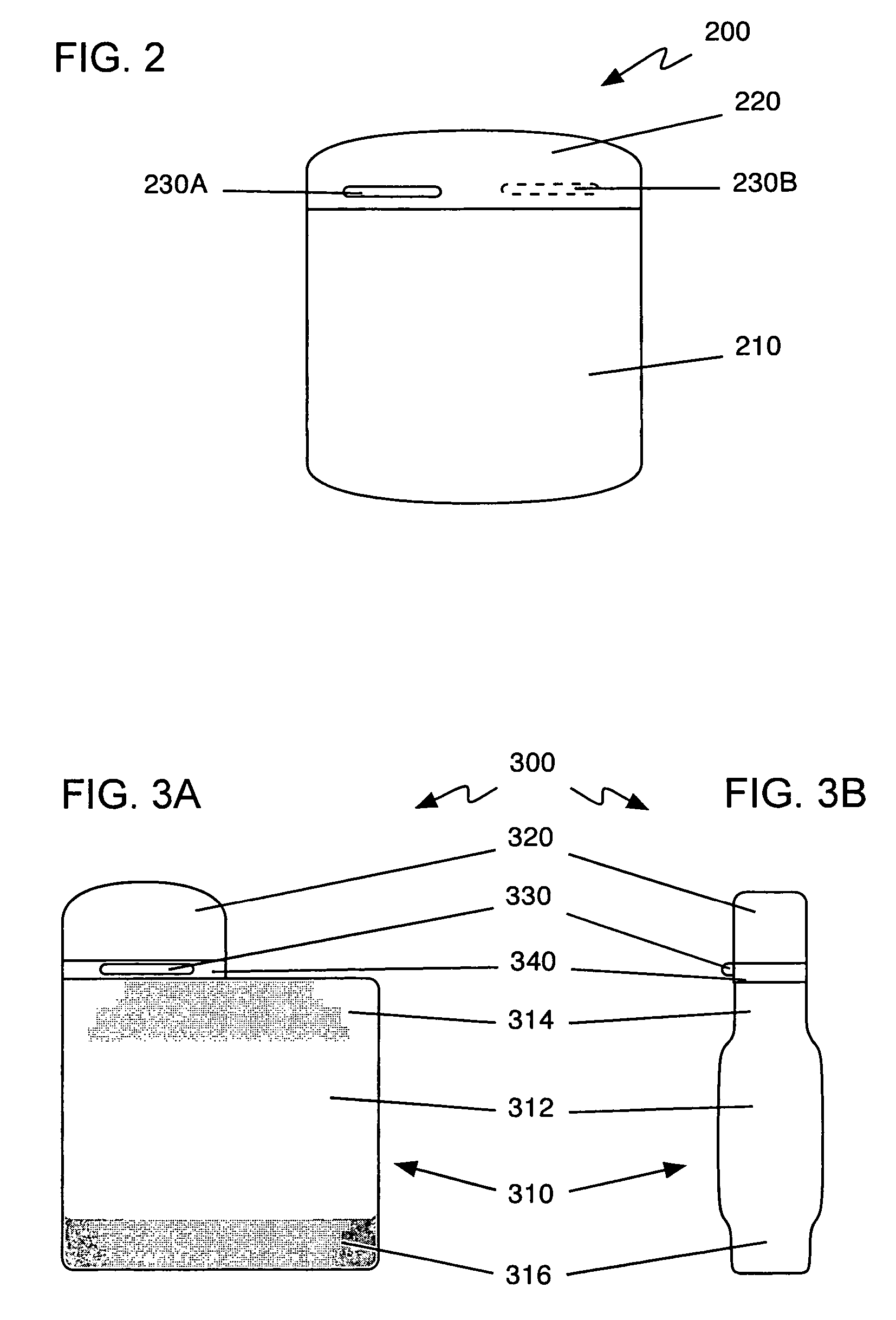

US-7942279-B2 fig 6
6
US-7942279-B2 fig 7
7

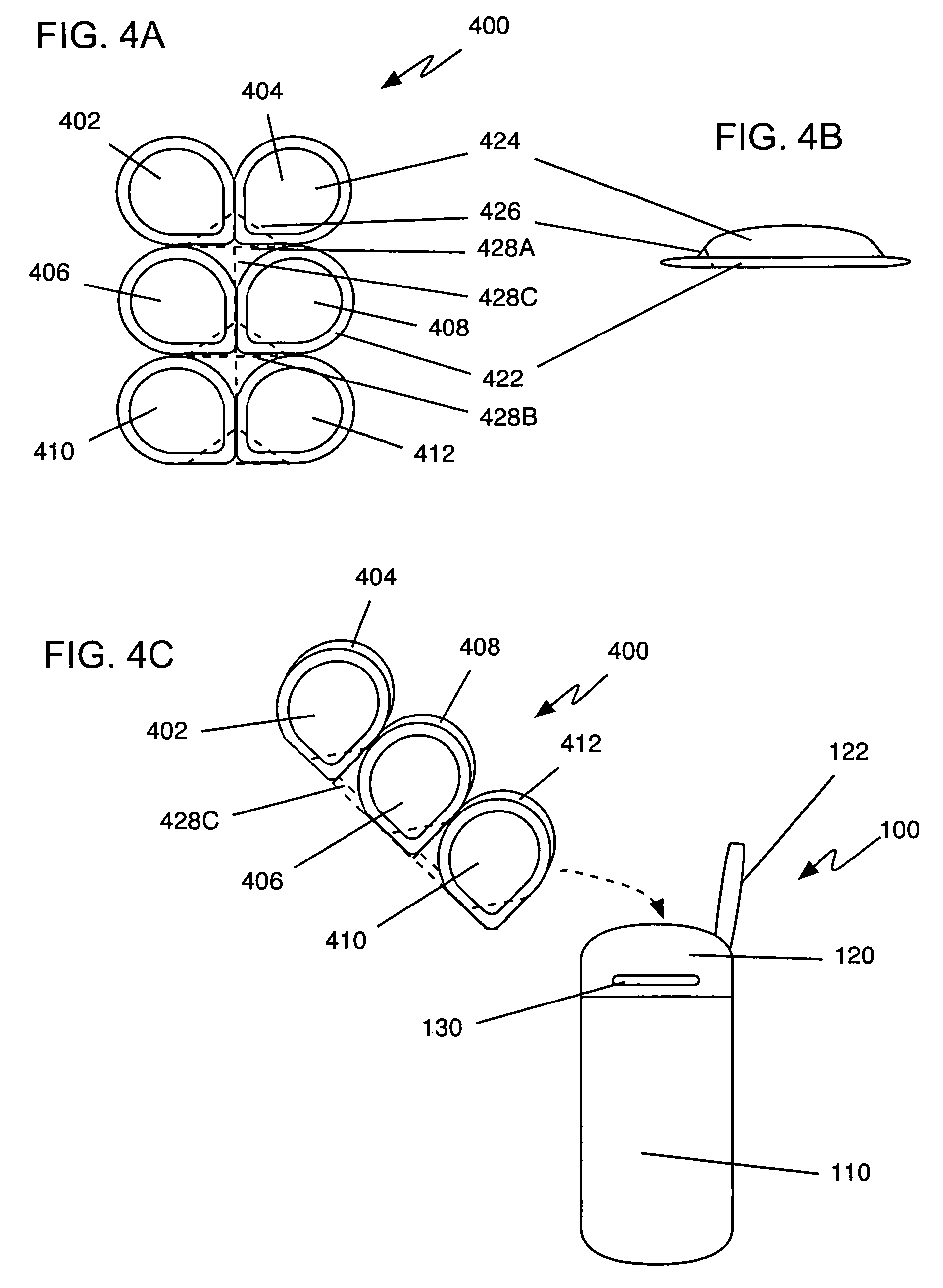

US-7942279-B2 fig 8
8

Legal status & events

No legal-status events available.
