Vertical laundry module with backsplash

US-7562543-B2

Abstract

A laundry system comprises a laundry appliance and a vertical laundry module. The vertical laundry module comprises a backsplash that complements a backsplash on the laundry appliance and has an effective upper surface that is located at substantially the same height as an effective upper surface of the laundry appliance. The backsplash can further comprise a function element that can be a laundry care function or a non-laundry care function.

Patent figures（8）

US-7562543-B2 figure 1
1
US-7562543-B2 figure 2
2
US-7562543-B2 figure 3
3

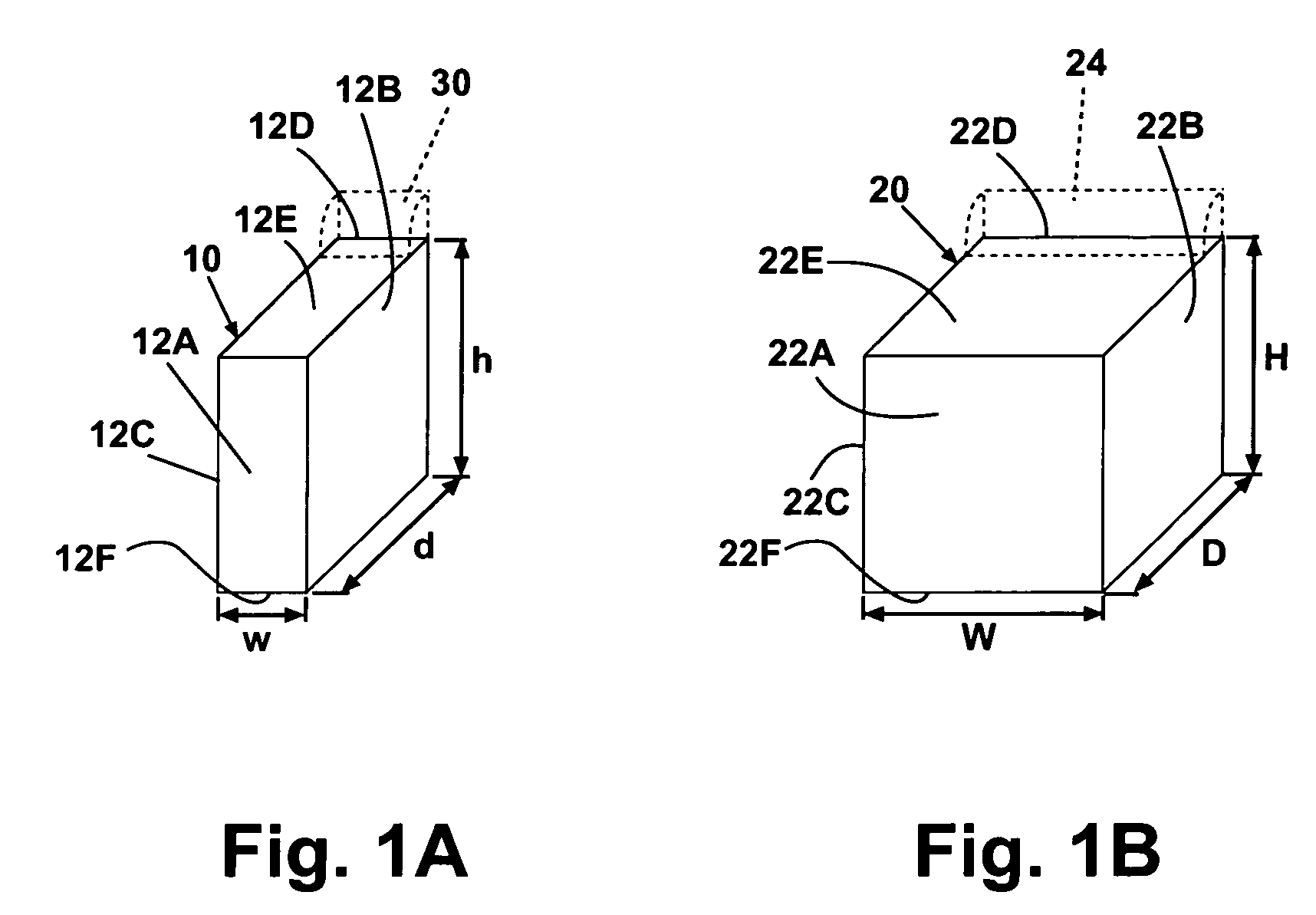

US-7562543-B2 figure 4
4
US-7562543-B2 figure 5
5

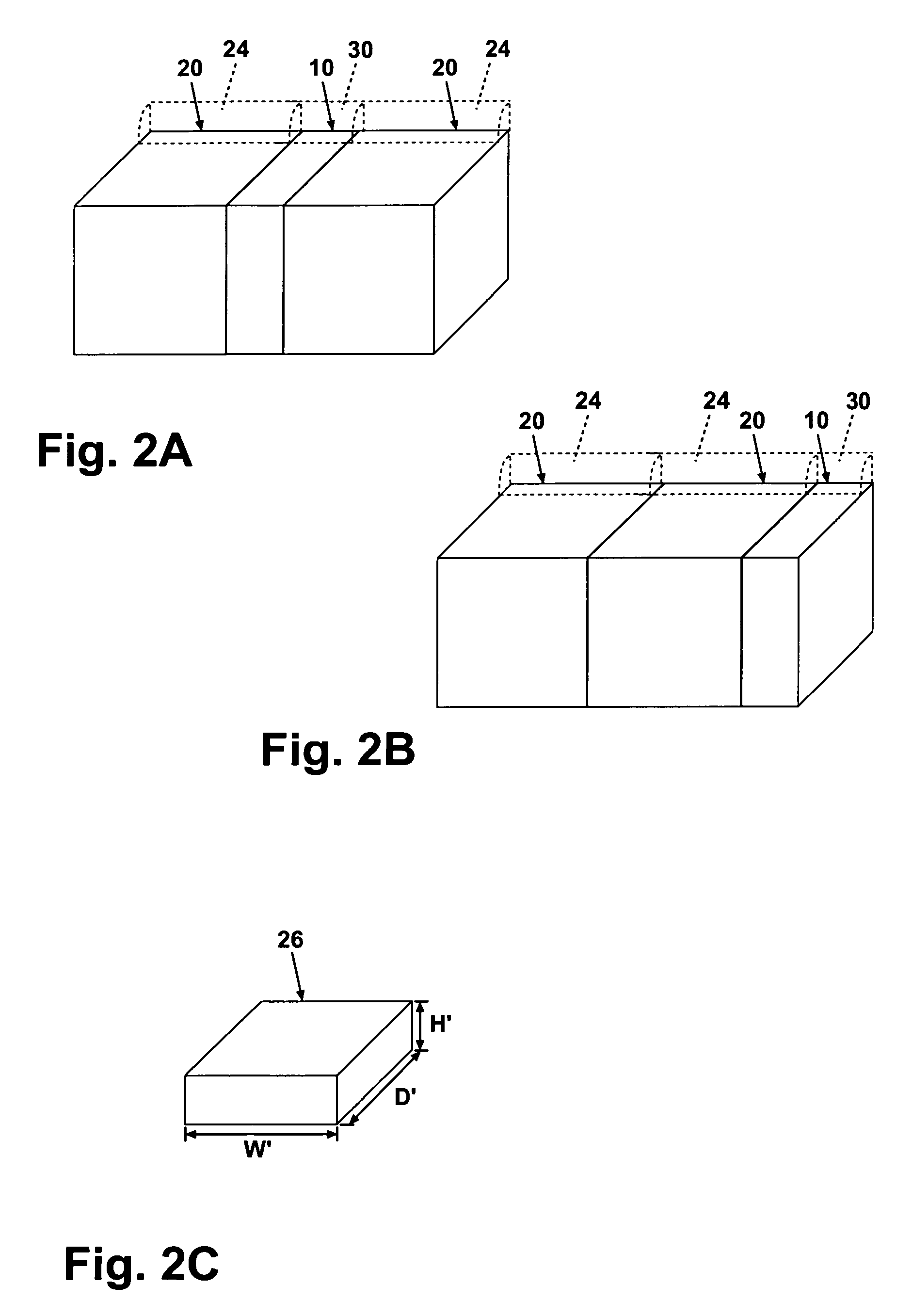

US-7562543-B2 figure 6
6
US-7562543-B2 figure 7
7

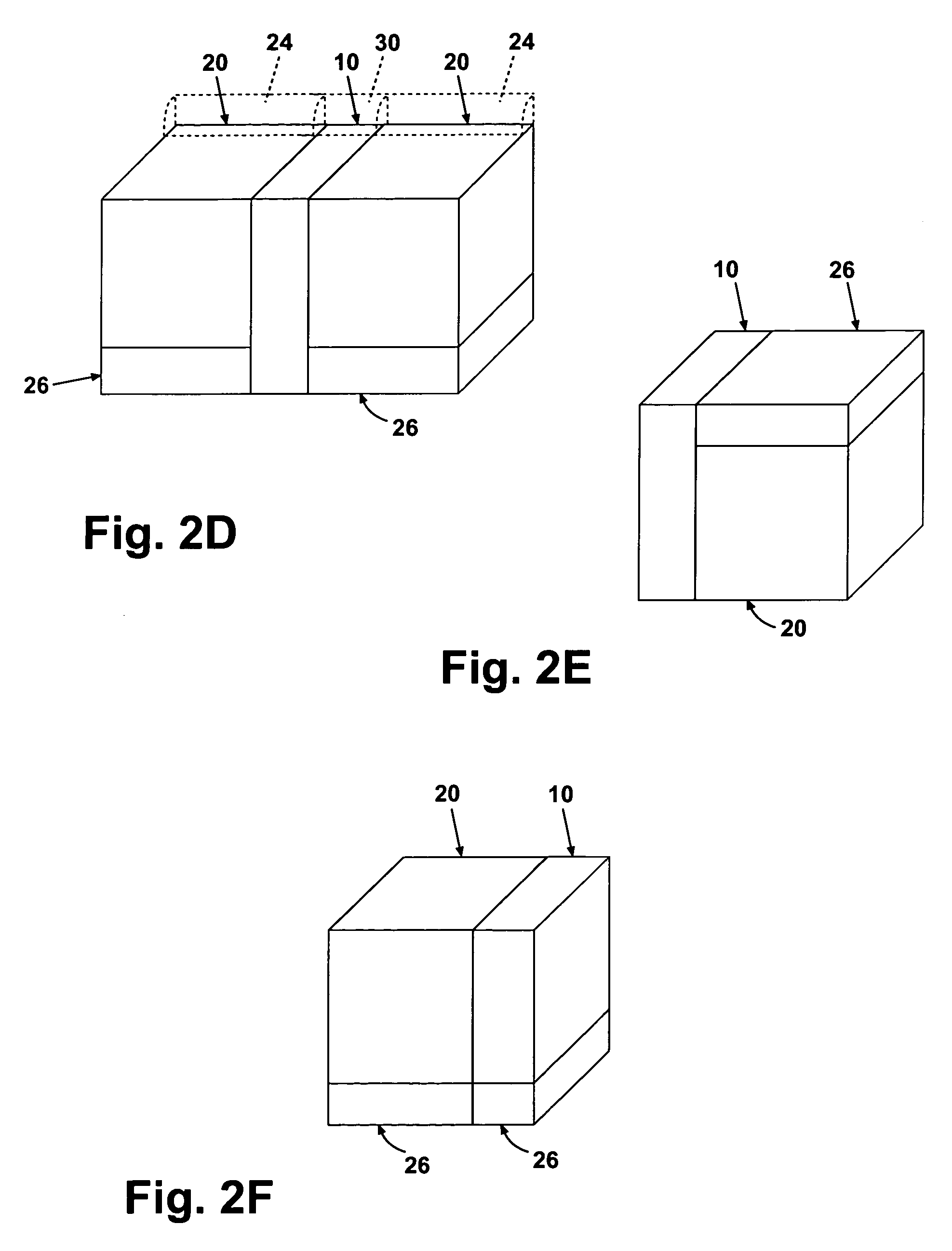

US-7562543-B2 figure 8
8
