Modular outdoor kitchen

US-8511293-B2

Abstract

A modular outdoor kitchen comprises a plurality of weather-resistant outdoor kitchen modules. Each module comprises a frame having a plurality of outer faces. The modules are releasably connected together in mating arrangement. A plurality of weather-resistant fascia panels are provided on at least a portion of the pluralities of outer faces of the frames. Each fascia panel includes at least one exterior surface that simulates the appearance of an outdoor building material. The modular outdoor kitchen substantially has the appearance of a built-in outdoor kitchen that is substantially constructed of the outdoor building material when the plurality of outdoor kitchen modules are connected together.

Patent figures（8）

US-8511293-B2 figure 1
1

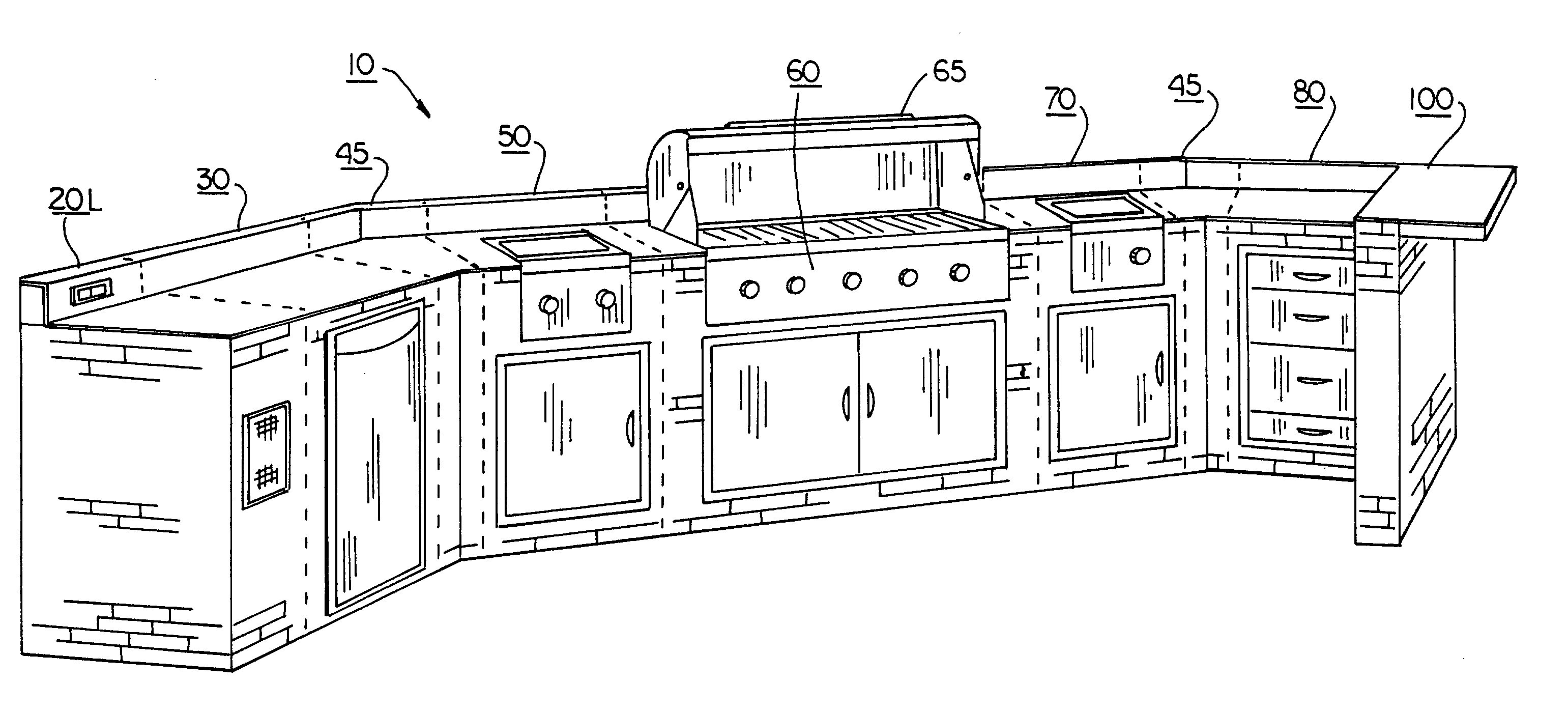

US-8511293-B2 figure 2
2
US-8511293-B2 figure 3
3
US-8511293-B2 figure 4
4
US-8511293-B2 figure 5
5
US-8511293-B2 figure 6
6
US-8511293-B2 figure 7
7
US-8511293-B2 figure 8
8
