Drawer stabilizer and self-closer mechanism

US-7527342-B2

Abstract

A drawer mechanism to moveably couple a drawer to a drawer support structure includes a pair of tracks that can be mounted to opposing inner sides of the drawer support structure. The mechanism further includes a pair of drawer stabilizer assemblies that can be mounted to opposing rear portions of the drawer. Each drawer stabilizer assembly can be moveably coupled with a corresponding track to provide opening and closing of the drawer. Each track includes a first section that is aligned with the direction of movement of the drawer and the second section that is substantially transverse to the direction of movement of the drawer. Each drawer stabilizer assembly includes a coupling mechanism that can couple the drawer stabilizer assembly to the second section of the track when the drawer is closed.

Patent figures（8）

US-7527342-B2 figure 1
1

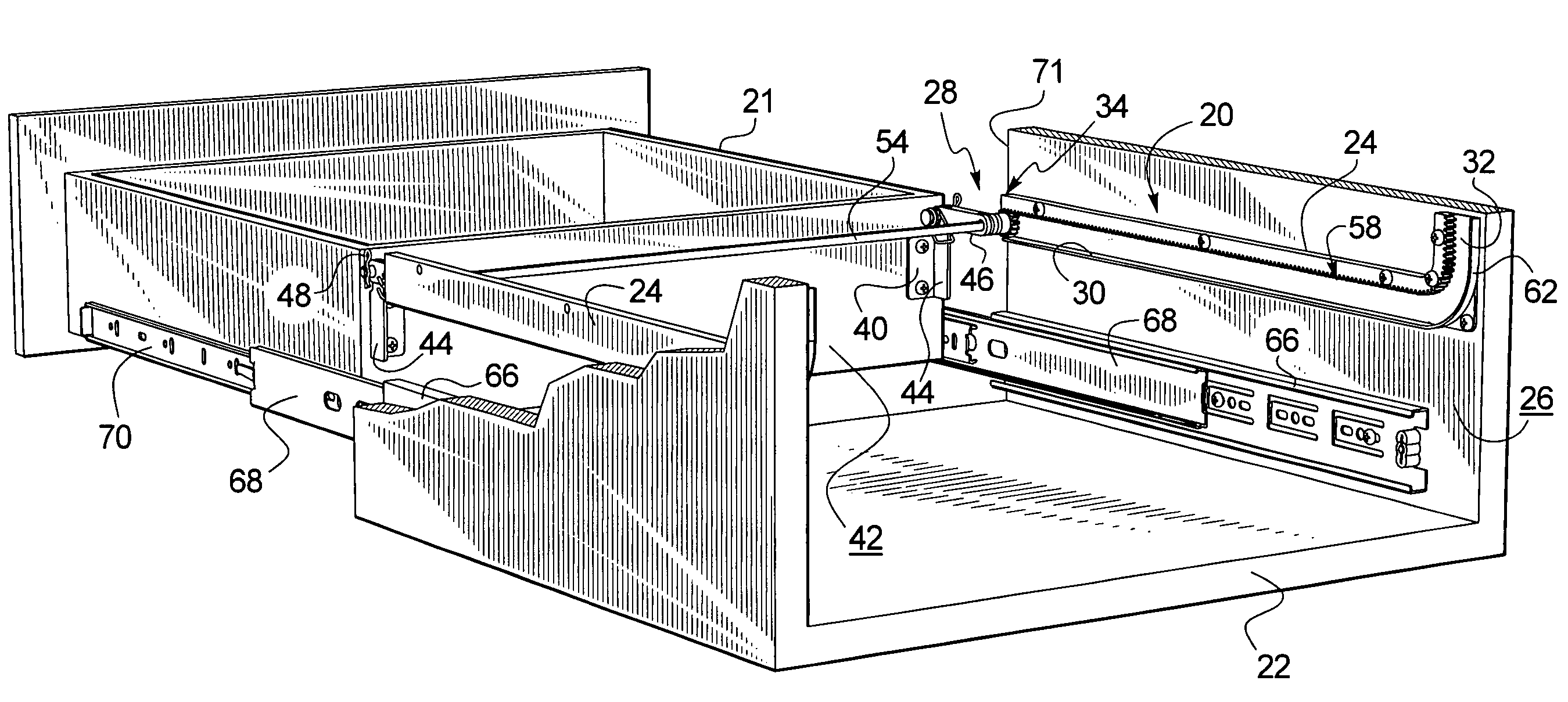

US-7527342-B2 figure 2
2
US-7527342-B2 figure 3
3

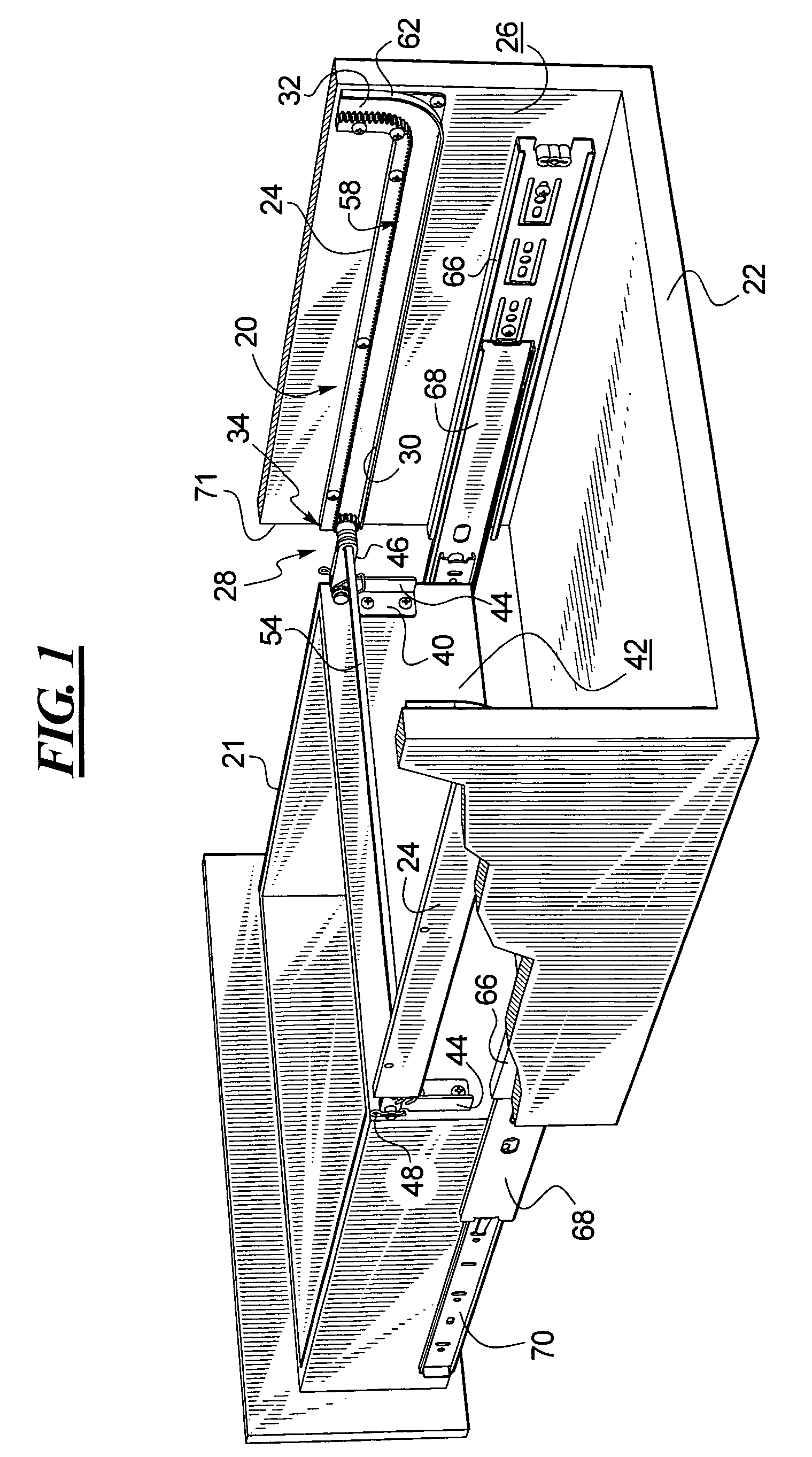

US-7527342-B2 figure 4
4
US-7527342-B2 figure 5
5

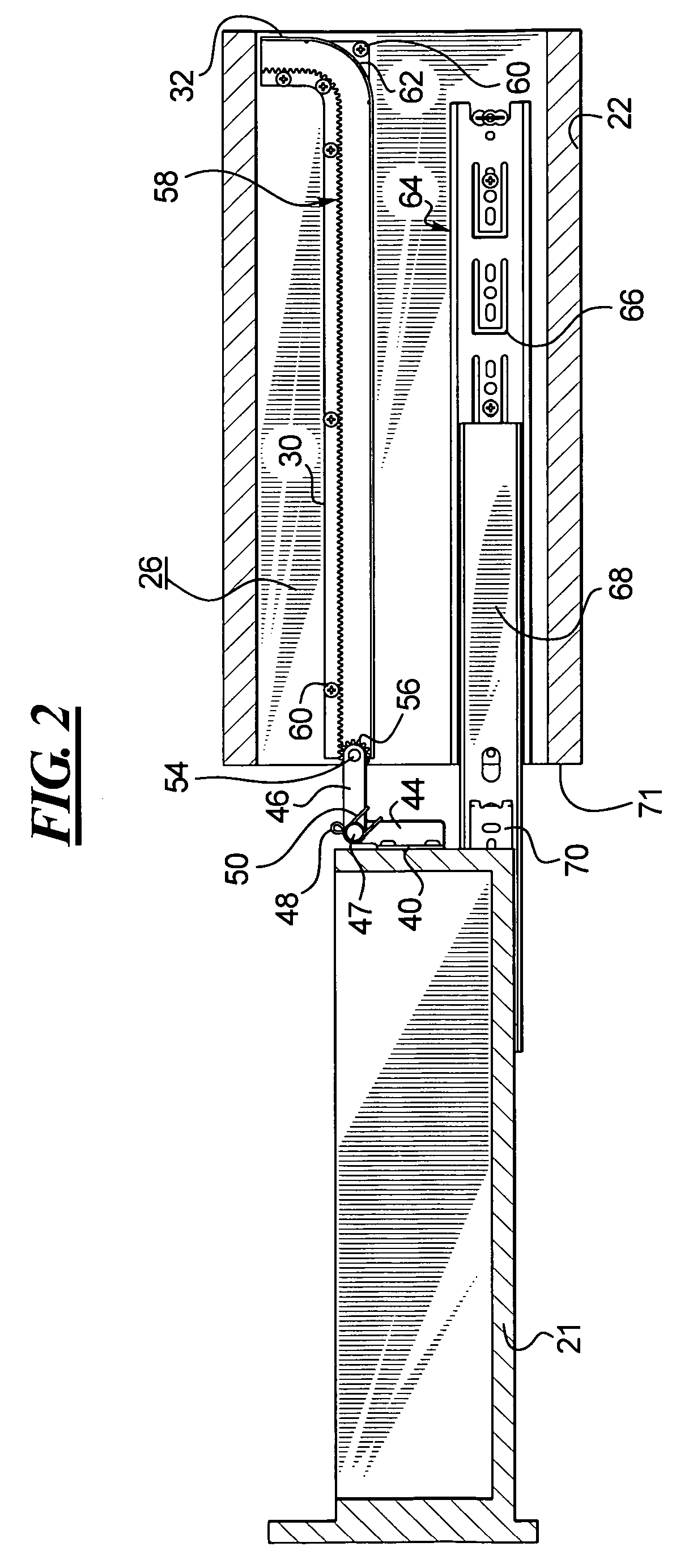

US-7527342-B2 figure 6
6
US-7527342-B2 figure 7
7

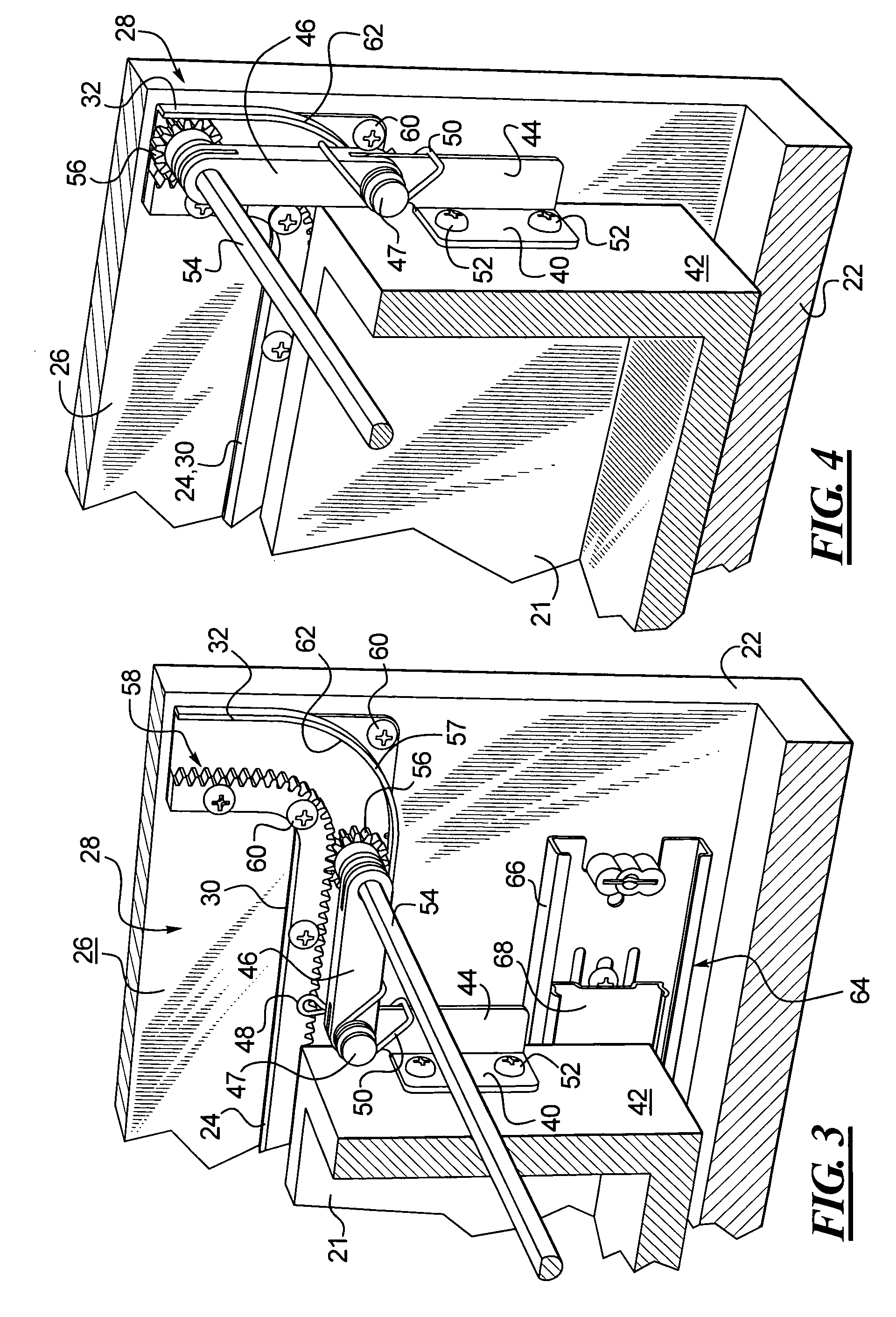

US-7527342-B2 figure 8
8
