Facial hair trimmings catcher

US-7367065-B2

Abstract

A facial hair trimmings catcher useful during personal grooming that is collapsible or otherwise adapted for storing as a smaller unit. The catcher includes a bag comprising a closed bottom, closed side walls and a top and further includes a support member that is attached to the side walls to form a support configuration. The support configuration supports the bag under the face of the user. The support member may include a support strap adapted for passing behind the neck of the user. The catcher may further include one or more hinges attached to a top periphery of the bag so that in the open position the hinge holds the top of the bag open for receiving facial hair trimmings. The bag may be held open by a flexible tension member extending around a top periphery as a frame or disposed as a frame for the side walls.

Patent figures（8）

US-7367065-B2 figure 1
1

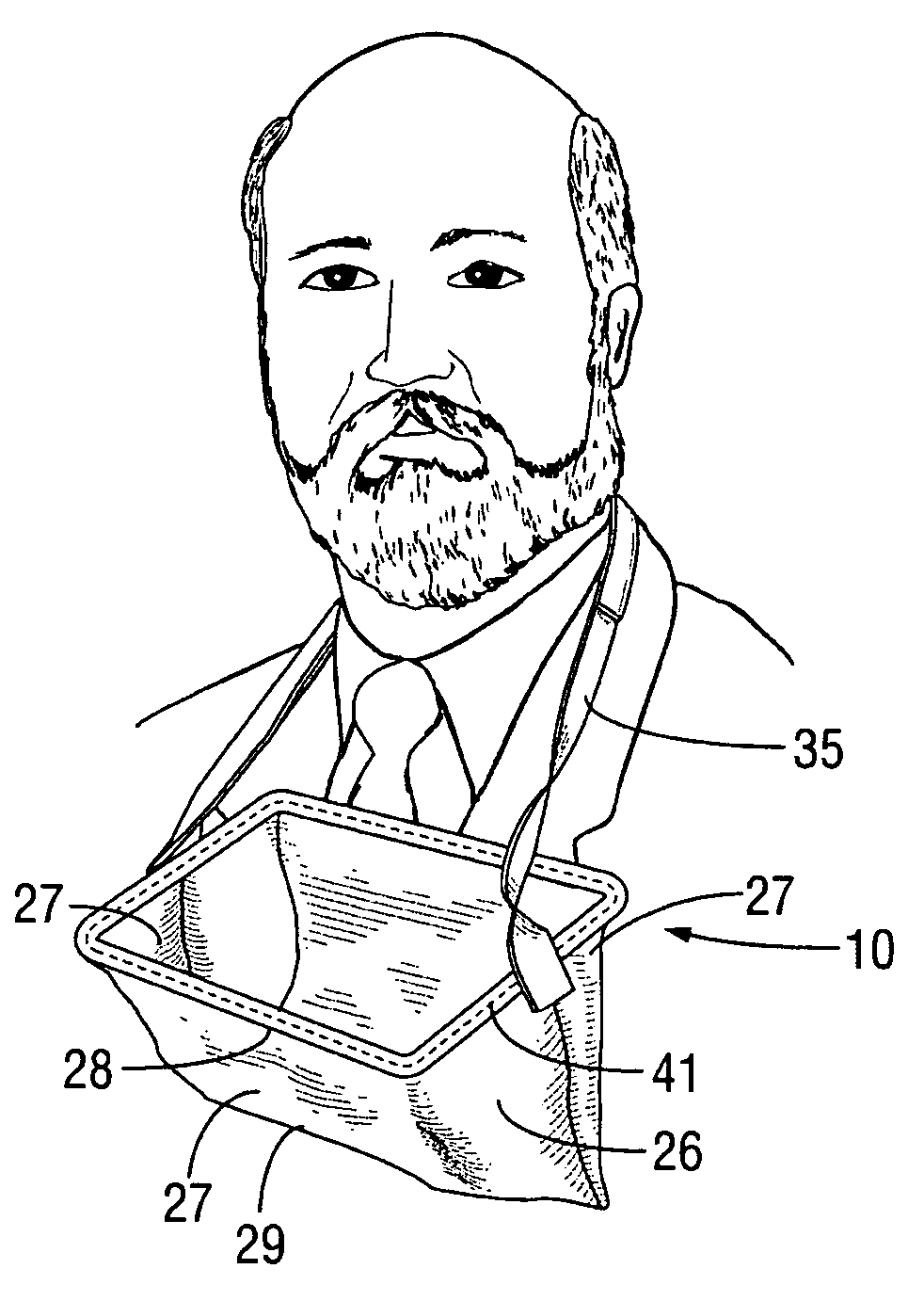

US-7367065-B2 figure 2
2
US-7367065-B2 figure 3
3

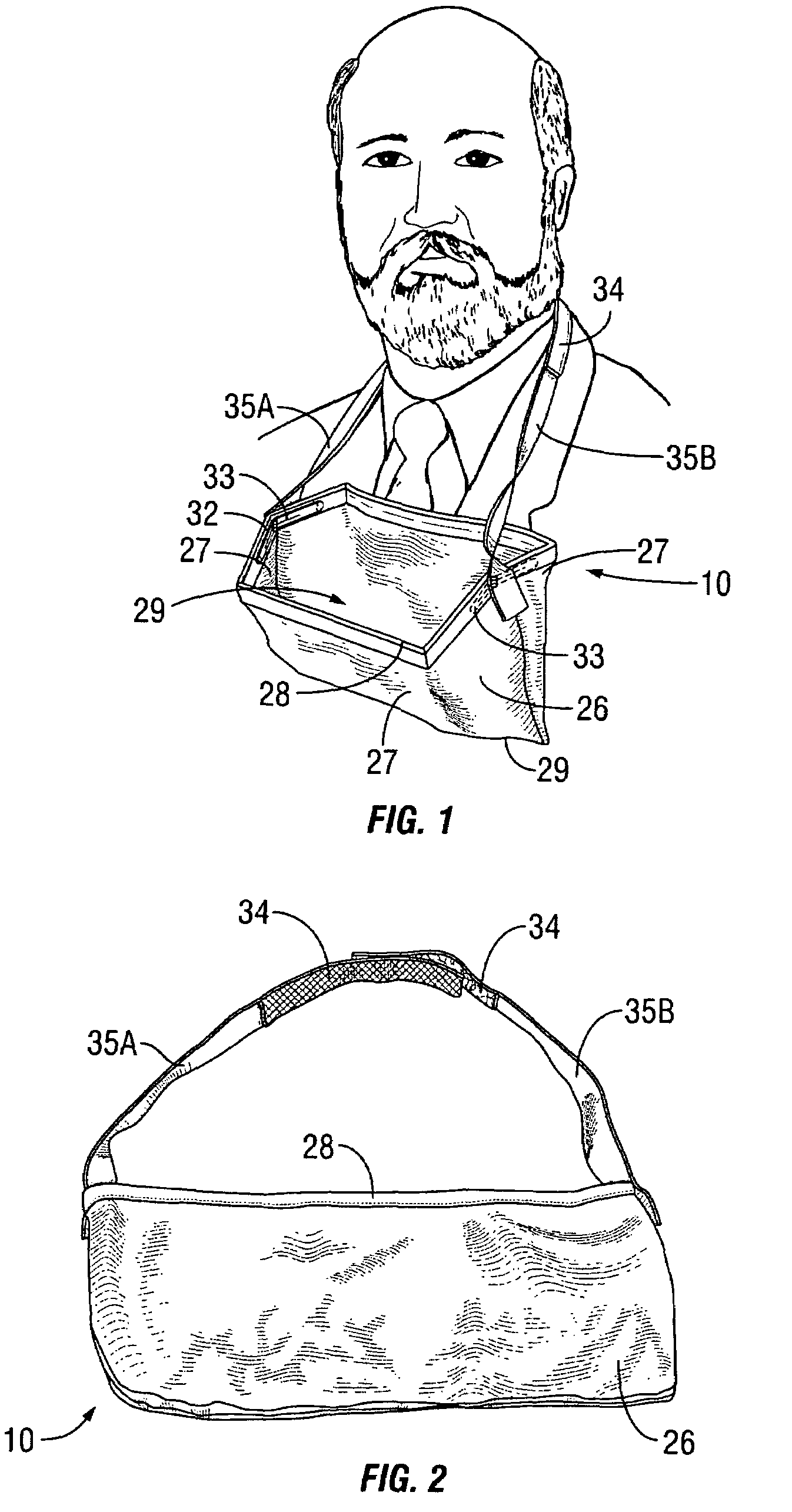

US-7367065-B2 figure 4
4
US-7367065-B2 figure 5
5

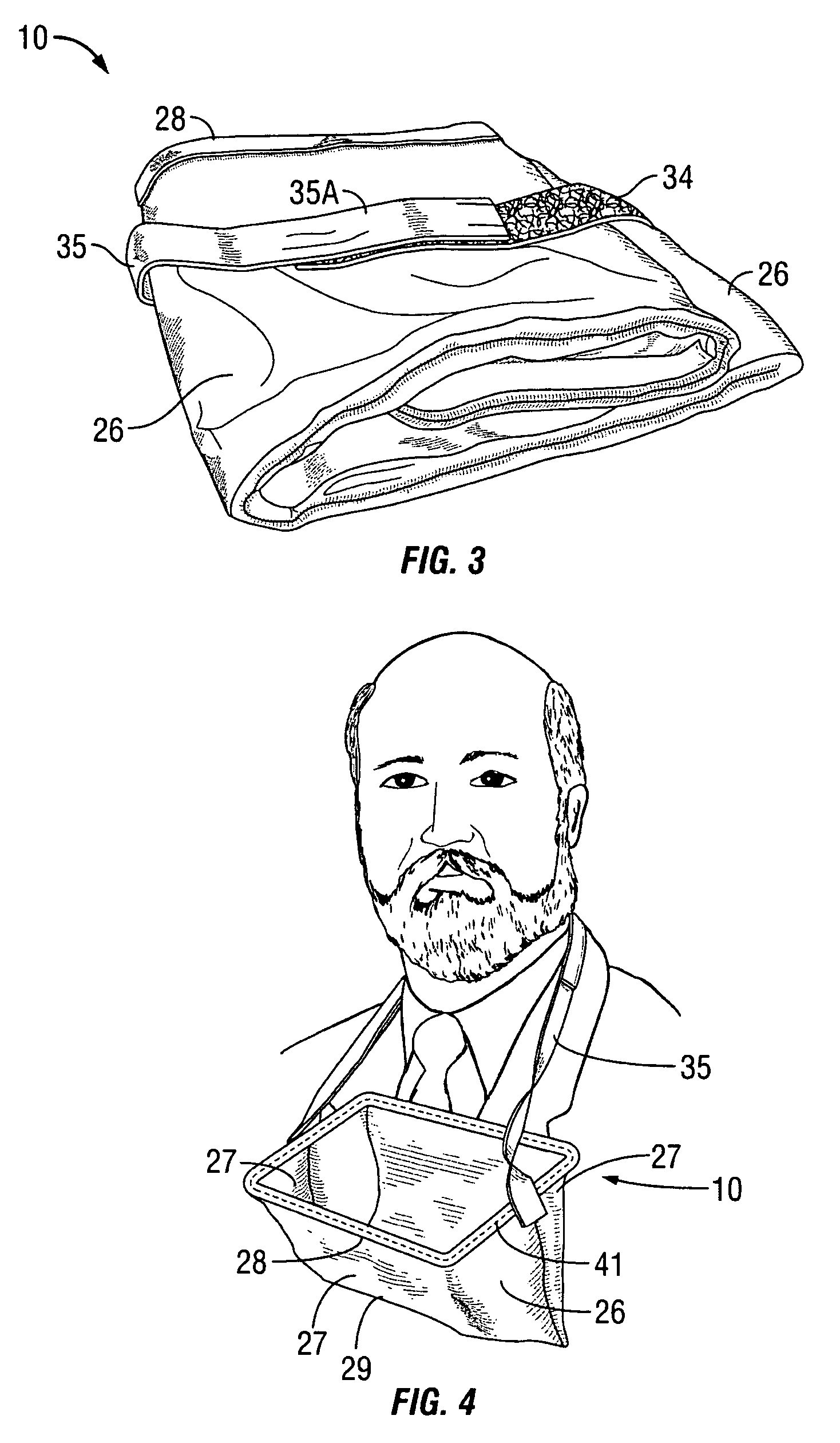

US-7367065-B2 figure 6
6
US-7367065-B2 figure 7
7

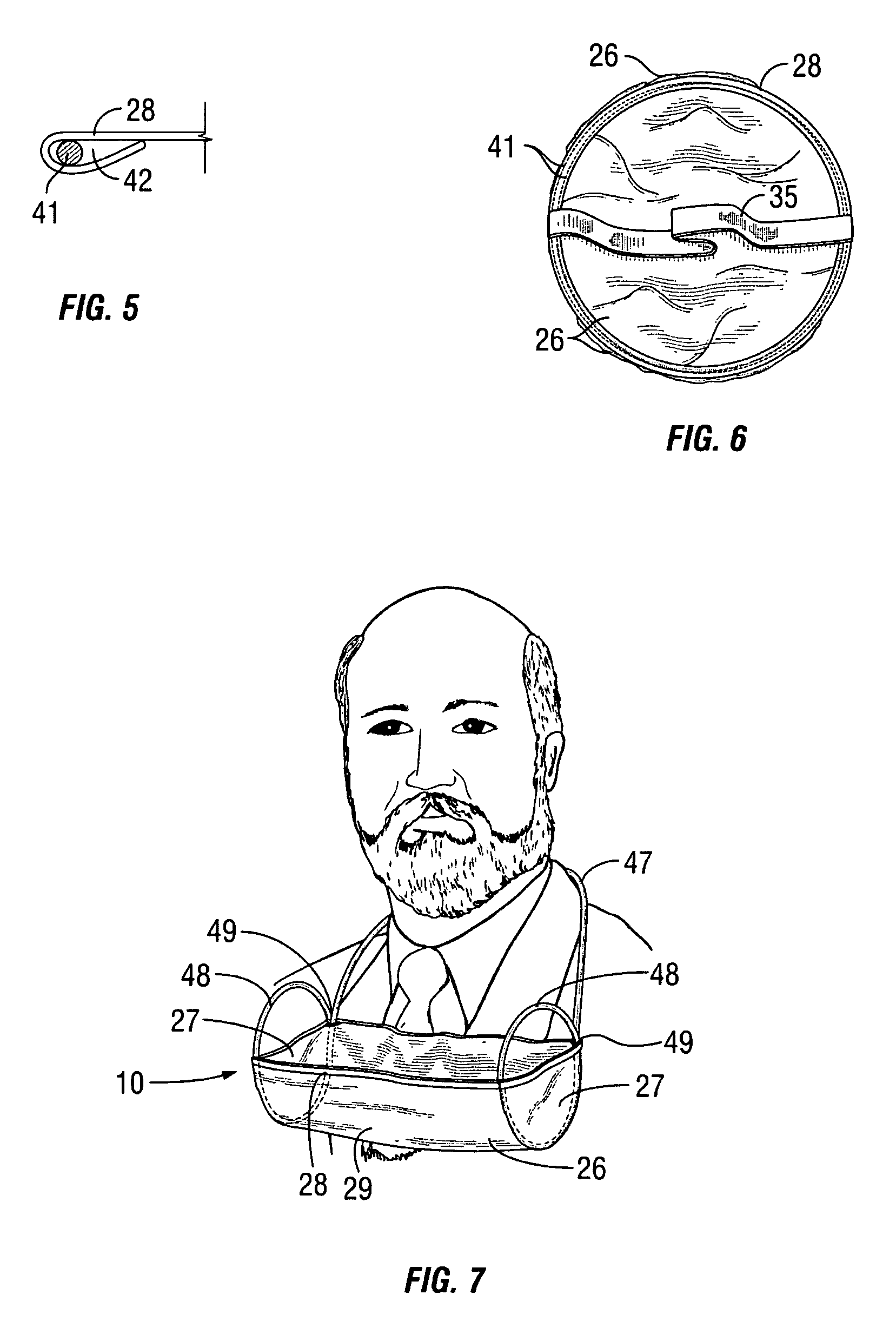

US-7367065-B2 figure 8
8
