Versatile lunch box

US-7334684-B1

Abstract

A versatile lunch box is provided, comprising a rectangular inner box unit with removably mounted compartment dividers within guide slots, an outer fabric cover with a zippered front flap having utensil and napkin holders and an inner pouch, with the outside of the fabric cover having a side pocket and pouch and a handle connected to the top. The versatile lunch box has particular utility in connection with accommodating large food items or multiple food items at different temperatures in a compact design that can easily fit inside a school bag or small office refrigerator.

Patent figures（8）

US-7334684-B1 figure 1
1

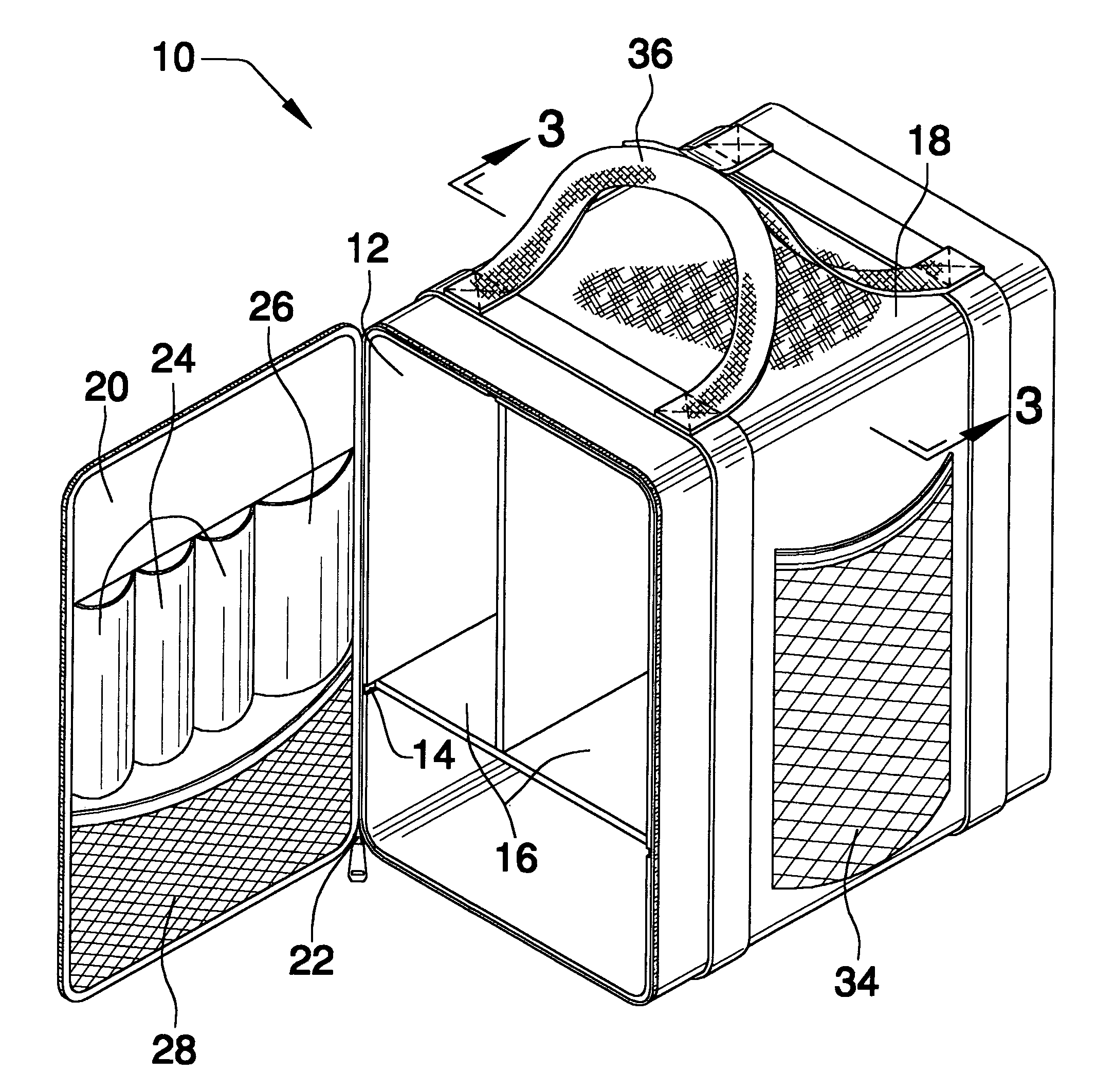

US-7334684-B1 figure 2
2
US-7334684-B1 figure 3
3

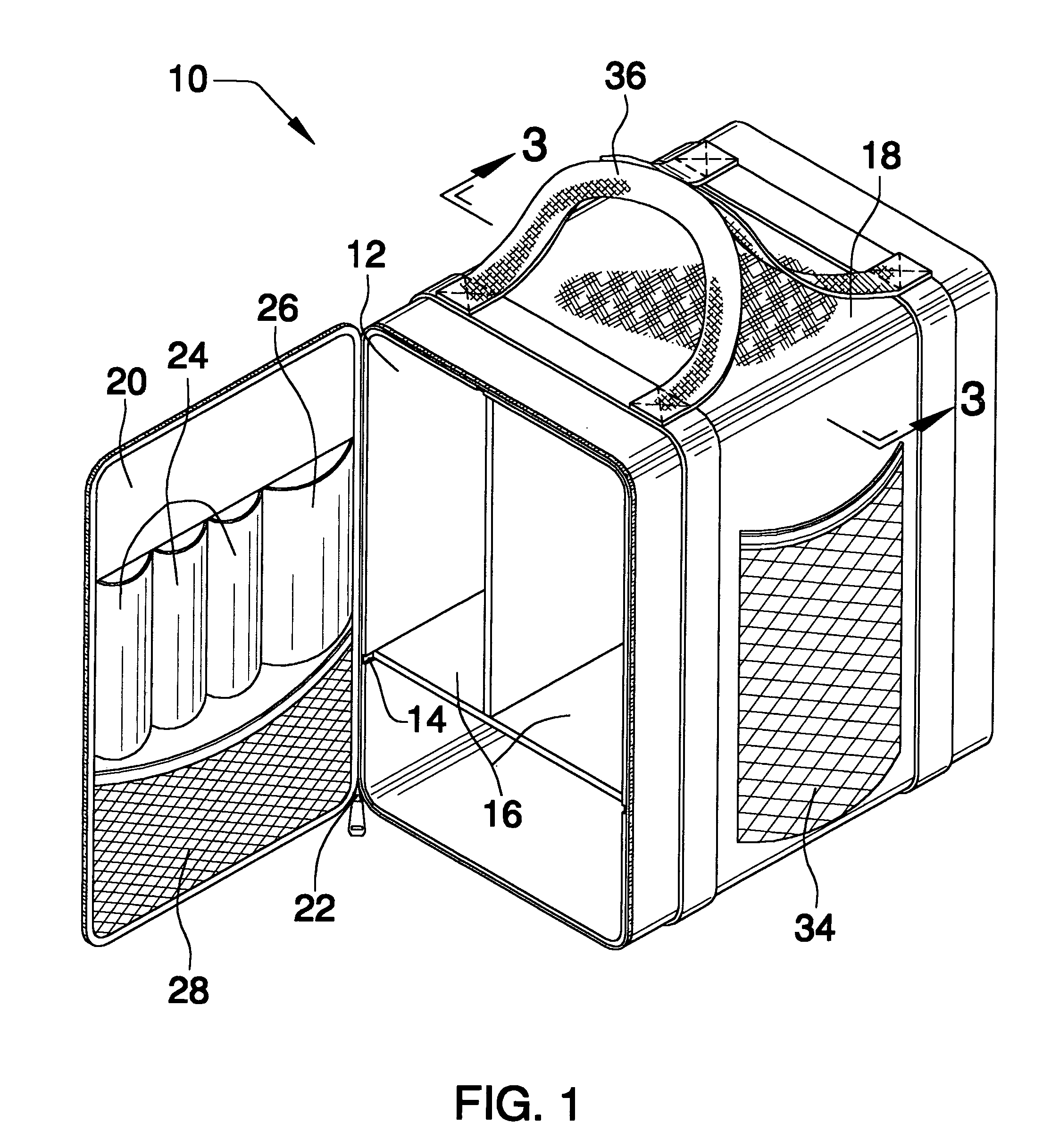

US-7334684-B1 figure 4
4
US-7334684-B1 figure 5
5

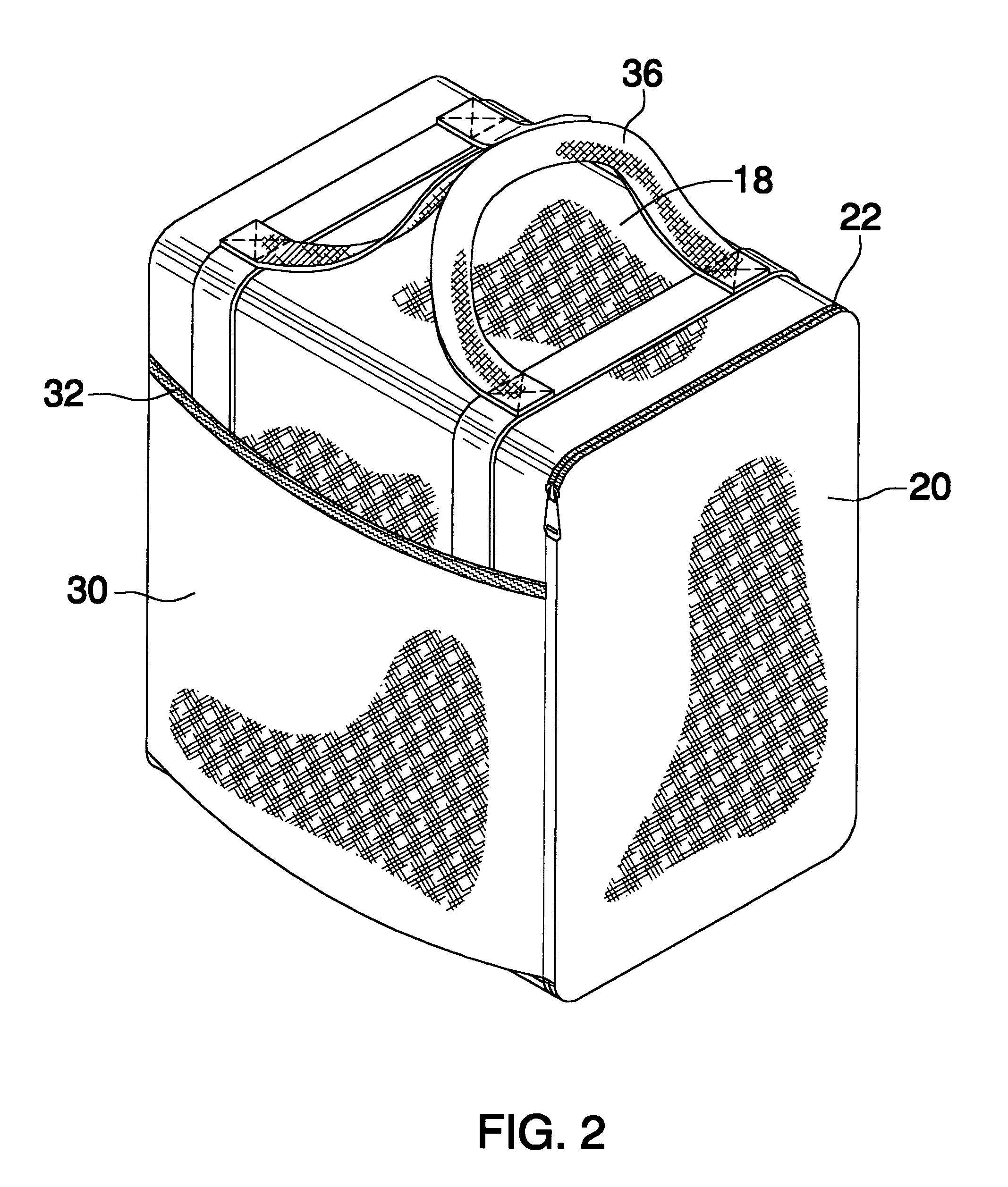

US-7334684-B1 figure 6
6
US-7334684-B1 figure 7
7

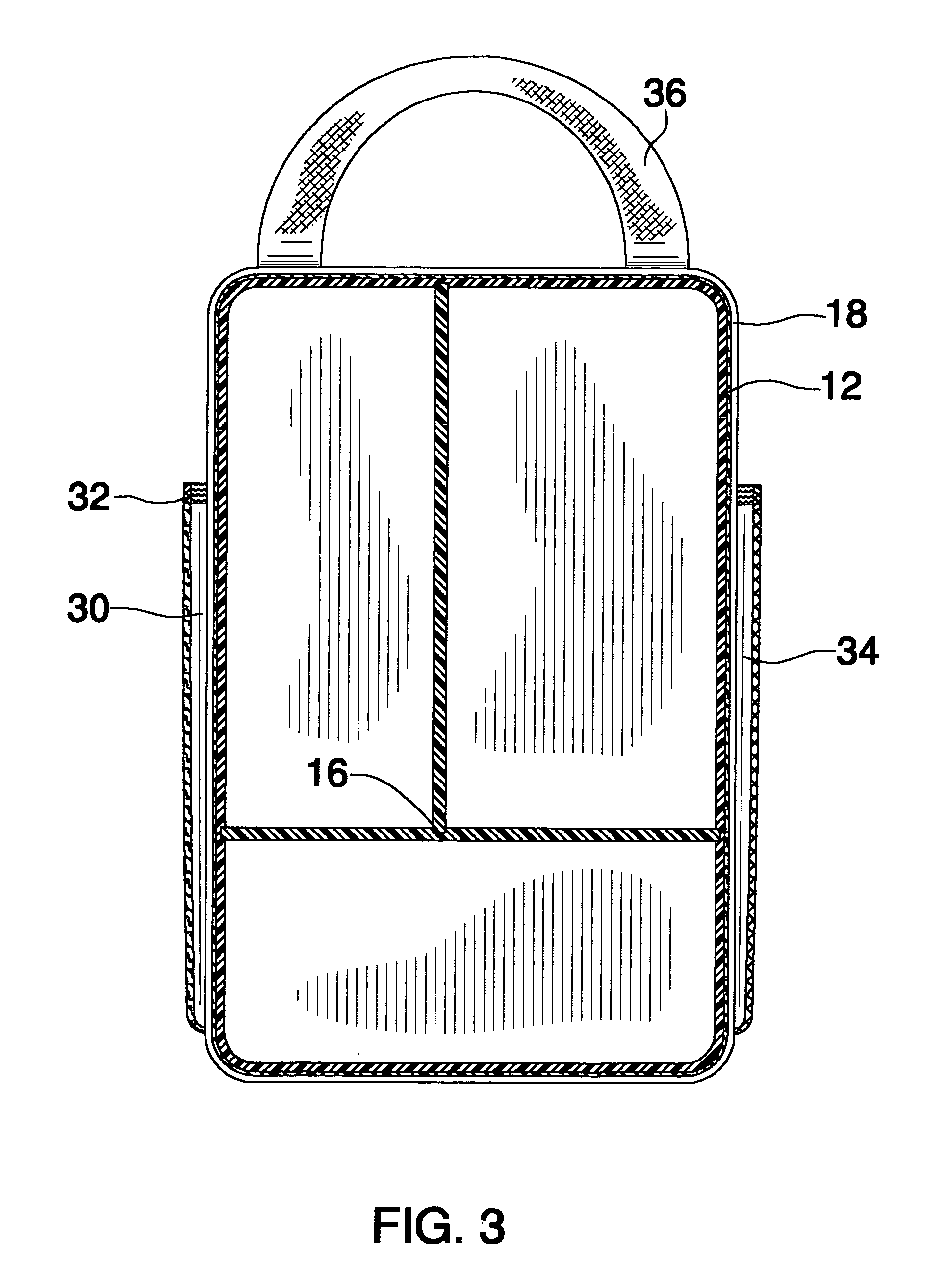

US-7334684-B1 figure 8
8
