Carrying case assembly for a drill and its associated method of use
US-7328795-B1Abstract

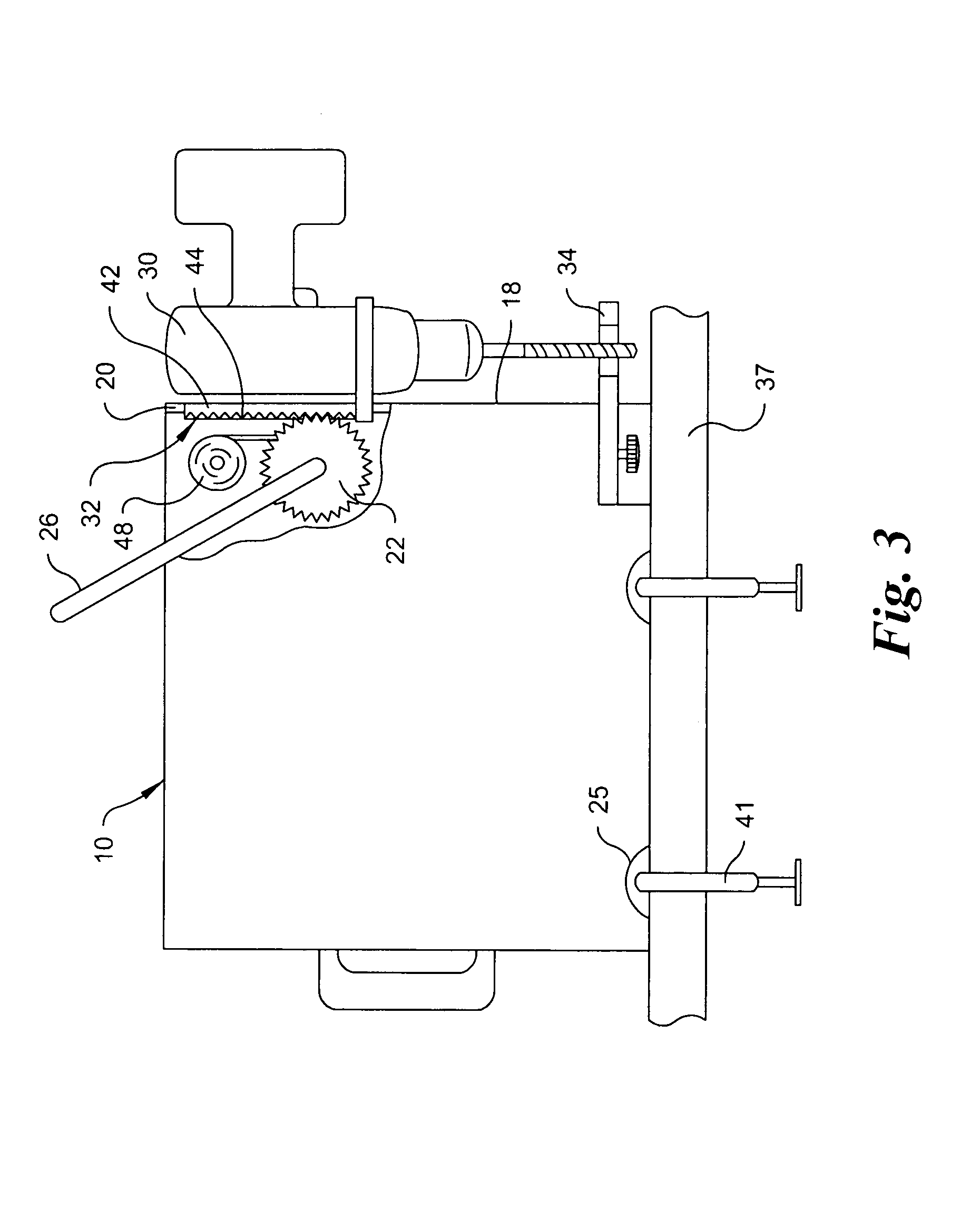

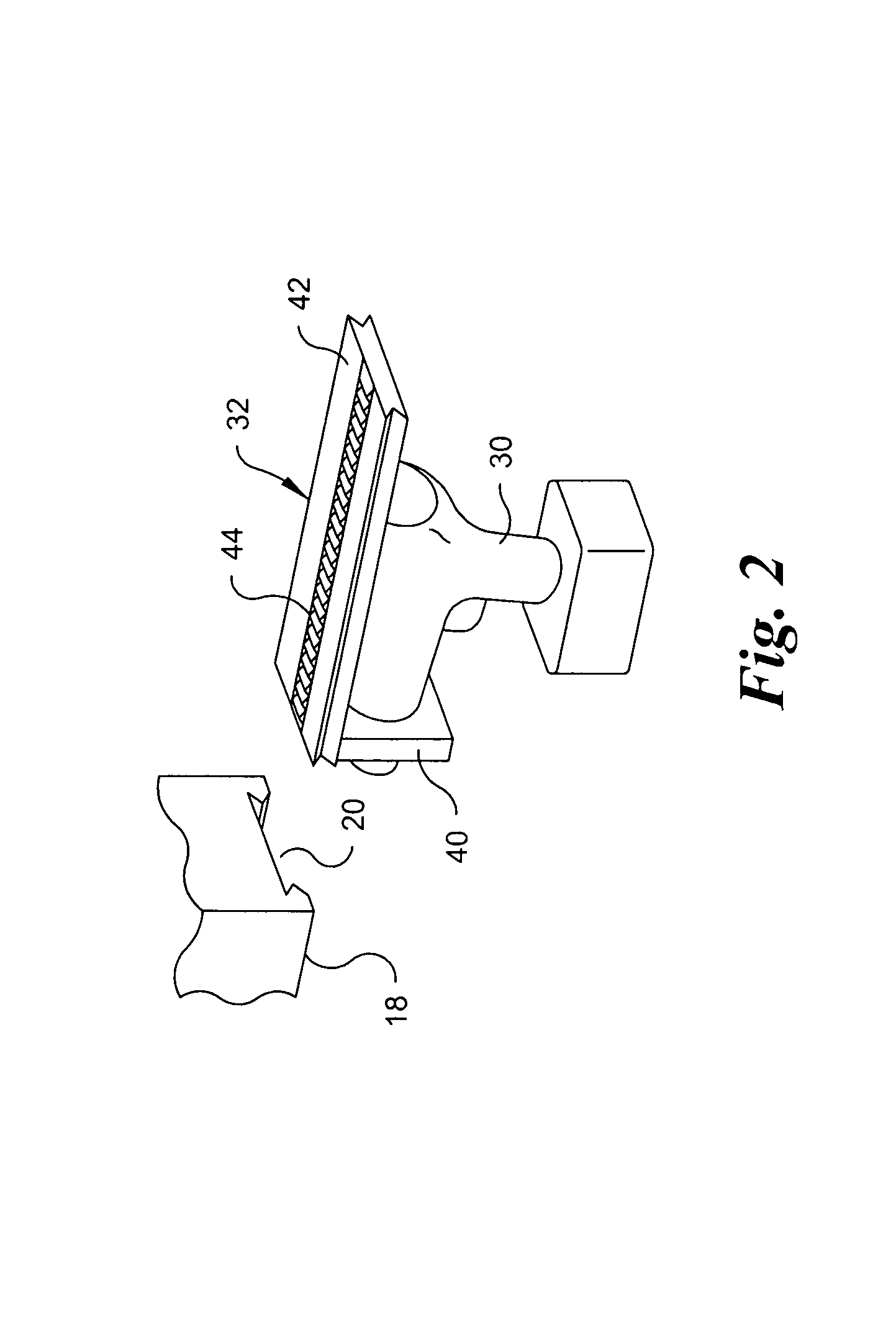

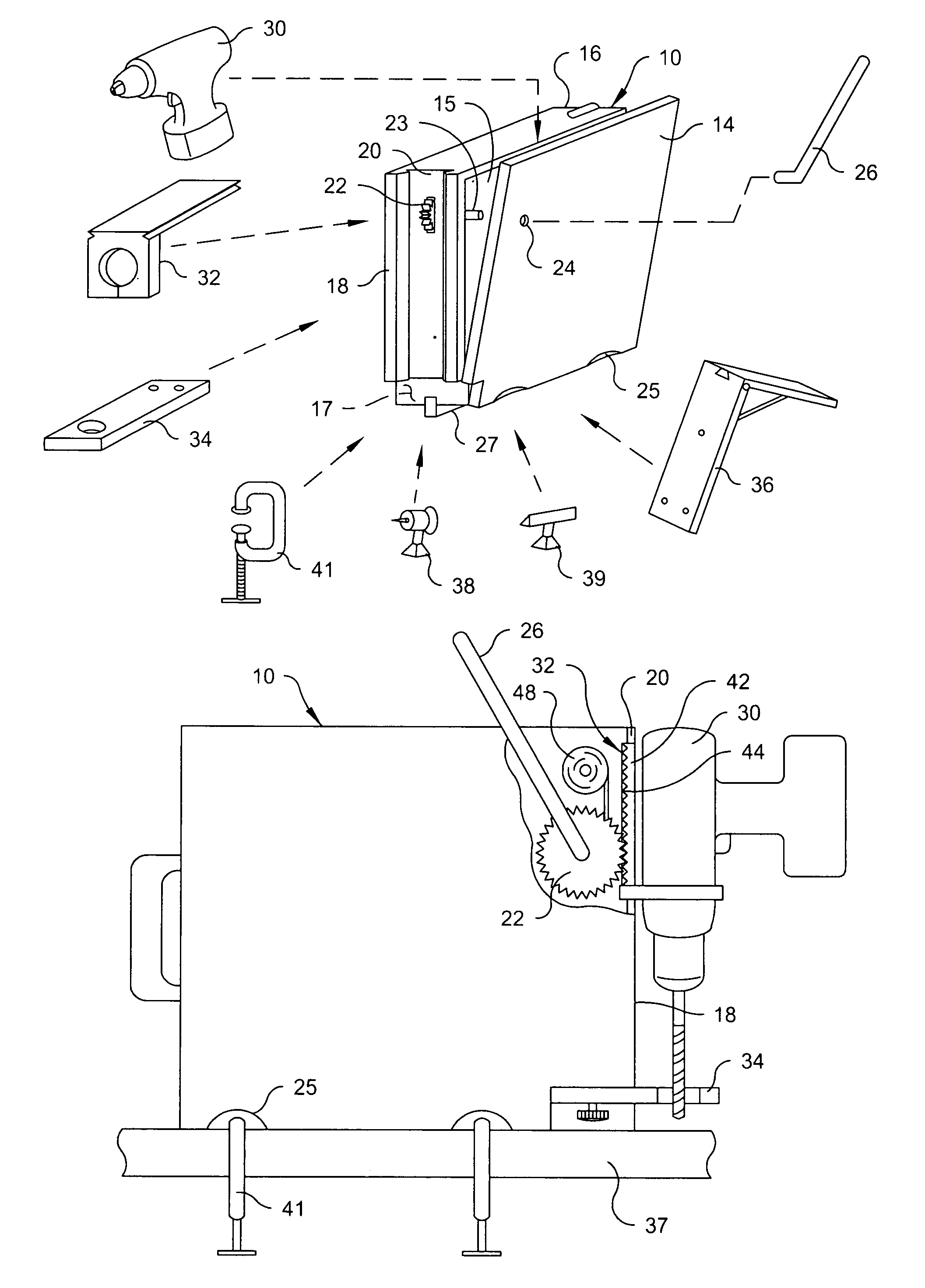

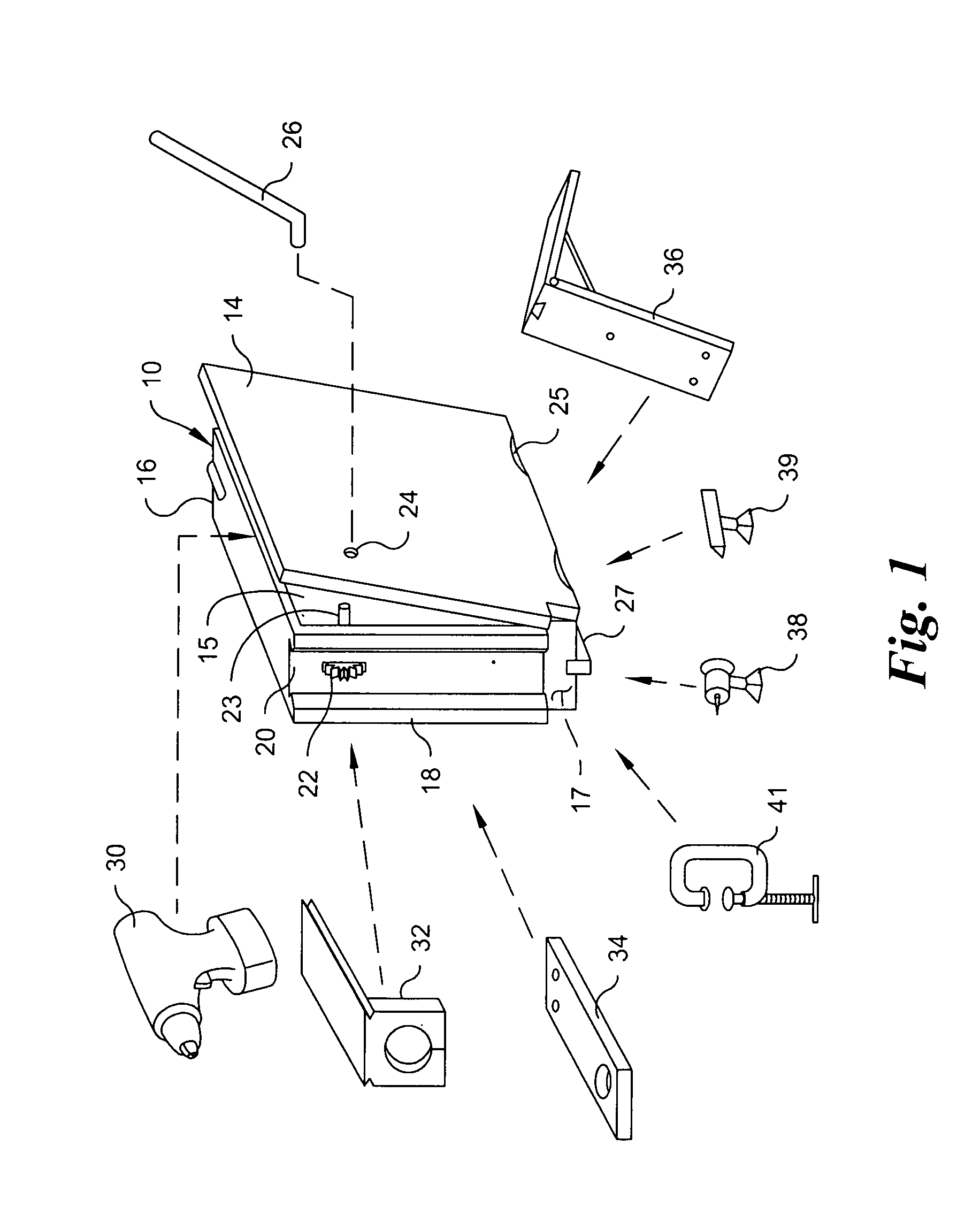

A carrying case assembly for a drilling tool and the method of interconnecting the carrying case with the drilling tool. The carrying case defines an internal area with a least one first vertical side. A press mechanism is attaches to the vertical side of the carrying case. The press mechanism includes a geared element, wherein said geared element partially extends through the first vertical side of the case. A guide bracket is provided that includes a sliding element, a section of gear rack and a drill mounting clamp. The sliding element engages the first vertical side of the case and enables the sliding element to reciprocally move along the first vertical side of the case. The section of gear rack engages the geared element. As such, when the geared element is rotated, the sliding element is caused to move.
Patent figures（8）
