信息库容器包装用于即时制备的多容器、特别是双管包装的密封条件
来源记录显示 Expired

用于即时制备的多容器、特别是双管包装的密封条件

Sealing condition of multiple-container, in particular double-tube, packages designed for instant preparation

US-8622245-B2

一种双管容器,可同时分配两种糊状产品。

专利摘要

一种双分配容器,包括外容器和内容器,每个容器包括主体和头部,头部设有颈部和将颈部连接到主体的肩部,颈部具有侧壁和一个或多个分配孔,内容器的颈部容纳在外容器的颈部内,并具有这样的截面:其提供一个或多个用于糊状产品A的流出通道,并且与外容器颈部的内表面结合,提供一个或多个用于糊状产品B的流出通道,这些通道通向分配产品B的单个或多个孔。内容器颈部延伸有顶部部分,该顶部部分通过薄环形区域连接到内容器颈部,并封闭分配产品A的单个或多个孔。

Original abstractA double dispensing container including an outer container and an inner container, each container including a body and a head provided with a neck and a shoulder linking the neck to the body, the neck having a side wall and one or more dispensing orifices, the neck of the inner container being housed inside the neck of the outer container and having a section such that it provides one of more outflow passages for a pasty product A and, in combination with the inner surface of the outer container neck, one or more outflow passages for a pasty product B emerging onto a single or multiple orifice dispensing the product B. The inner neck is extended by a summit portion which is linked to the inner neck via a thin annular zone and which closes the single or multiple orifice dispensing product A.

专利附图(8)

US-8622245-B2 figure 1
1

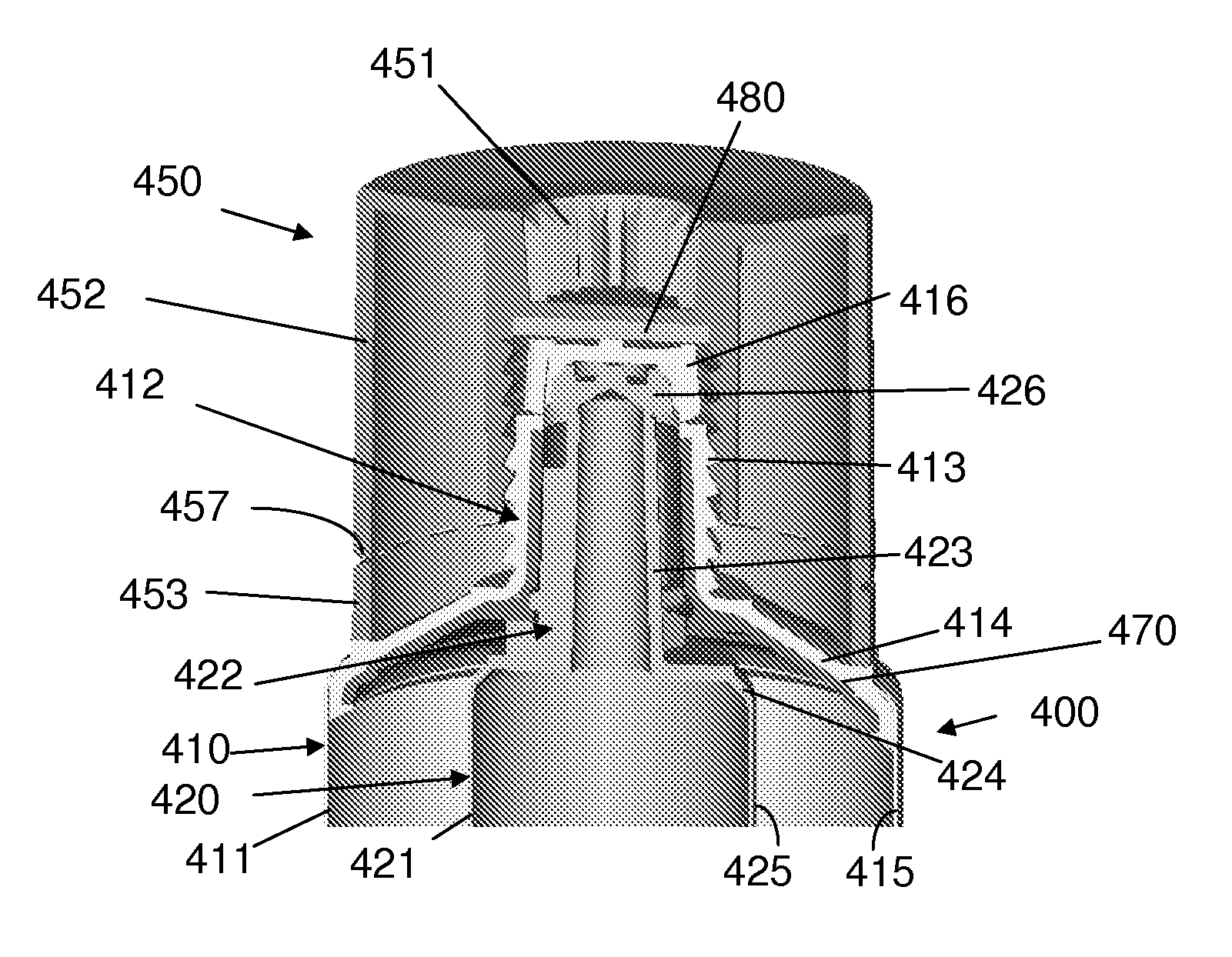

US-8622245-B2 figure 2
2
US-8622245-B2 figure 3
3

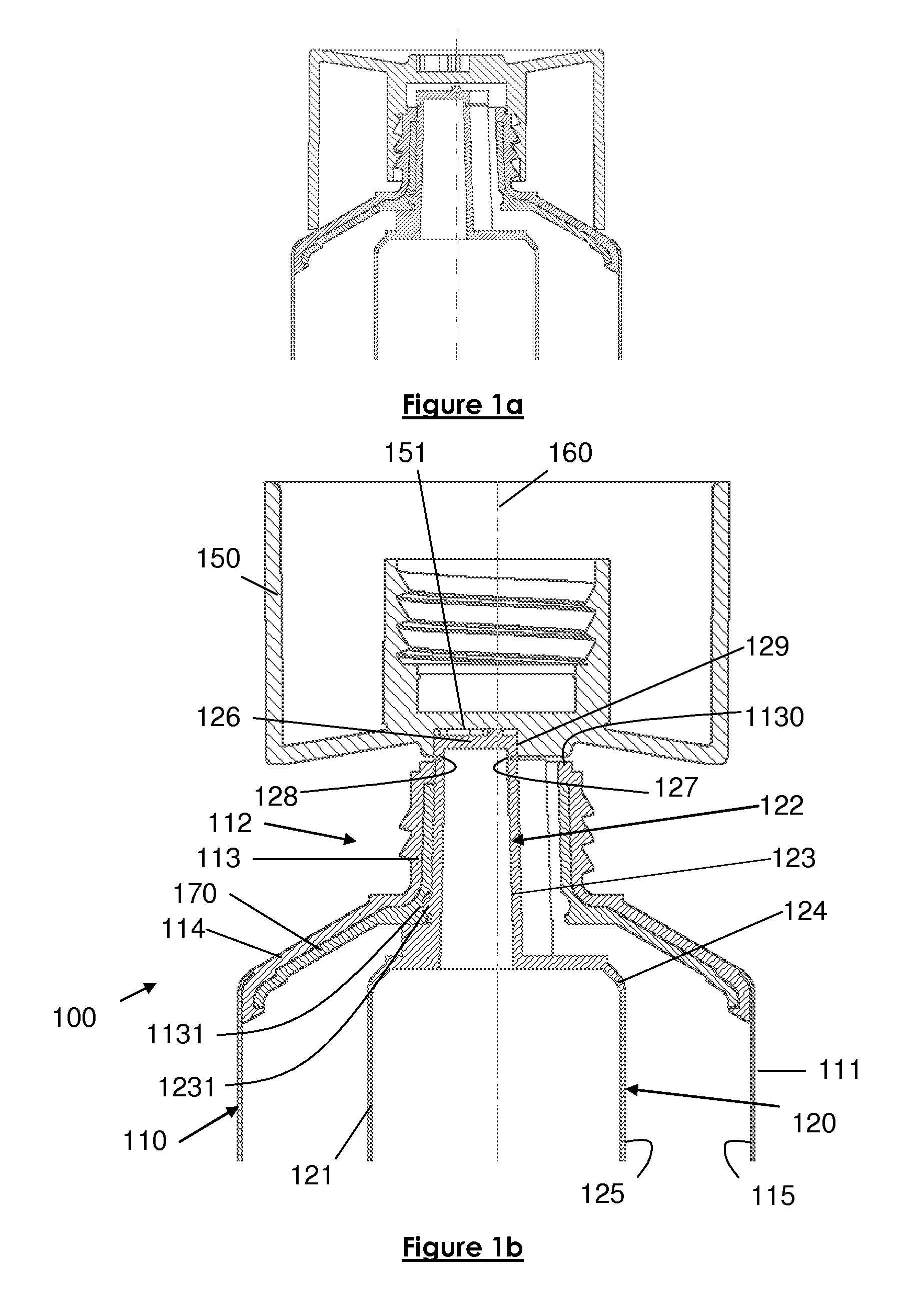

US-8622245-B2 figure 4
4
US-8622245-B2 figure 5
5

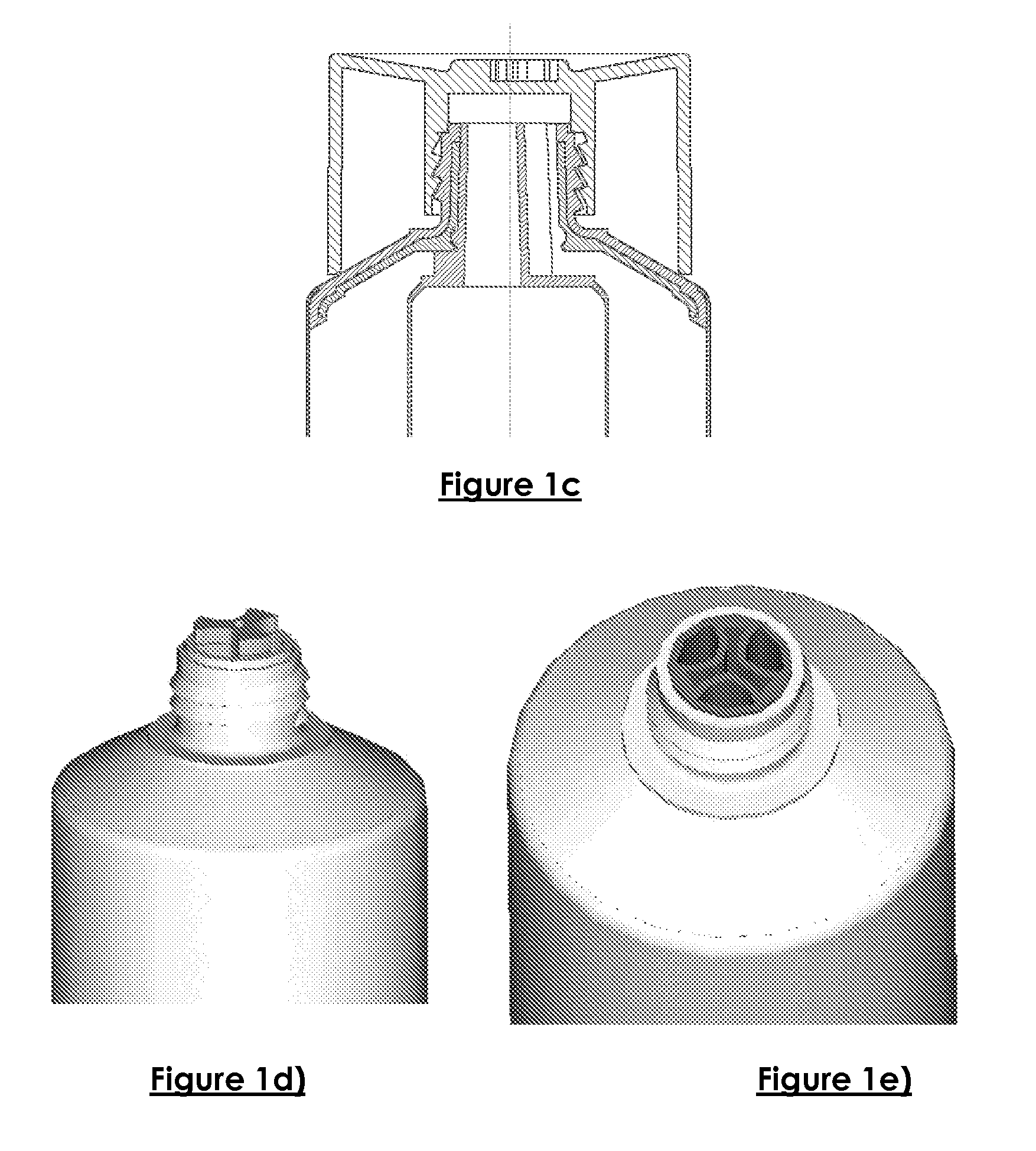

US-8622245-B2 figure 6
6
US-8622245-B2 figure 7
7

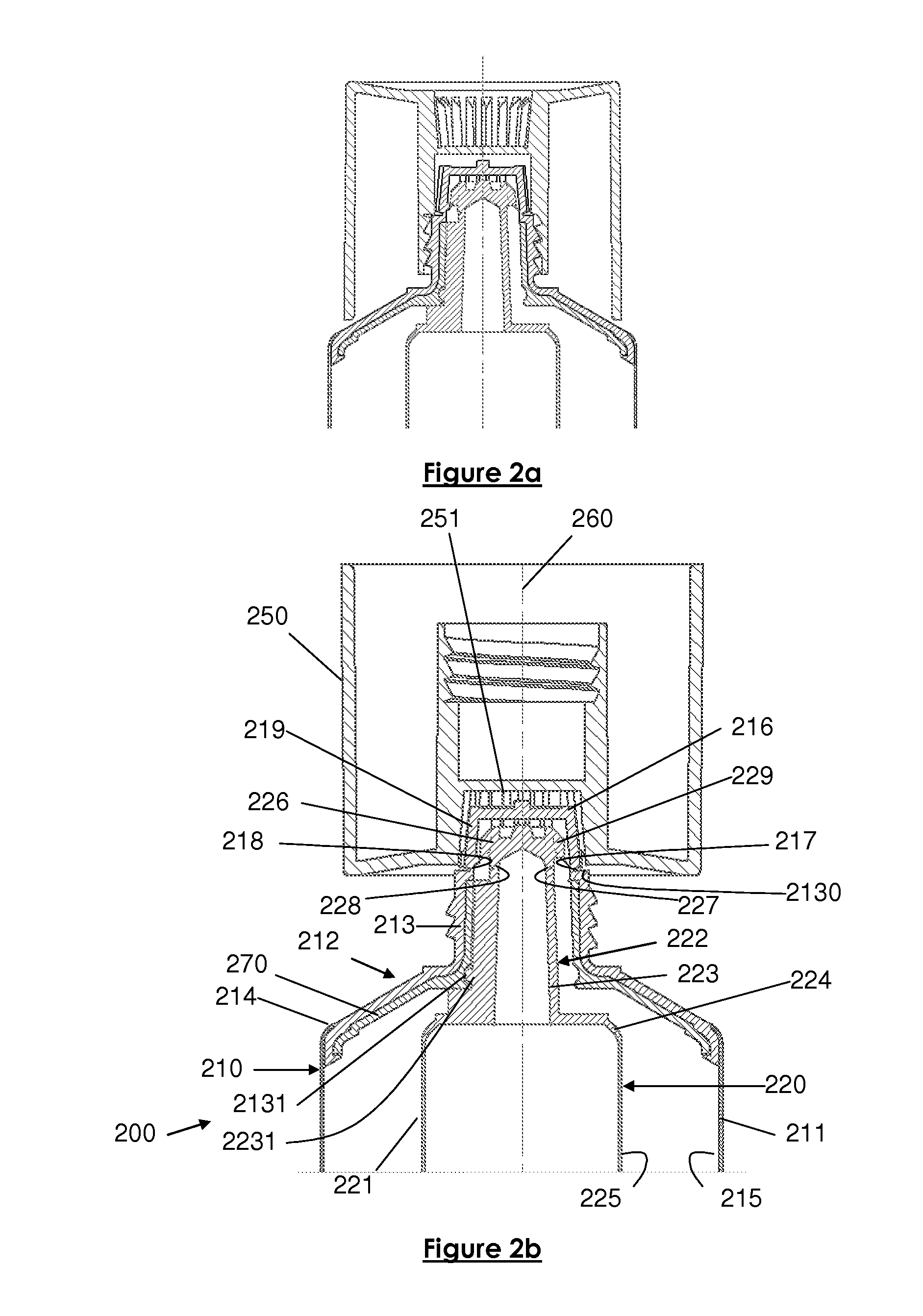

US-8622245-B2 figure 8
8
