用于包括弯曲刮片和集成柔性结构的挡风玻璃刮水器的包装装置

Packaging device for a windscreen wiper comprising a curved blade and an integrated flexible structure

US-9365317-B2

用于包装弯曲的挡风玻璃刮水器刮片。

专利摘要

一种用于挡风玻璃刮水器刮片的包装装置，包括弯曲刮片和集成柔性结构。包装装置包括壳体，其用于容纳刮片。刮片在壳体内被固定在与静止位置相比或多或少拉直的位置。第一支撑表面通过与刮片上部的一部分接触而配合，第二支撑表面通过与刮片下部第一部分接触而配合，第三支撑表面通过与刮片下部第二部分接触而配合。第一支撑表面延伸在位于第二支撑表面和第三支撑表面之间的区域对面。

Original abstractA packaging device for a windscreen wiper blade includes a curved blade and an integrated flexible structure. The packaging device includes a housing, which is intended to receive the blade. The blade is immobilized inside the housing in a position more or less straightened out in relation to its resting position. A first support surface cooperates by contact with a portion of the upper part of the blade, a second support surface cooperates by contact with a first portion of the lower part of the blade, and a third support surface cooperates by contact with a second portion of the lower part of the blade. The first support surface extends opposite an area situated between the second support surface and the third support surface.

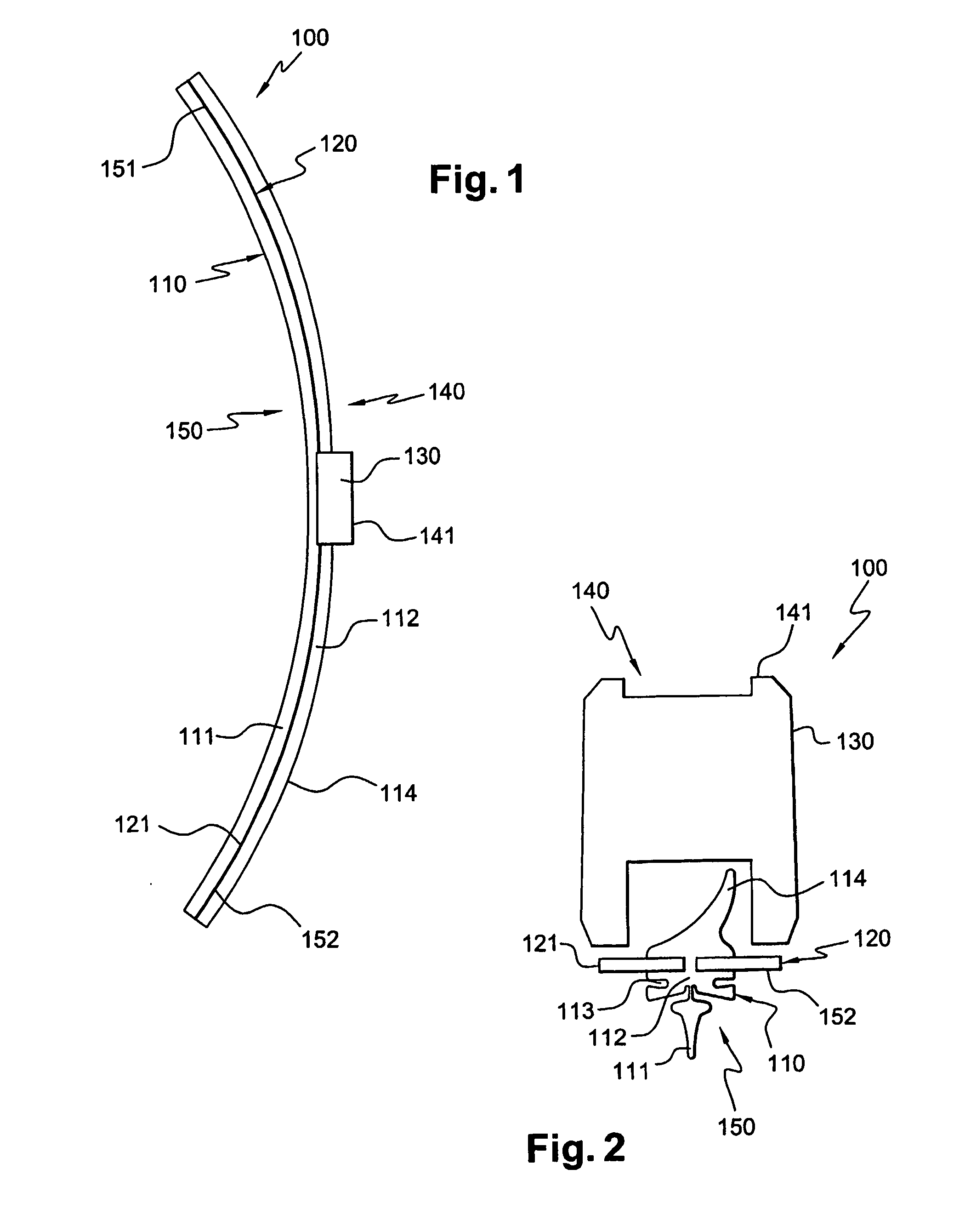

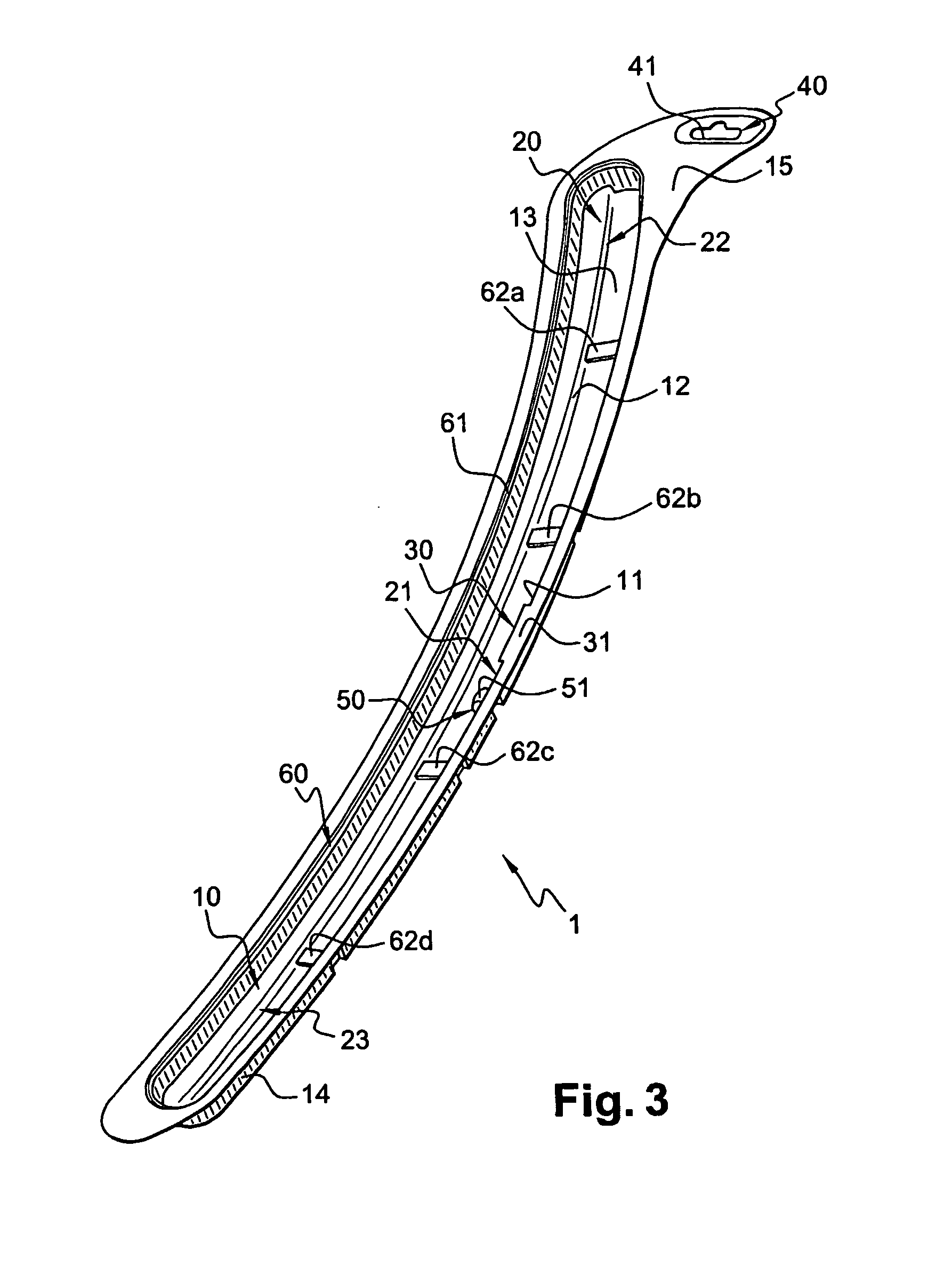

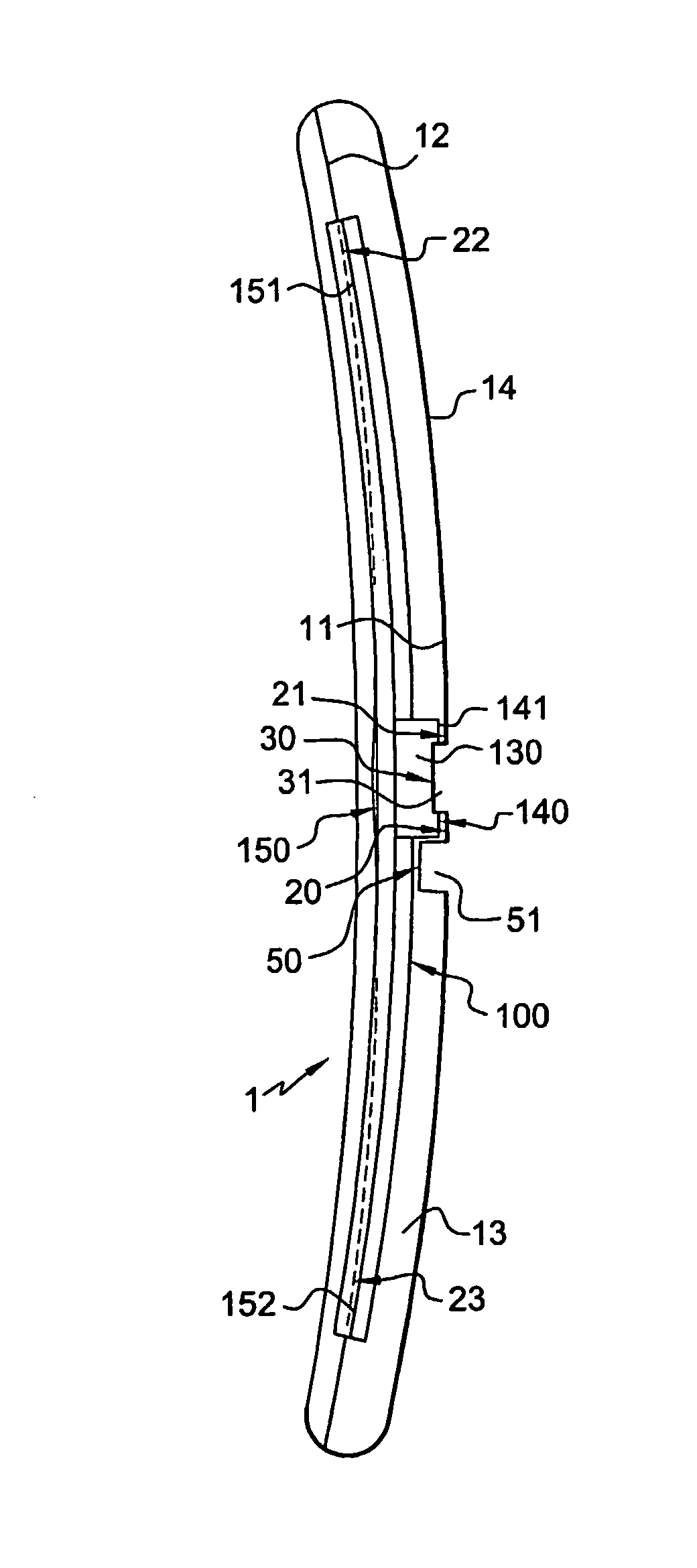

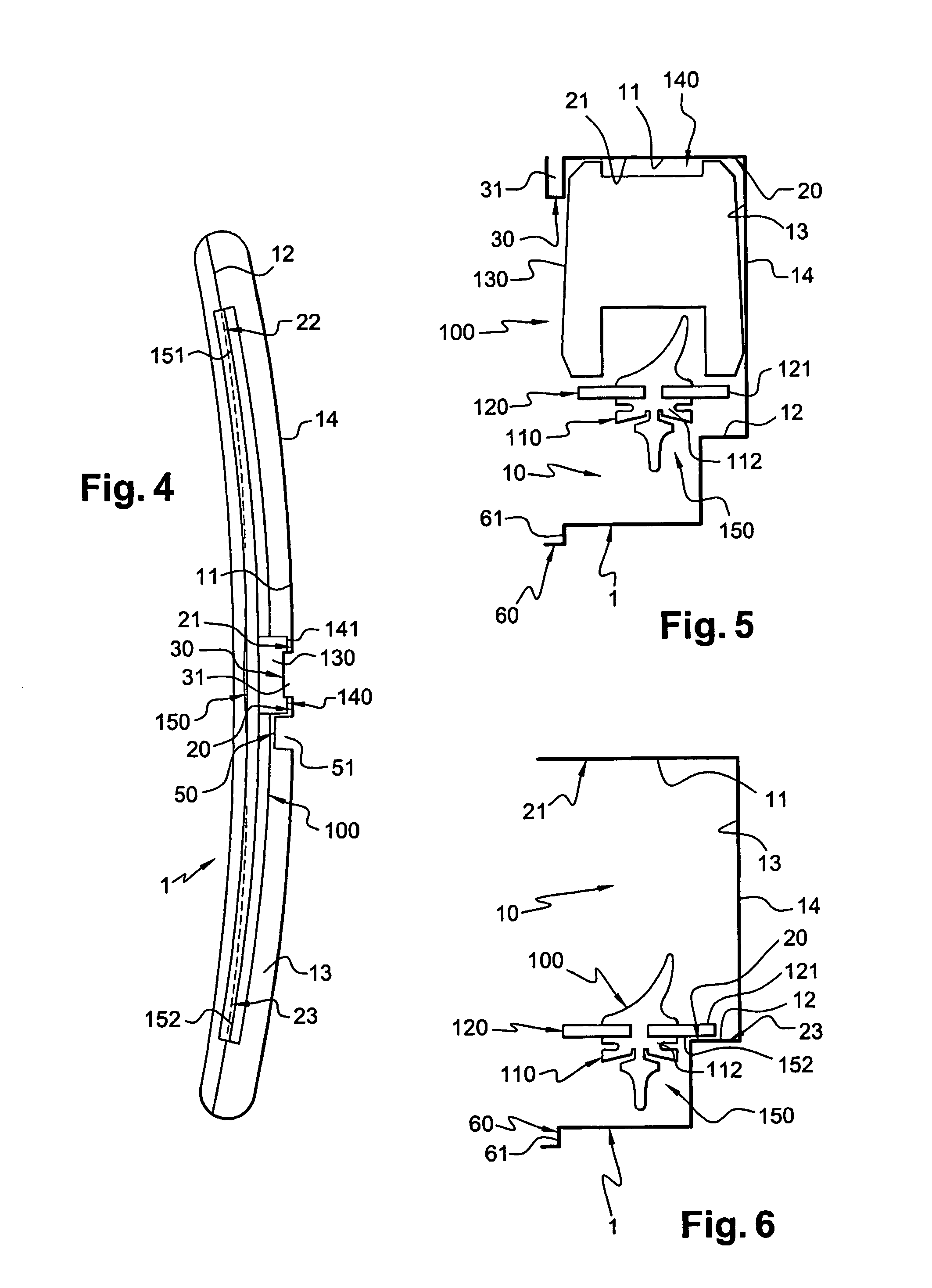

专利附图（共 8 张）
