易倾倒袋

Easy pour bag

US-8608381-B2

一种便于倾倒的袋子,用于散装食品。

专利摘要

由柔性包装膜制成的立式填充和成型袋设置有至少一个倾斜角度的横向密封。打开时,倾斜角度的密封提供自然使用的易倾倒分配特征。该袋直观且符合人体工程学,易于使用,便于控制倾倒而不溢出。该袋特别适用于散装颗粒状内容物,尤其是即食谷物等消费食品,用于大学和医院等餐饮场所。描述了用于生产易倾倒散装袋的装置和方法,包括使用横向密封器,其中至少一个以一定角度定向以赋予倾斜的横向密封。

Original abstractVertical fill and form bags fabricated from flexible packaging film are provided with at least one transverse seal at an oblique angle. Upon opening, the oblique angled seal provides a natural use easy pour dispensing feature. The bag is intuitively and ergonomically easy to use to facilitate controlled pouring without spilling. The bag are especially useful for bulk particulate contents especially consumer food products such as ready-to-eat cereals for use in food service venues such as universities and hospitals. Apparatus and method of preparation for the productions of the easy pour bulk bags are described including using transverse sealers at least one of which is oriented at an angle such as to impart the oblique angled transverse seal.

专利附图(8)

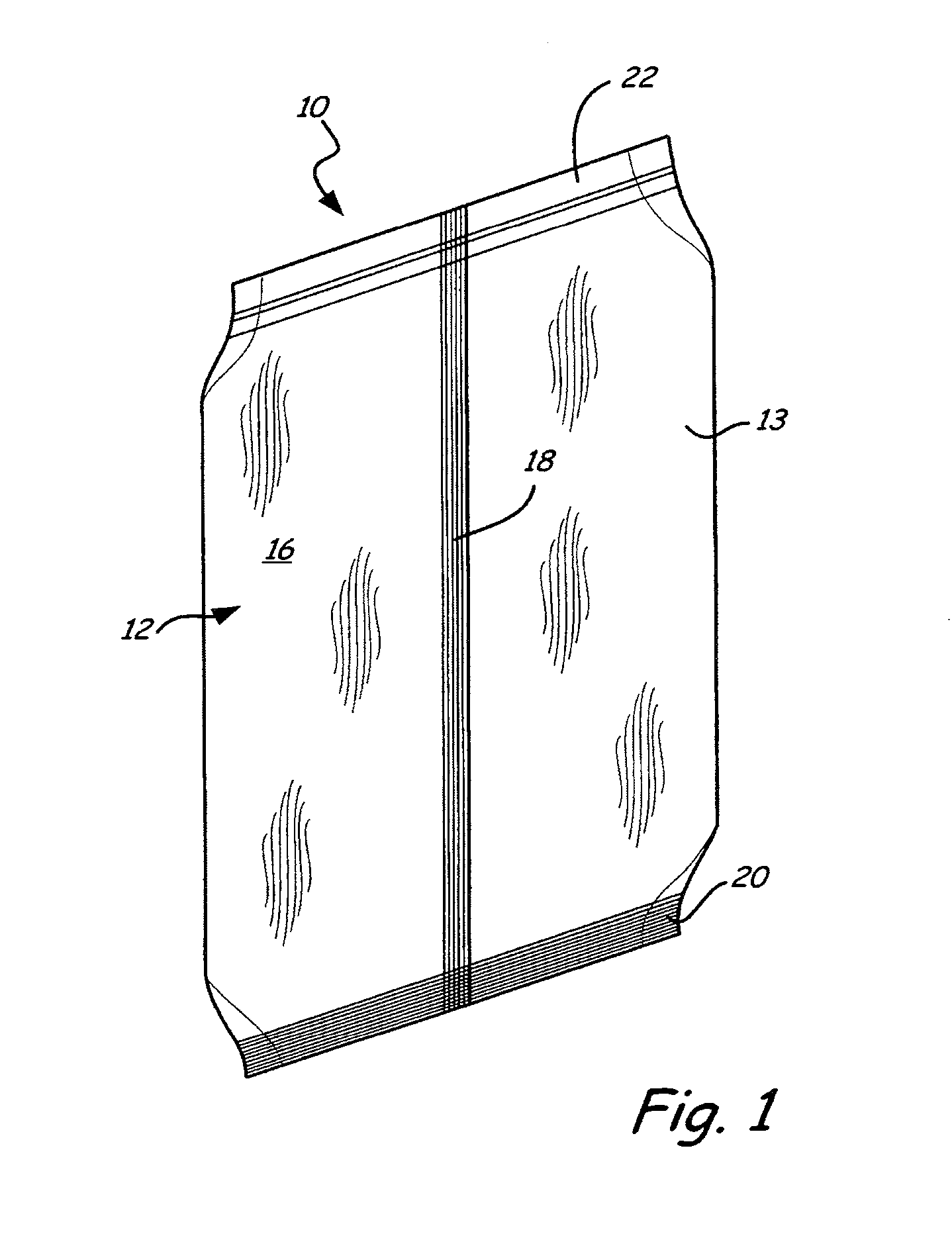

US-8608381-B2 figure 1
1

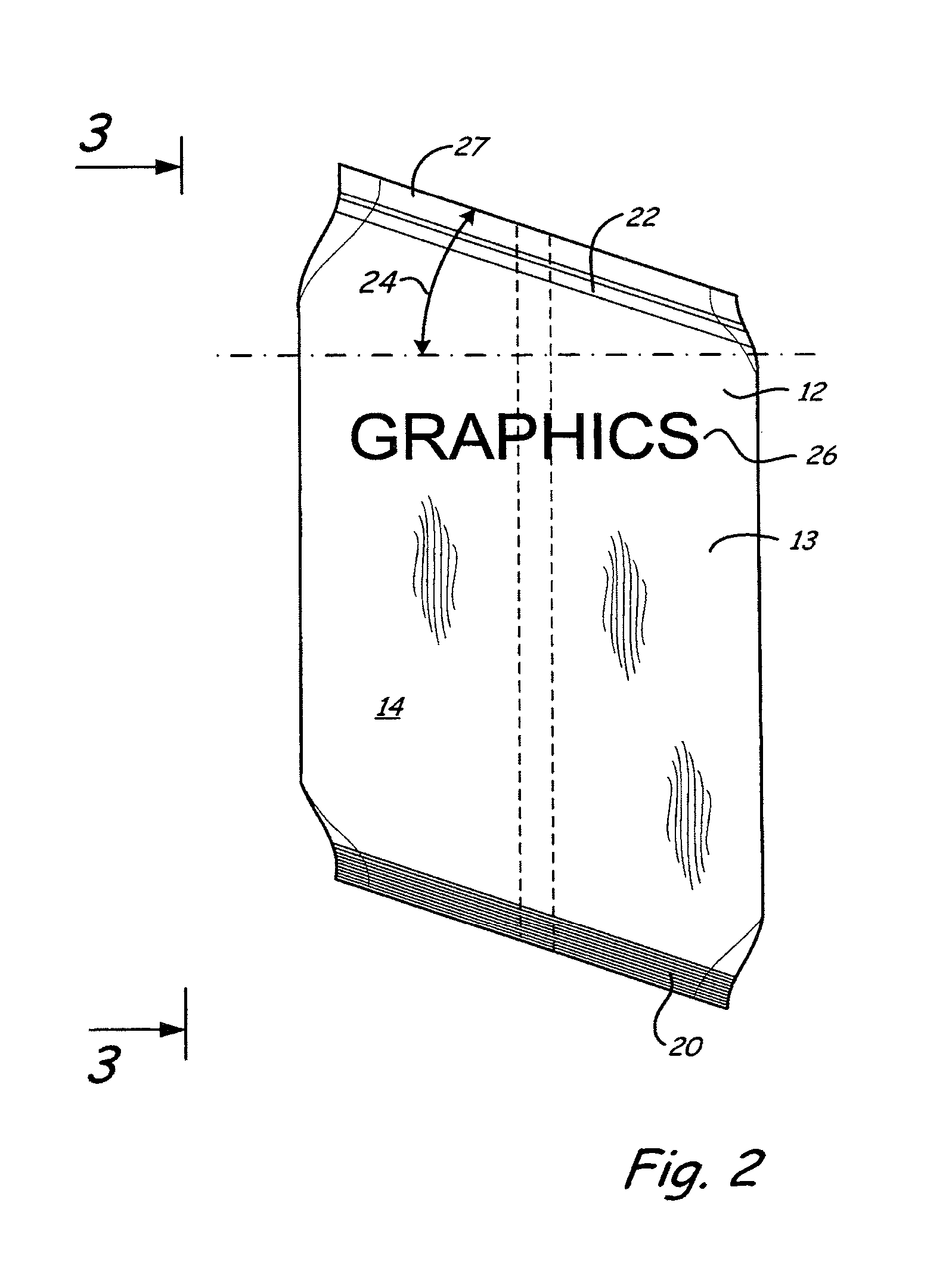

US-8608381-B2 figure 2
2

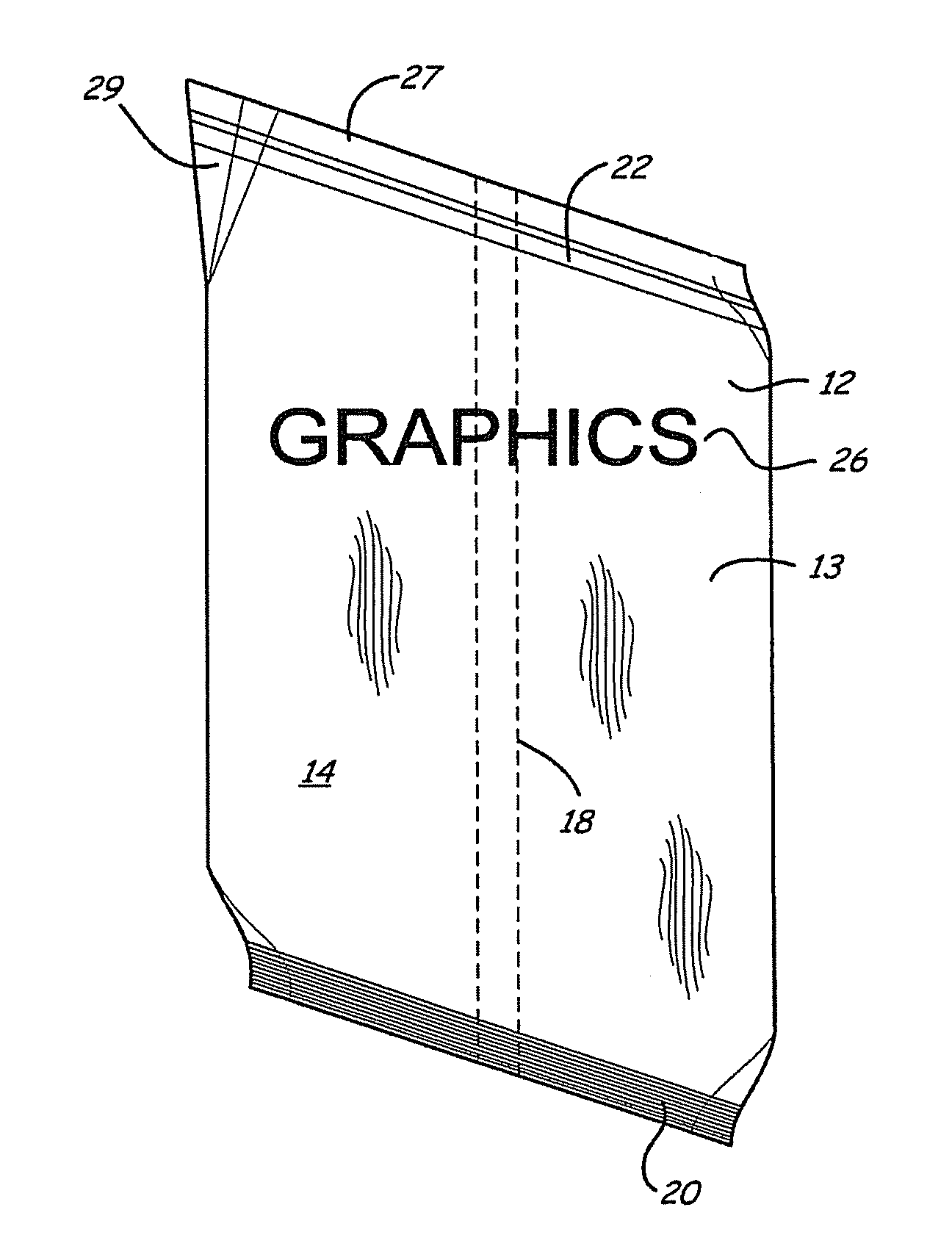

US-8608381-B2 figure 3
3

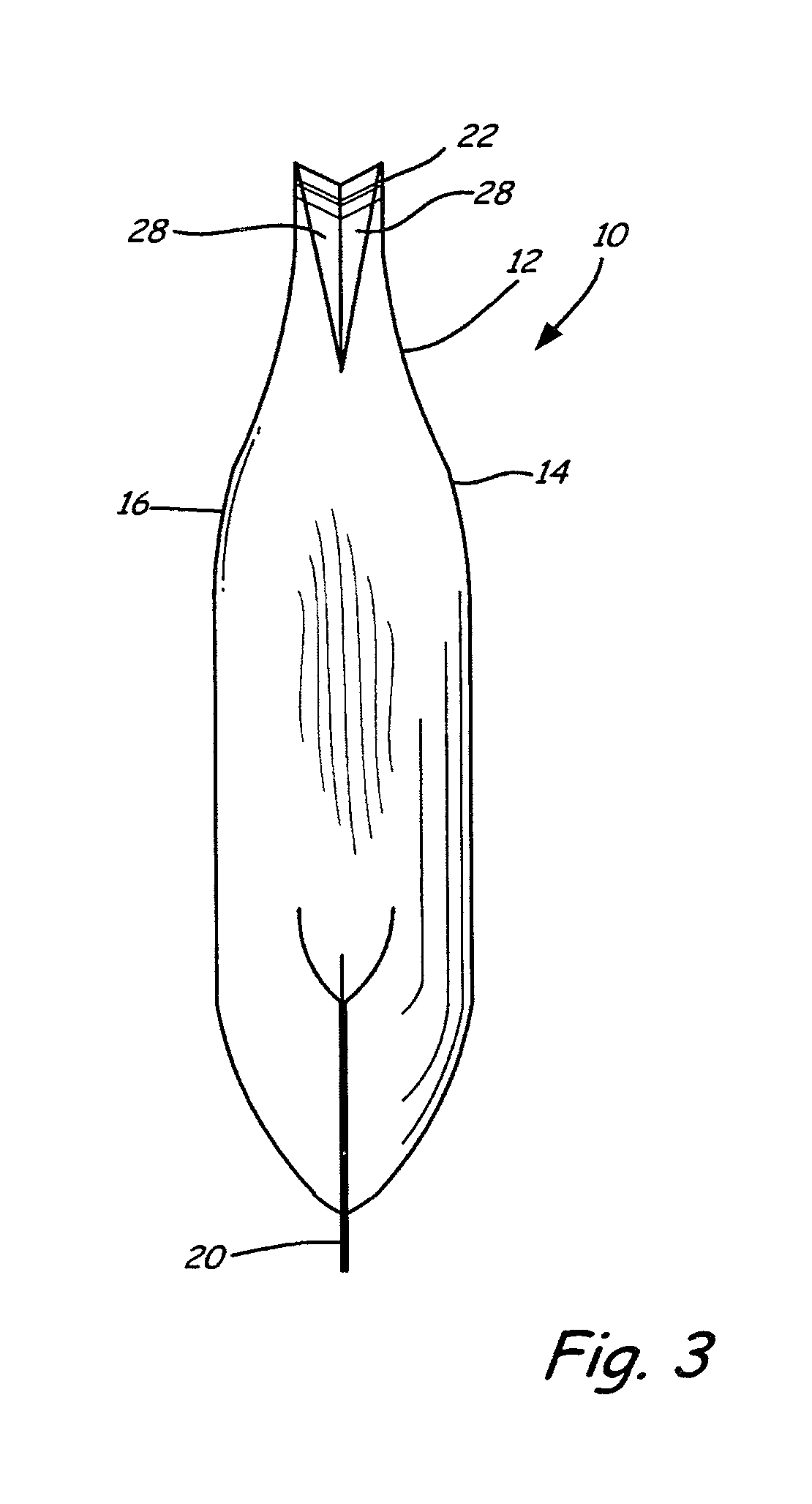

US-8608381-B2 figure 4
4
US-8608381-B2 figure 5
5
US-8608381-B2 figure 6
6
US-8608381-B2 figure 7
7
US-8608381-B2 figure 8
8
