来源记录显示 Expired
具有儿童安全特征的一体式容器和翻盖组件
Unitary container and flip-top cap assembly having child resistant safety features
US-8590734-B2儿童安全容器盖，防止儿童轻易打开。
专利摘要
一种用于容器的儿童安全掀盖，其被设计为难以独立地取下以打开容器。与盖相关联的覆盖部分用于将盖从容器上提起以将其取下。覆盖部分具有拇指突片，并且仅在拇指突片被提起时可变形以接合并提升就位的盖。当可变形部分未变形为与盖接合时，覆盖部分独立于盖升起。或者，一种掀盖，其具有贯穿的槽，槽具有靠近盖边缘的第一开口，该边缘被提起以取下盖，以及第二开口。槽中的滑块具有第一端，该第一端被偏置为与第一开口齐平或凹入其中，以及第二端被偏置为通常从第二开口突出。滑块的第二端可克服滑块的偏置被压下，以使滑块的第一端移出第一开口，用作拇指突片以帮助将盖从容器上提起。
Original abstractA child-resistant lift-off cap for a container is adapted to be difficult to unseat independently to open the container. An overlay portion associated with the cap is adapted for use to lift the cap from a container to unseat it. The overlay portion has a thumb tab and is deformable to engage and lift the seated cap only when the thumb tab is lifted. The overlay portion raises independently of the cap when the deformable portion is not deformed into engagement with the cap. Alternatively, a lift-top cap having a slot through it, the slot having a first opening near an edge of the cap to be lifted to unseat the cap and a second opening. A slide in the slot has a first end biased to be flush with or recessed into the first opening and a second end biased to normally protrude out of the second opening. The second end of the slide can be depressed against the bias of the slide to displace the first end of the slide out of the first opening to function as a thumb tab to assist in lifting the cap from a container.

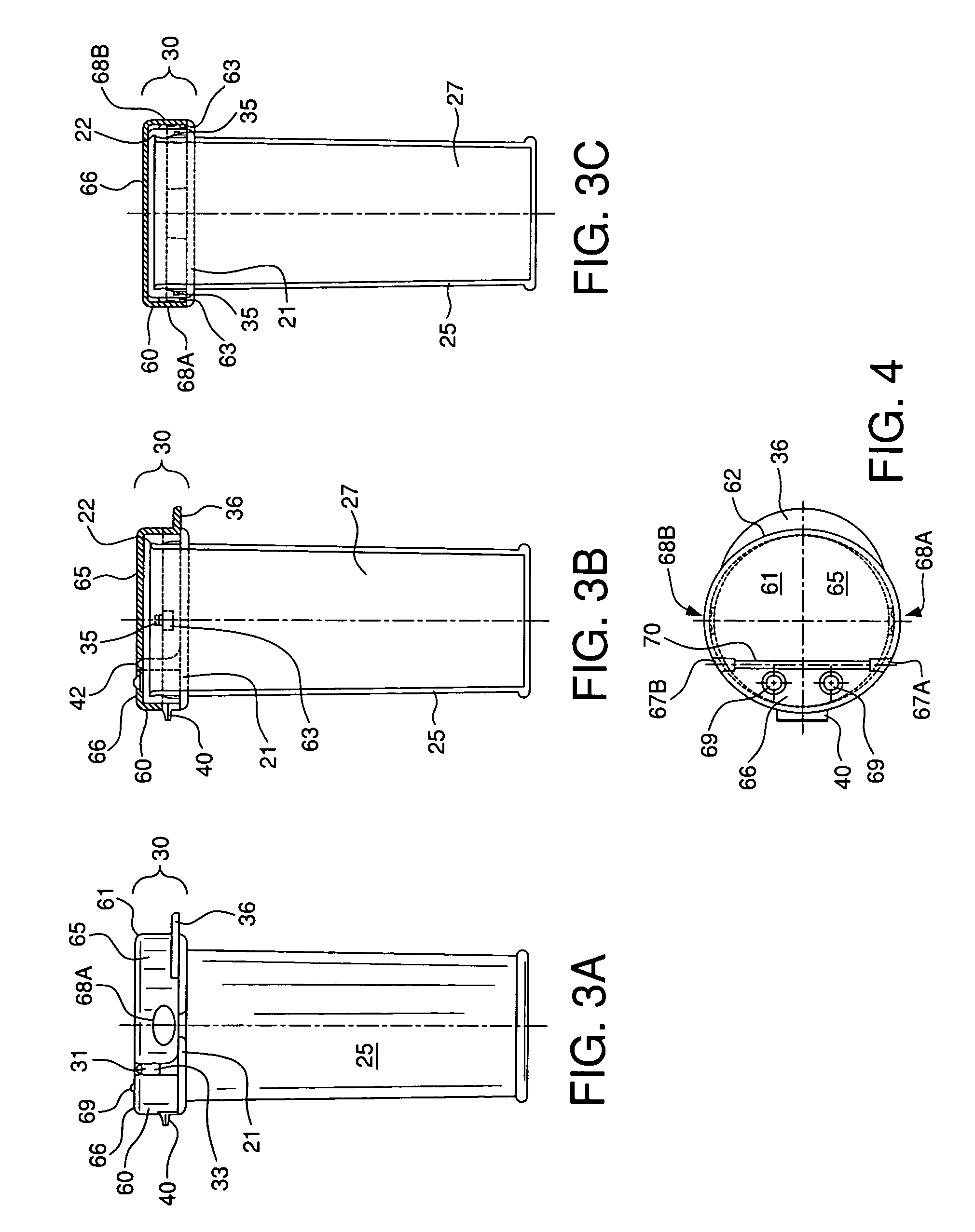

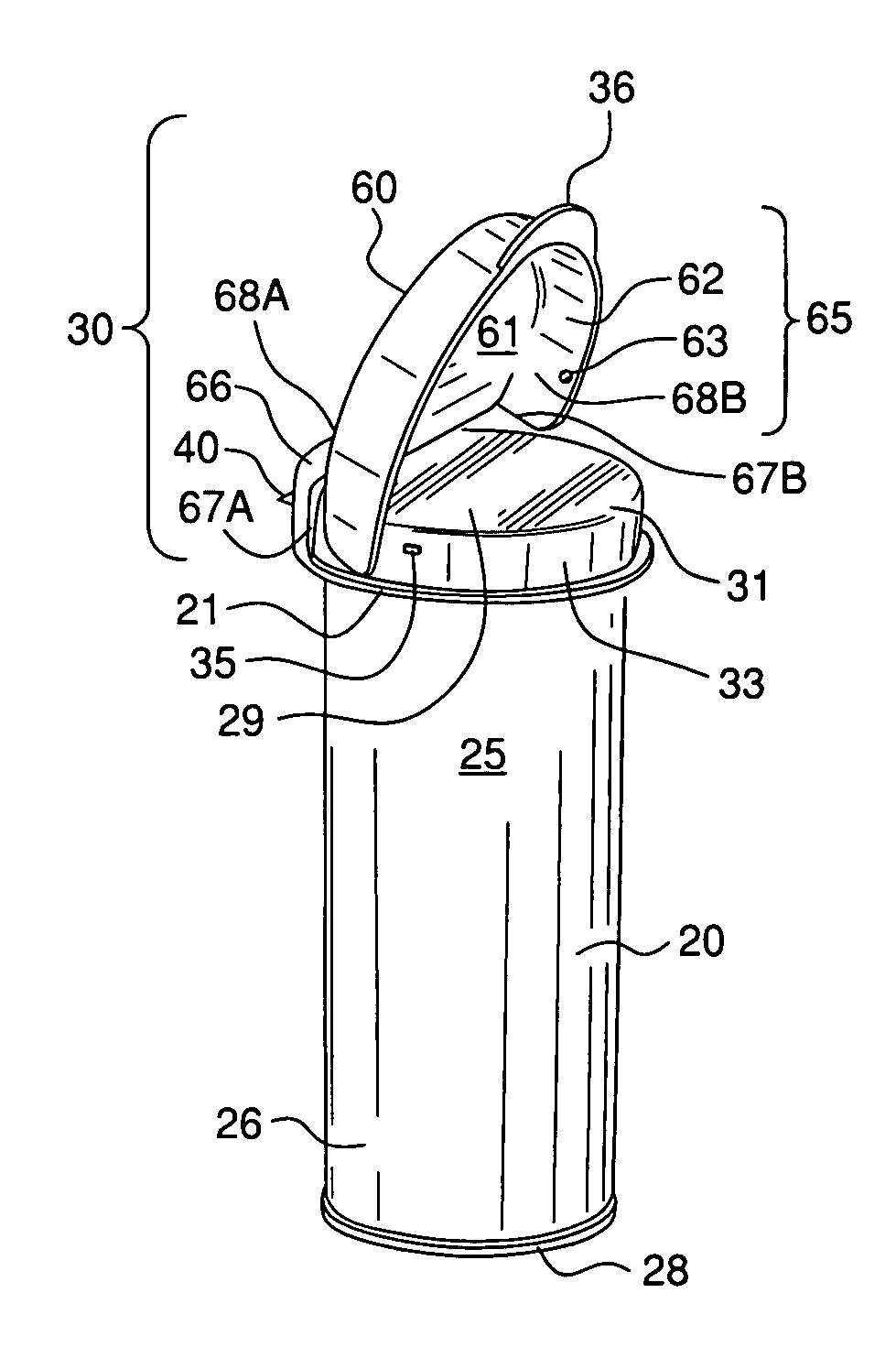

专利附图（8）
