信息库容器包装防篡改封闭件和包装
来源记录显示 Expired

防篡改封闭件和包装

Tamper-indicating closure and package

US-8517194-B2

用于包装容器的防篡改密封。

专利摘要

一种防篡改封闭件,包括具有圆柱形裙部的基壁,用于可移除地接合容器口。防篡改带通过易断连接连接到裙部,多个翼片从防篡改带的内表面向内延伸,用于与容器口接合。翼片沿着从裙部内部观察时相对于裙部轴线成逆时针角度的线弹性柔性地连接到带的内表面。

Original abstractA tamper-indicating closure that includes a base wall having a cylindrical skirt for removably engaging a container finish. A tamper band is frangibly connected to the skirt, and a plurality of wings extend inwardly from an inner surface of the tamper band for engagement with a container finish. The wings are resiliently flexibly connected to the inner surface of the band along lines that are disposed at a counterclockwise angle with respect to the axis of the skirt as viewed from inside the skirt.

专利附图(8)

US-8517194-B2 figure 1
1

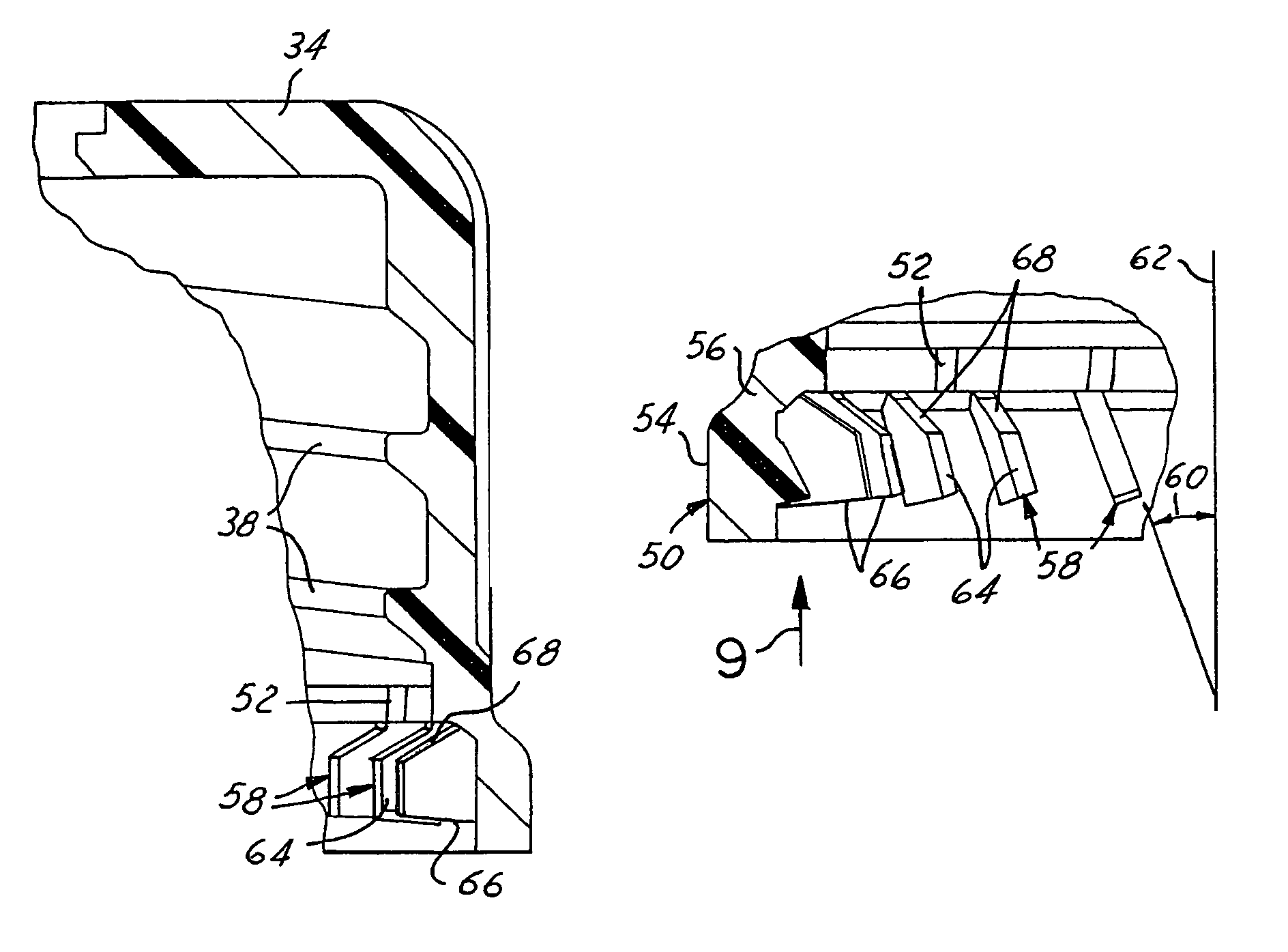

US-8517194-B2 figure 2
2
US-8517194-B2 figure 3
3

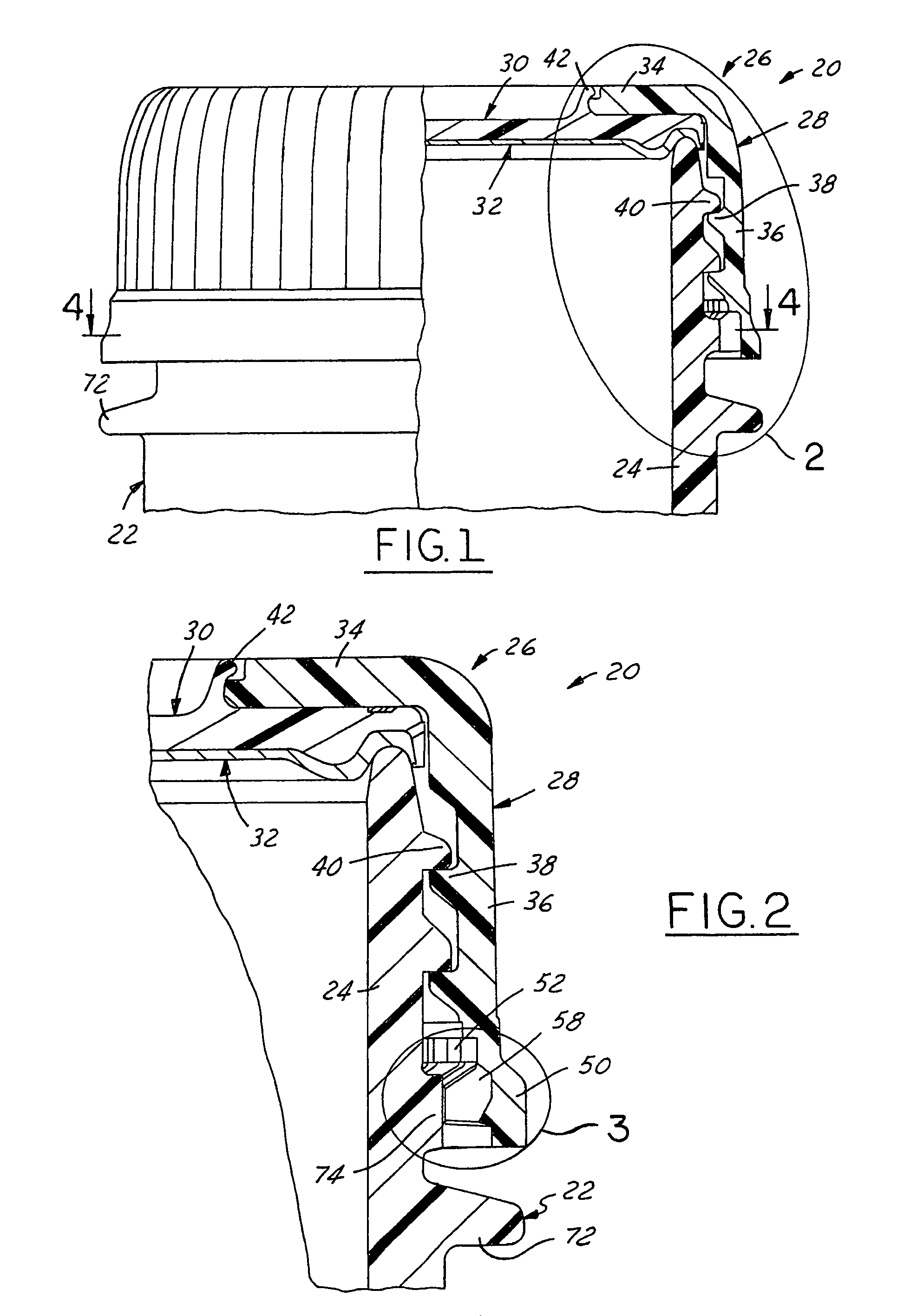

US-8517194-B2 figure 4
4
US-8517194-B2 figure 5
5

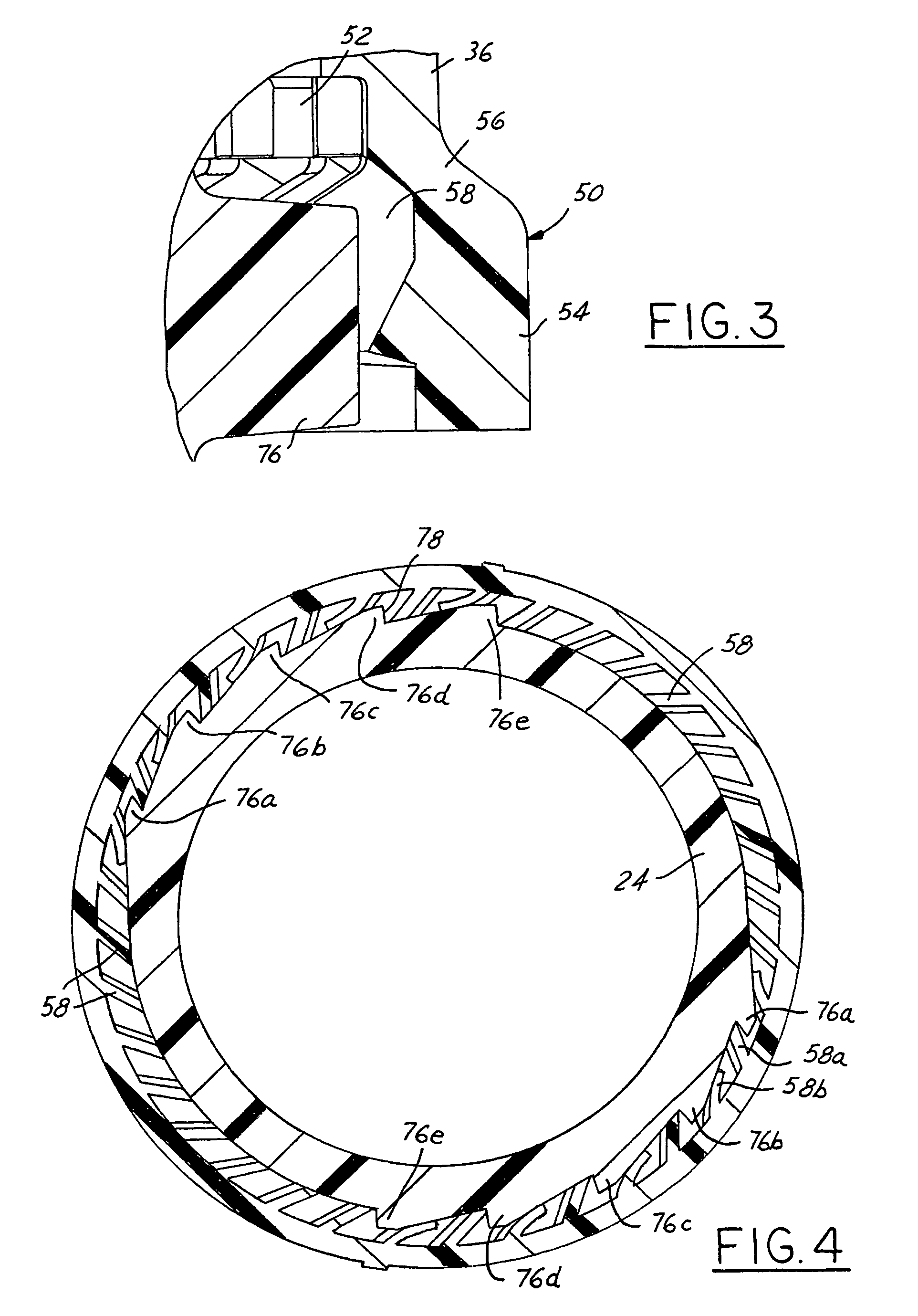

US-8517194-B2 figure 6
6
US-8517194-B2 figure 7
7

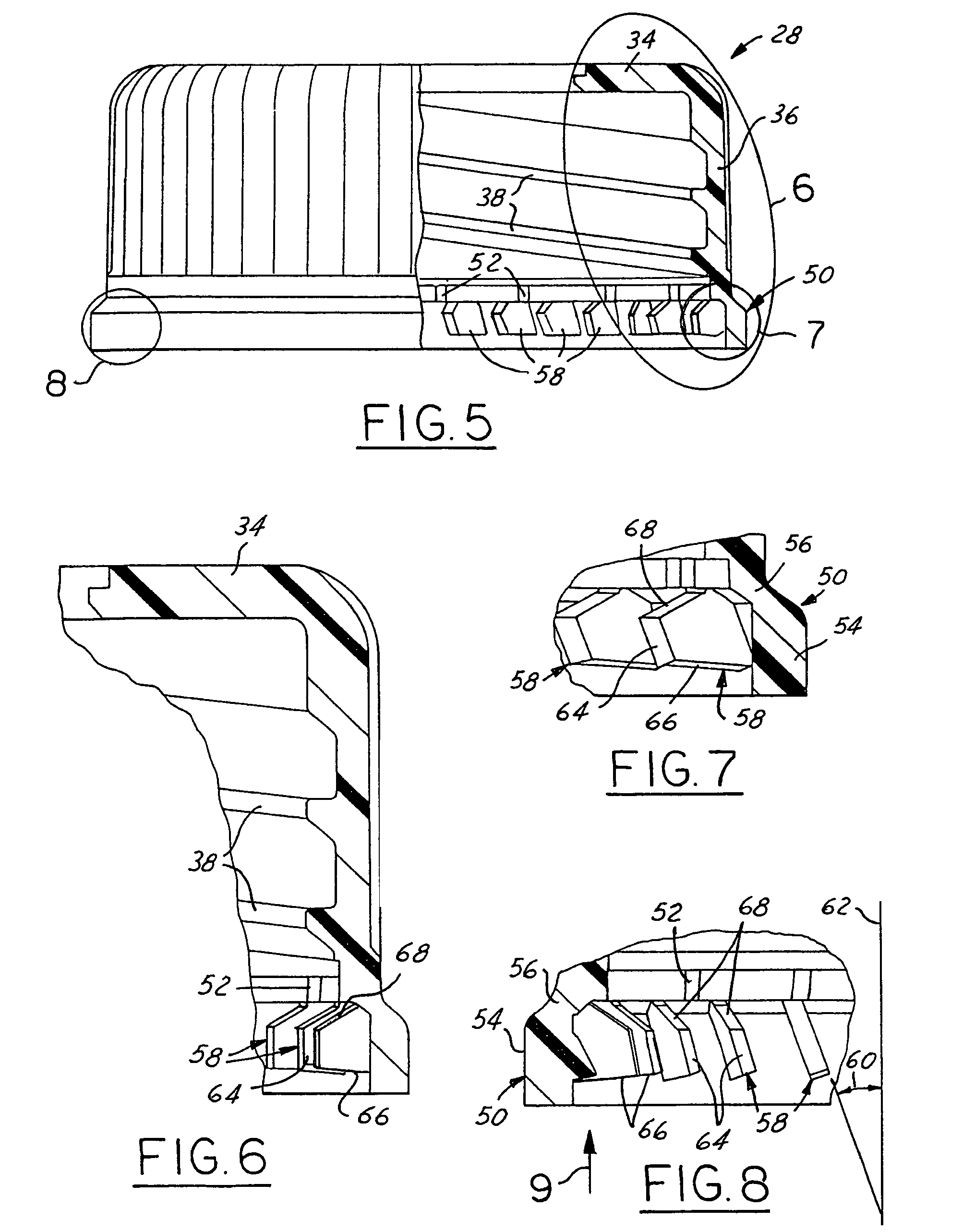

US-8517194-B2 figure 8
8
