一种易开启的滑块拉链袋，方便使用。
专利摘要
公开了一种可重新封闭的袋子，包括具有互锁型材和滑块的拉链。互锁型材包括凸缘，凸缘端部具有弧形切口。凸缘的宽度因此在远端减小。这使得凸缘可以密封到可重新封闭袋子的前后面板上，而无需密封在袋子的侧封内。为了保持袋子的完整性，凸缘在弧形切口的内侧相邻处相互密封，并且凸缘与前后面板之间的密封线延伸，使得前后面板在由弧形切口和侧封限定的区域内相互密封。
Original abstractA reclosable bag is disclosed which includes a reclosable zipper with interlocking profiles and a slider. The interlocking profiles include flanges which include arcuate cut-outs at the ends thereof. The width of the flanges is thereby reduced at the distal ends thereof. This allows the flanges to be sealed to the front and rear panels of the reclosable bag without being sealed within the side seals of the reclosable bag. In order to maintain the integrity of the bag, the flanges are sealed to each other immediately inwardly adjacent from the arcuate cut-outs, and the seal lines between the flanges and the front and rear panels are extended so that the front and rear panels are sealed to each other in an area bounded by the arcuate cut-outs and the side seals.

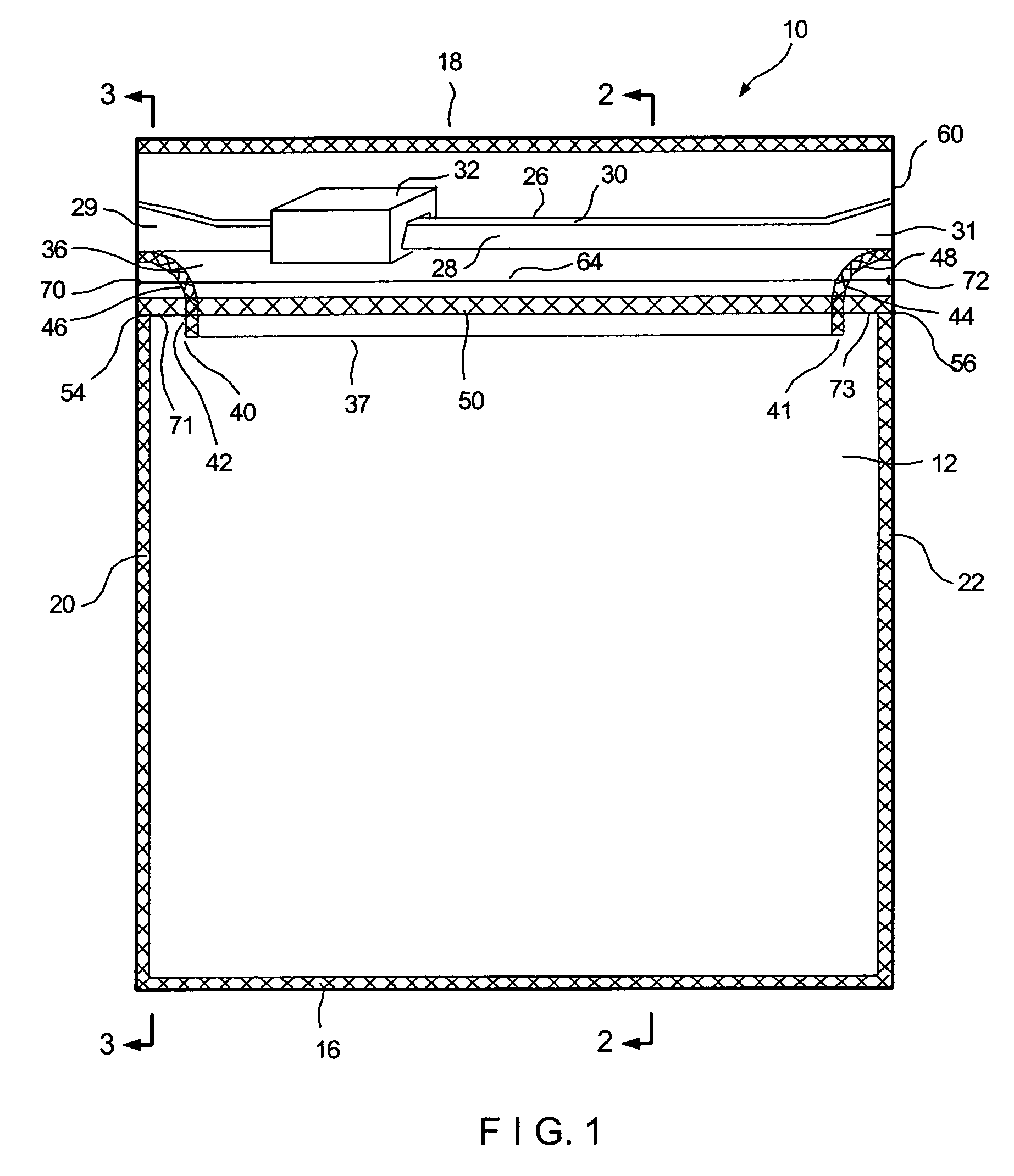

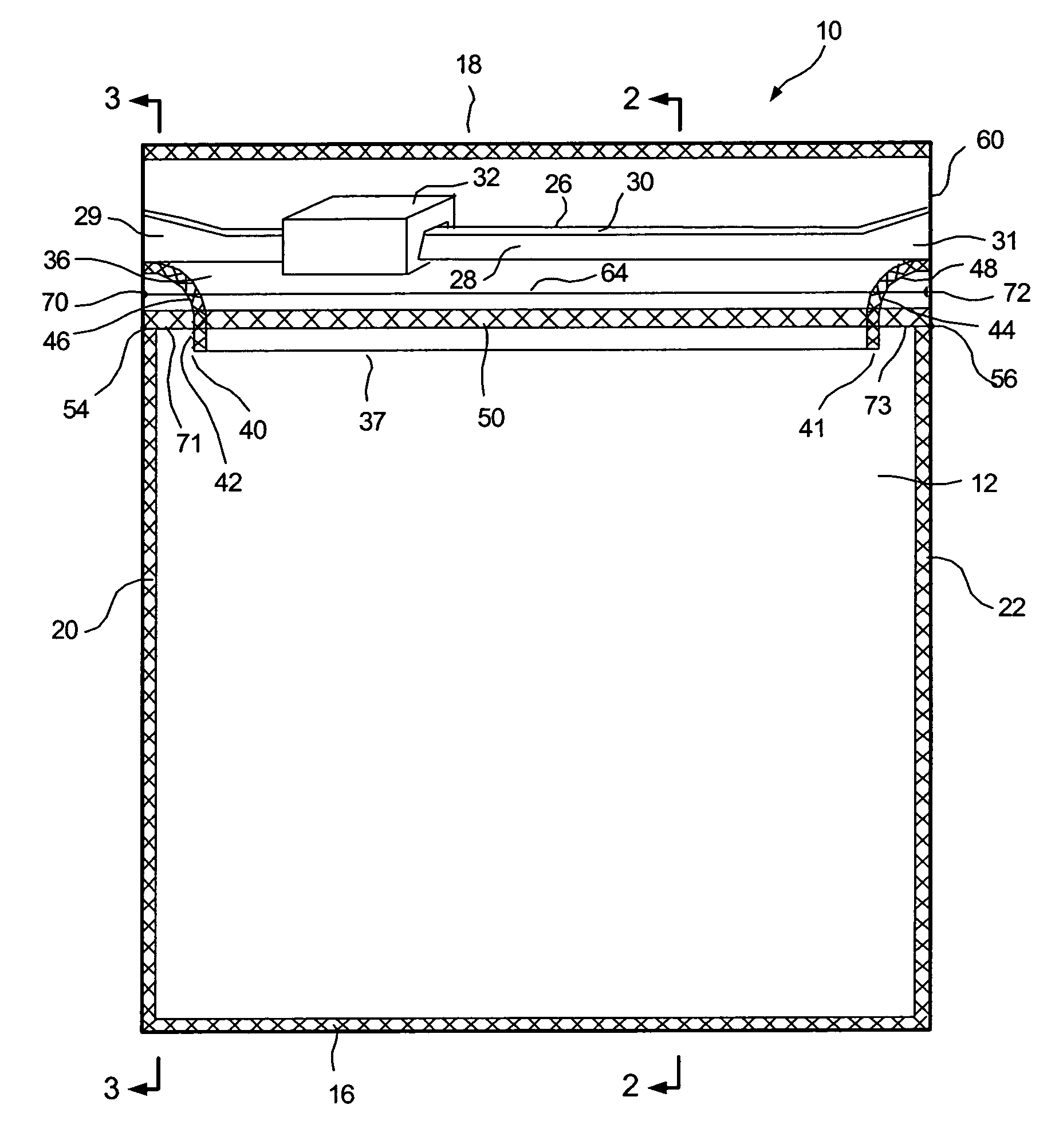

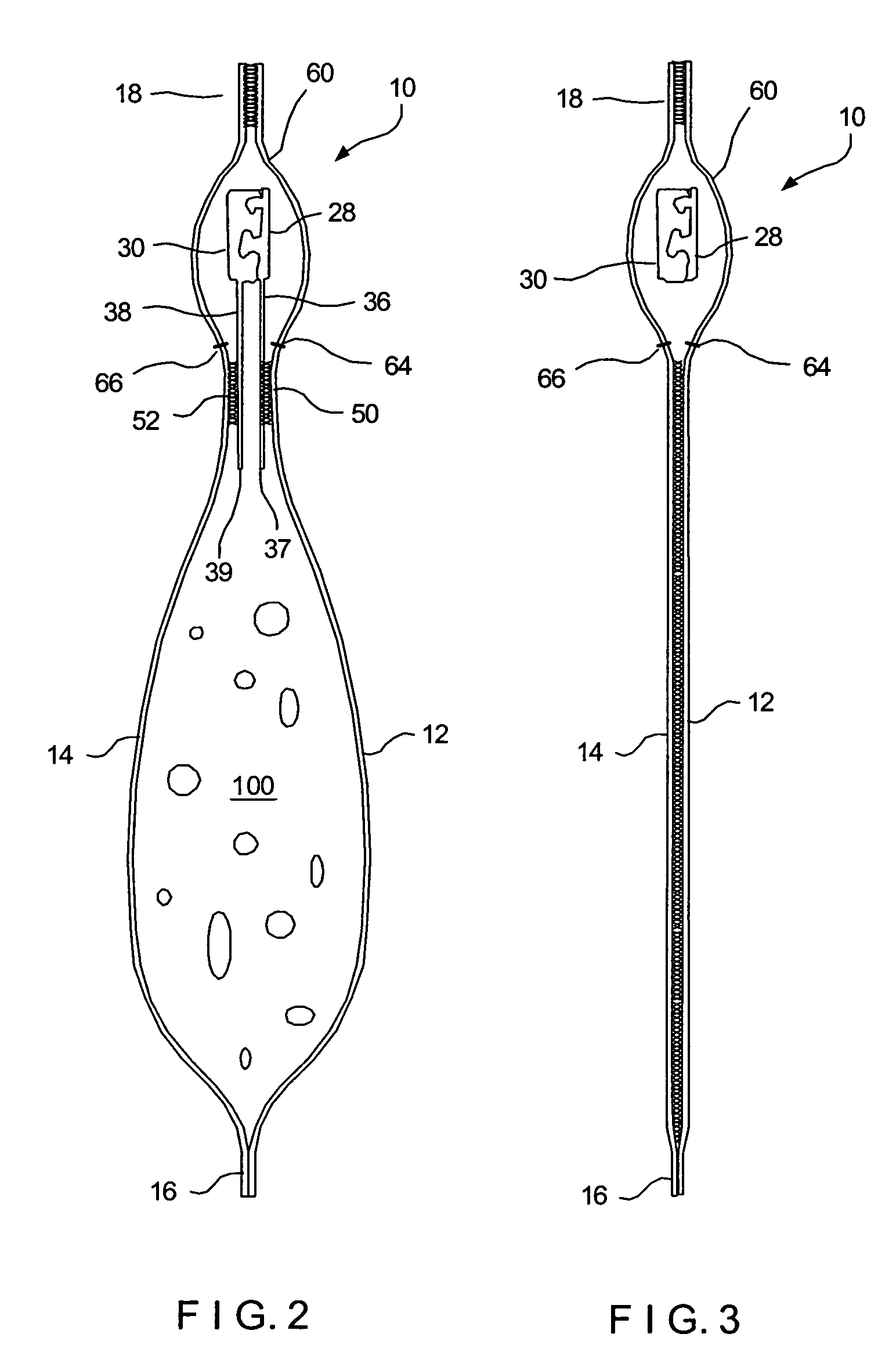

专利附图（6）
