包括弹性缓冲件的模制塑料洗碗机搁架齿构件
Molded plastic dishwasher rack tine members including elastomeric bumpers
US-8408403-B2提供一种带缓冲件的洗碗机搁架齿，保护餐具。
专利摘要

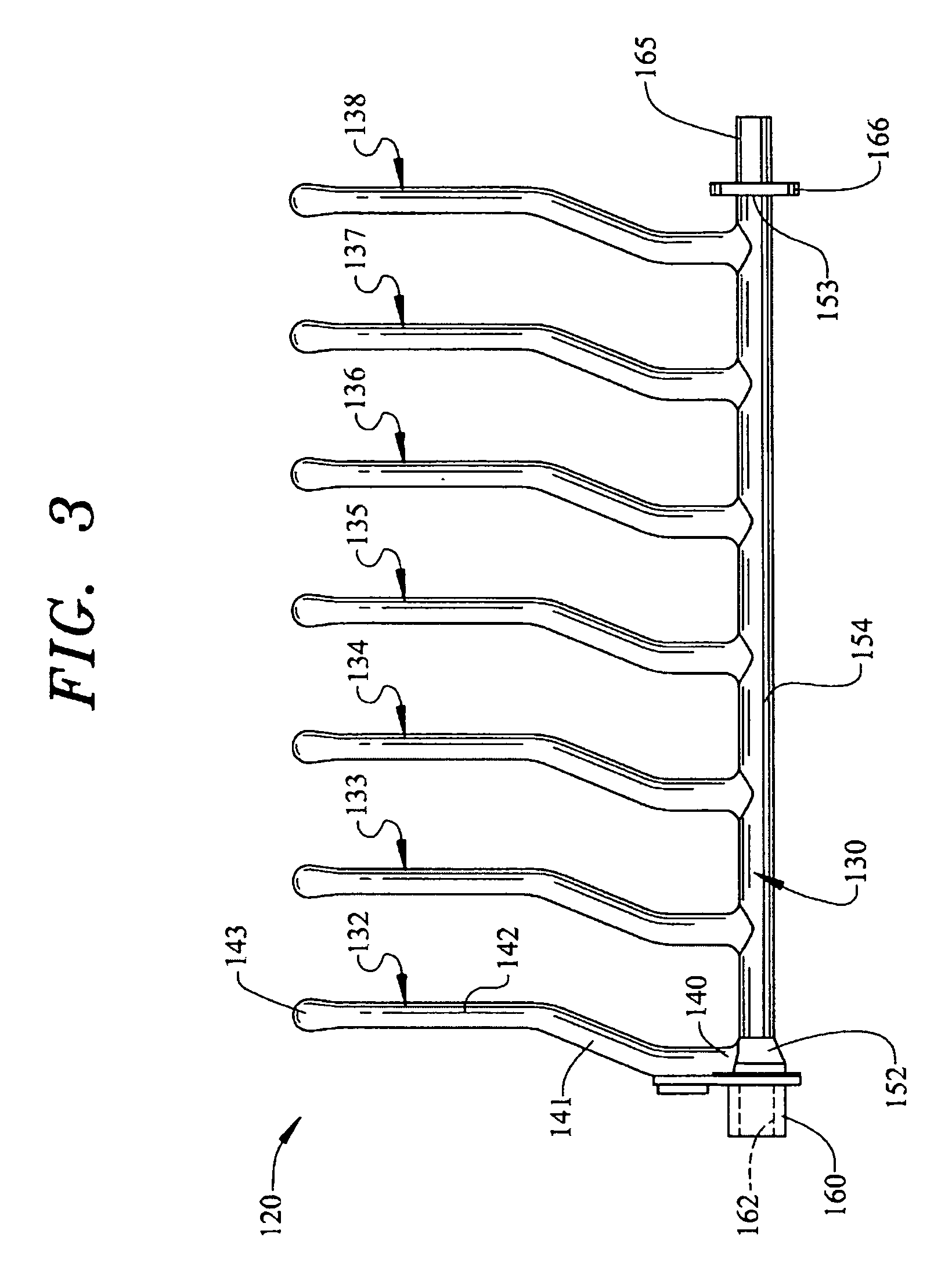

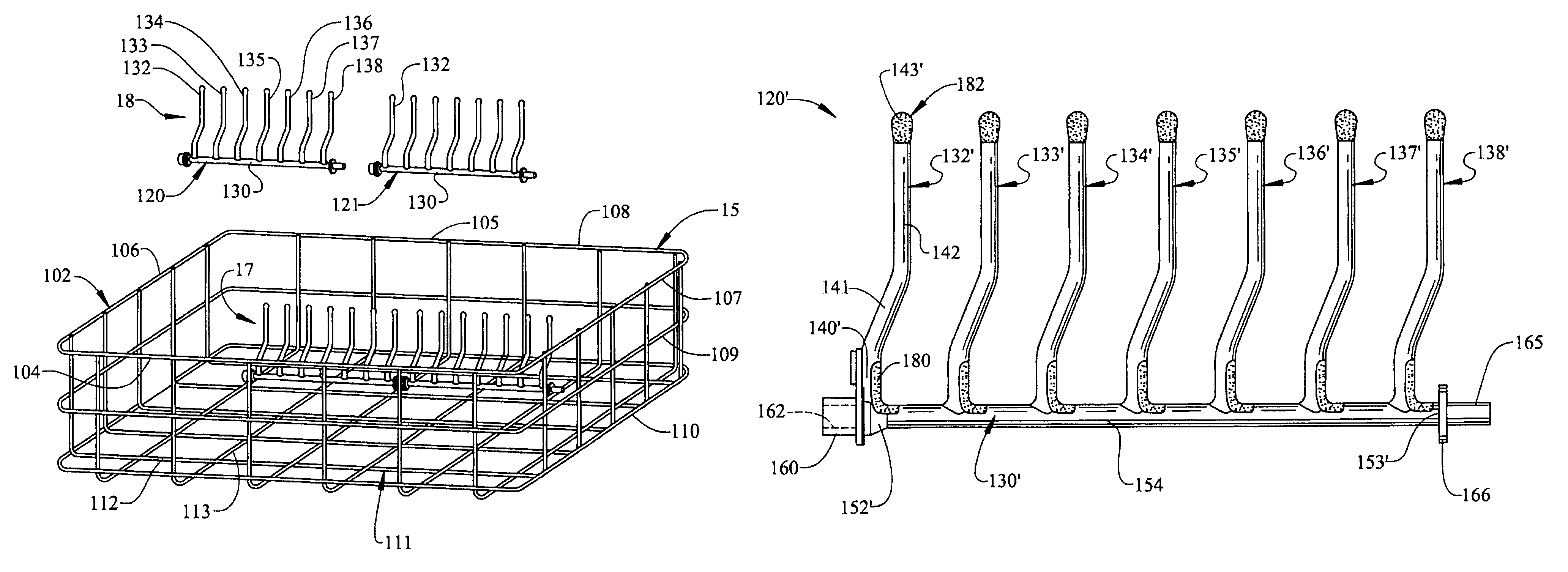

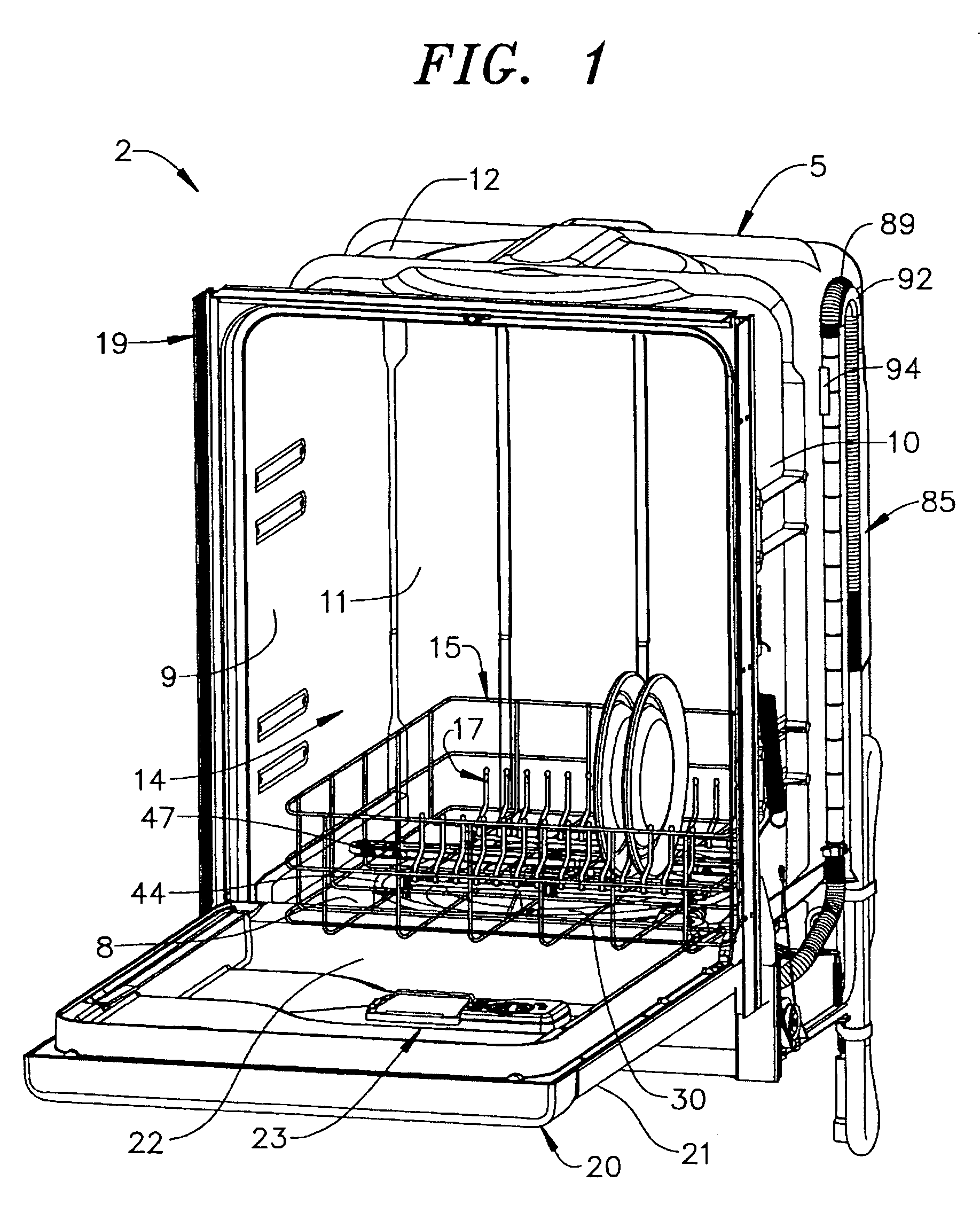

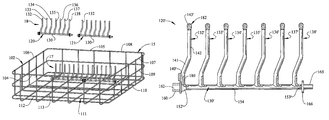

一种用于洗碗机的餐具支撑架，由复合材料（优选陶瓷/塑料复合材料）形成。餐具架包括前壁、后壁和相对的侧壁，它们与底部部分互连。餐具支撑架包括多个齿构件。齿构件包括基座构件，从基座构件延伸出多个齿。每个基座构件包括插座和销元件，用于连接单个齿构件以形成齿排。然后将齿排固定到底部部分，以在餐具架中建立餐具支撑区。齿可以包括一个或多个弹性缓冲件，位于餐具可能接触的各个位置。

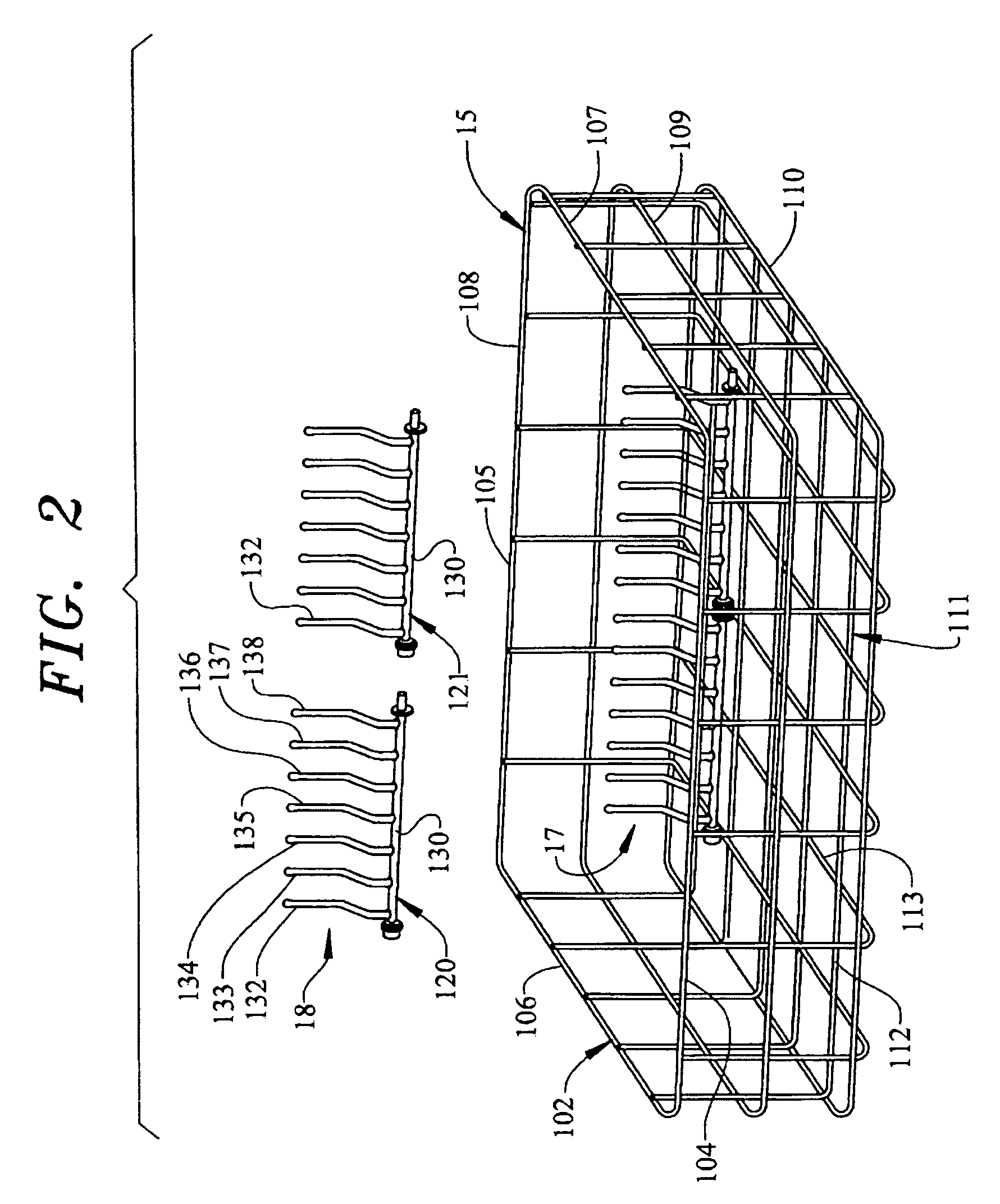

Original abstractA dish support rack for a dishwasher is formed from composite, preferably ceramic/plastic composite. The dish rack includes front, rear and opposing side walls interconnected with a bottom portion. The dish support rack includes a plurality of tine members. The tine members include a base member from which extend a plurality of tines. Each base member includes a socket and a pin element used to join individual tine members to form tine rows. The tine rows are then fastened to the bottom portion to establish dish support zones in the dish rack. The tines can include one or more elastomeric bumpers positioned at various locations where dishware is likely to contact.
专利附图（8）
