用于洗碗机，过滤洗涤水并排出污水。
专利摘要
提供了一种洗碗机的水槽，具有多个用于喷射洗涤水的喷嘴。该水槽包括用于储存洗涤水的水槽壳体、覆盖水槽壳体的水槽盖、安装在水槽盖上以过滤水槽壳体中储存的洗涤水中所含异物的自清洁过滤器、用于泵出水槽壳体中储存的洗涤水的洗涤泵、容纳洗涤泵并提供污物室的泵下部，洗涤水中所含异物积聚在污物室中、安装在水槽壳体上以驱动洗涤泵的洗涤电机、安装在水槽壳体上以排出洗涤水的排水泵、以及用于驱动排水泵的排水电机。
Original abstractThere is provided a sump of a dishwasher having a plurality of nozzles for spraying washing water. The sump includes a sump case for storing the washing water, a sump cover covering the sump case, a self-cleaning filter installed on the sump cover to filter foreign objects contained in the washing water stored in the sump case, a washing pump for pumping out the washing water stored in the sump case, a pump lower receiving the washing pump and providing a soil chamber in which the foreign objects contained in the washing water are accumulated, a washing motor installed on the sump case to drive the washing pump, a drain pump installed on the sump case to drain the washing water, and a drain motor for driving the drain pump.

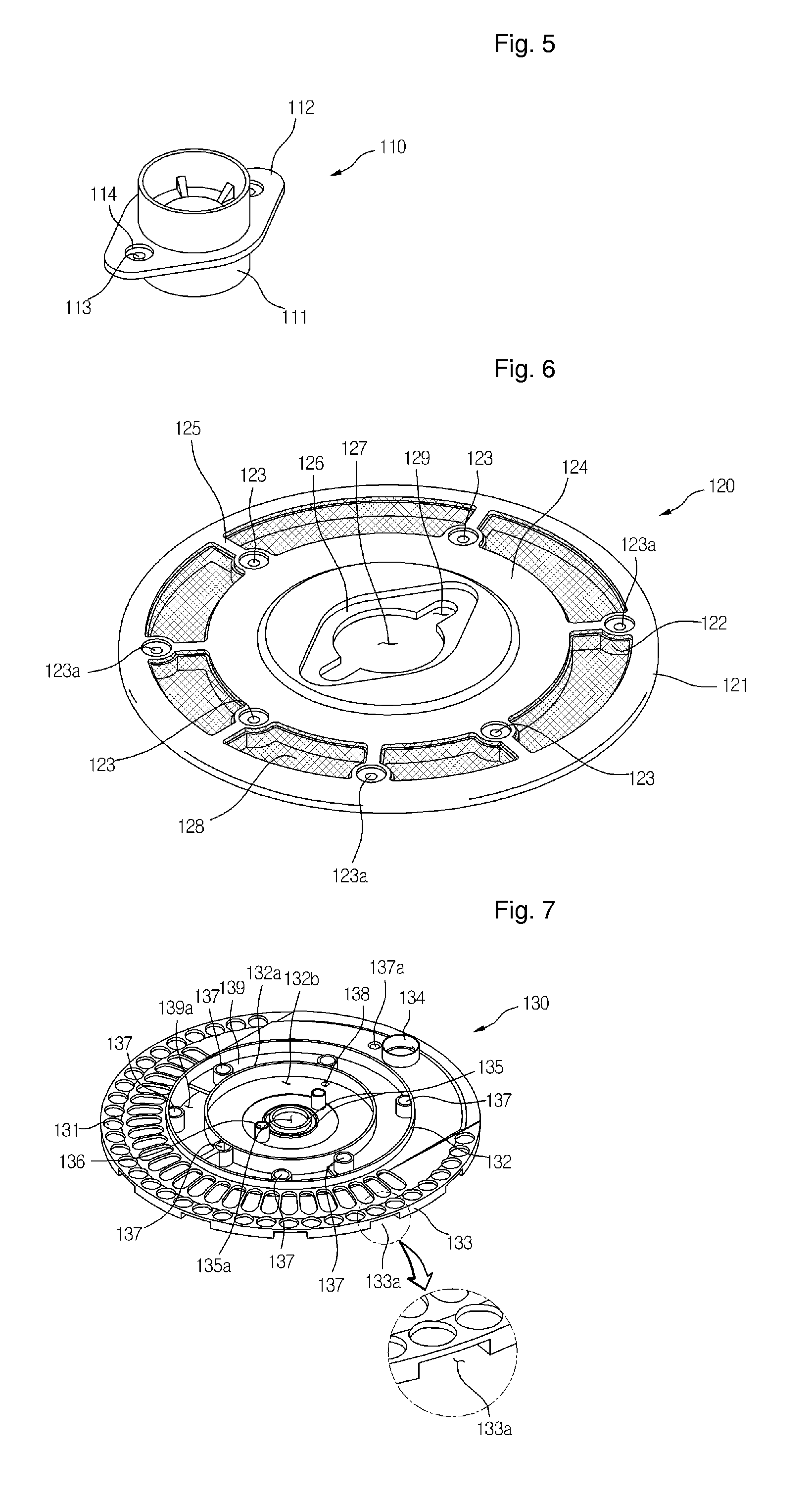

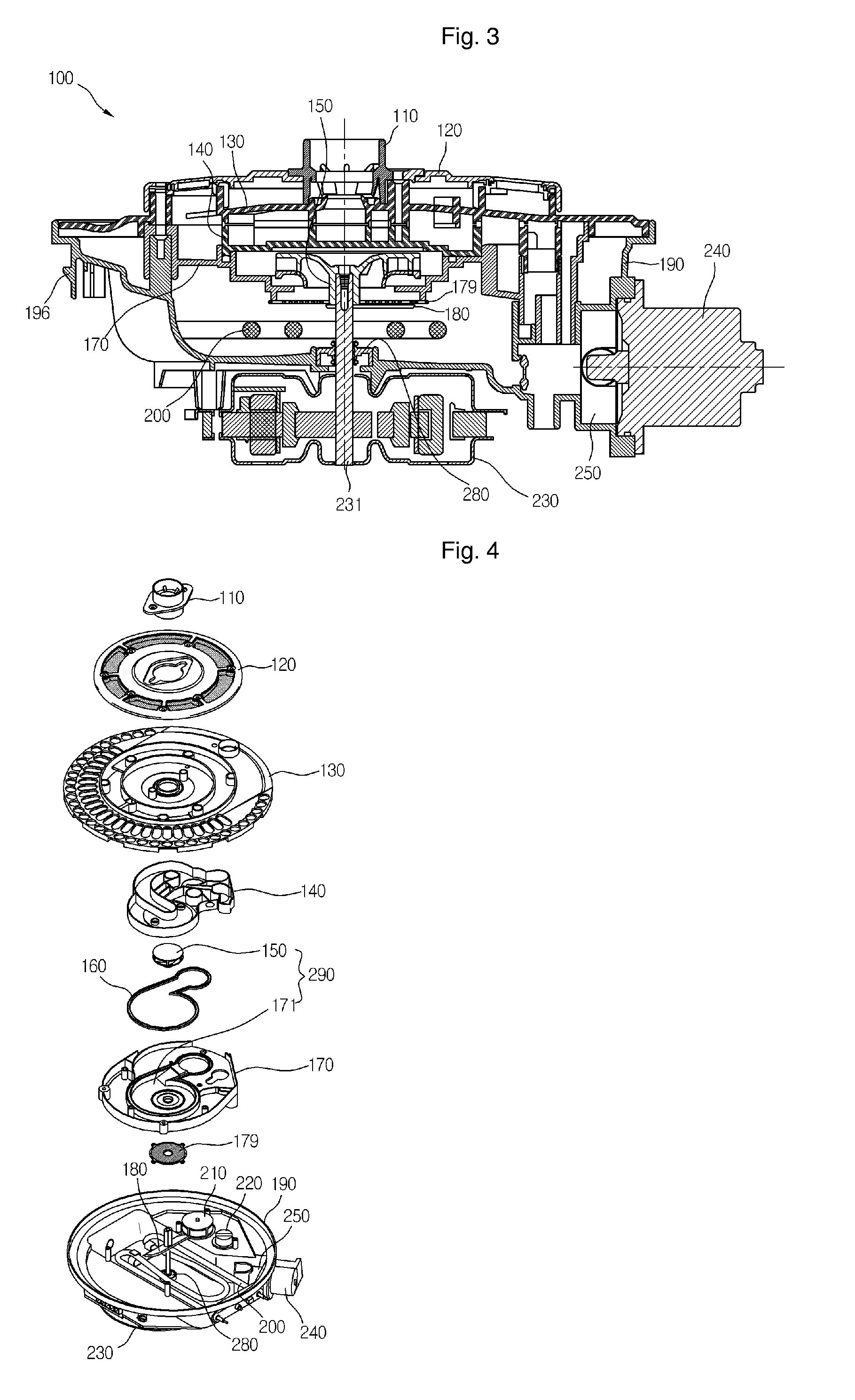

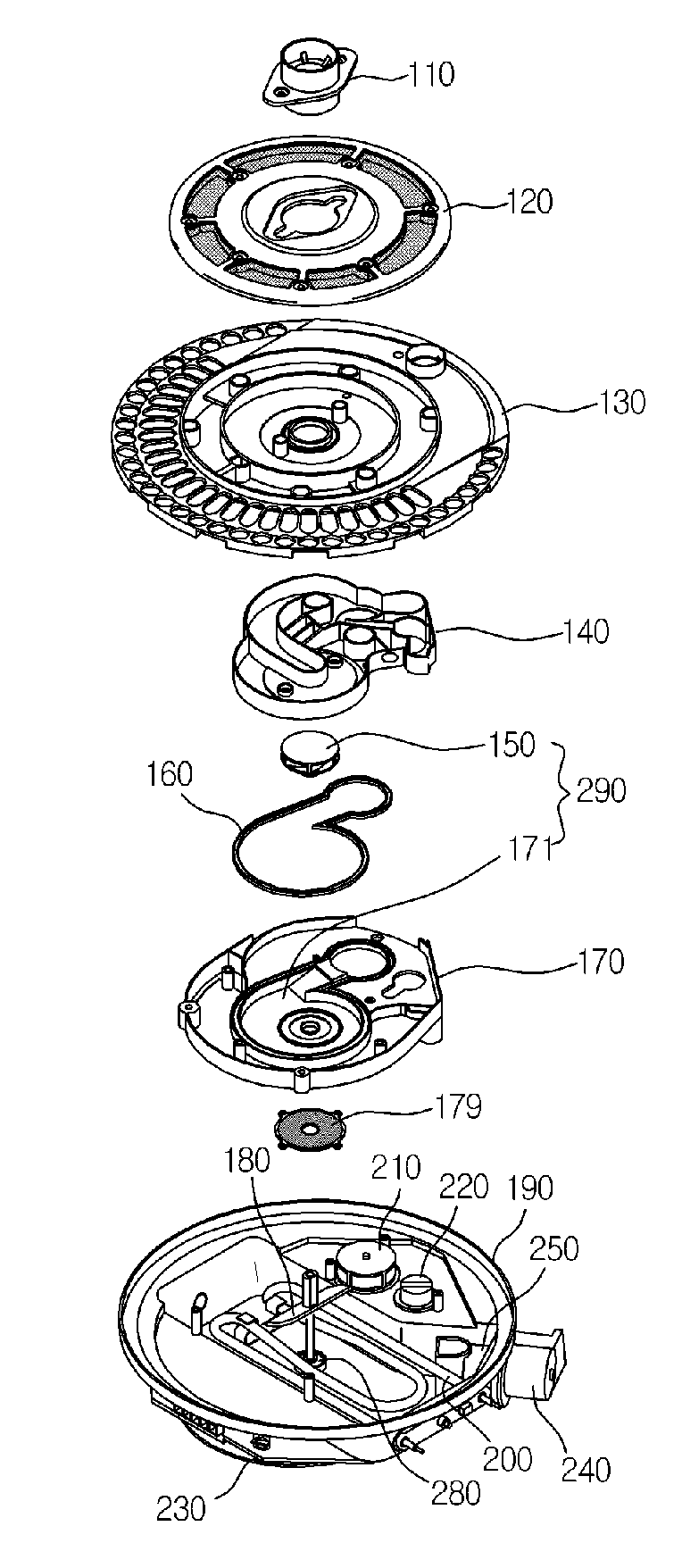

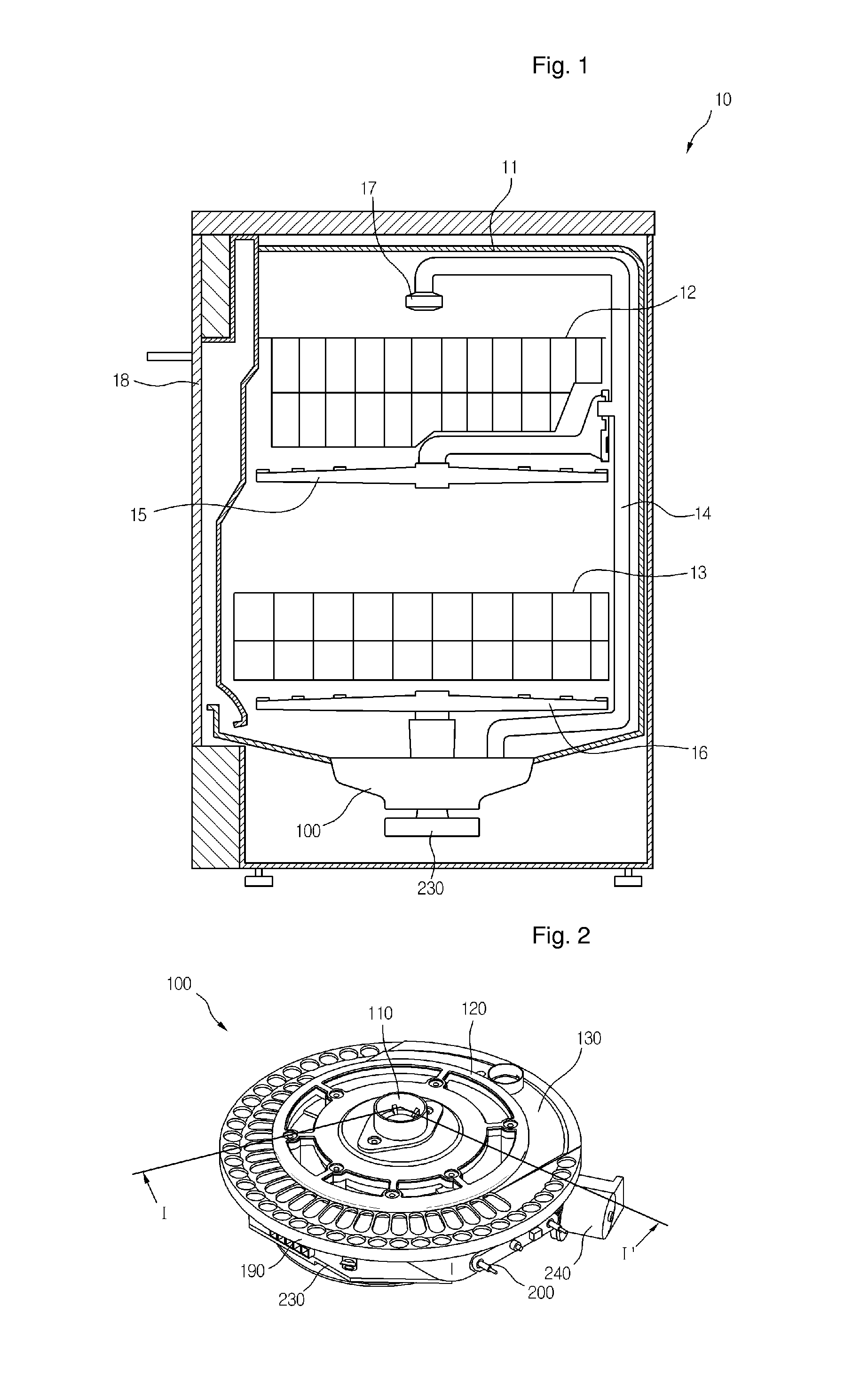

专利附图（共 8 张）
