用于容器的开封阀

Break-open valve for a container

US-8397927-B2

用于容器,密封并防篡改。

专利摘要

用于容器(21)的开封阀(1)包括可断开元件(4),其可通过转动激活器(3)而拧断。阀(1)可用于将容器(21)密封直到其首次打开,并使其具有防篡改功能。激活器(3)可转动地固定在阀头(2)上。激活器(3)包括插入盘(16),其具有至少一个开口(10)和与可断开元件(4)接合的插座(5)。激活器(3)还包括膜(17),其保护激活器(3)内的内容物免受通过喷嘴(18)进入的污染物。阀(1)具有生产成本低、使用方便且适用于分配多剂量无菌内容物的优点。

Original abstractThe break-open valve ( 1 ) for a container ( 21 ) comprises a break-away element ( 4 ) which can be twisted off by turning an activator ( 3 ). The valve ( 1 ) can be used for hermetically sealing a container ( 21 ) until its first opening and also for making it tamper-evident. The activator ( 3 ) is rotatably affixed to the valve head ( 2 ). The activator ( 3 ) comprises an inserted disk ( 16 ) with at least one opening ( 10 ) and a socket ( 5 ) which engages the break-away element ( 4 ). The activator ( 3 ) further comprises a membrane ( 17 ) which protects the contents within the activator ( 3 ) from contaminants entering through spout ( 18 ). The valve ( 1 ) has the advantage that it is cost efficient in its production, that it is easy to use and that it is suitable for dispensing sterile contents in more than one dose.

专利附图(8)

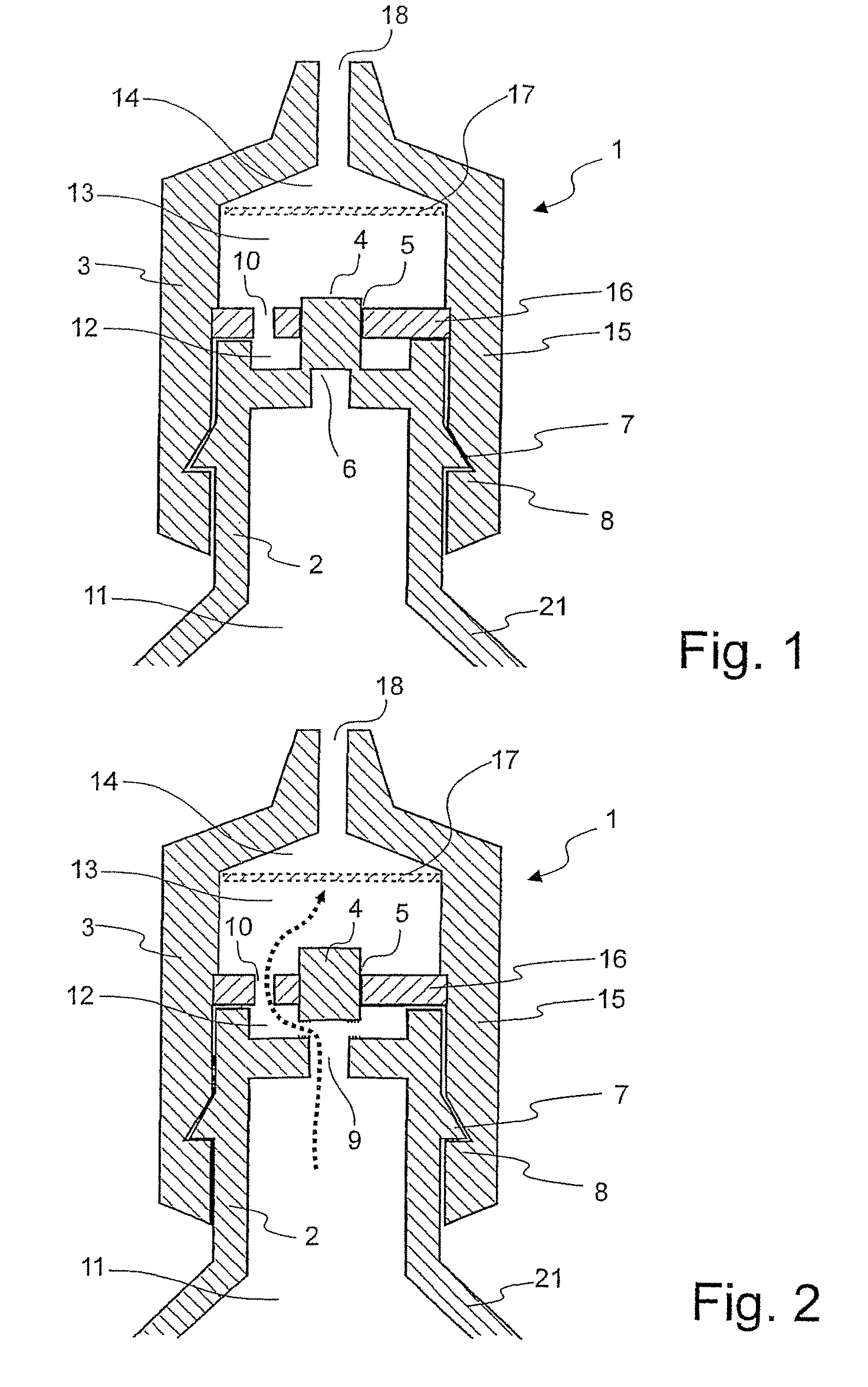

US-8397927-B2 figure 1
1

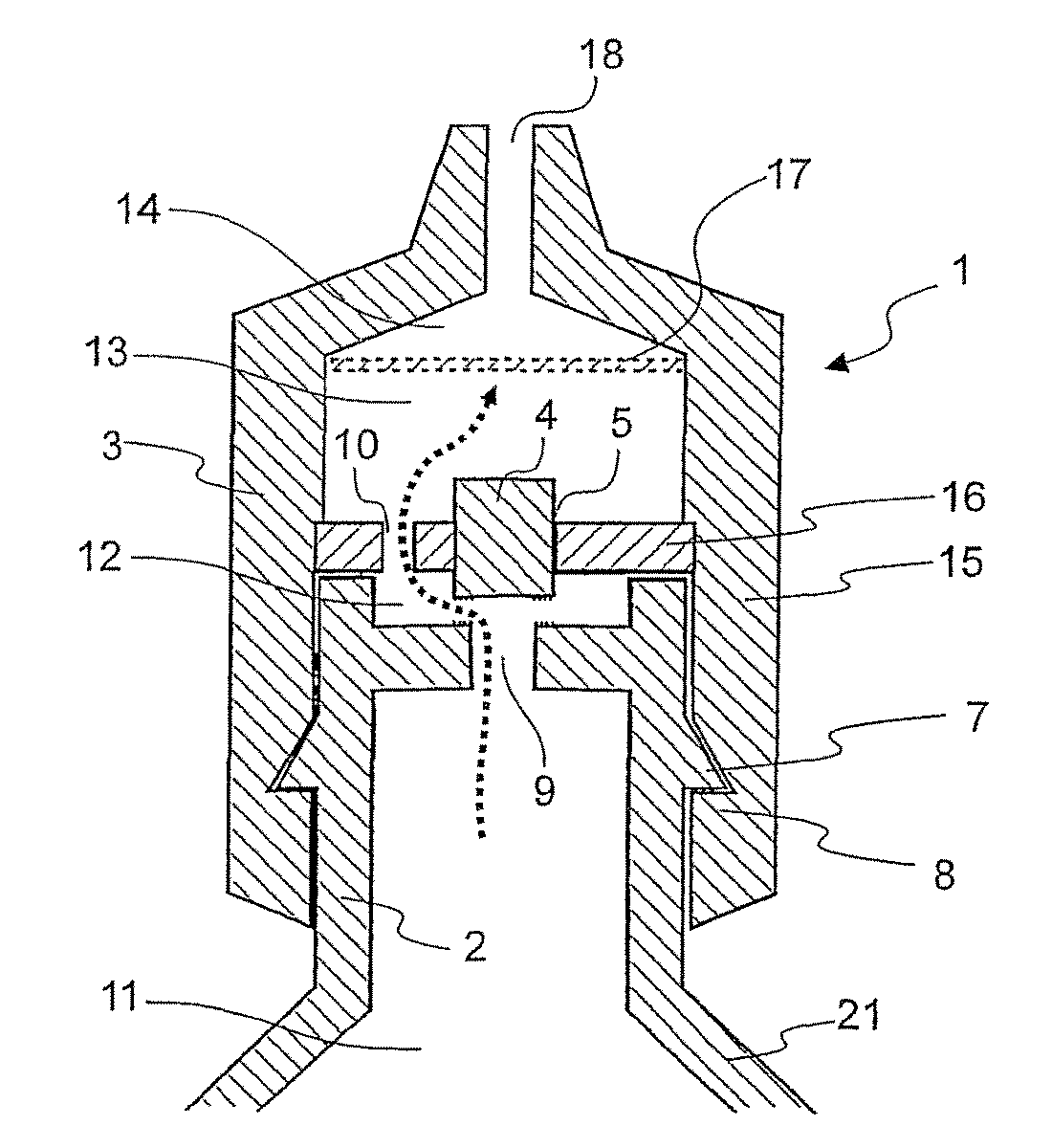

US-8397927-B2 figure 2
2

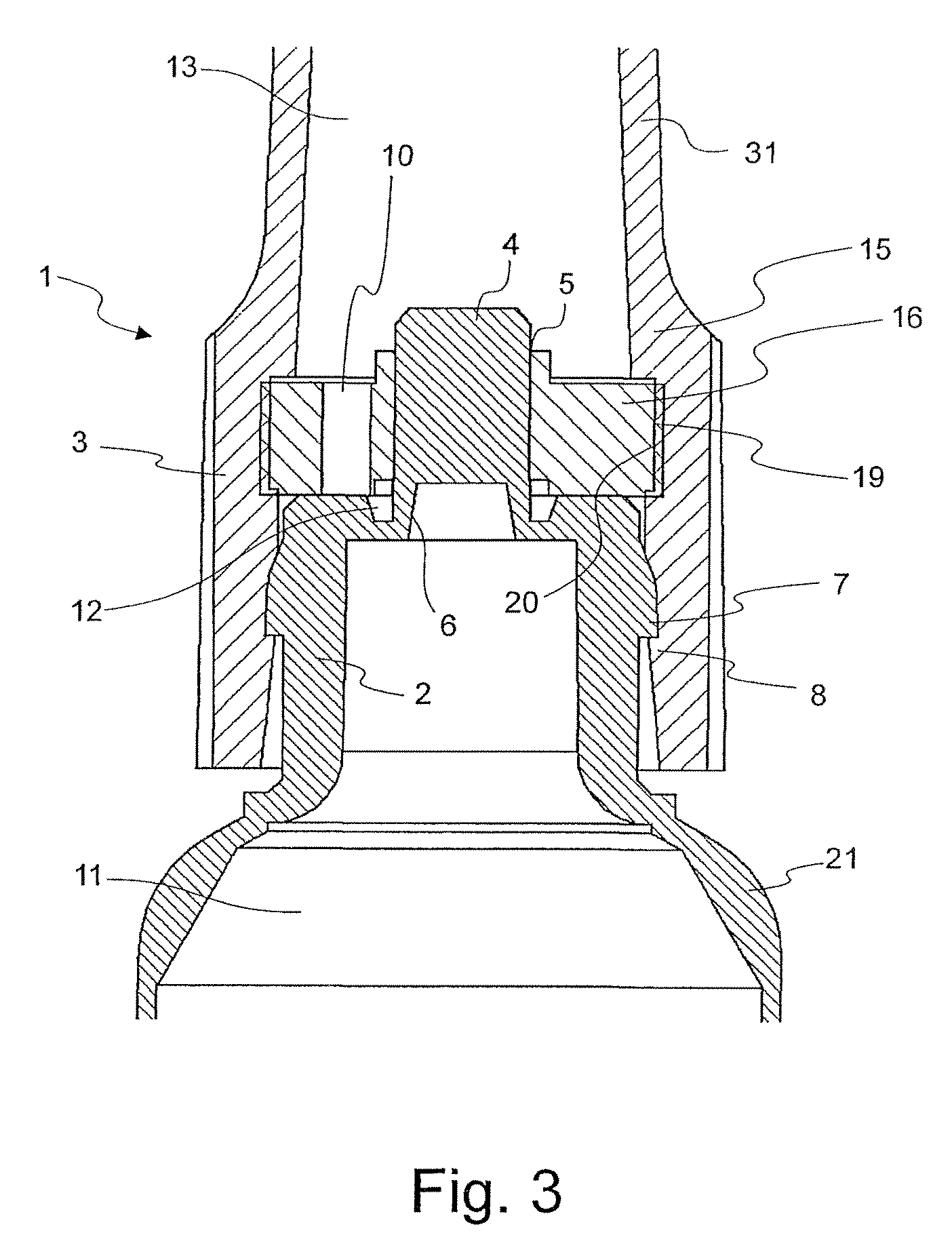

US-8397927-B2 figure 3
3

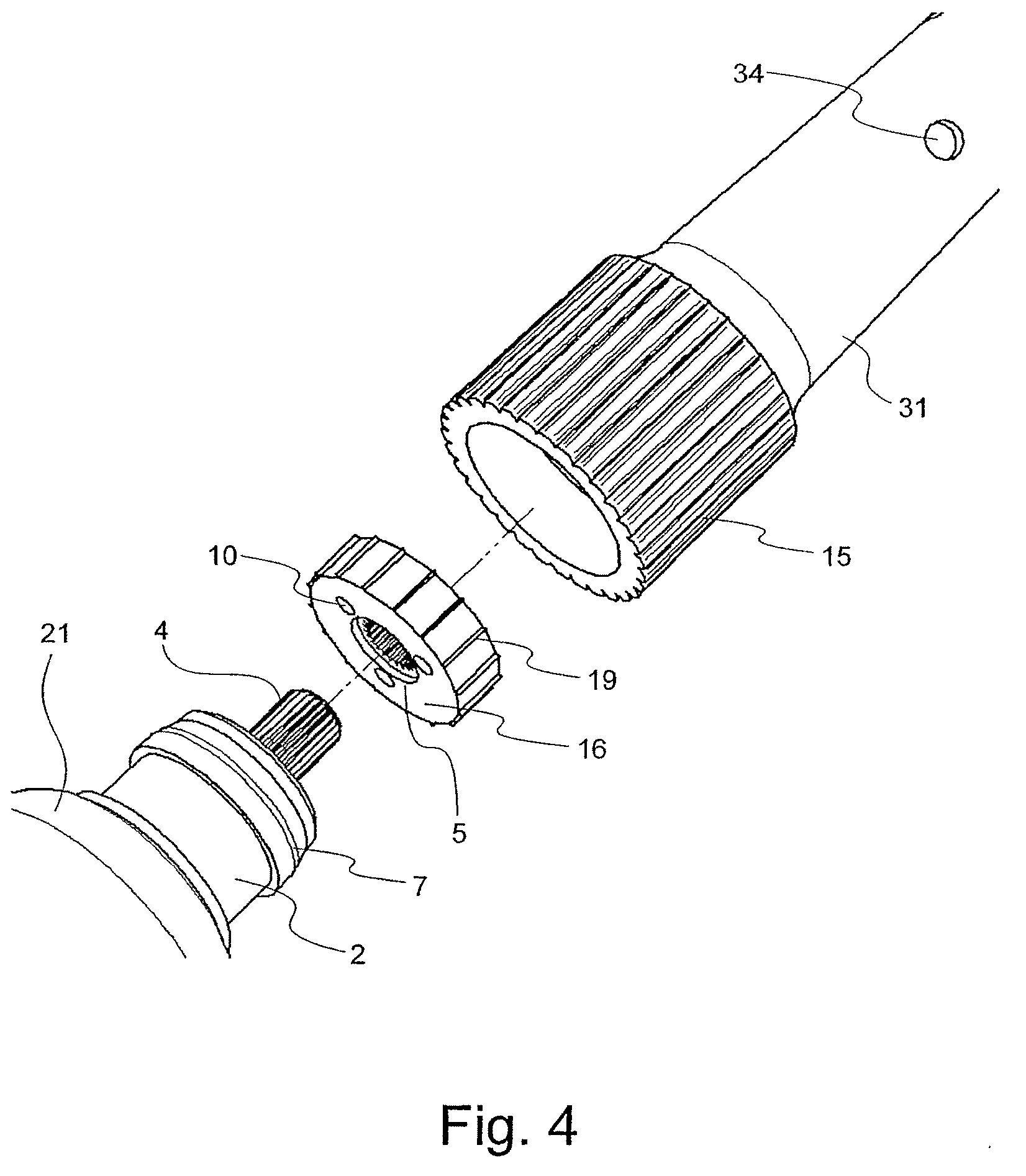

US-8397927-B2 figure 4
4
US-8397927-B2 figure 5
5
US-8397927-B2 figure 6
6
US-8397927-B2 figure 7
7
US-8397927-B2 figure 8
8
