来源记录显示 Expired
洗碗机，特别是用于整体厨房的洗碗机
Dishwasher, particularly for fitted kitchens
US-8377226-B2一种容量增强的洗碗机，适用于整体厨房。
专利摘要

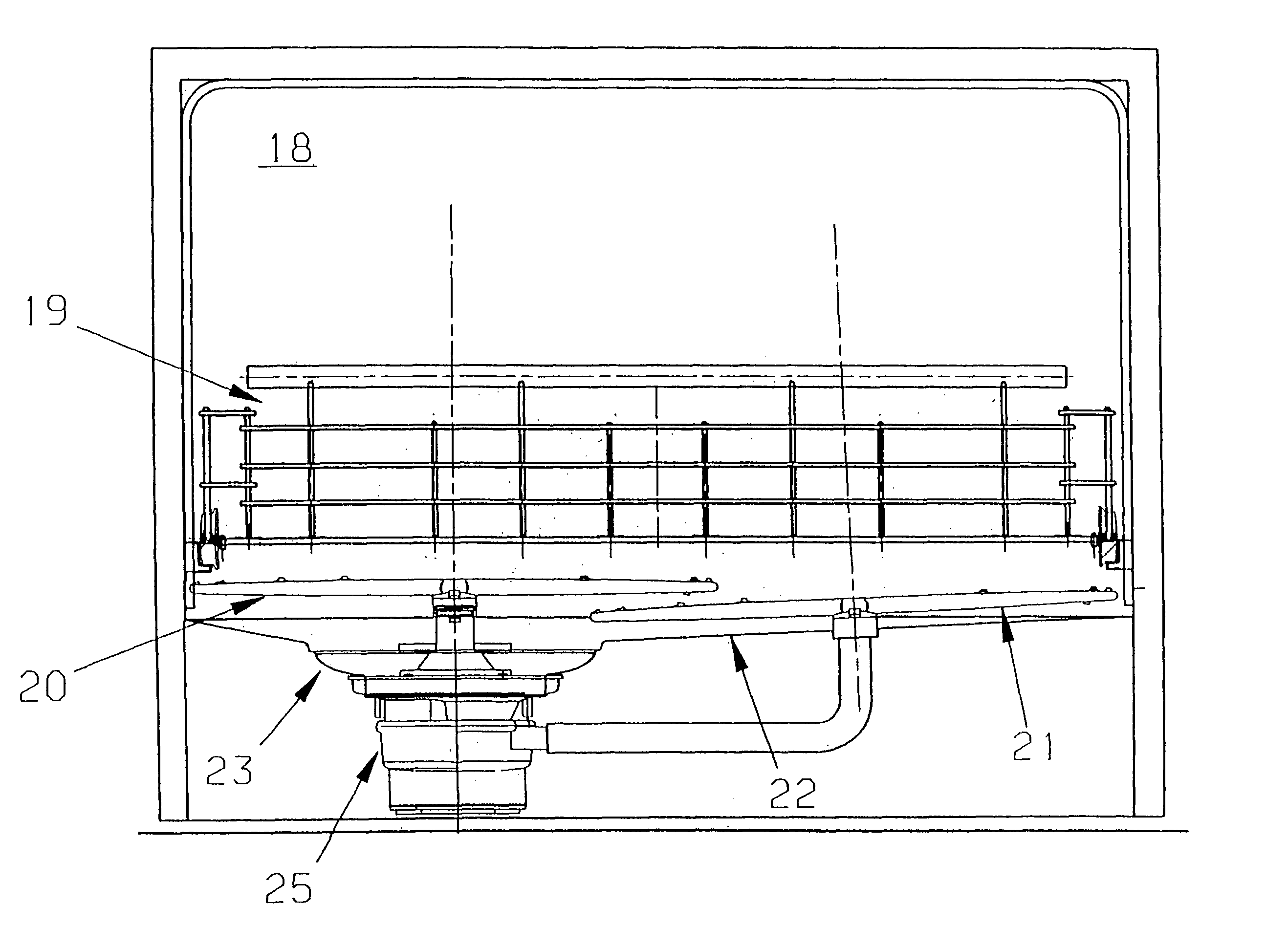

本发明涉及一种自动洗碗机，特别是用于内置厨房的洗碗机，包括柜体10并配备有前门11，该前门密封洗涤室18，该洗涤室容纳至少一个第一和第二喷淋臂20,21，用于洗涤放置在至少一个搁架19中的餐具，所述洗涤室底部由向下倾斜的面板22封闭，该面板将洗涤水引导到集水斗23中，该集水斗用于收集和排水，洗碗机的水平和垂直容量得到增强，因为第一喷淋臂20基本上与集水斗23同轴延伸，而第二喷淋臂21位于倾斜底板22上方，其旋转轴线垂直于所述面板延伸。
Original abstractThis invention relates to an automatic dishwasher, especially for built-in kitchenettes, comprising a cabinet 10 and equipped with a front door 11 that seals the wash tub 18 housing at least one first and one second spray arm 20, 21 for washing the dishes placed in at least one rack 19 , said tub being closed on the bottom by a downward sloping panel 22 that directs the wash water into a sump hopper 23 that serves to collect and drain the water, with the horizontal as well as vertical capacity of the dishwasher enhanced in that the first spray arm 20 essentially extends coaxially with the sump hopper 23 while the second spray arm 21 is positioned above the sloped bottom panel 22 with its axis of rotation extending at a right angle to said panel.
专利附图（8）
