包括可垂直移动的水滑块的 floor 清洁机
Floor cleaning machine comprising a vertically movable water slider
US-8365351-B2一种地板清洁机，其水滑块可垂直移动。
专利摘要

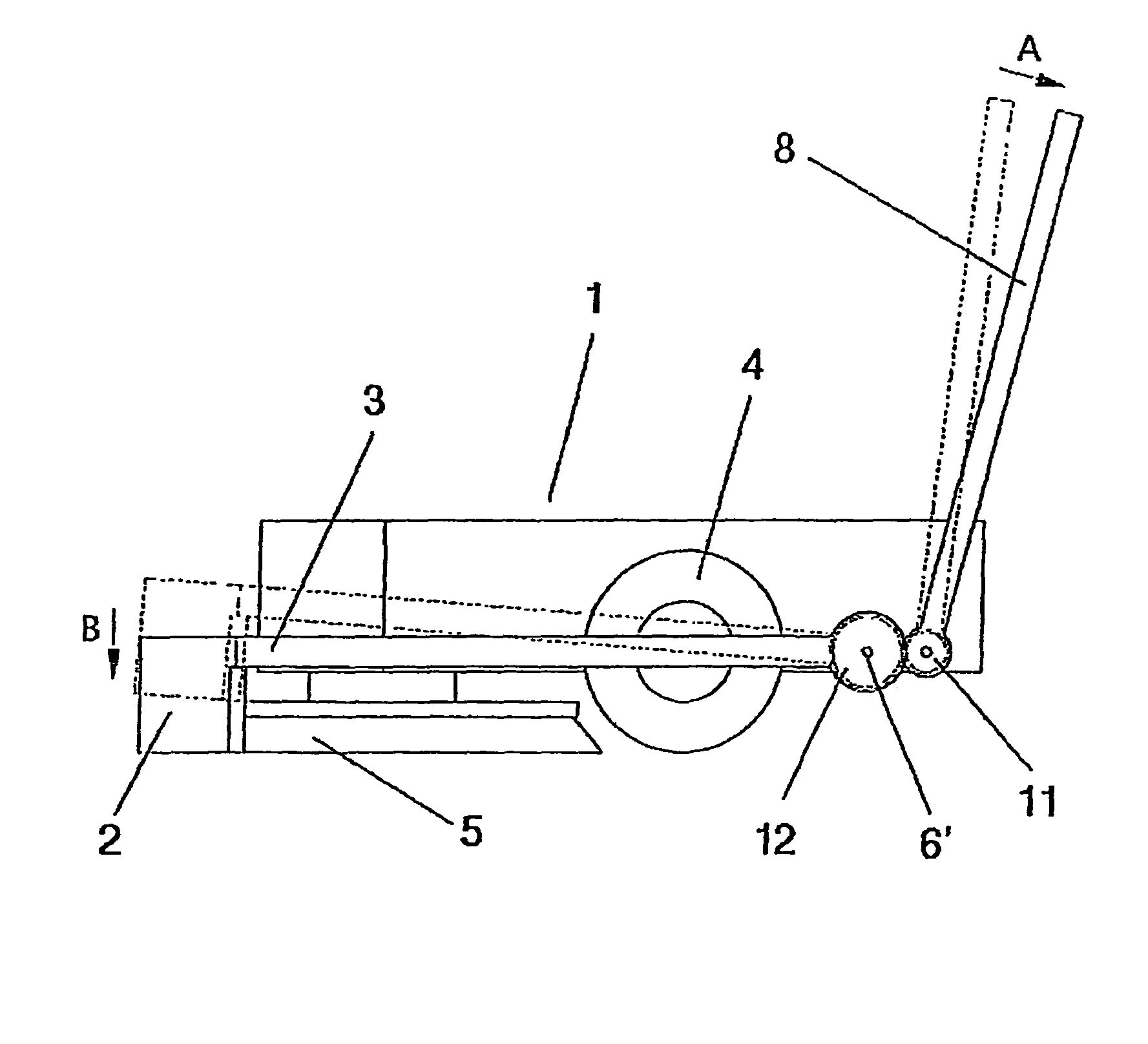

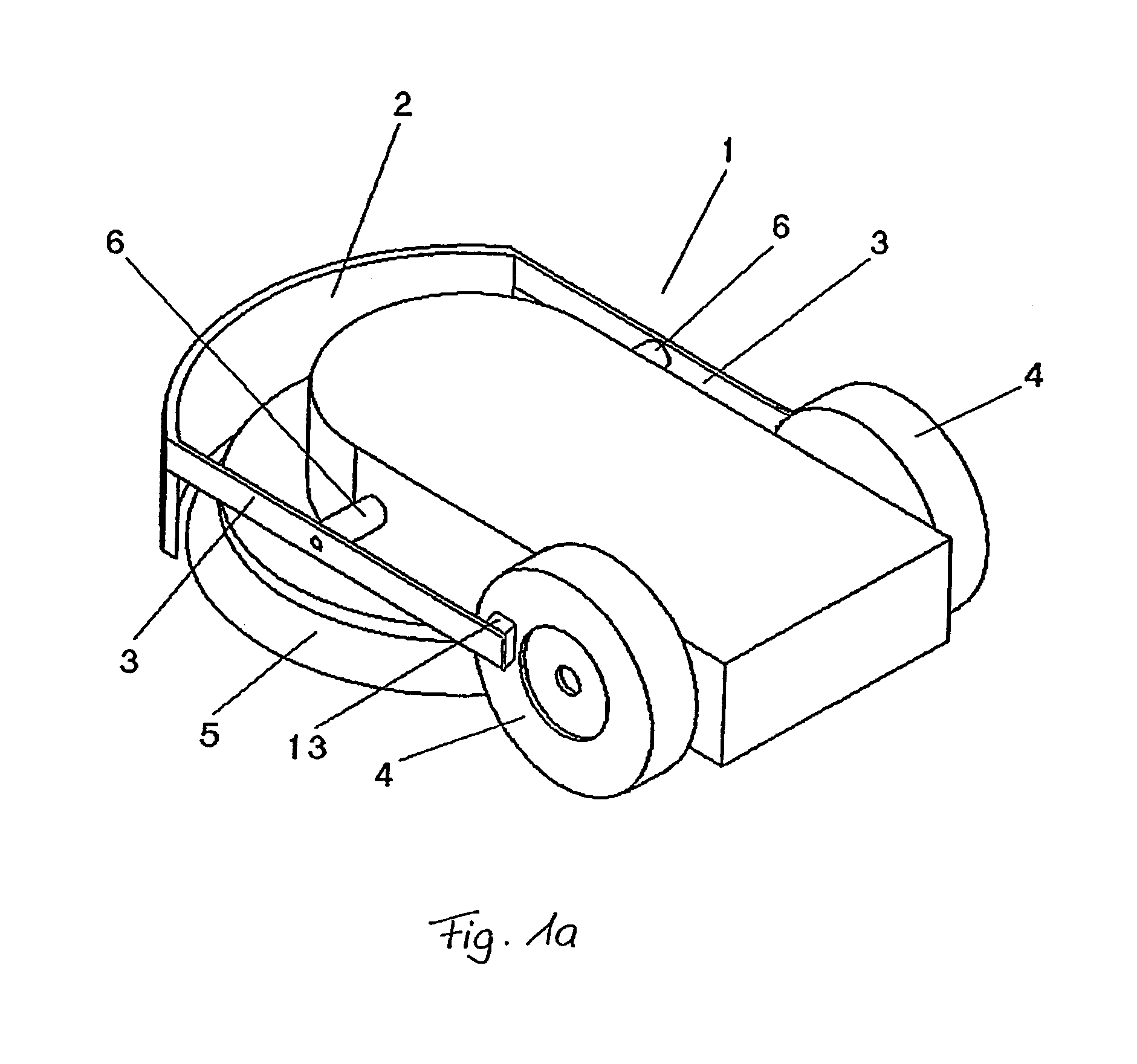

用于地板清洁机1的水滑块，包括位于机器刷单元5前方的滑动单元2，其特征在于用于升高和降低滑动单元的致动装置3,6,13; 3,6′,11,12; 3,6,7; 3,6,7′; 3,6,7″; 3,6′,10; 3,6′,10′; 3,6′,10″。水滑块的致动可以通过多种方式获得：通过致动杆3自动地，该杆将滑动单元机械地连接到机器的驱动轮，并在轮向前/向后移动时升高/降低滑动单元；通过杆3经由负齿轮传动机械连接到转向手柄8直观地；通过手动致动杆7;7′;7″；或通过由机器电子设备引导的电动机构10;10′;10″，当机器向前/向后移动时升高/降低水滑块。
Original abstractWater slider for a floor cleaning machine 1 , comprising a sliding unit 2 located in front of the brush unit 5 of the machine, characterized by actuating means 3, 6, 13; 3, 6′, 11, 12; 3, 6, 7; 3, 6, 7′; 3, 6, 7″; 3, 6′, 10; 3, 6′, 10′; 3, 6′, 10″ for raising and lowering the sliding unit. The actuation of the water slider can be obtained in several ways: automatically via an actuating bar 3 which connects the sliding unit to the driving wheels of the machine mechanically and which raises/lowers the sliding unit on a forward/backward movement of the wheels; intuitively via a mechanical connection of the bar 3 to the steering handle 8 via a negative gear transmission; manually via an actuating lever 7; 7′; 7″ ; or by a powered mechanism 10; 10′; 10″ which is steered by the electronics of the machine and which raises/lowers the water slider when the machine is moved forward/backward.
专利附图（8）
