来源记录显示 Expired
用于从待清洁区域释放和输送颗粒的清洁设备
Cleaning apparatus for releasing and transporting particles away from an area to be cleaned
US-8312592-B2一种节能的清洁设备，用于释放和输送颗粒。
专利摘要
本发明涉及一种用于从待清洁区域释放和输送颗粒的清洁设备(10)，包括：壳体(6)，具有开口(8)以定位在待清洁区域(1)上；可在设备内移动的构件，用于产生气流以从区域释放和输送颗粒；其中所述构件包括布置在壳体(6)内的气流产生表面(12)，所述气流产生表面在其操作条件下面向待清洁区域(1)并具有基本上平行于所述区域的运动方向，以引起平行于所述区域的气流。根据本发明的设备需要较少的能量来从待清洁区域释放和输送颗粒。
Original abstractThe invention relates to a cleaning apparatus ( 10 ) for releasing and transporting particles away from an area to be cleaned, comprising: a housing ( 6 ) having an opening ( 8 ) to be positioned on an area ( 1 ) to be cleaned;—a member that is movable within the apparatus for generating an airflow to release and transport particles away from the area; wherein the member comprises an airflow-generating surface ( 12 ) arranged within the housing ( 6 ), said airflow-generating surface in its operating condition lacing the area ( 1 ) to be cleaned and having a direction of movement that is substantially parallel to said area so as to cause an airflow parallel to said area. The apparatus according to the invention requires less energy for releasing and transporting particles away from an area to be cleaned.

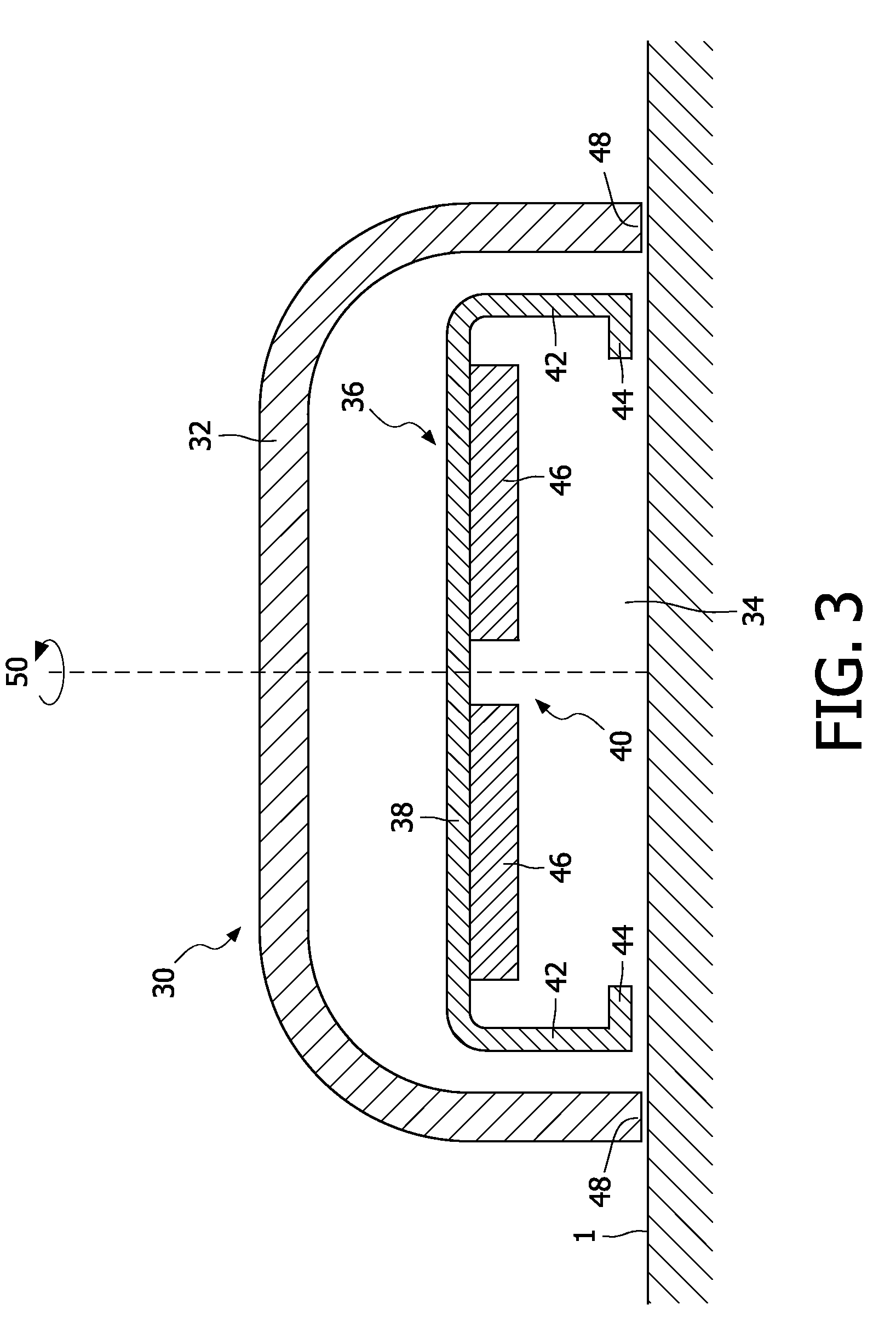

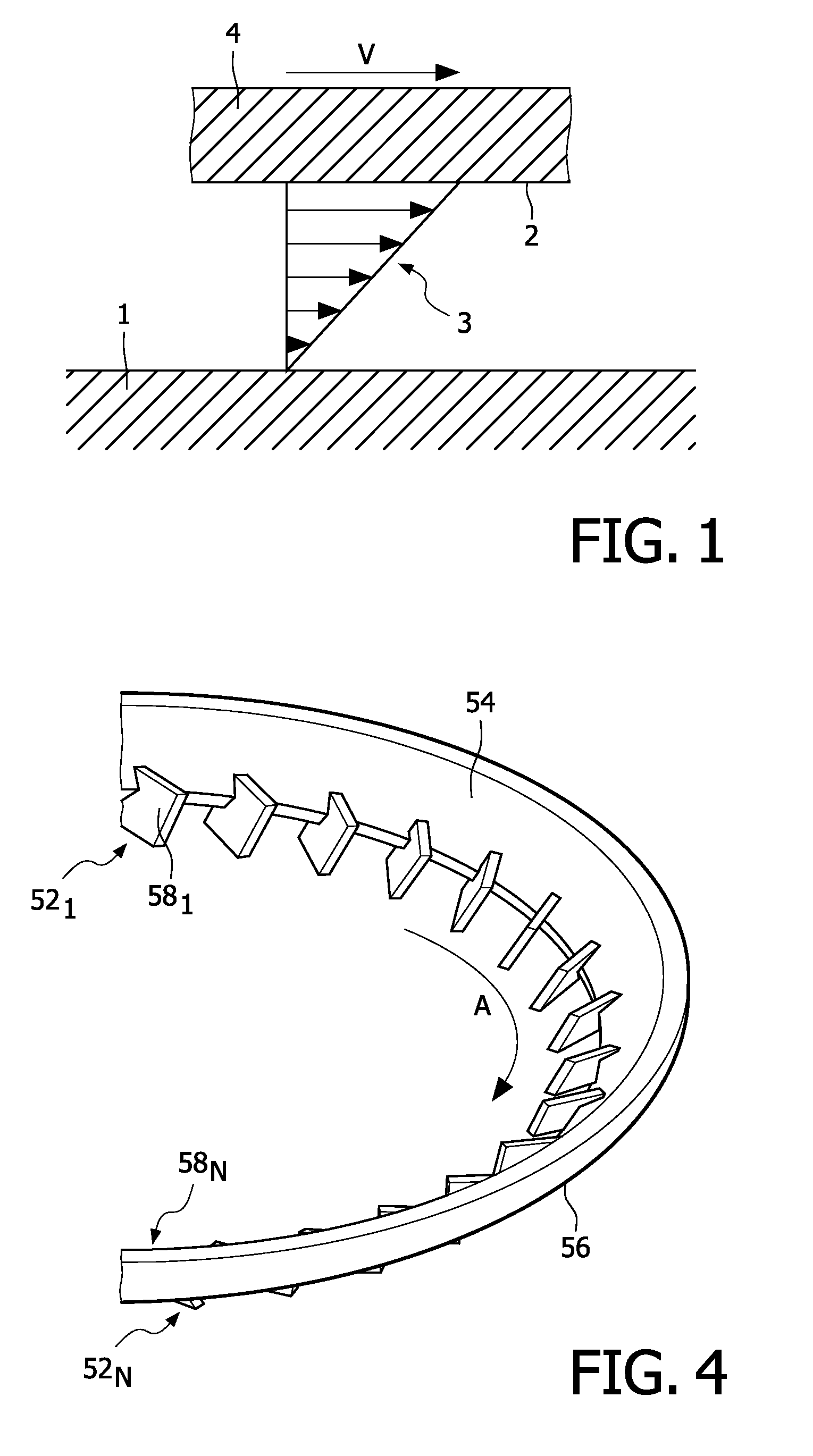

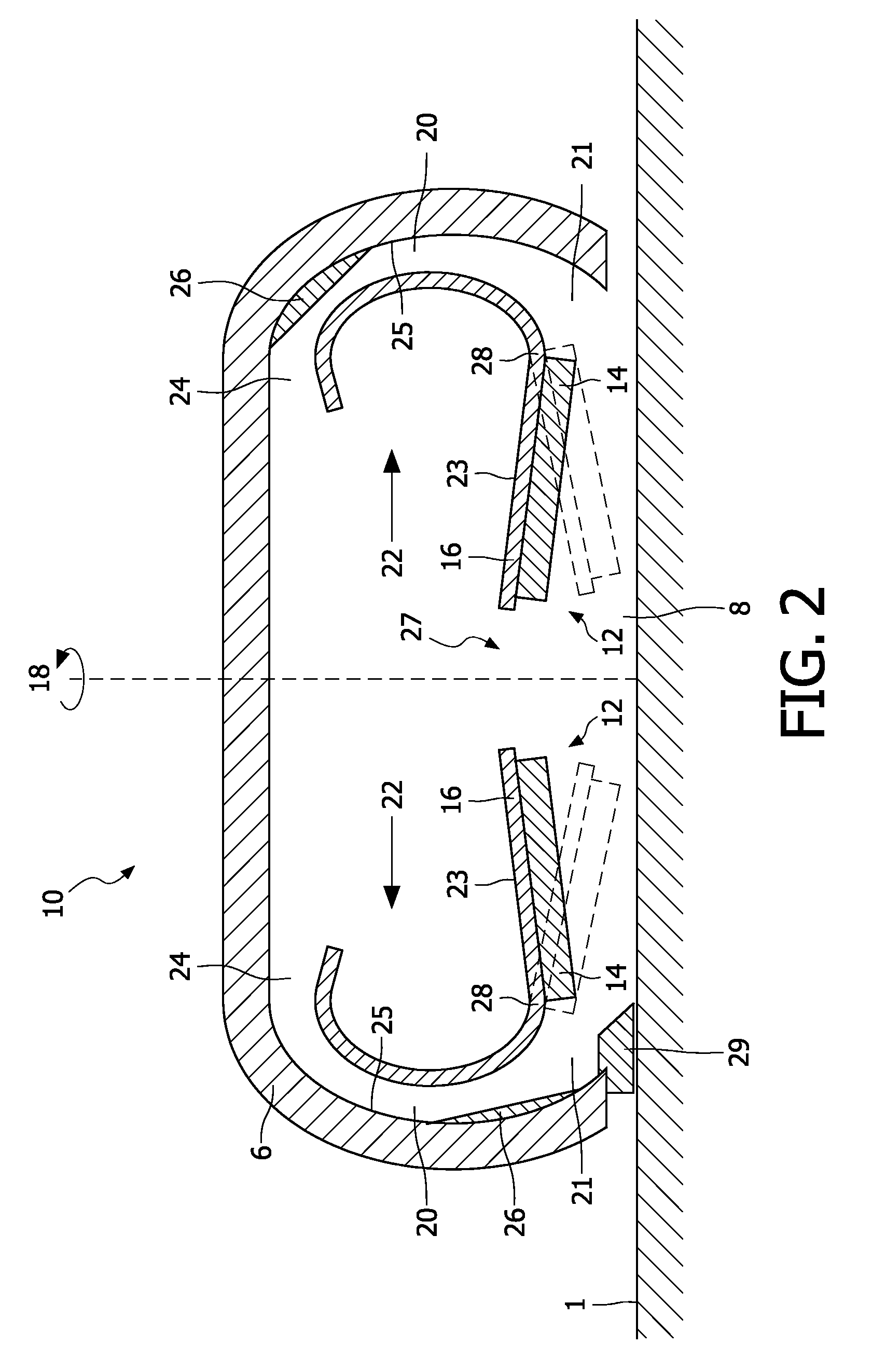

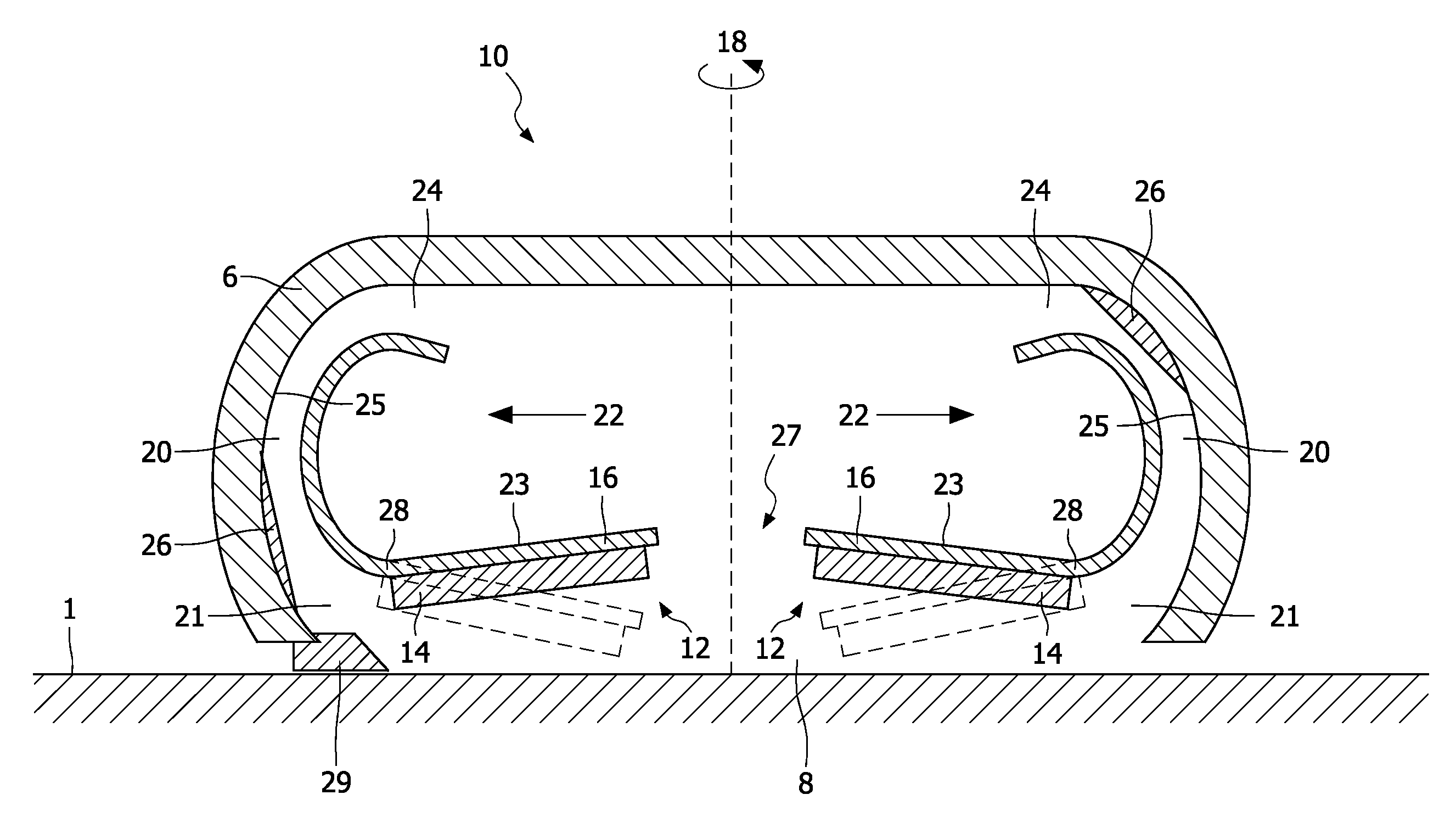

专利附图（8）
