蛋糕容器盖-底座连接
Cake container cover-base connection
US-8307982-B1一种防意外打开的蛋糕容器。
专利摘要
一种蛋糕容器，具有底座(14)和覆盖在底座上的透明盖(16)，两者均由热成型塑料片制成，底座和盖的周边牢固地锁扣在一起，以避免在解锁时突然移动。底座具有大致垂直的周边壁(24)，形成多个凹坑(26)，盖具有下周边壁(30)，带有多个凹坑接收区域(32)。每个凹坑接收区域包括一个烟囱(52)，其接收凹坑直到凹坑位于烟囱的顶部(60)。然后可以转动盖，使凹坑进入凹坑接收腔(54)，该腔防止盖从底座上移开，直到盖转回。盖具有多个垂直肋(172、173、174)，形成宽面板(182)和位于宽面板之间的窄面板(180)。贴纸(124)粘附在盖和底座的周边上，以向顾客显示没有被篡改。

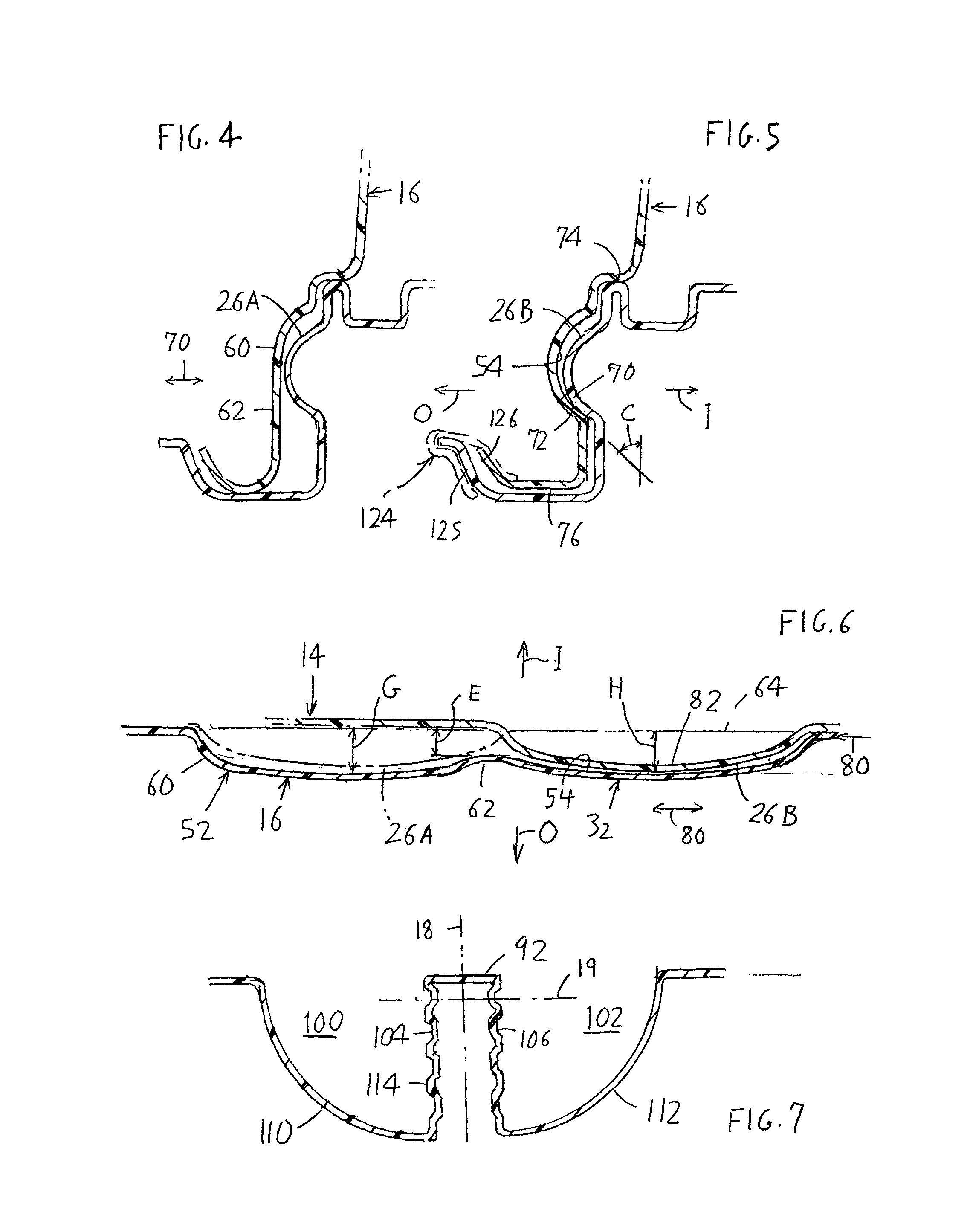

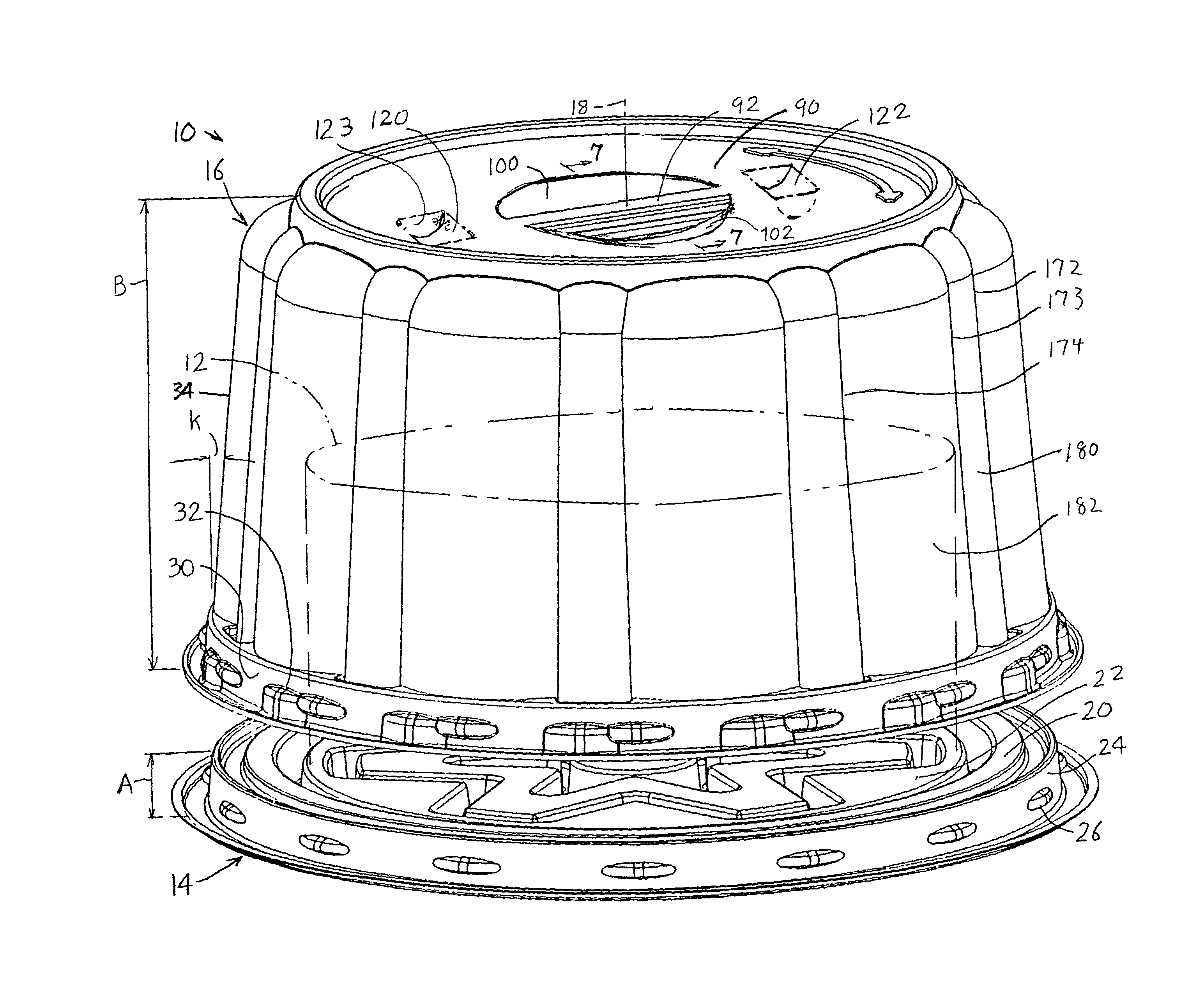

Original abstractA cake container having a base ( 14 ) and a transparent cover ( 16 ) lying over the base, both being constructed of heat-formed plastic sheets, with peripheries of the base and cover securely latched together in a way that avoids sudden movement during unlatching. The base has a largely vertical peripheral wall ( 24 ) forming a plurality of dimples ( 26 ), and the cover has a lower peripheral wall ( 30 ) with a plurality of dimple-receiving regions ( 32 ). Each dimple-receiving region includes a chimney ( 52 ) that receives a dimple until the dimple lies at the top portion ( 60 ) of the chimney. The cover then can be turned so the dimple enters a dimple-receiving cavity ( 54 ) that prevents the cover from moving up off the base until the cover is turned back. The cover has a plurality of vertical ribs ( 172, 173, 174 ) forming wide panels ( 182 ) and forming narrow panels ( 180 ) between the wide panels. Stickers ( 124 ) adhere to peripheries of the cover and base to show the customer that there has been no tampering.
专利附图（8）
