由纤维基材料制成的杯包装
Cup package made of a fibre-based material
US-8281980-B2用于食品的纤维基杯包装。
专利摘要
本发明涉及一种由纤维基材料（如聚合物涂覆的包装纸板）制成的杯包装，包括容纳包装产品(2)的杯(1)和封闭杯口的盖子(6)。根据本发明，杯(1)具有从杯口向下弯曲并从杯身(3)向外张开的凸缘(5)，盖子(6)具有从凸缘相应向下定向的边缘(8)，盖子通过所述凸缘和边缘部分之间的热封固定就位。为了打开包装，盖子(6)可以配备围绕其边缘(8)的撕条(11)。此外，盖子(6)可以与杯(1)嵌套，使得它们相对表面之间的压缩和摩擦在重新封闭的包装中将盖子保持在位。

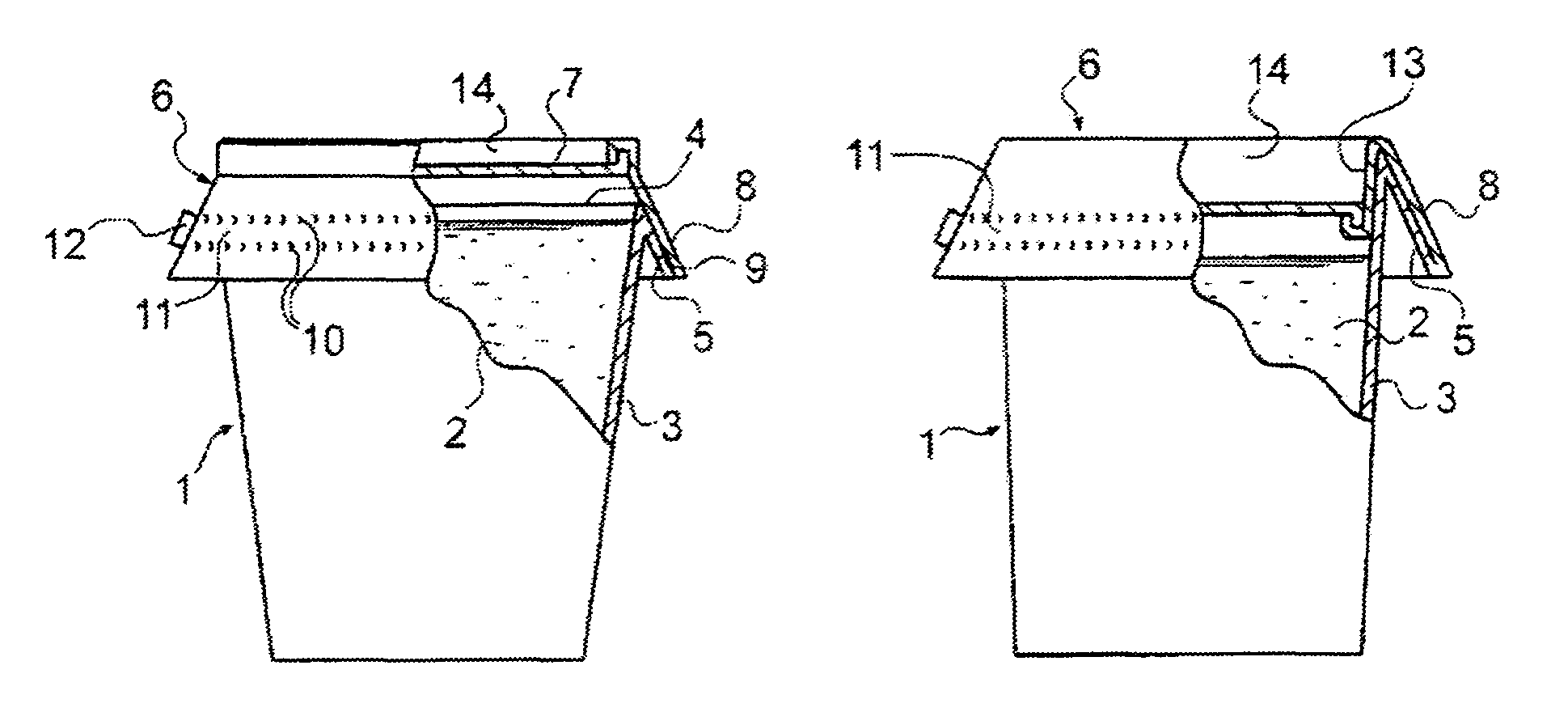

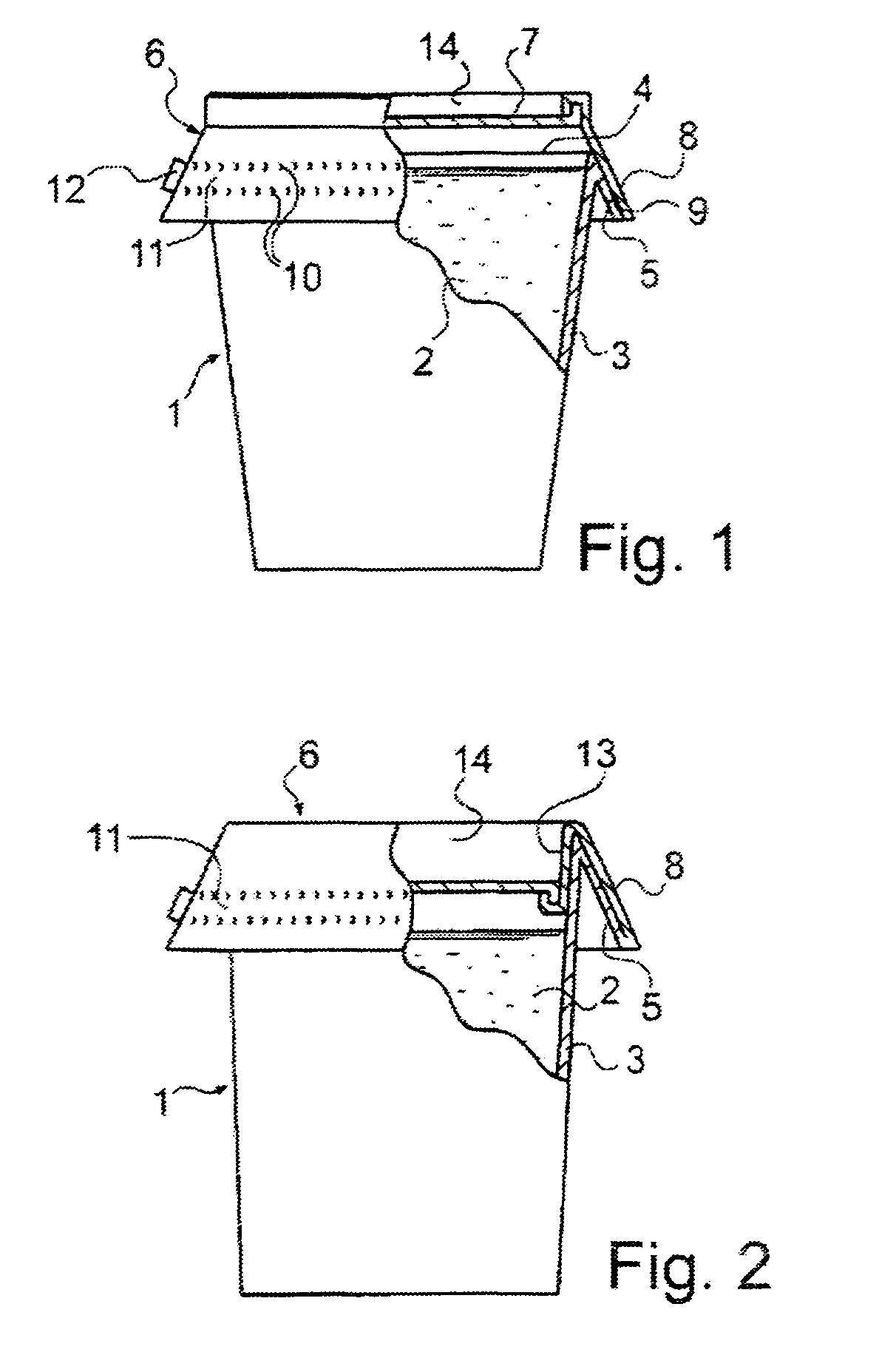

Original abstractThe invention relates to a cup package made of a fiber-based material, such as polymer-coated packaging board, comprising a cup ( 1 ) containing a packaged product ( 2 ) and a lid ( 6 ) closing the mouth of the cup. In accordance with the invention, the cup ( 1 ) has a collar ( 5 ) bent downwardly from the mouth of the cup and diverging from the cup skirt ( 3 ), and the lid ( 6 ) has a rim ( 8 ) oriented accordingly downwardly from the collar, the lid being fixed in position by heat-sealing between said collar and rim parts. For opening the package, the lid ( 6 ) can be equipped with a tear strip ( 11 ) surrounding its rim ( 8 ). In addition, the lid ( 6 ) may be nested with the cup ( 1 ), so that compression and friction between their opposite surfaces retain the lid in position in the reclosed package.
专利附图（8）
