具有防儿童安全特征的一体式容器和翻盖组件
Unitary container and flip-top cap assembly having child resistant safety features
US-8267265-B2用于提供防儿童开启的容器盖。
专利摘要
本文公开了具有防儿童安全盖的容器。在一个实施例中,盖包含(1)外盖和(2)实心底座。外盖围绕盖的实心底座的至少一部分。在外盖的一端是拇指突片,用于促进盖的打开和关闭。外盖还包含垂直于拇指突片的裙部。外盖的裙部包含突片。在实心底座的近端,当盖处于关闭位置时,对应于外盖上突片的位置,实心底座包含凹口。当盖关闭时,外盖围绕实心底座固定。如果仅向拇指突片施加向上的力,然后外盖被提起,而盖的实心底座保持固定在容器上。如果向拇指突片施加向上的力,同时向盖上的突片施加足够的向内力以接触并固定盖的管状裙部,则盖的实心底座与外盖同时被提起,从而打开容器。在一个实施例中,外盖包含顶部。在另一个实施例中,外盖不包含顶部。
Original abstractContainers with child resistant safety caps are disclosed herein. In one embodiment, the cap contains (1) an overlay and (2) a solid base. The overlay fits around at least a portion of the cap's solid base. At an end of the overlay is a thumb tab for facilitating the opening and closing of the cap. The overlay also contains a skirt that is perpendicular to the thumb tab. The skirt of the overlay contains a tab. At the end of the solid base proximal to the location of the tab on the overlay (when the cap is in the closed position) the solid base contains a notch. When the cap is shut, the overlay is secured around the solid base. If an upward force is only applied to the thumb tab, and then the overlay is lifted up, while the solid base of the cap remains secured to the container. If an upward force is applied to the thumb tab while simultaneously, sufficient inward force is applied to tab on the overlay to contact and secure the tubular skirt of the cap, then the solid base of the cap is simultaneously lifted up along with the overlay, thereby opening the container. In one embodiment, the overlay contains a top. In another embodiment, the overlay does not contain a top.

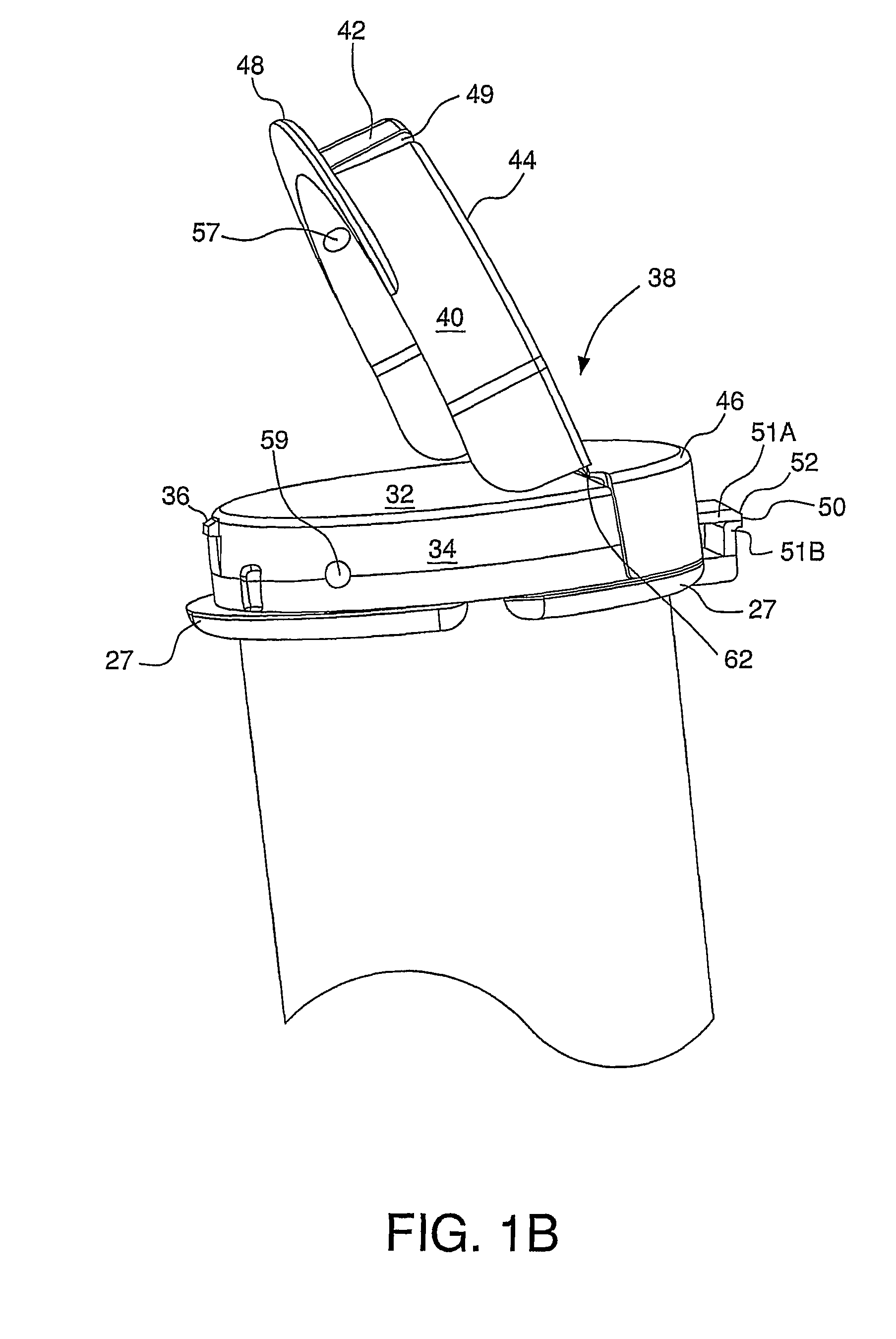

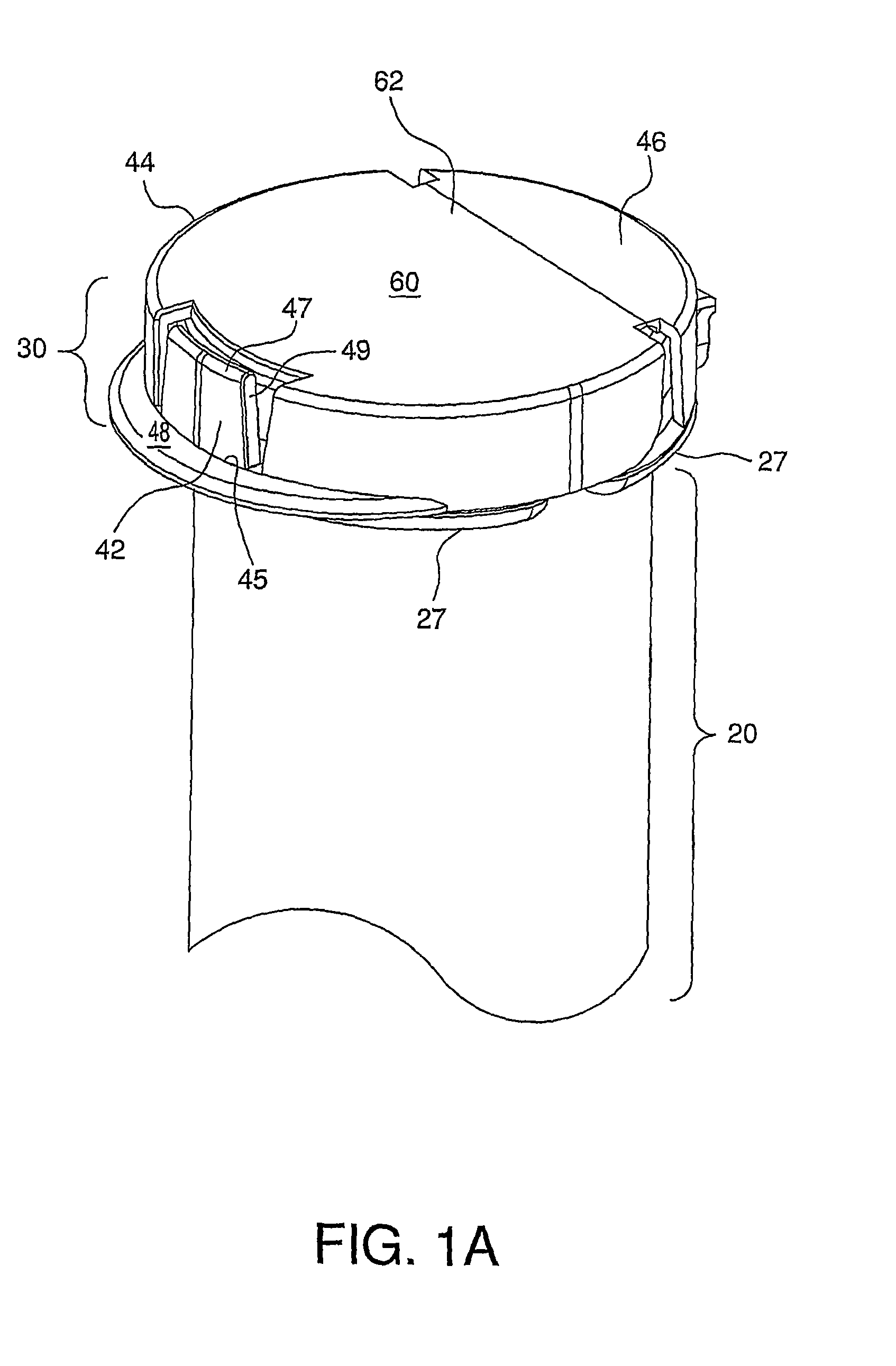

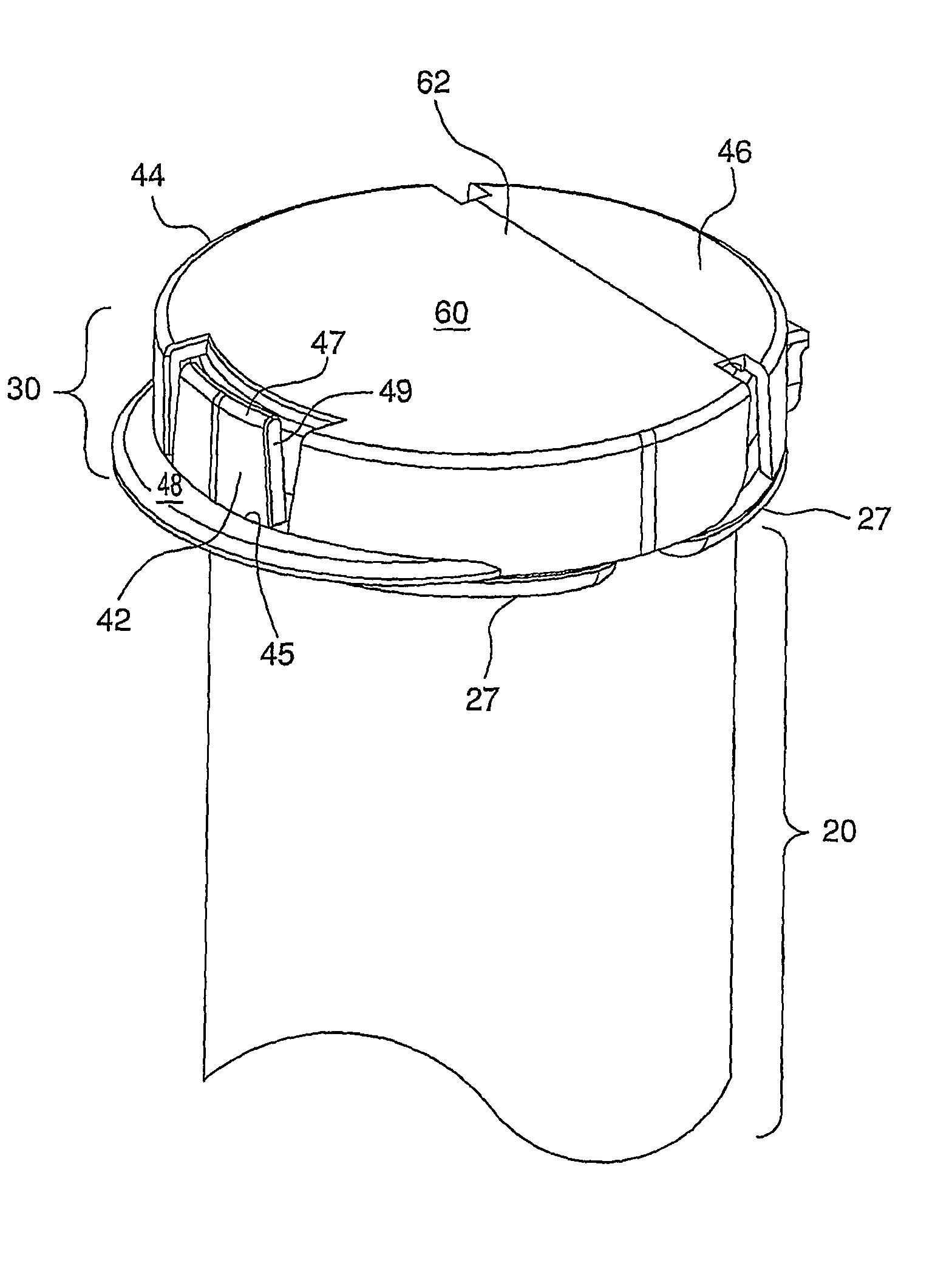

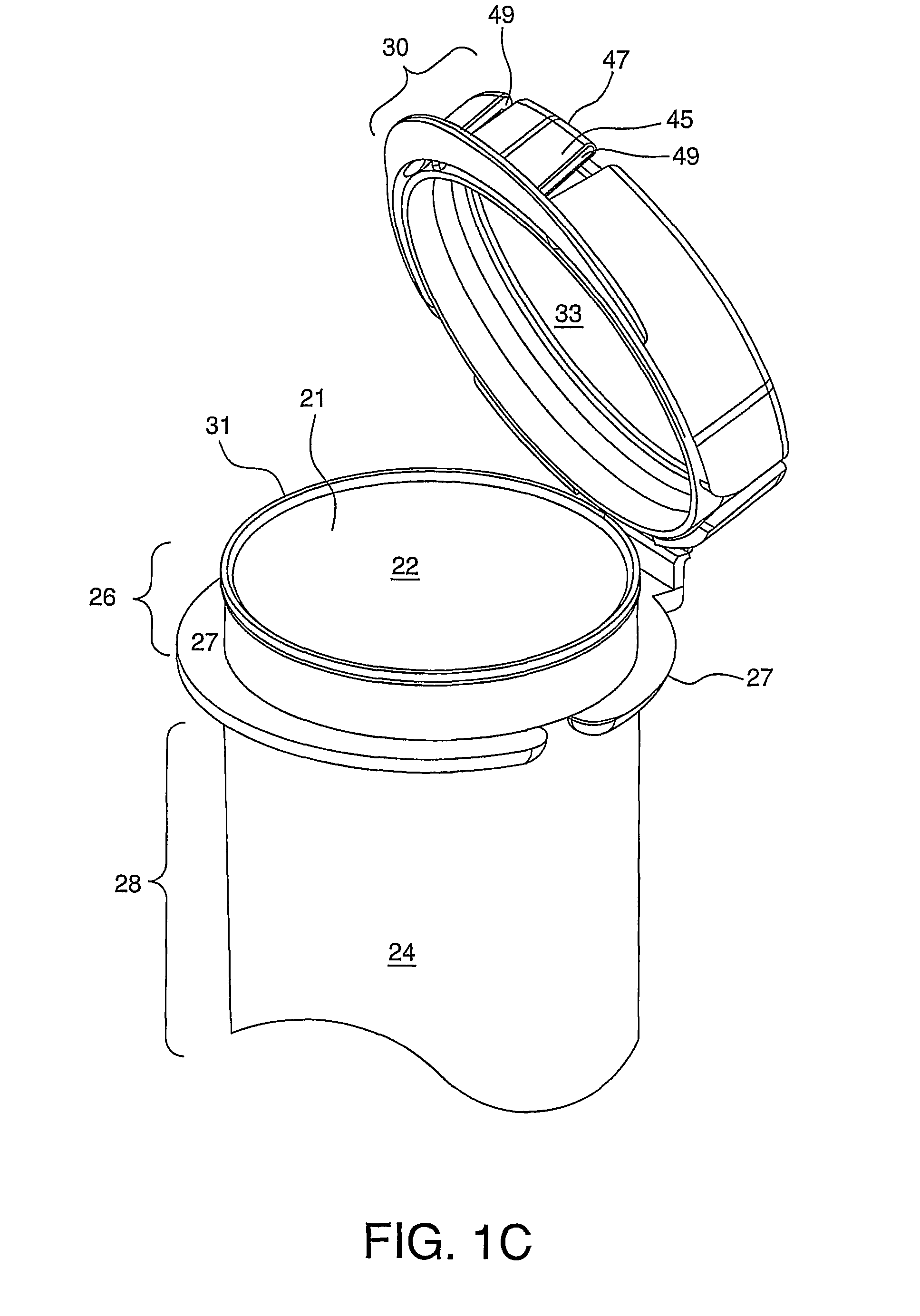

专利附图(8)
