用于连接容器盖，提供弹性铰链开合。
专利摘要
一种用于将盖连接到支撑件的铰接结构，该支撑件可安装在容器上或与容器的开口部分形成为单件，包括铰接接头，用于引导盖在闭合位置和打开位置之间移动，枢轴点位于盖和/或支撑件的外侧，以及弹性体弹簧部件，其夹持盖的外侧以及支撑件，并至少在盖的闭合位置在张力下预加载，其特征在于，至少在盖的闭合位置，弹性体弹簧部件到盖和/或支撑件的力施加点向外移位超过铰接接头的枢轴点。
Original abstractAn articulated structure to connect a cover to a support, which may be installed on a container or is formed from a single piece with an opening section of the container, comprising an articulated joint to guide the cover between a closed position and an open position with a pivot point situated on the outer side of the cover and/or the support, and an elastomer spring part, which grips the outer side of the cover as well as the support and is prestressed at least in the closed position of the cover under tension, characterized in that a force application point of the elastomer spring part to the cover and/or to the support at least in the closed position of the cover is displaced to the outside beyond the pivot point of the articulated joint.

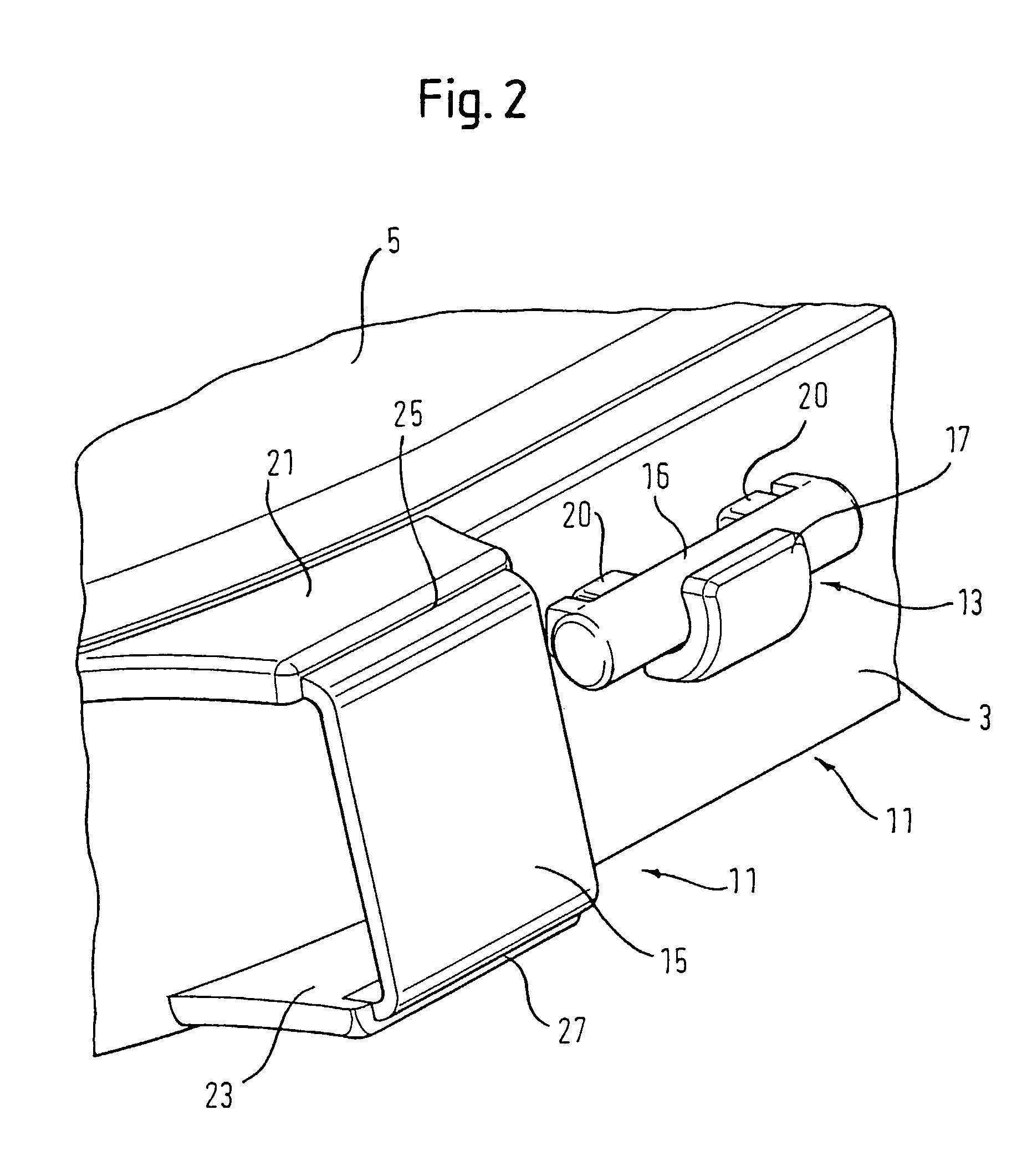

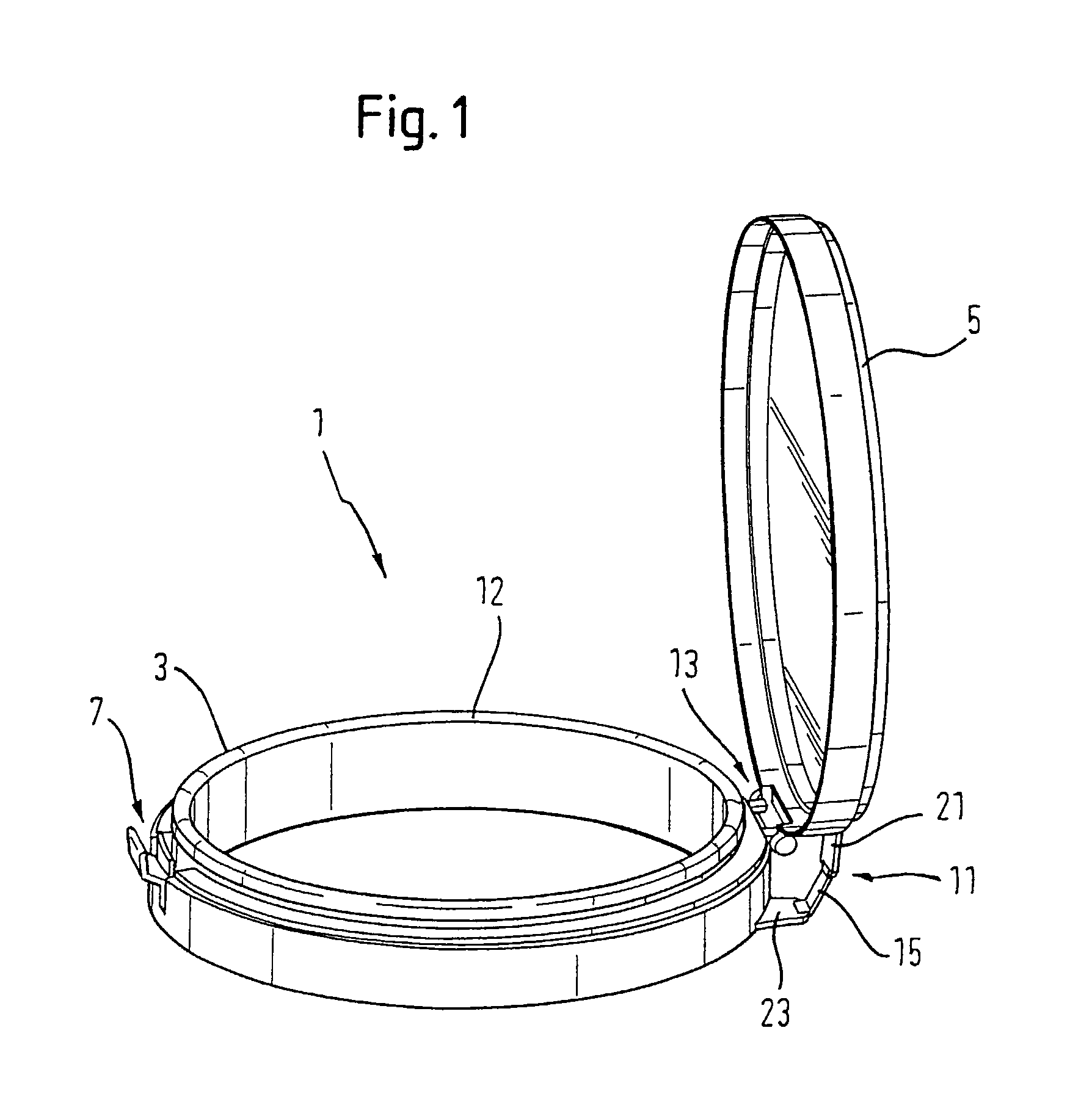

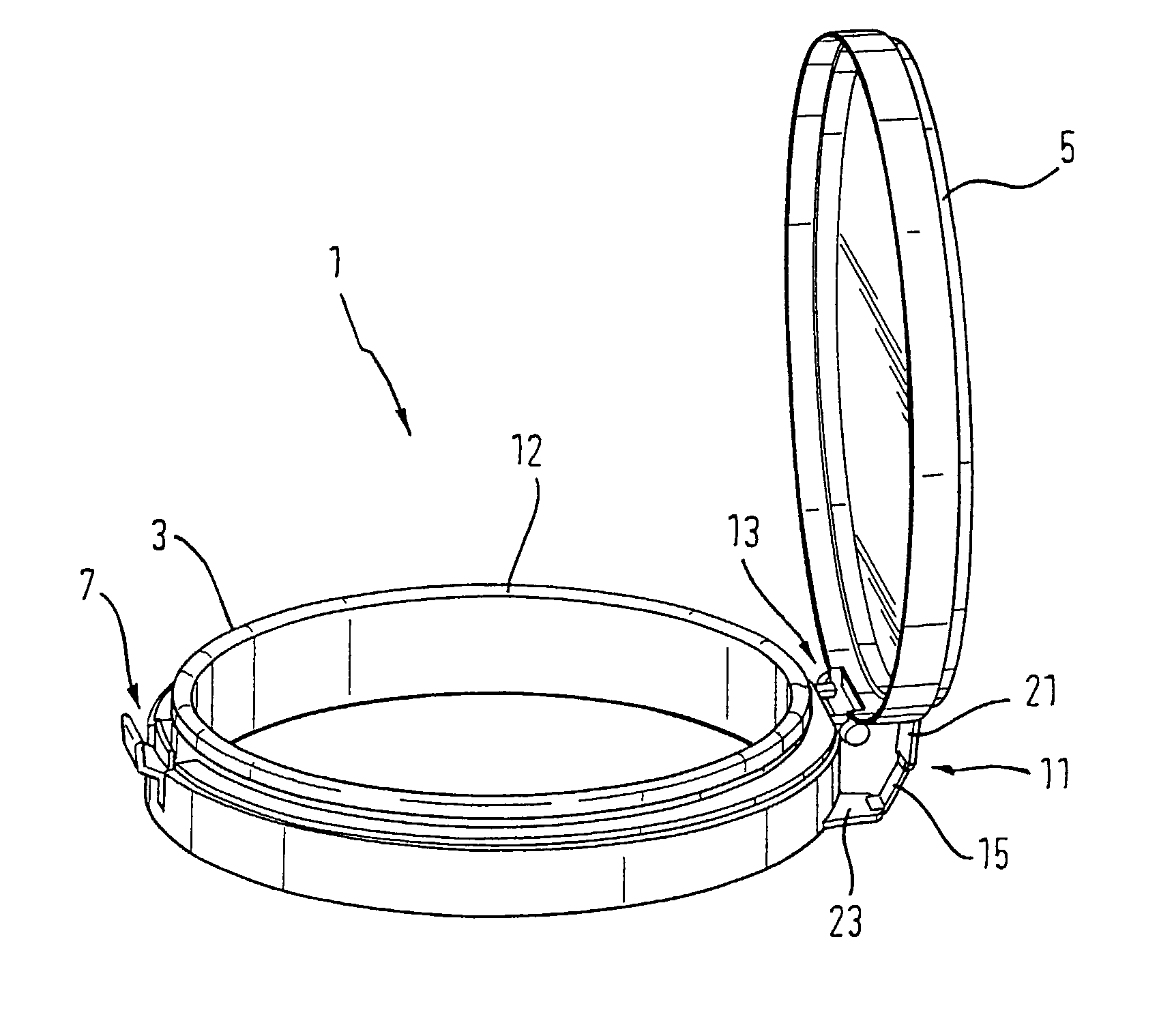

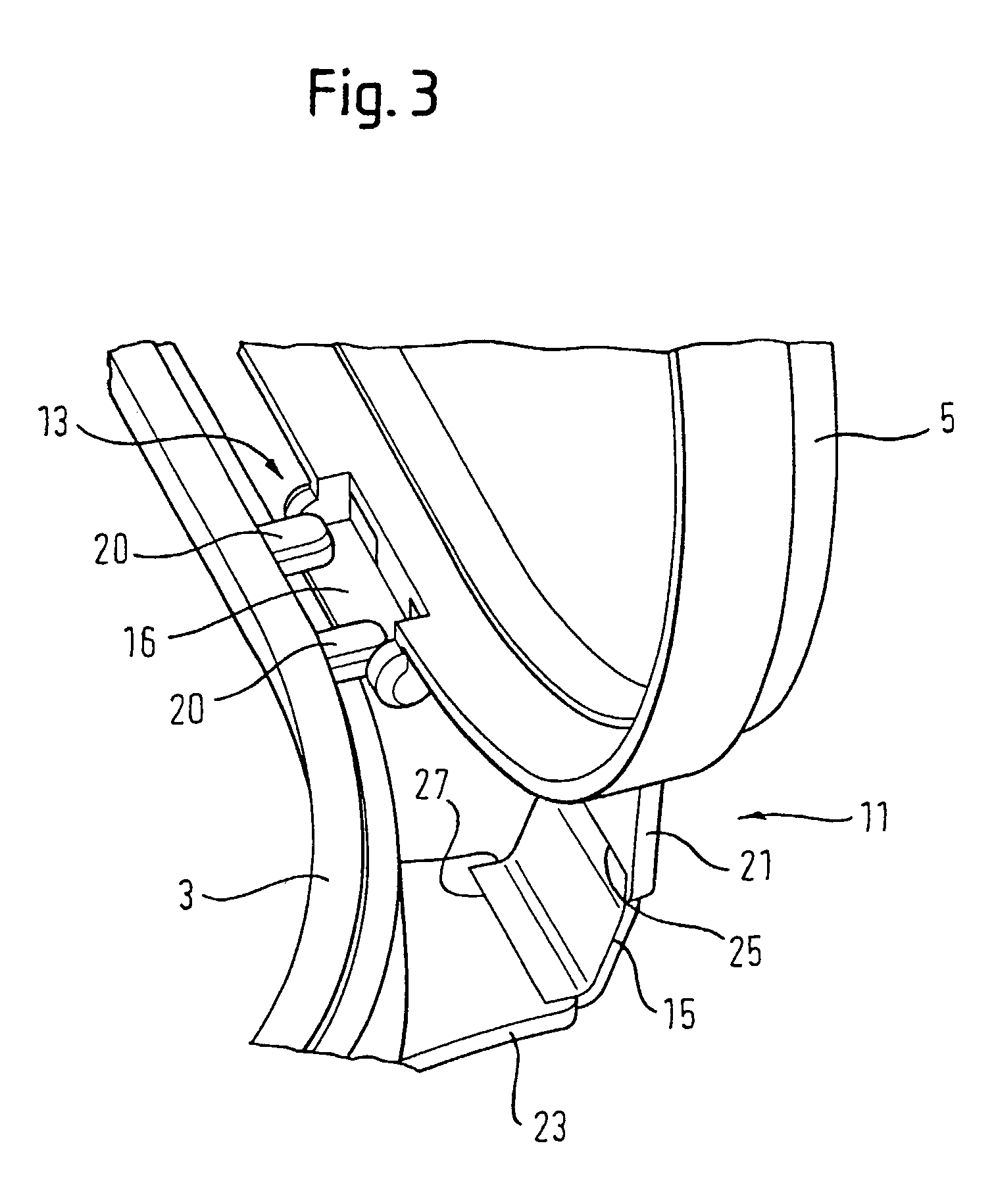

专利附图（8）
