信息库容器包装糊状组合物储存装置和方法
来源记录显示 Expired

糊状组合物储存装置和方法

Paste composition storage device and method

US-8251206-B2

用于储存和混合糊状组分,形成可硬化组合物。

专利摘要

一种用于储存和混合多种糊状组分的装置,这些组分在混合时形成可硬化组合物,该装置包括基板和盖。基板具有上平面,该上平面在间隔开的区域中承载两种或更多种非自流平糊状物并粘附在其上。盖粘附到基板的上表面围绕糊状物并限定用于糊状物的腔室。盖的任何部分都不接触糊状物。盖可移除地固定到基板上,以允许暴露糊状物以在基板的上表面上混合在一起。

Original abstractA device for storing and mixing a plurality of paste components which, when mixed, form a hardenable composition, includes a base plate and a cover. The base plate has an upper planar surface bearing two or more non-self-leveling pastes and adhered thereon in spaced apart areas and. The cover is adhered to the upper surface of the base plate around the pastes and defines a chamber for the pastes. No portion of the cover contacts the pastes. The cover is removably affixed to the base plate, to allow exposure of the pastes for mixing together on the upper surface of the base plate.

专利附图(8)

US-8251206-B2 figure 1
1

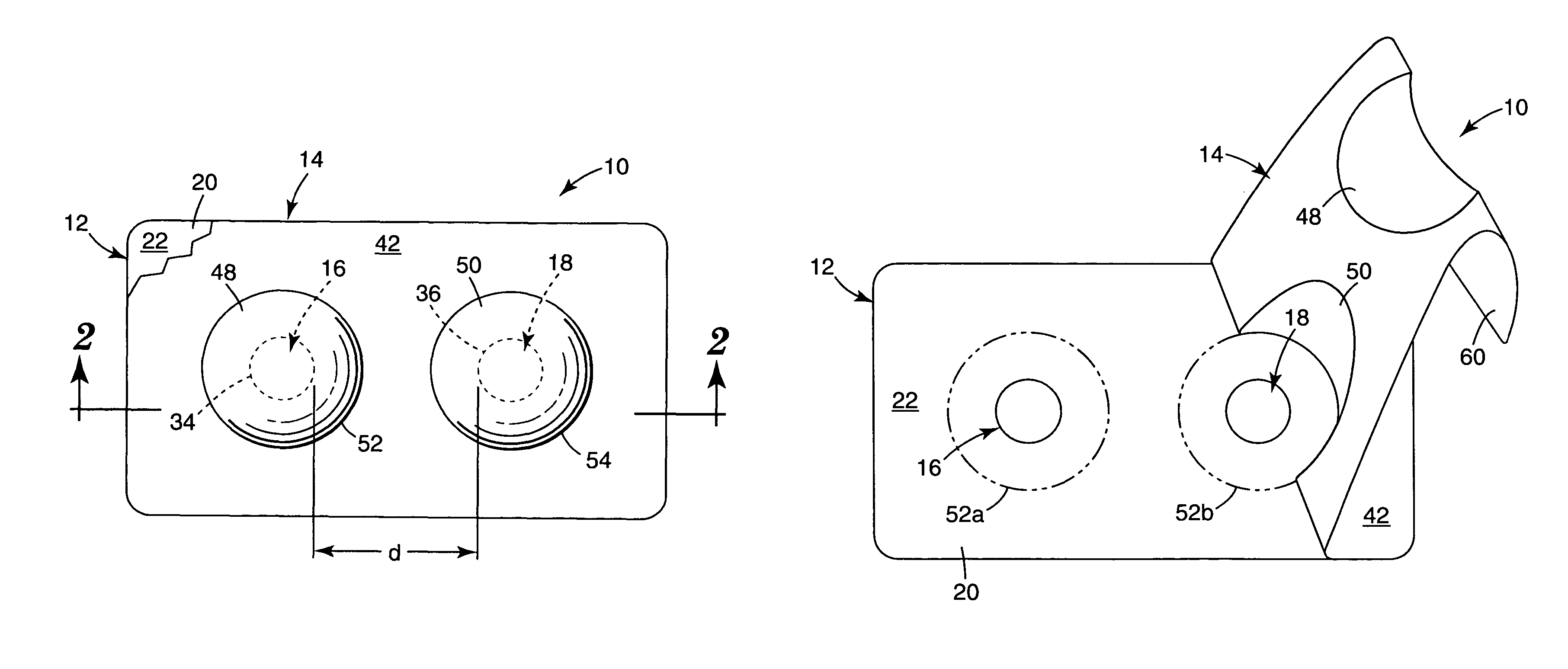

US-8251206-B2 figure 2
2
US-8251206-B2 figure 3
3

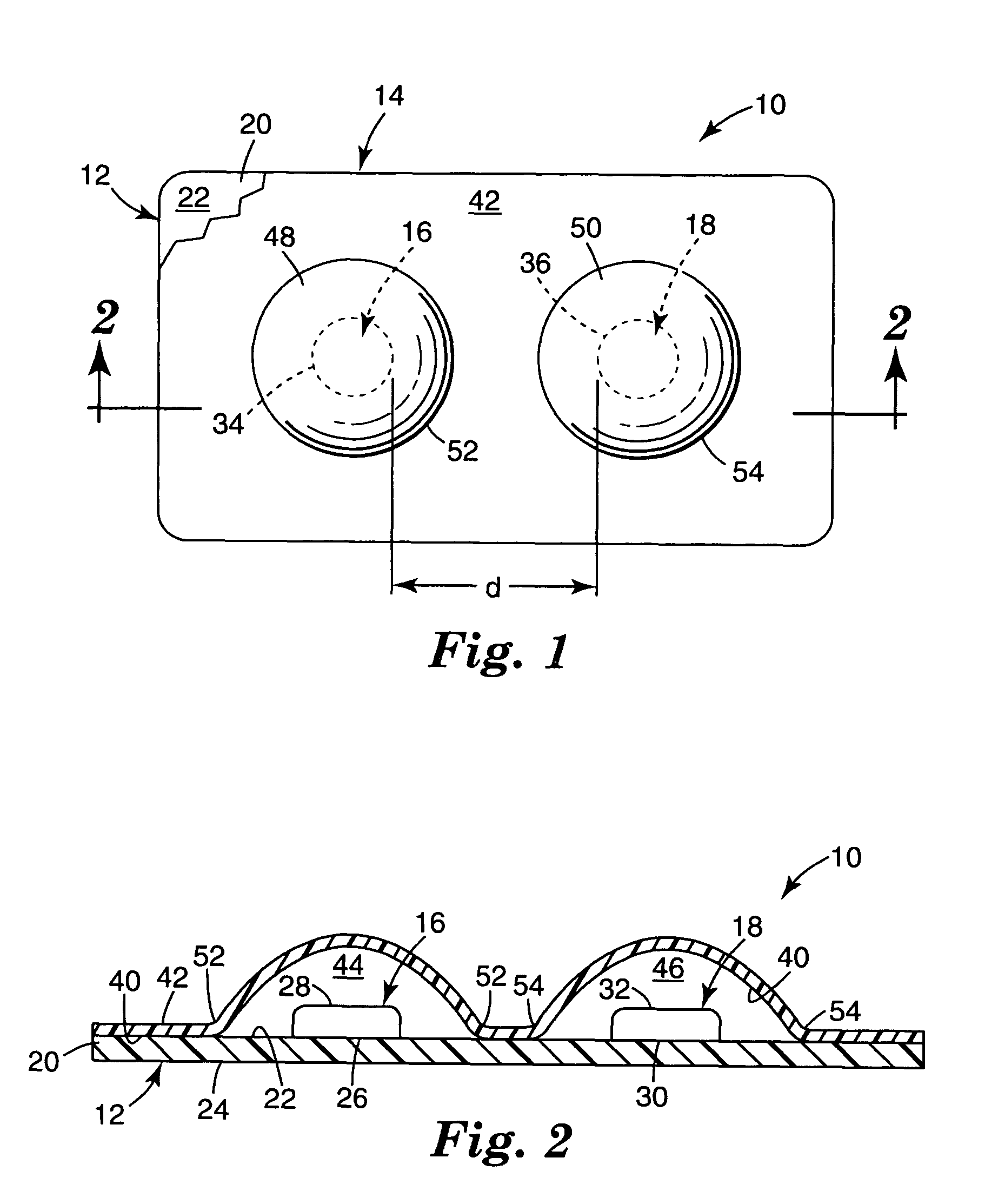

US-8251206-B2 figure 4
4
US-8251206-B2 figure 5
5

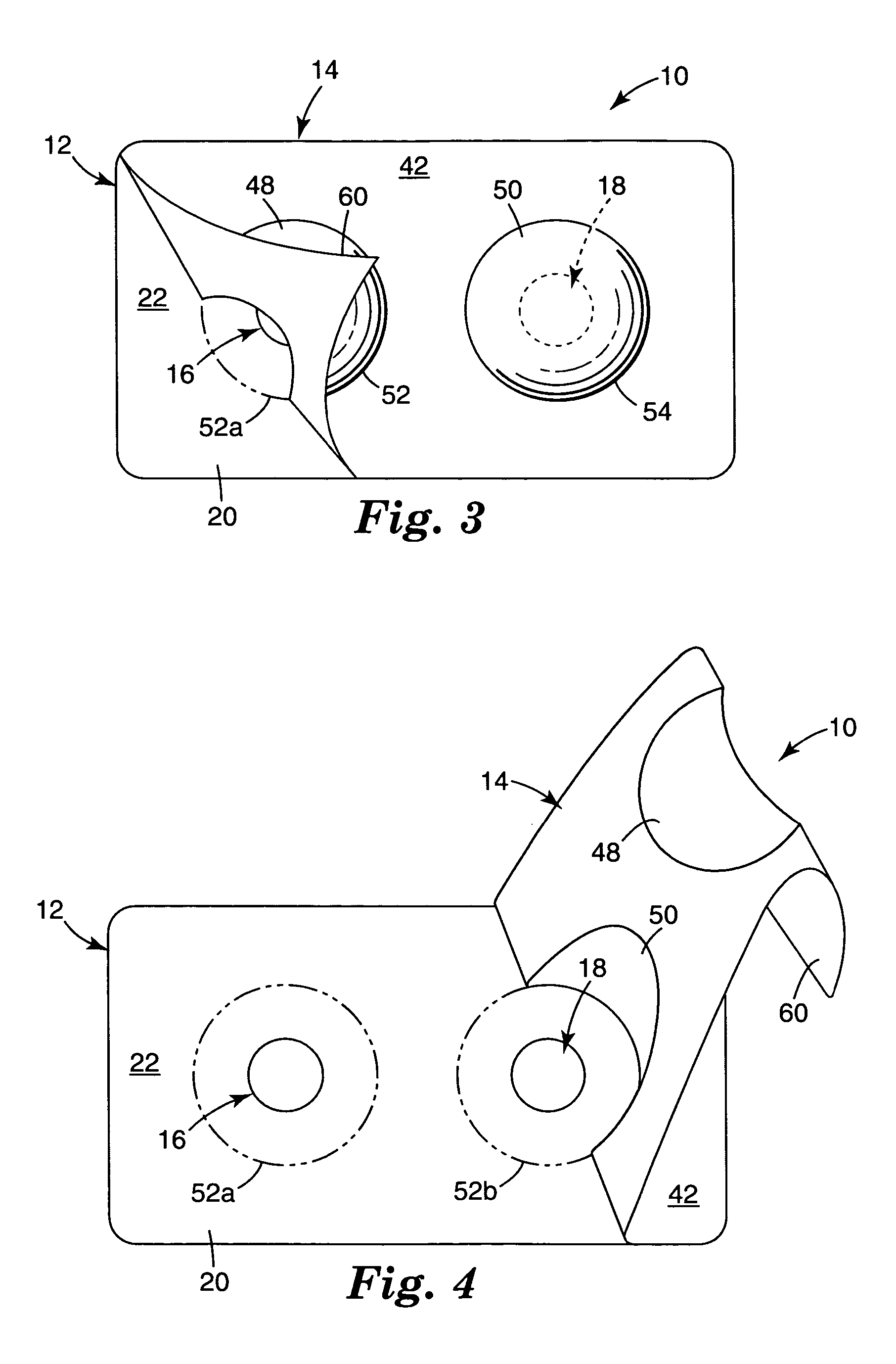

US-8251206-B2 figure 6
6
US-8251206-B2 figure 7
7
US-8251206-B2 figure 8
8
