来源记录显示 Expired
弹性固定元件以及这种元件的连贯布置
Elastic fixing element, and coherent arrangement of such elements
US-8240467-B2用于固定藤蔓或树枝到支撑线的弹性件
专利摘要
一种弹性固定元件以及这种元件的连贯布置。这些弹性固定元件特别旨在将第一和第二元件（特别是直线形的，例如藤蔓或树枝和金属支撑线）保持在一起。弹性固定元件包括闭合环、头部以及将该头部连接到闭合环的颈部。该头部由顶部短柱延伸。闭合环由底部短柱延伸，这便于手动将弹性元件围绕待固定的元件安装。连贯布置包括至少两个弹性固定元件。这些弹性元件通过第一连接件在其各自的顶部短柱位置处连接在一起。这些弹性元件通过第二连接件在其各自的底部短柱位置处连接在一起。
Original abstractAn elastic fixing element and a coherent arrangement of such elements. These elastic fixing elements are intended in particular to hold together a first and a second element, rectilinear in particular, such as a vine shoot or a branch and a metal support wire. The elastic fixing element includes a closed loop, a head, and a neck connecting this head to the closed loop. This head is extended by a top stub. The closed loop is extended by a bottom stub, which facilitates the manual fitting of the elastic element around the elements to be secured. The coherent arrangement includes at least two elastic fixing elements. These elastic elements are connected together by a first link at the position of their respective top stubs. These elastic elements are connected together by a second link at the position of their respective bottom stubs.

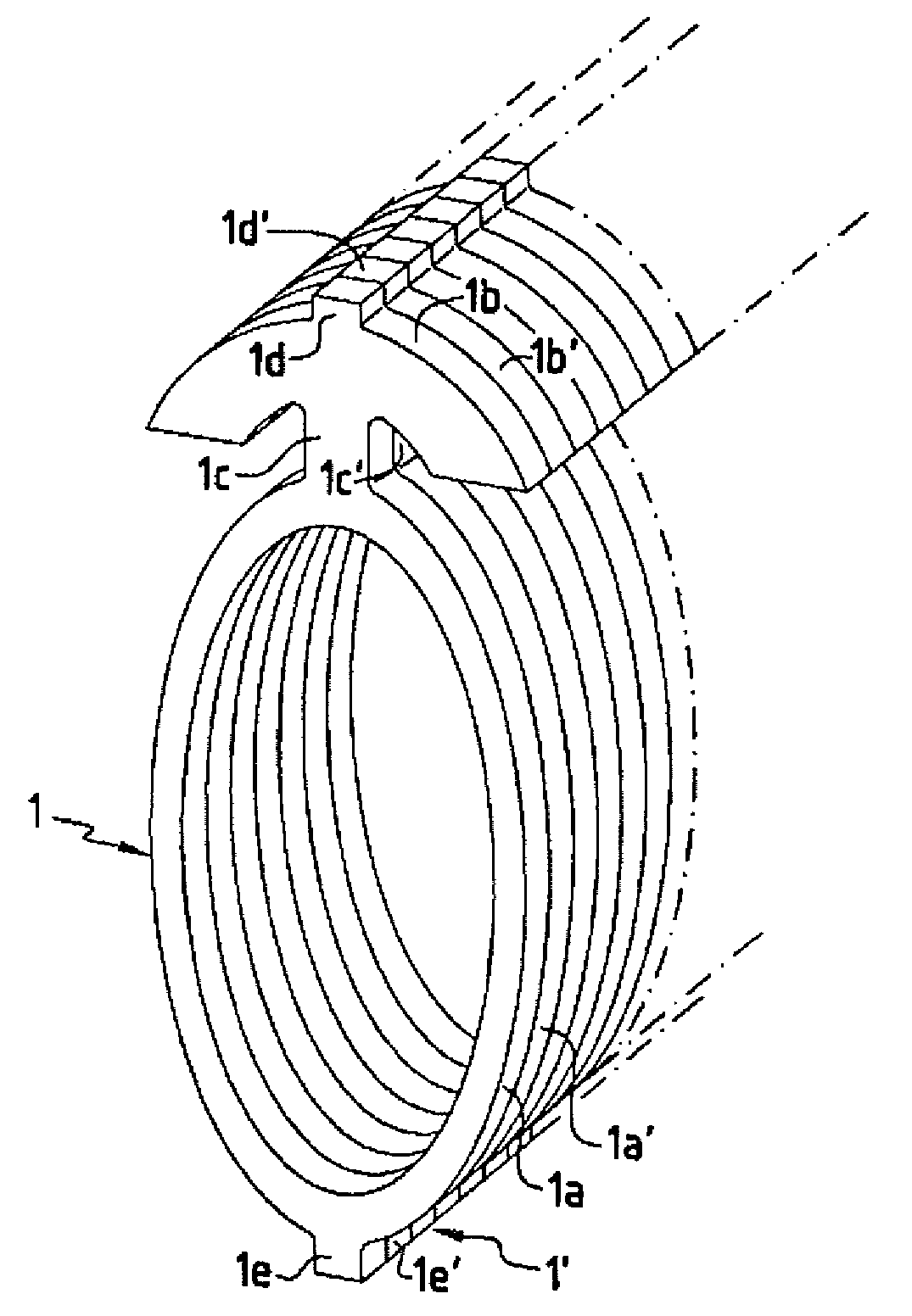

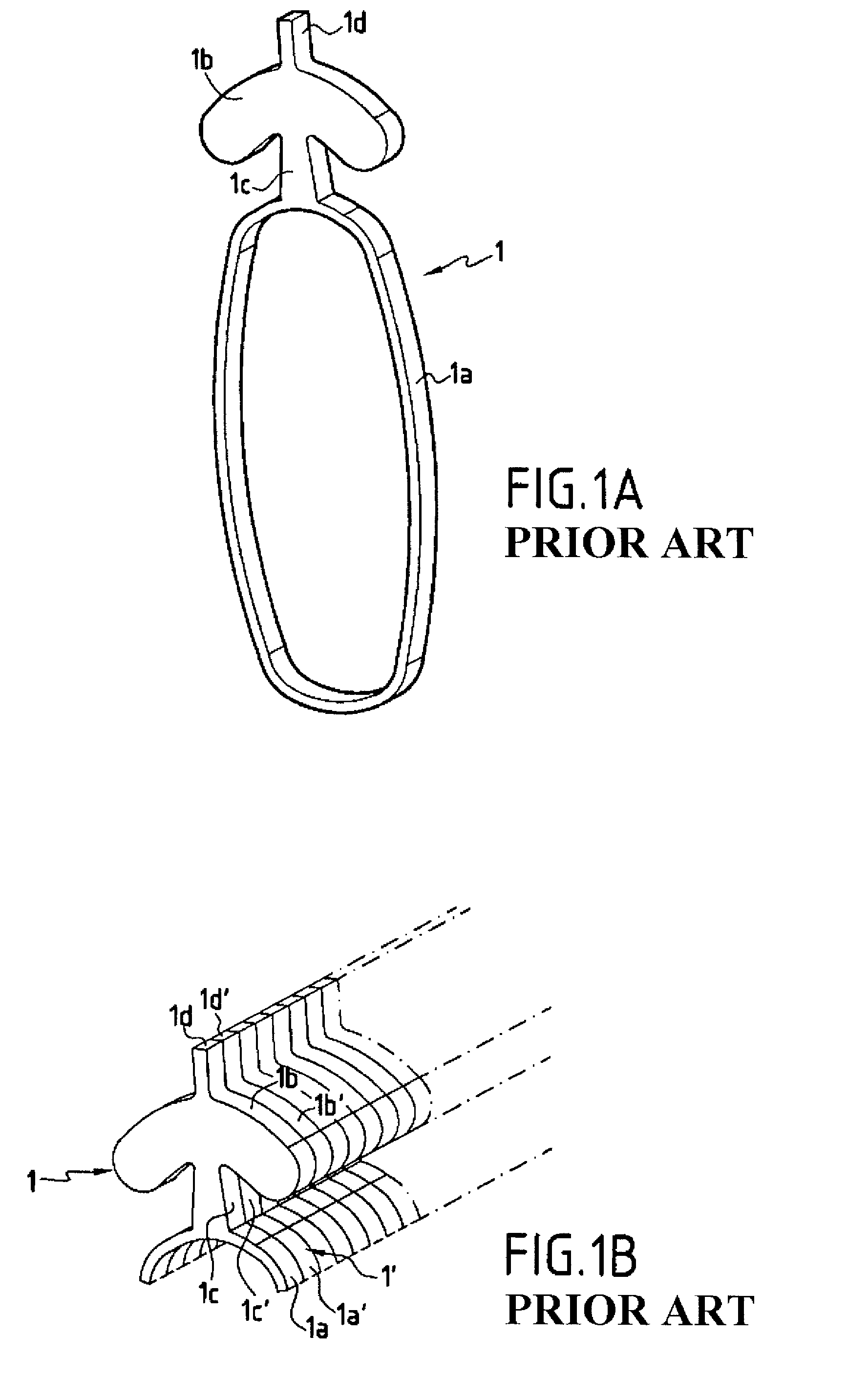

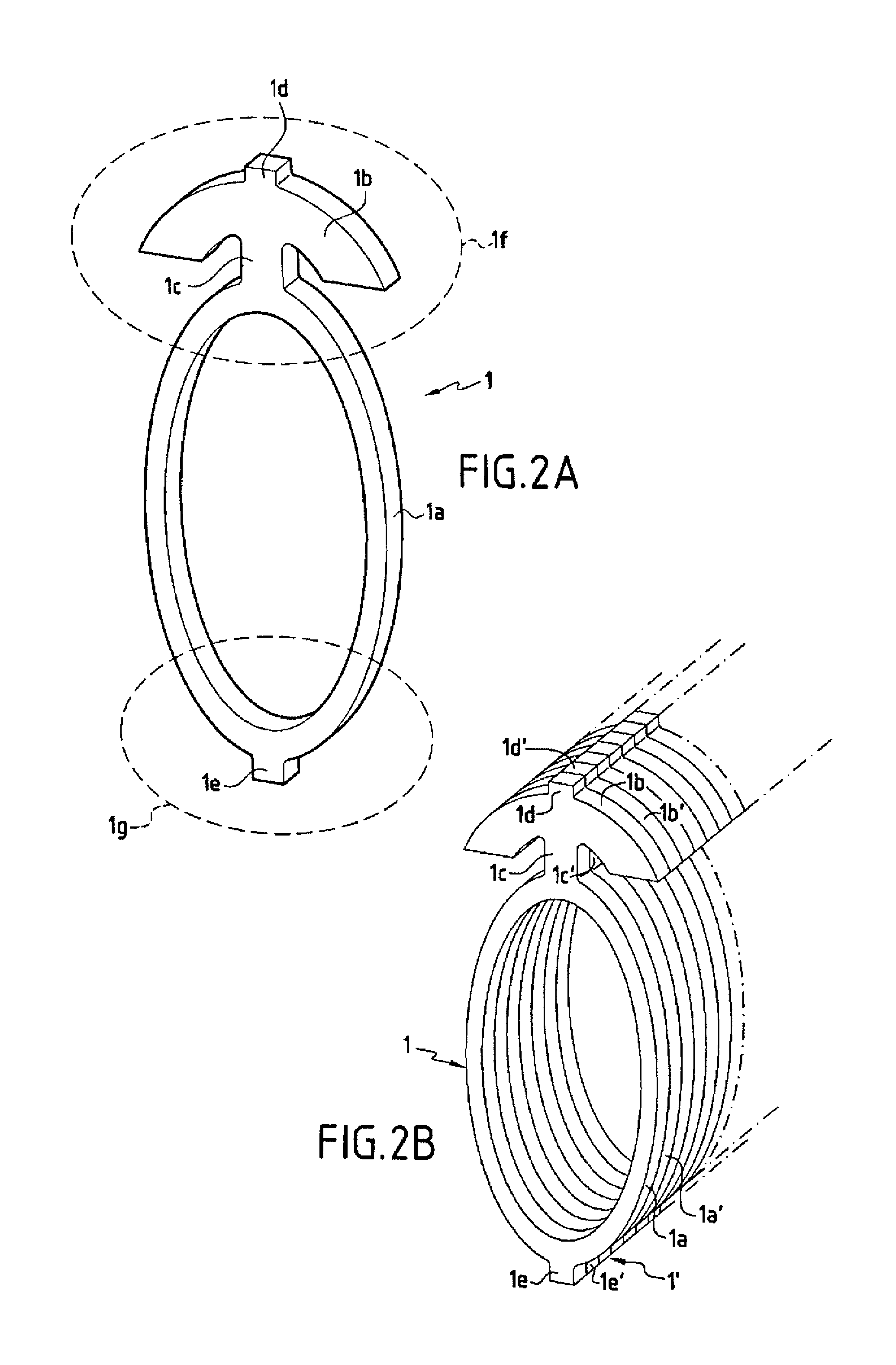

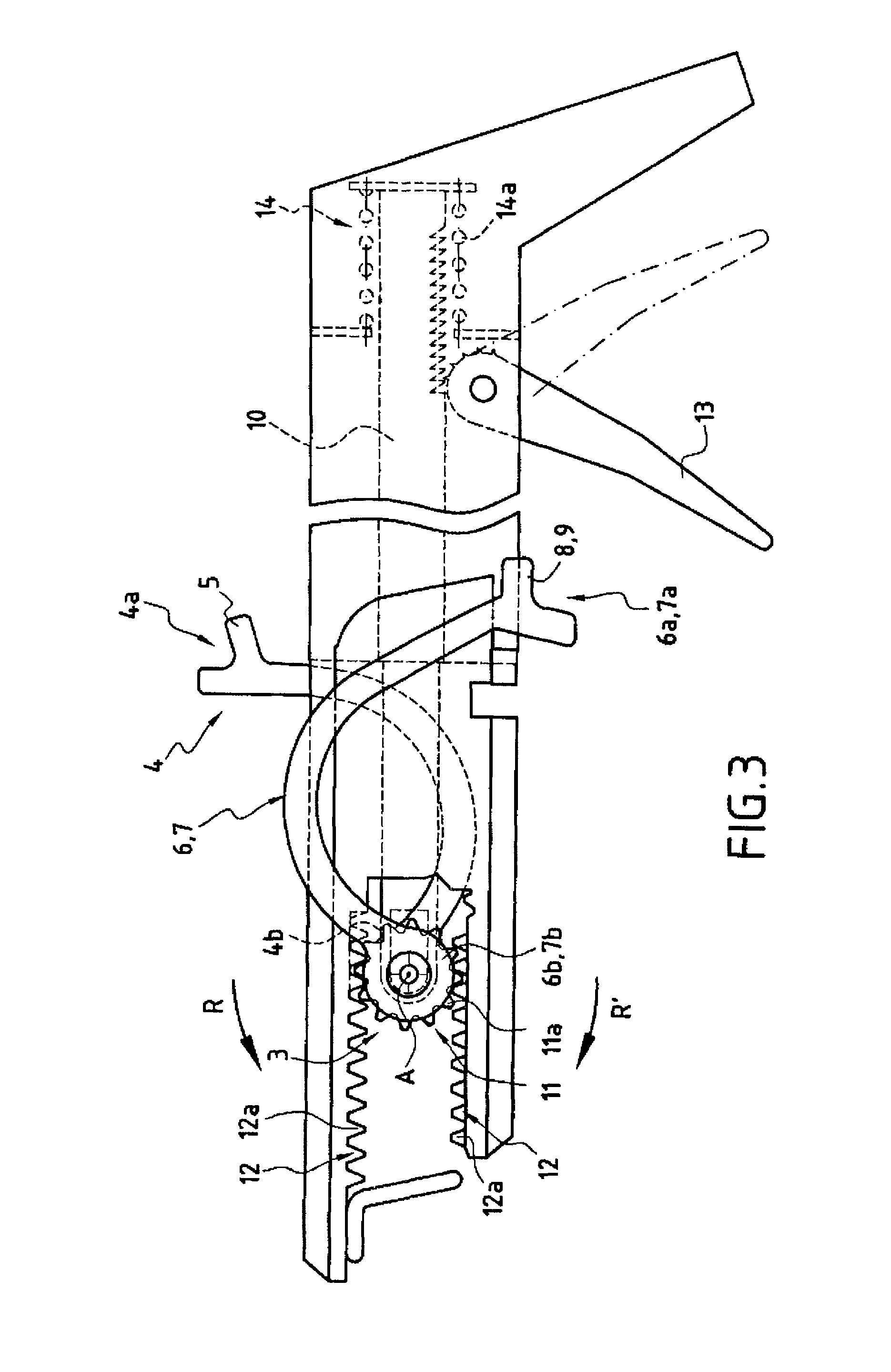

专利附图（8）
