来源记录显示 Expired
用于保留添加材料的容器封盖
Container closure for retaining an additive material
US-8215481-B1用于在容器中混合添加材料。
专利摘要
公开了一种容器封盖,用于保留添加材料以与容器内的容器材料混合。容器封盖包括具有套筒和用于保留添加材料的柱塞的储器。弹性密封件位于套筒的第一端,易碎壁位于套筒的第二端。柱塞可滑动地接收在套筒内,弹性密封件在套筒和柱塞之间相互作用。可分离构件在基部和柱塞之间共同作用,使柱塞突出部与易碎壁间隔开。可分离构件可移除,使柱塞能够移动到压下位置以破坏易碎壁,允许添加材料进入容器。
Original abstractA container closure is disclosed for retaining an additive material to mix with a container material within a container. The container closure comprises a reservoir having a sleeve and a plunger for retaining the additive material. A resilient seal is located at a first end of the sleeve and a frangible wall is located at a second end of the sleeve. The plunger is slidably received within the sleeve with the resilient seal interacting between the sleeve and the plunger. A severable member coacts between the base and the plunger for spacing a plunger projection from the frangible wall. The severable member is removable for enabling the plunger to be moved into a depressed position to fracture the frangible wall to permit the additive material to enter the container.

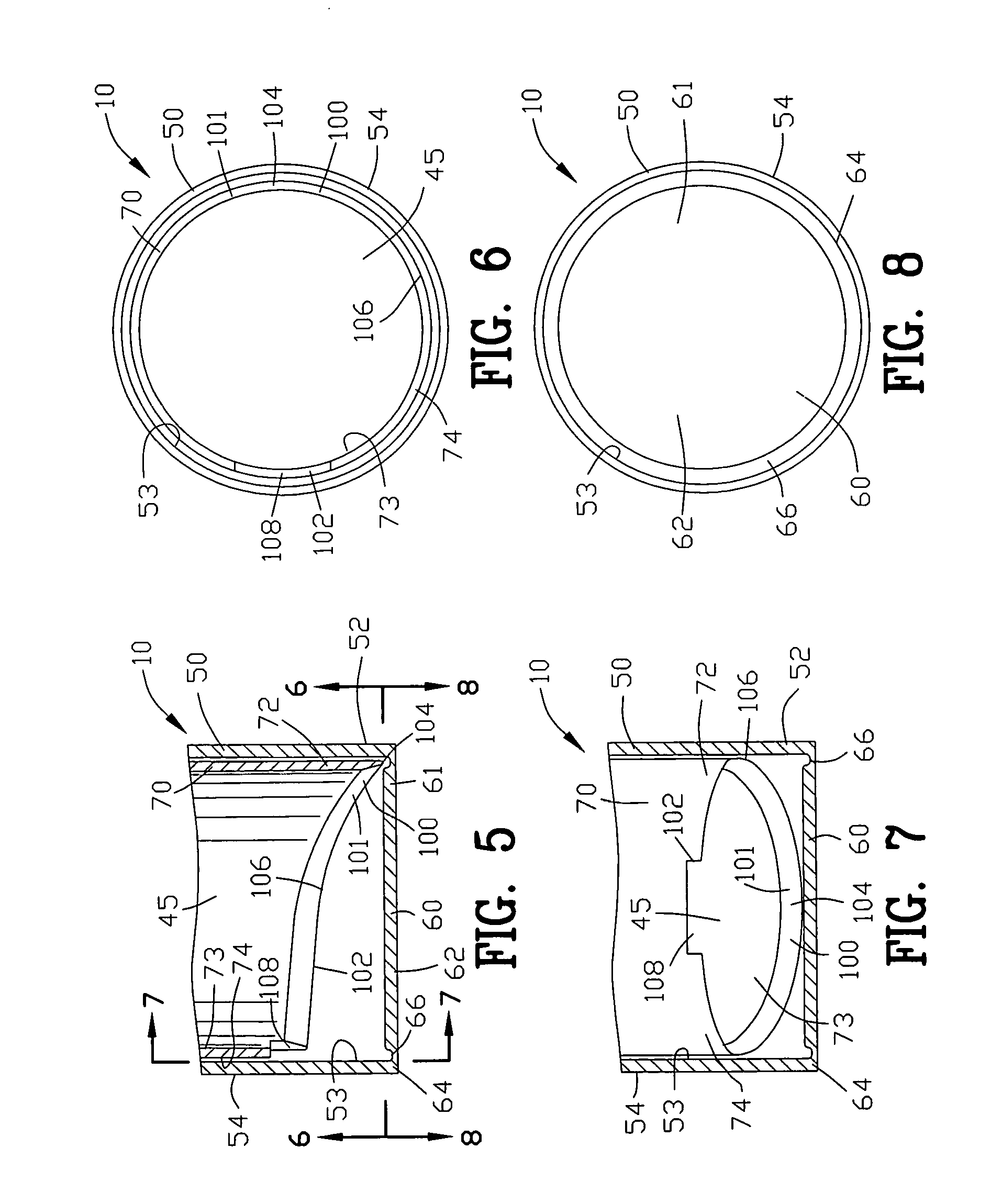

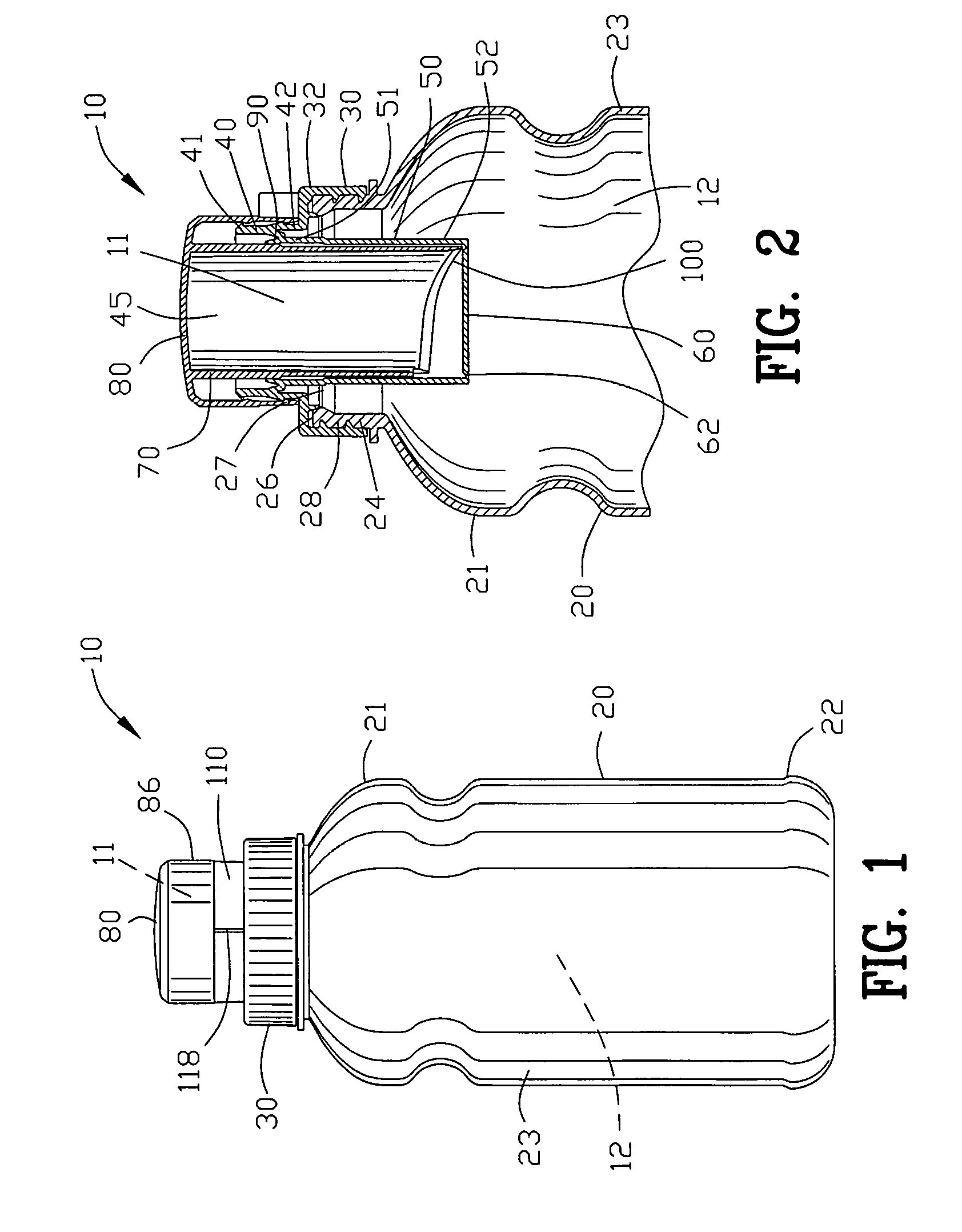

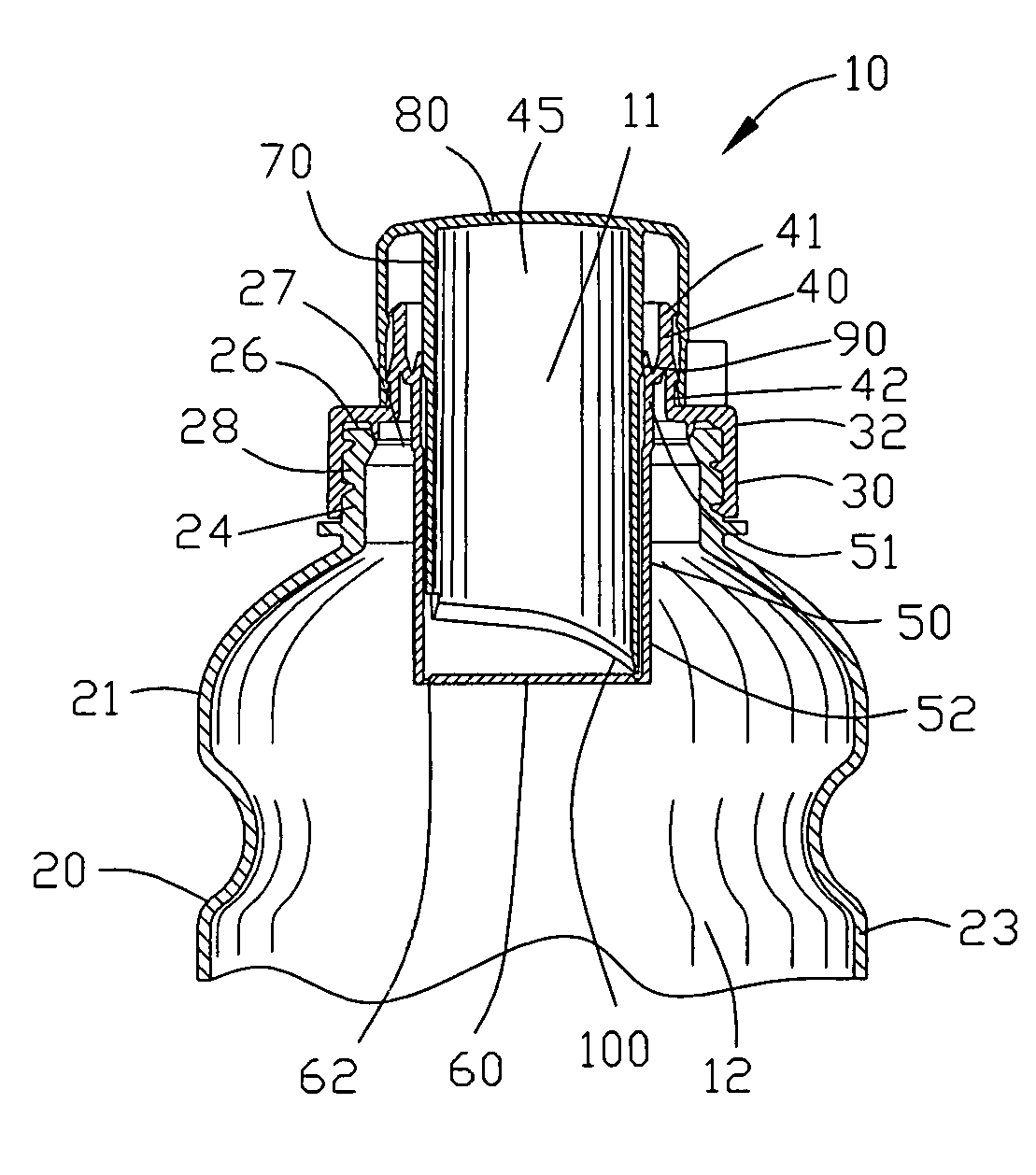

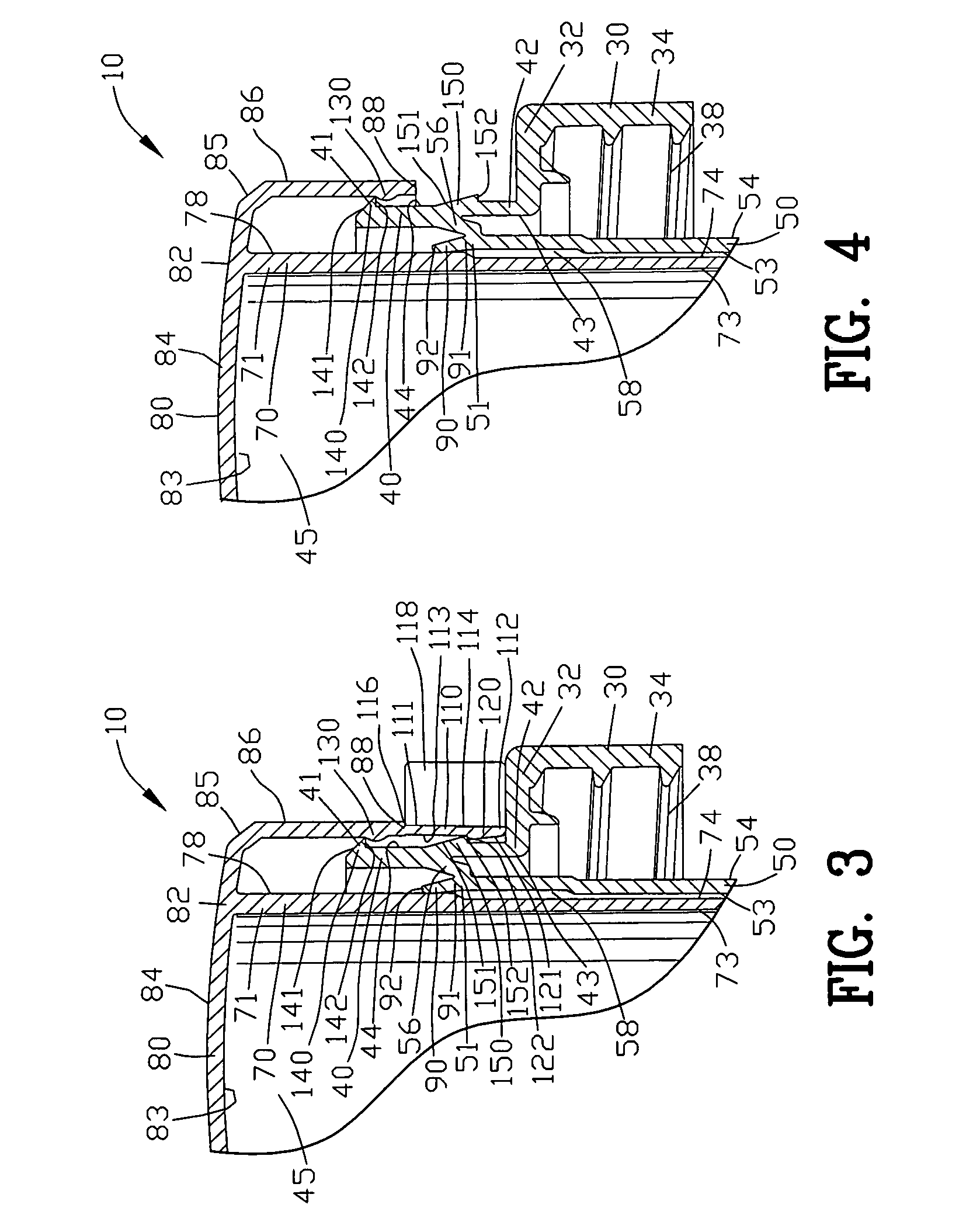

专利附图(8)
