信息库容器包装性能导向的桶
来源记录显示 Expired

性能导向的桶

Performance oriented pail

US-8210391-B2

用于储存和运输材料。

专利摘要

公开了一种容器,包括桶、可移除盖和设置在盖和桶之间的垫圈。桶在桶的近端具有成角度的凸缘,以及多个环绕桶周向延伸并与桶形成壁接合的卫星环。壁接合具有基本上恒定的壁厚。形成提耳以连接至少两个卫星环,从而在提耳和主体之间限定开口。桶还包括减震壁部分。

Original abstractA container comprising a pail, removable cover, and a gasket disposed between the cover and the pail is disclosed. The pail has an angled bead at the proximal end of the pail and a plurality of satellite rings that extend circumferentially around the pail and form a wall junction with the pail. The wall junction has a substantially constant wall thickness. A bail ear is formed to connect at least two of the satellite rings to define an opening between the bail ear and the body. The pail also includes a shock absorbing wall section.

专利附图(8)

US-8210391-B2 figure 1
1

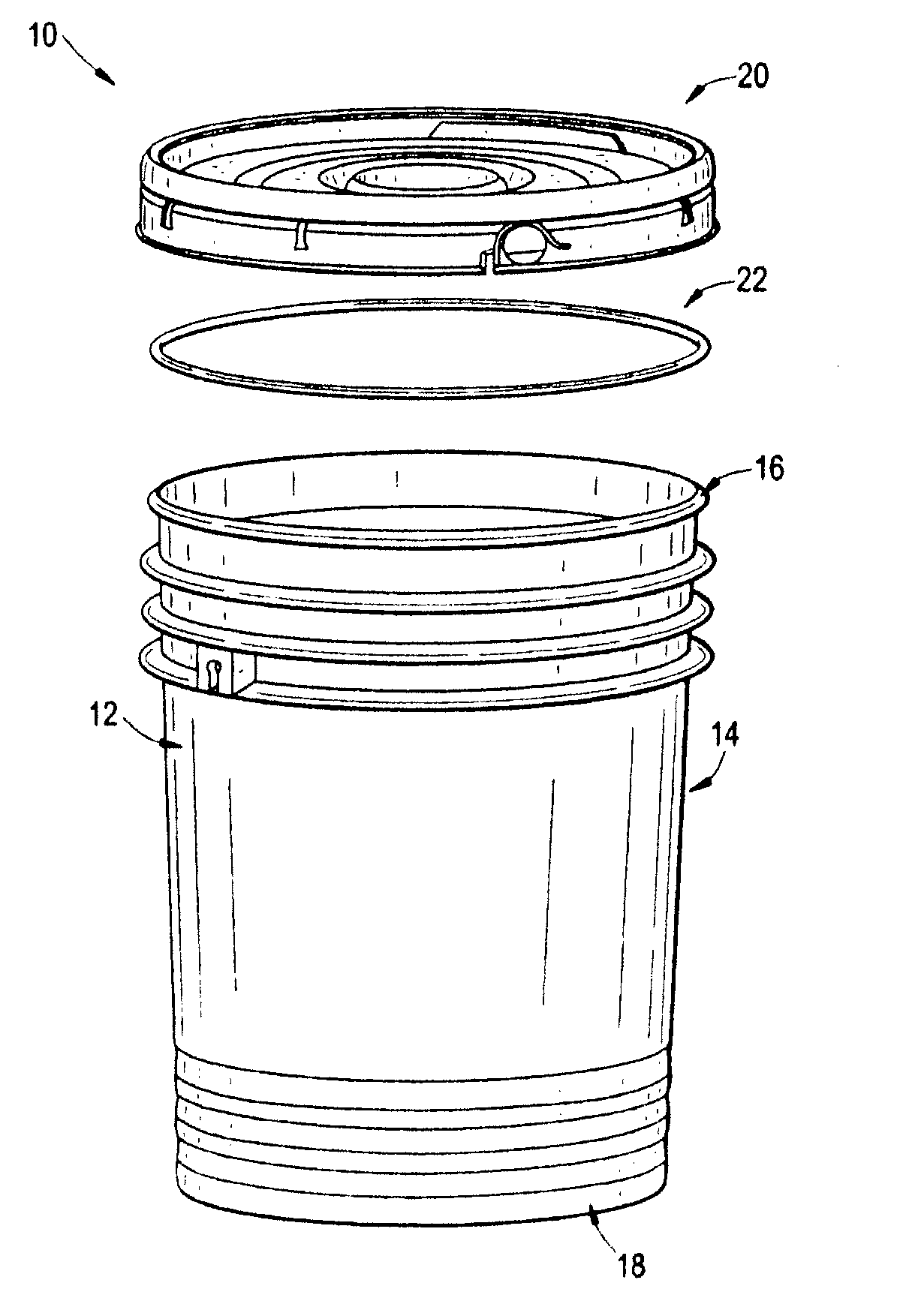

US-8210391-B2 figure 2
2
US-8210391-B2 figure 3
3

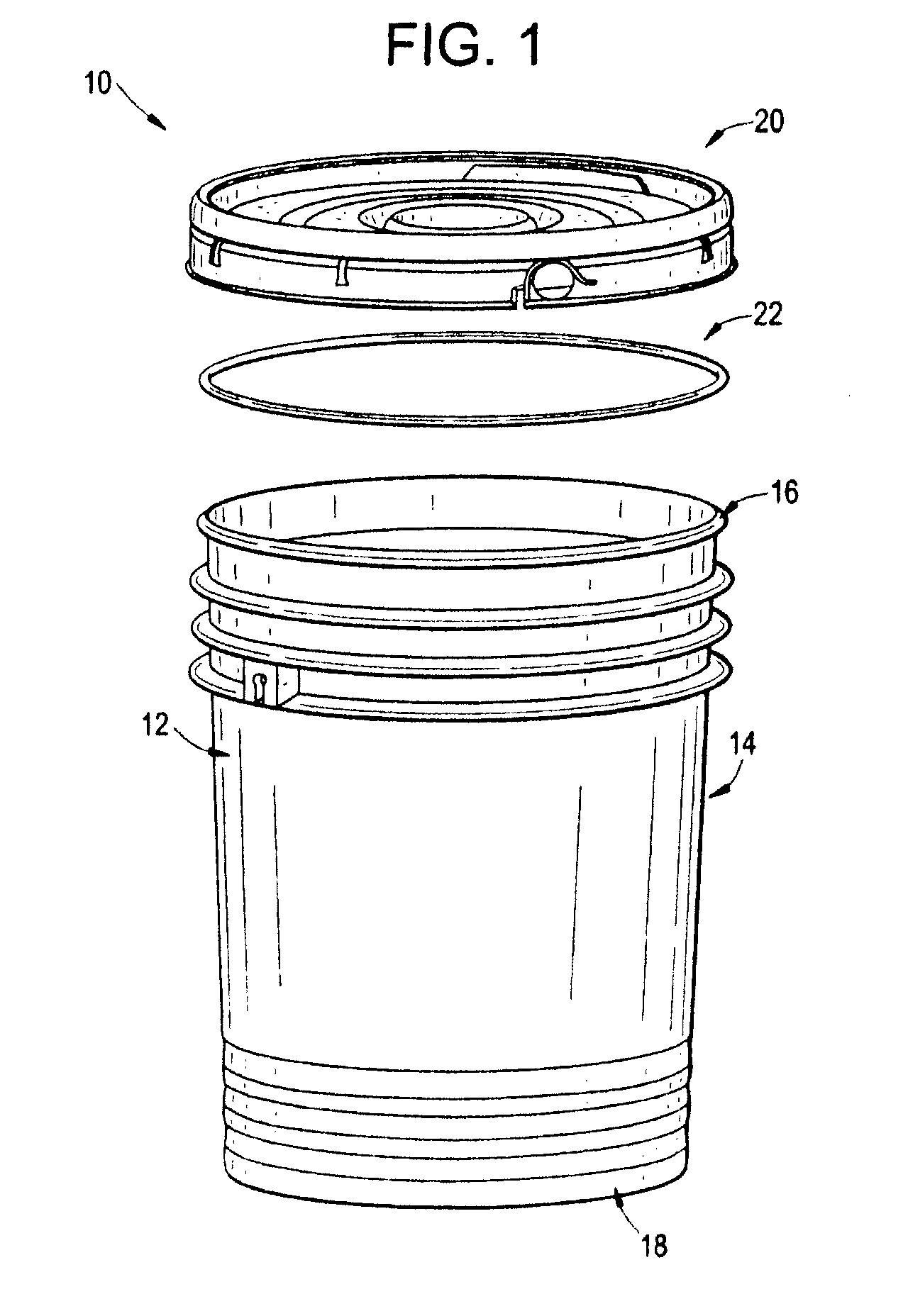

US-8210391-B2 figure 4
4
US-8210391-B2 figure 5
5

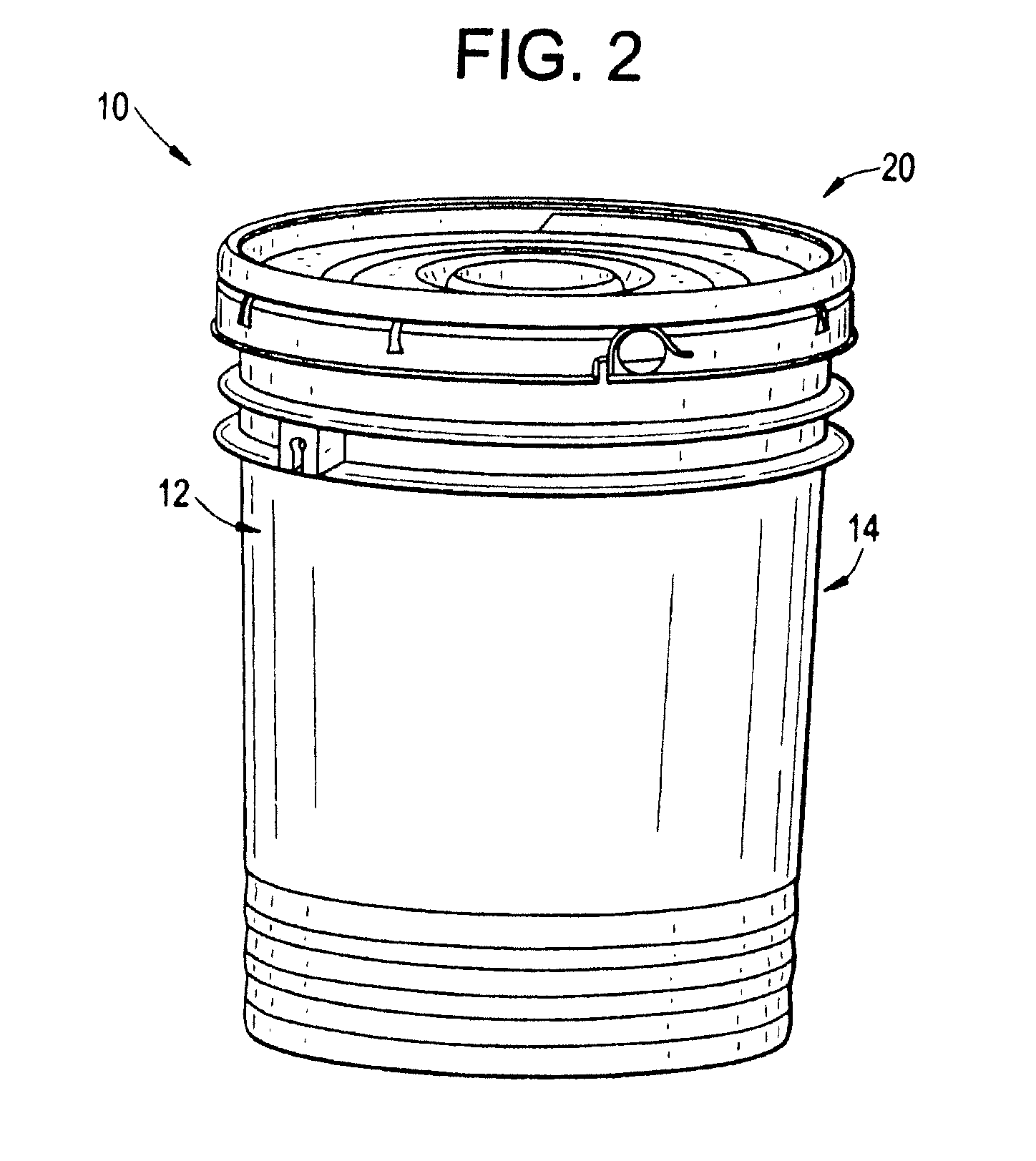

US-8210391-B2 figure 6
6
US-8210391-B2 figure 7
7

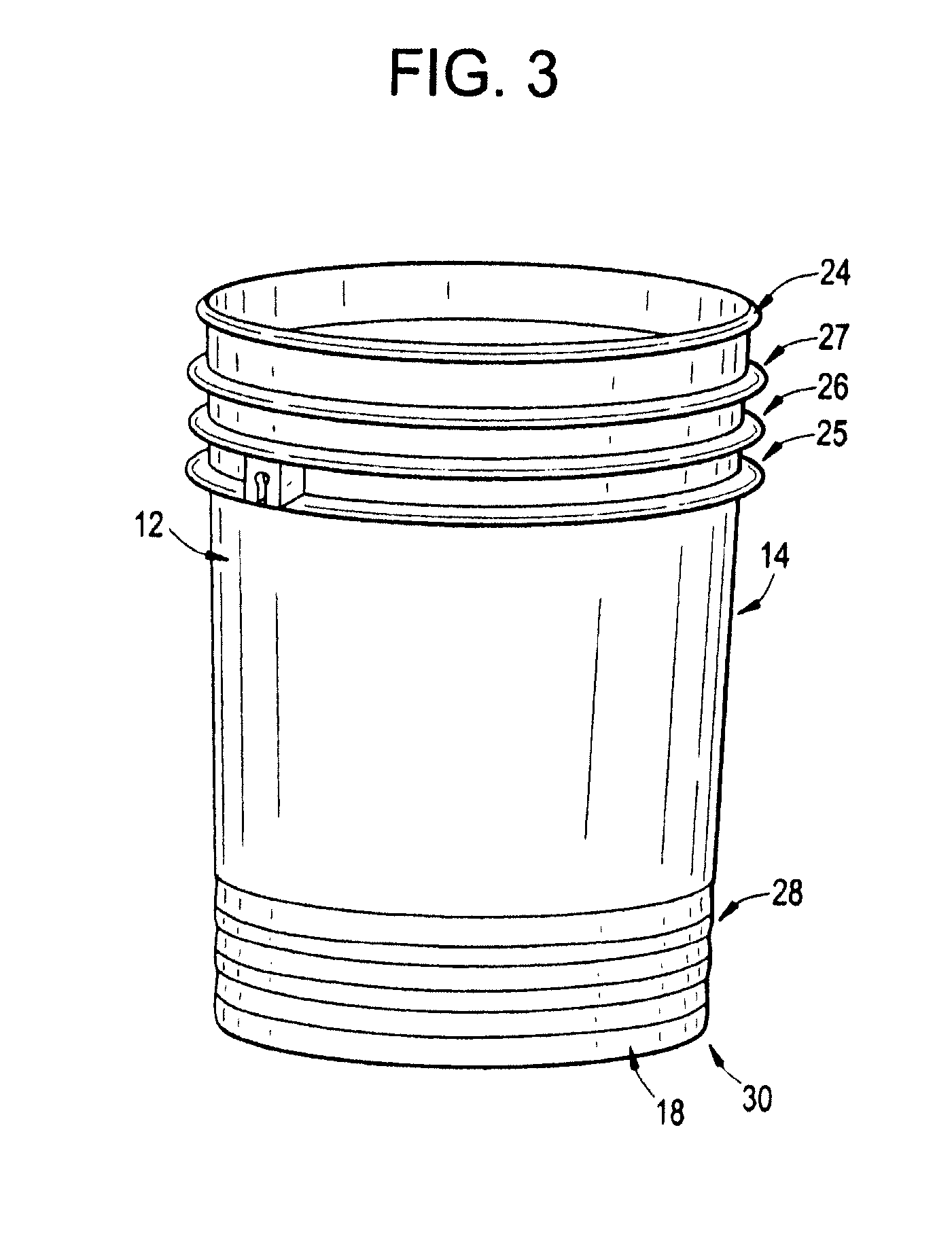

US-8210391-B2 figure 8
8
