具有过滤系统的洗碗机

Dishwasher comprising a filter system

US-8197607-B2

用于过滤洗碗水,提高清洁效果。

专利摘要

提供了一种洗碗机,具有洗碗容器和用于清洁洗碗液的过滤系统。过滤系统包括泡沫体积,过滤系统和洗碗容器相互连通,使得至少一些洗碗液可以在洗碗机的洗涤循环期间从洗碗容器排出到泡沫体积,以通过泡沫体积。洗碗液中含有的洗碗残留物至少部分被泡沫体积吸收或保留,从而可以过滤出洗碗液中的细颗粒污垢,最小化洗碗液或待清洁物品的再污染,并改善洗碗效果。

Original abstractA dishwasher is provided having a dishwashing container and a filter system for cleaning dishwashing liquid. The filter system includes a foam volume and the filter system and the dishwashing container are communicated with one another such that at least some of the dishwashing liquid can be discharged from the dishwashing container in association with a washing cycle of the dishwashing machine to the foam volume for passage of the discharged dishwashing liquid through the foam volume. Dishwashing residue contained in the dishwashing liquid is at least partially absorbed or retained by the foam volume such that the fine-grained dirt particles can be filtered out of the dishwashing fluid, a resoiling of the dishwashing fluid or the items to be cleaned can be minimized and the dishwashing result can be improved.

专利附图(4)

US-8197607-B2 figure 1
1

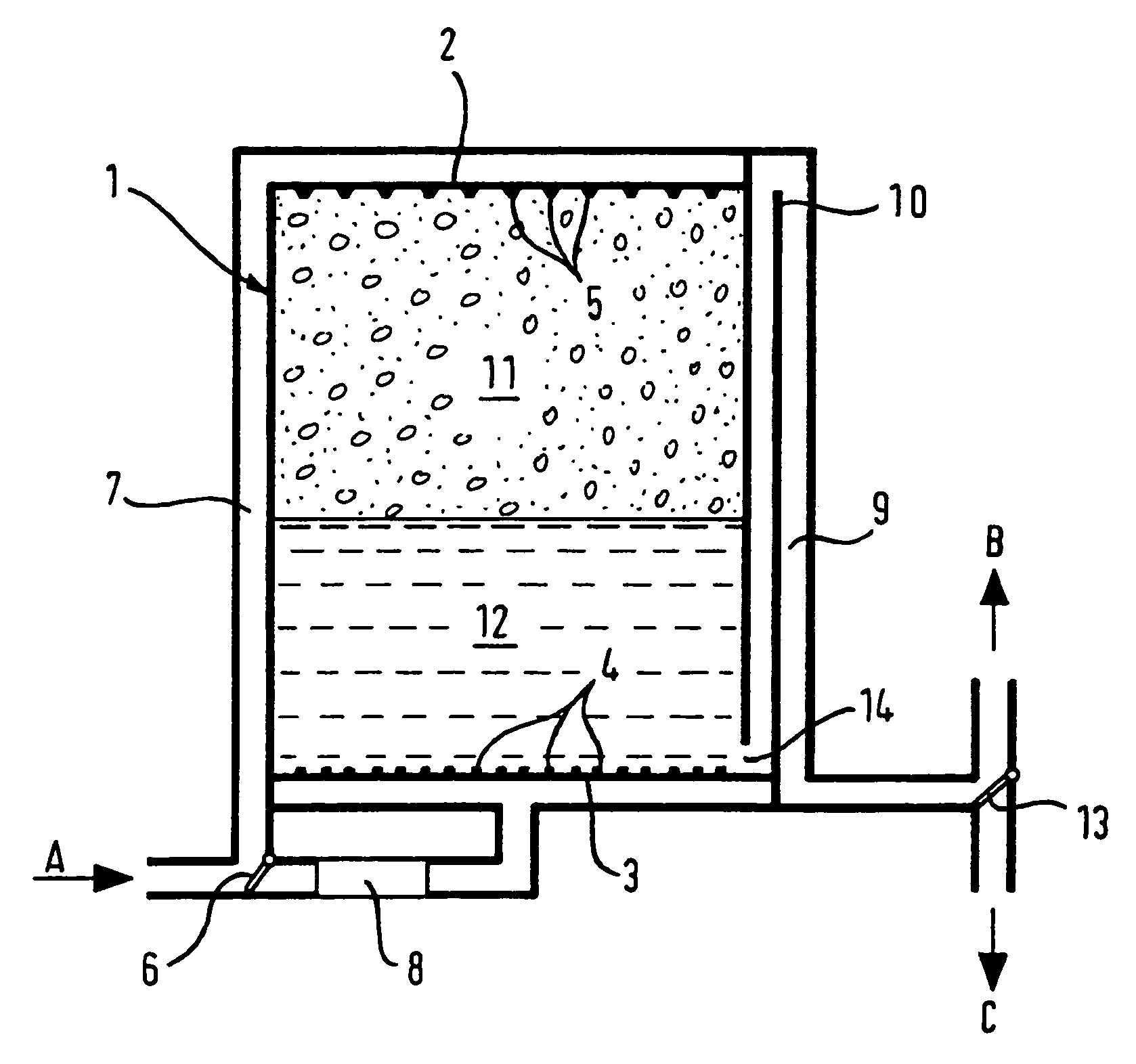

US-8197607-B2 figure 2
2
US-8197607-B2 figure 3
3

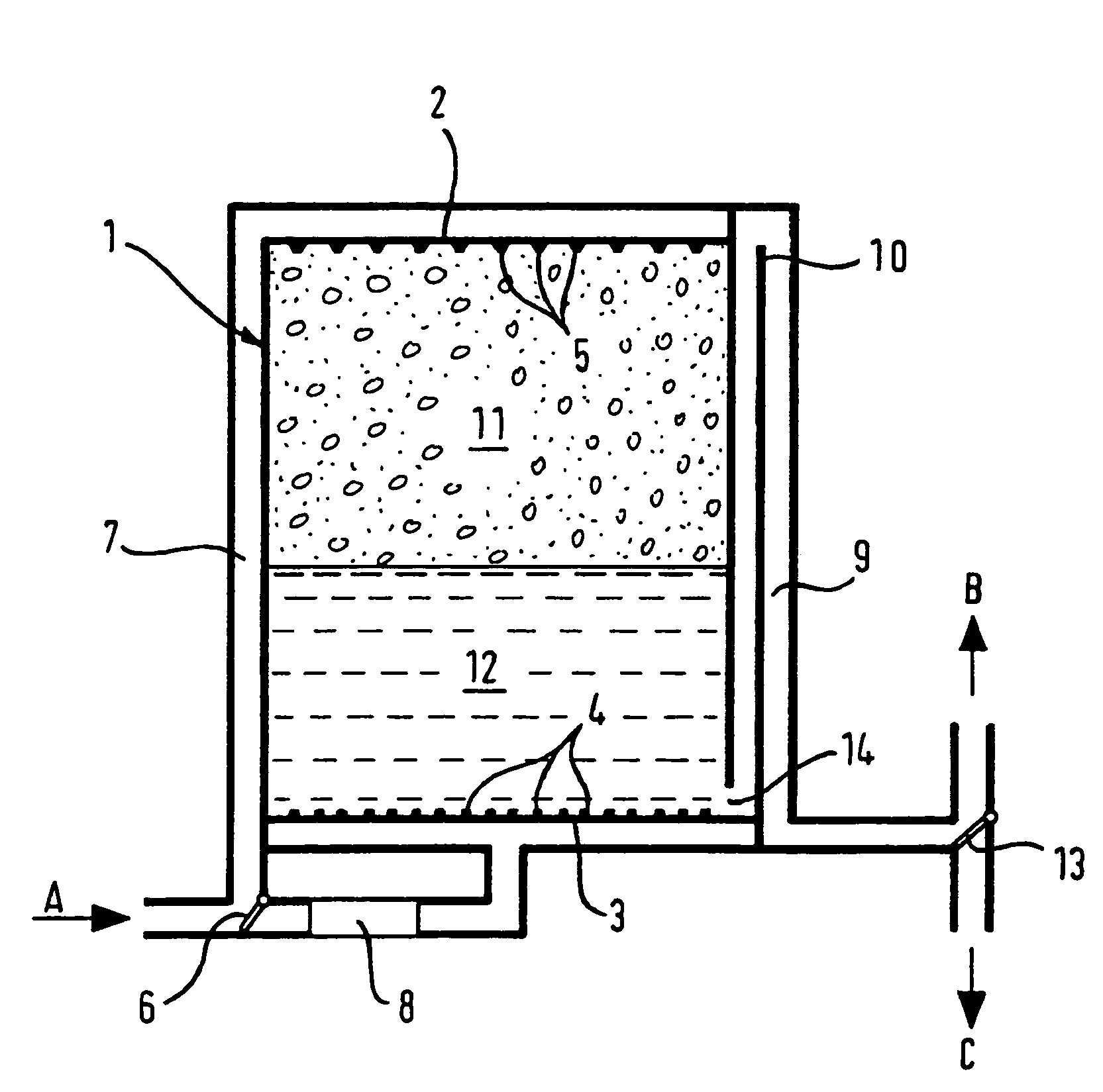

US-8197607-B2 figure 4
4
