薄纸分配器及其制造方法
Tissue sheet dispenser and process for making same
US-8186541-B2方便抽出第一张薄纸，避免粘附问题。
专利摘要
公开了一种用于分配交错折叠的一次性薄纸的分配器。分配器包括可移除面板，其附接到容器内堆叠中的第一张薄纸。当可移除面板从容器拉下时，堆叠中的第一张薄纸被部分或完全从容器中抽出。可移除面板可以使用粘合剂材料粘附到第一张薄纸。粘合剂材料可以包含在形成于可移除面板中的凹槽中。凹槽设计为在产品的制造过程中保护粘合剂材料和/或防止粘合剂材料粘附到产品的其他部分。在一个实施例中，在将薄纸堆叠装载到分配器中之后，凹槽反转形成突起，该突起接触堆叠中的第一张薄纸并在可移除面板和第一张薄纸之间形成结合。
Original abstractA dispenser for dispensing interfolded disposable sheets is disclosed. The dispenser includes a removable panel that is attached to the first sheet in the stack contained in the container. When the removable panel is pulled off the container, the first sheet in the stack is partially or completely withdrawn from the container. The removable panel may be adhered to the first sheet using an adhesive material. The adhesive material may be contained in a recess formed in the removable panel. The recess is designed to protect the adhesive material during manufacture of the product and/or to prevent the adhesive material to adhering to other portions of the product. In one embodiment, after the stack of sheets are loaded into the dispenser, the recess is inverted forming a protrusion that contacts the first sheet in the stack and forms a bond between the removable panel and the first sheet.

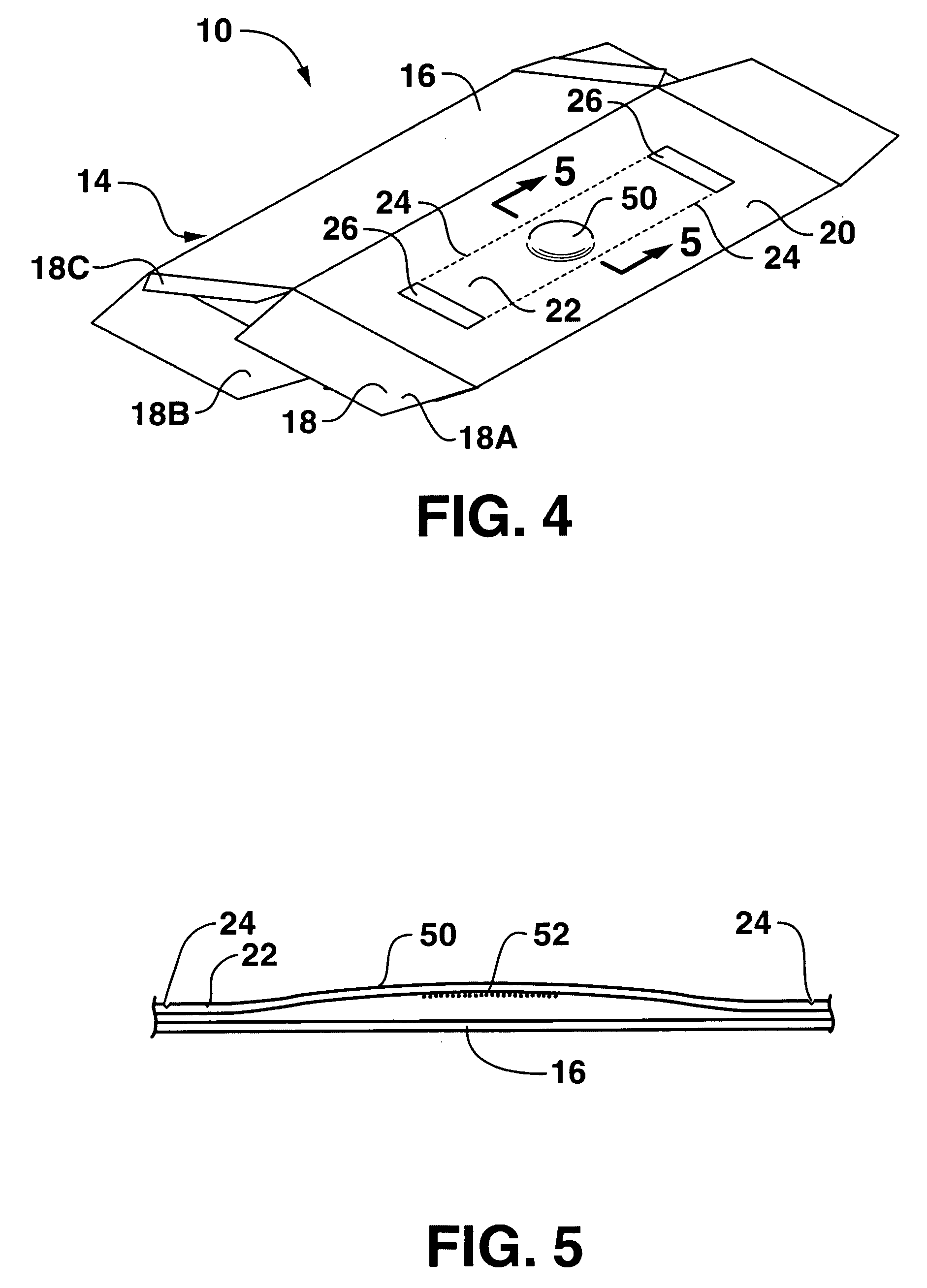

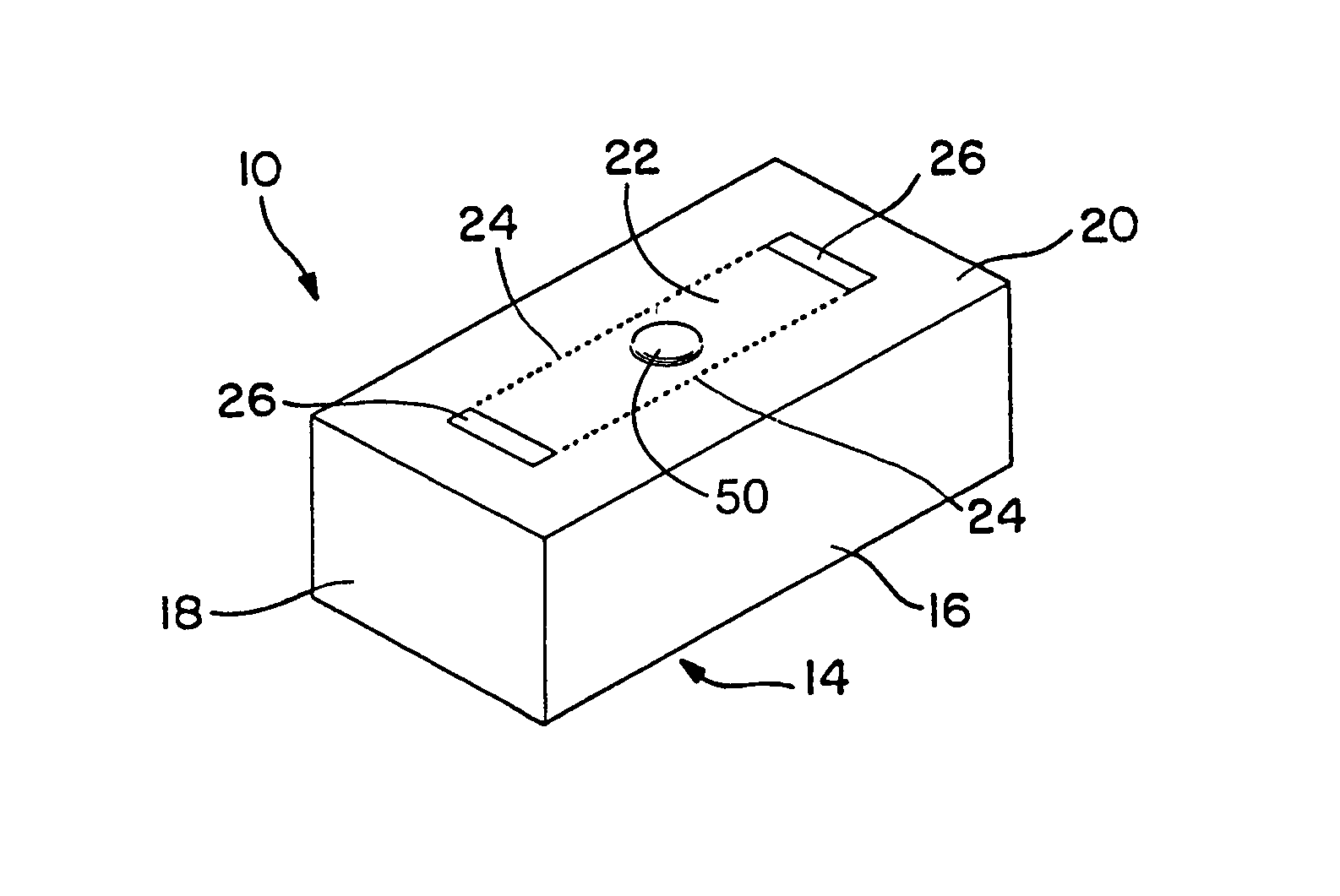

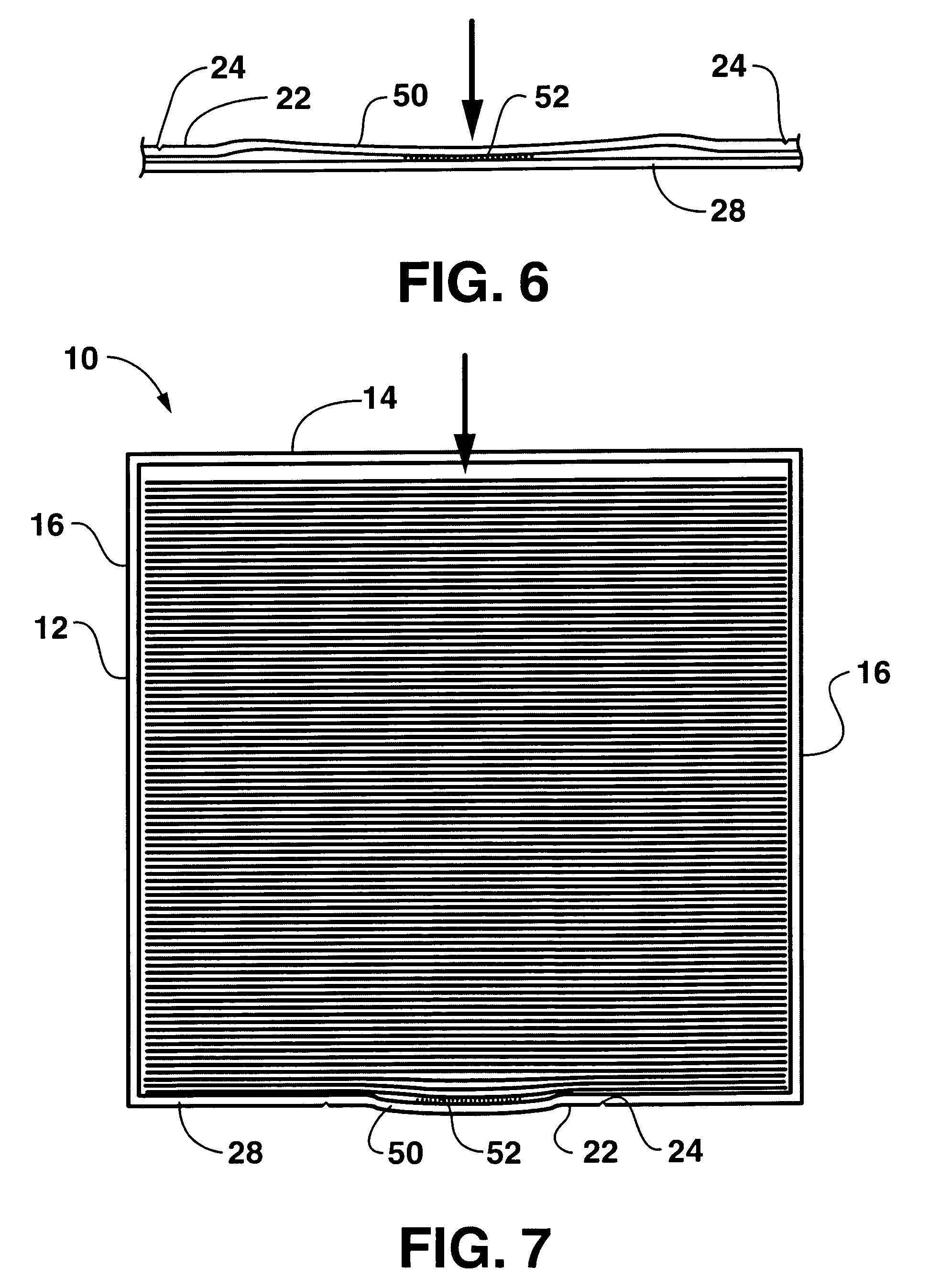

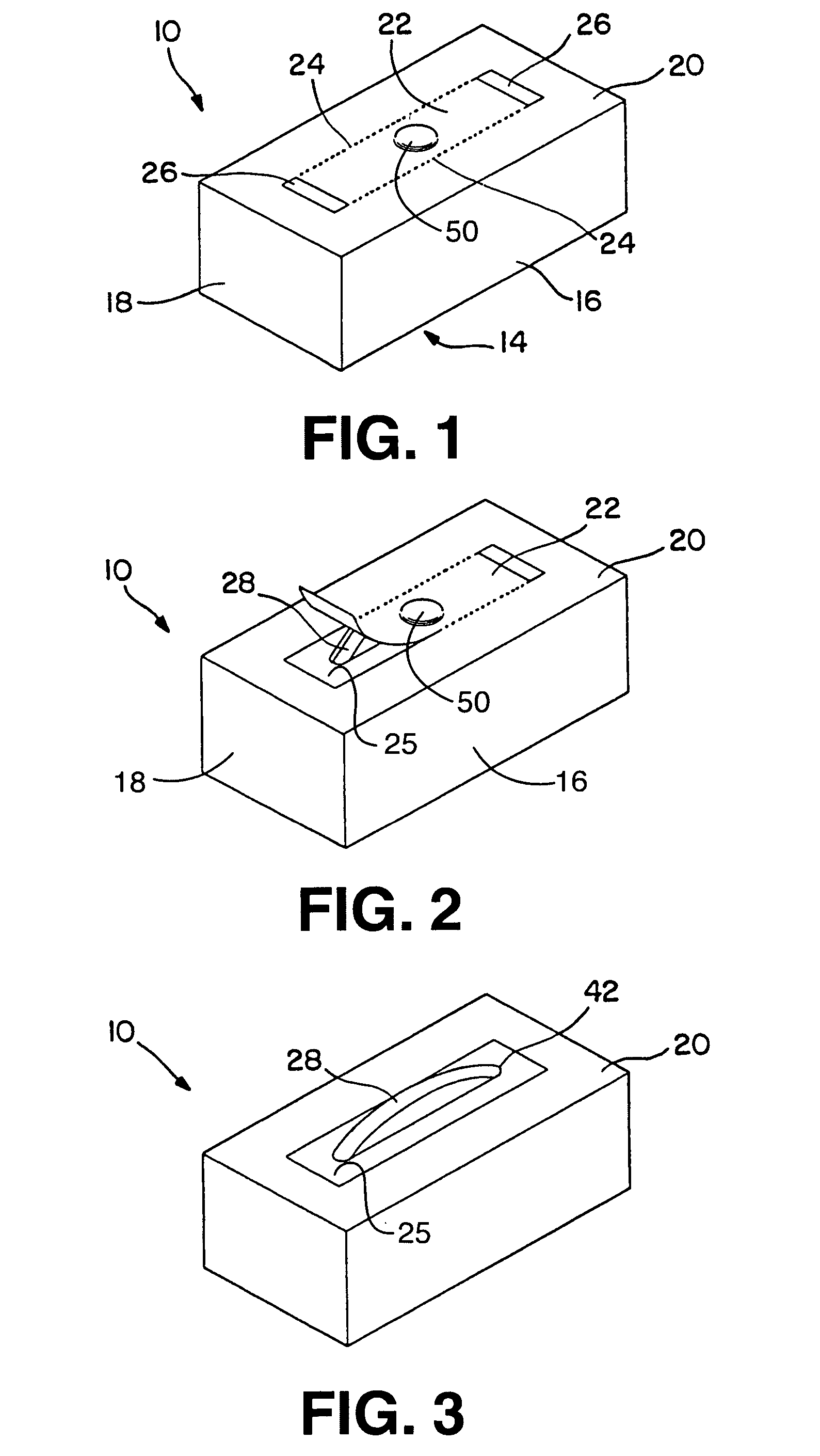

专利附图（8）
