具有内盖和外盖以及密封件移除单元的防儿童开启盖

Child-resistant cap having inner and outer caps and a seal removing unit

US-8157115-B2

用于容器防儿童开启,并自动移除密封。

专利摘要

一种防儿童开启盖,包括:安装在小容器入口处的内盖;设置在内盖的外周表面处以便与内盖一起空转的外盖;设置在内盖和外盖之间的旋转力传递部分,用于仅当外盖以超过一定程度的力向下移动时将外盖的旋转力传递到内盖;以及形成在内盖处的密封件移除单元,用于当内盖从小容器入口拆卸时移除密封在小容器入口处的密封件,并将移除的密封件存储在内盖中。由于密封件移除单元一体形成在盖上,因此在打开盖时自动移除密封件。因此,不需要额外移除密封件,从而提高了使用便利性。此外,在外盖通过弹性力保持从内盖向上移动的位置的结构下,只有以超过一定程度的力向下移动外盖才能打开盖。因此,可以更有效地保护儿童。

Original abstractA child-resistant cap comprises: an inner cap mounted at a vessel inlet of a vessel; an outer cap disposed at an outer circumferential surface of the inner cap so as to perform an idling with the inner cap; a rotation force transmitting portion disposed between the inner cap and the outer cap for transmitting a rotation force of the outer cap to the inner cap only when the outer cap is downwardly moved with a force more than a certain degree; and a sealing member removing unit formed at the inner cap for removing a sealing member sealed at the vessel inlet when the inner cap is detached from the vessel inlet, and storing the removed sealing member in the inner cap. Since the sealing member removing unit is integrally formed at the cap, the sealing member is automatically removed at the time of opening the cap. Accordingly, the sealing member needs not to be additionally removed, and thus a usage convenience is enhanced. Furthermore, under a construction that the outer cap maintains an upwardly moved position from the inner cap by an elastic force, the cap can be opened only by downwardly moving the outer cap with a force more than a certain degree. Accordingly, a child can be more effectively protected.

专利附图(8)

US-8157115-B2 figure 1
1

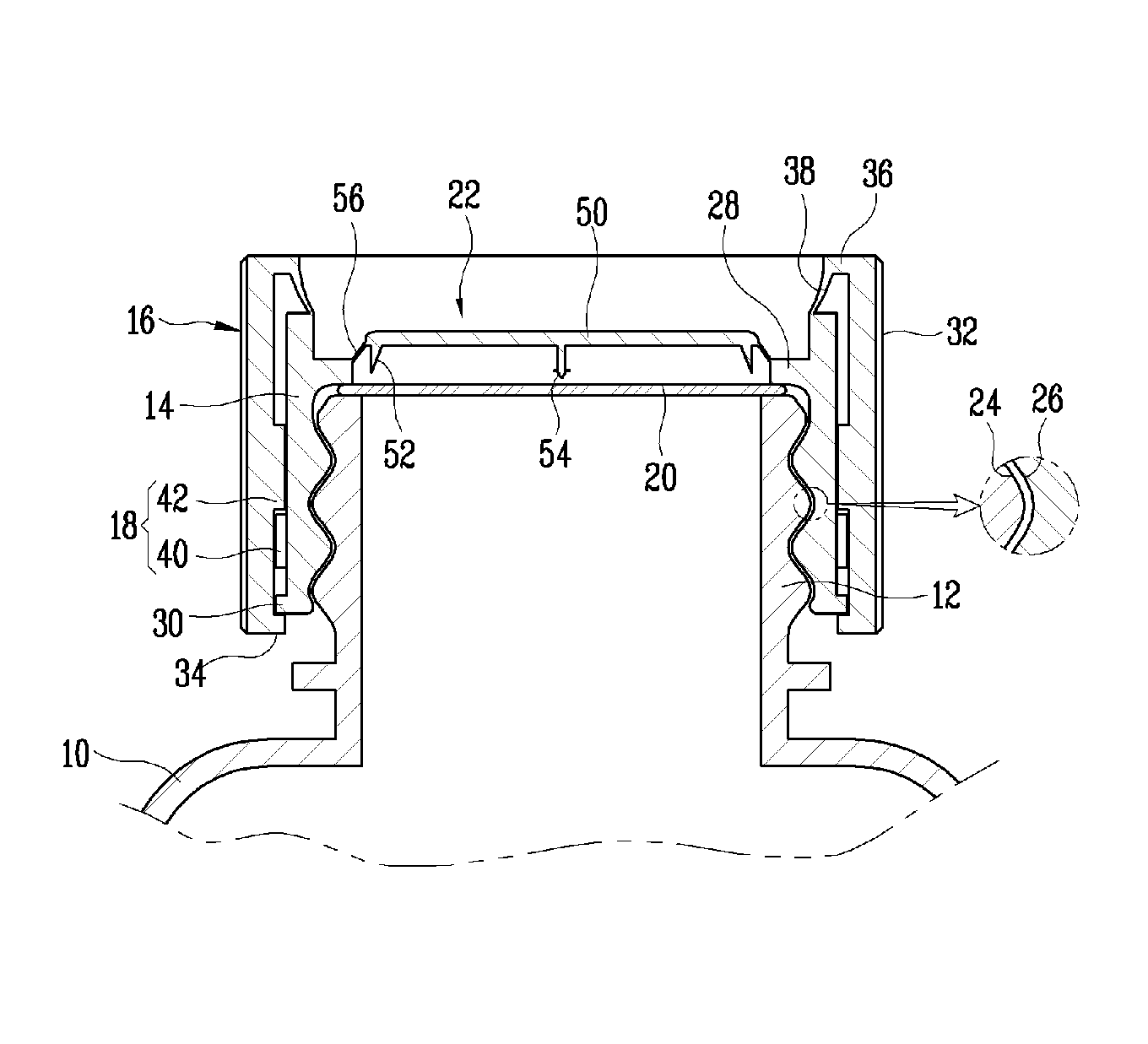

US-8157115-B2 figure 2
2
US-8157115-B2 figure 3
3
US-8157115-B2 figure 4
4
US-8157115-B2 figure 5
5
US-8157115-B2 figure 6
6
US-8157115-B2 figure 7
7

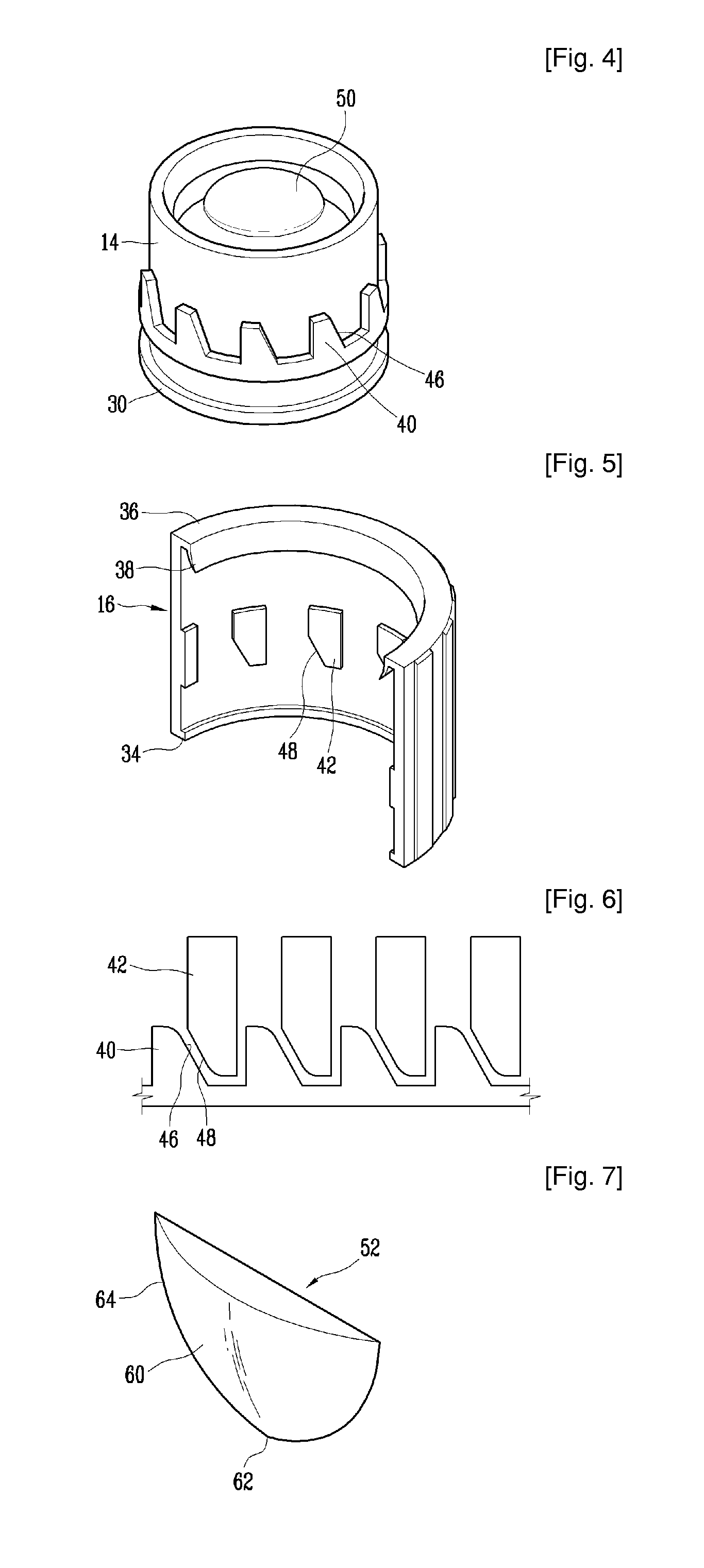

US-8157115-B2 figure 8
8
