袋及其形成方法

Bag and a method of forming a bag

US-8142340-B2

一种袋的制造方法,通过折叠和面板封闭开口。

专利摘要

提供一种形成袋的方法。该方法包括提供具有相对端部的细长管状构件(22),其至少一个端部(24)限定开口(26)。该方法还包括折叠管状构件(22)的相对部分(28、30、32、34)以至少部分地横跨开口(26)延伸。该方法还包括定位一个面板(36)以横跨相对部分(28、30、32、34)延伸。该方法还包括将面板36和相对部分(28、30、32、34)固定在一起,从而在管状构件(22)的至少一个端部(24)处封闭开口(26)。

Original abstractA method of forming a bag is provided. The method includes providing an elongate tubular member ( 22 ) having opposed ends, at least one end ( 24 ) of which defines an open mouth ( 26 ). The method further includes folding opposed portions ( 28, 30, 32, 34 ) of the tubular member ( 22 ) to extend at least partially across the mouth ( 26 ). The method also includes positioning a panel ( 36 ) to extend across the opposed portions ( 28, 30, 32, 34 ). The method further includes securing the panel 36 and the opposed portions ( 28, 30, 32, 34 ) together thereby to close the mouth ( 26 ) at the at least one end ( 24 ) of the tubular member ( 22 ).

专利附图(8)

US-8142340-B2 figure 1
1

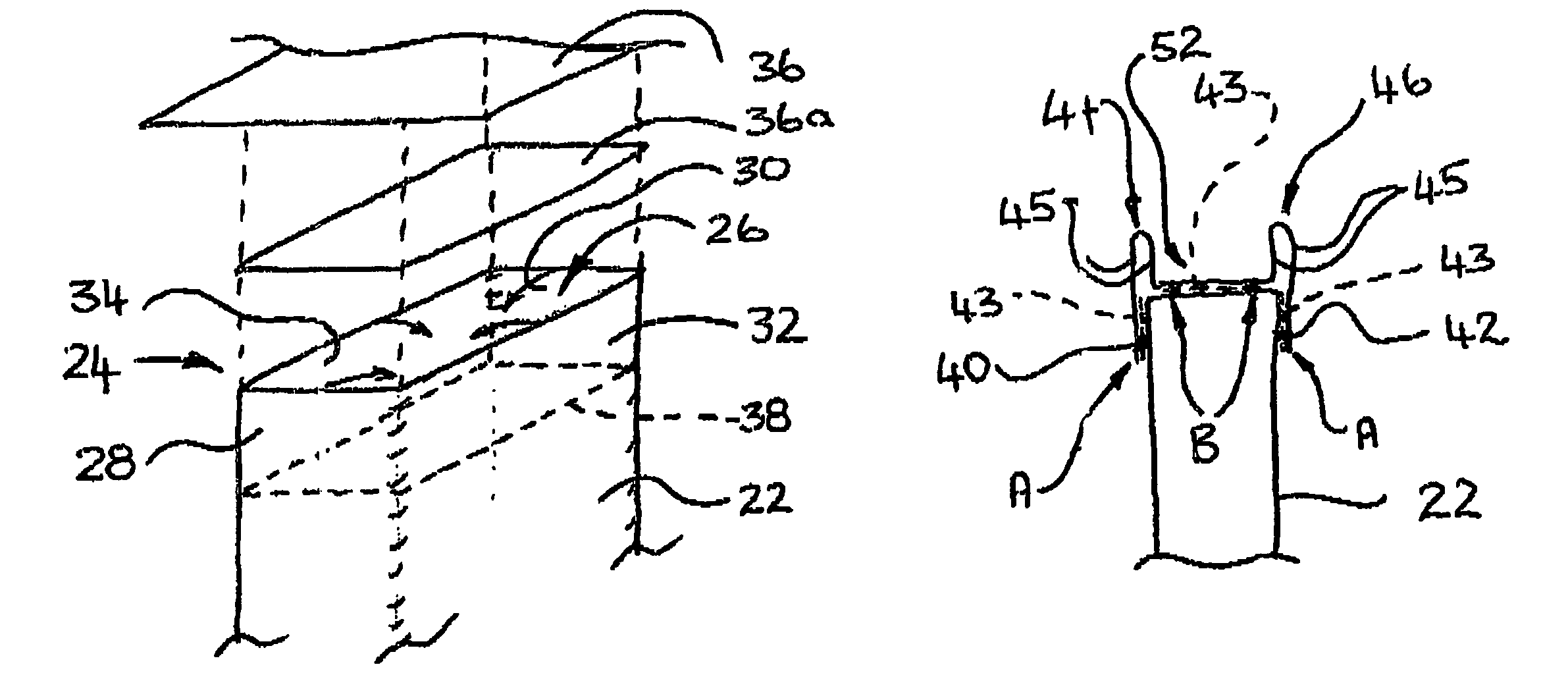

US-8142340-B2 figure 2
2
US-8142340-B2 figure 3
3

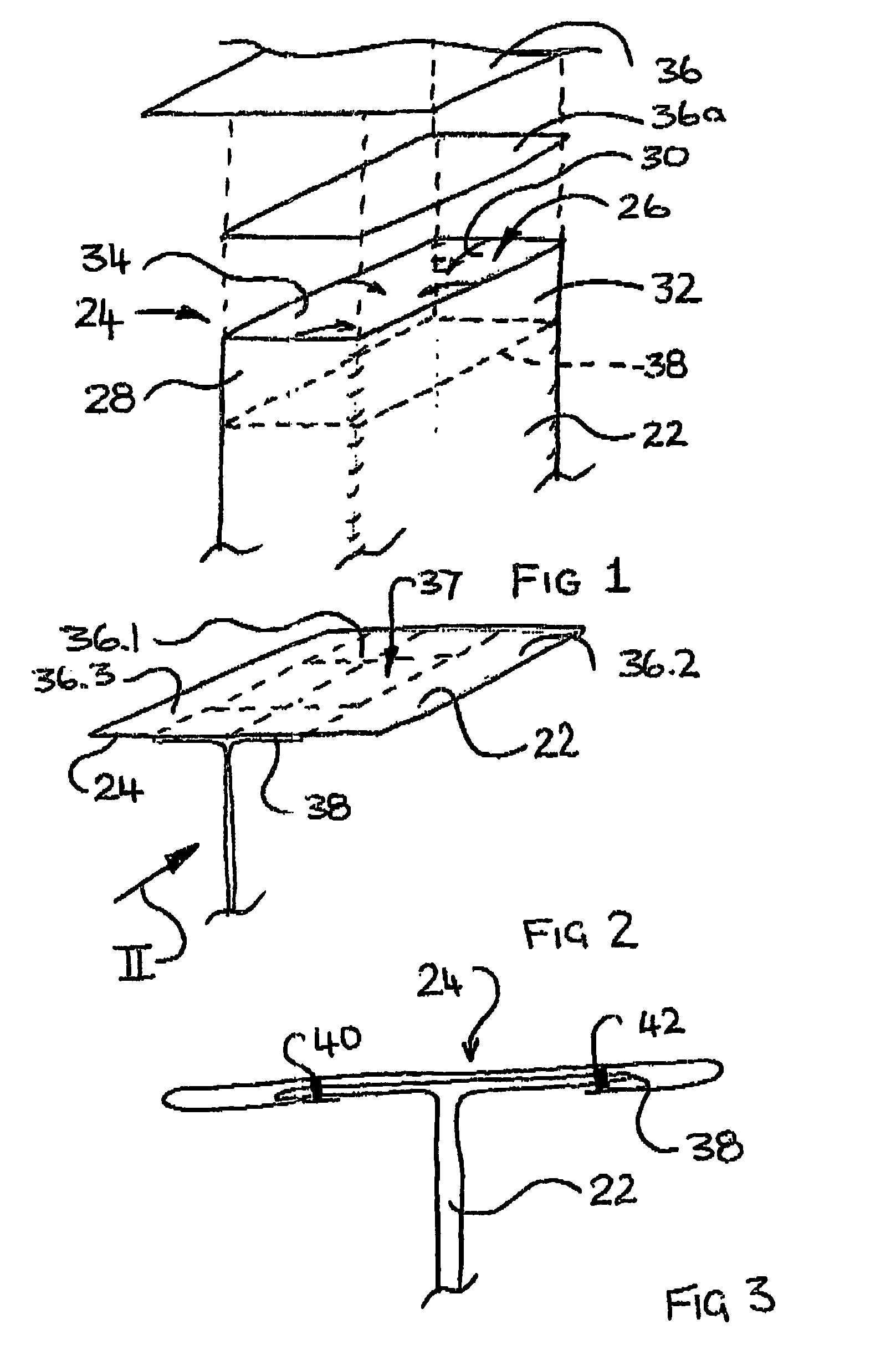

US-8142340-B2 figure 4
4
US-8142340-B2 figure 5
5

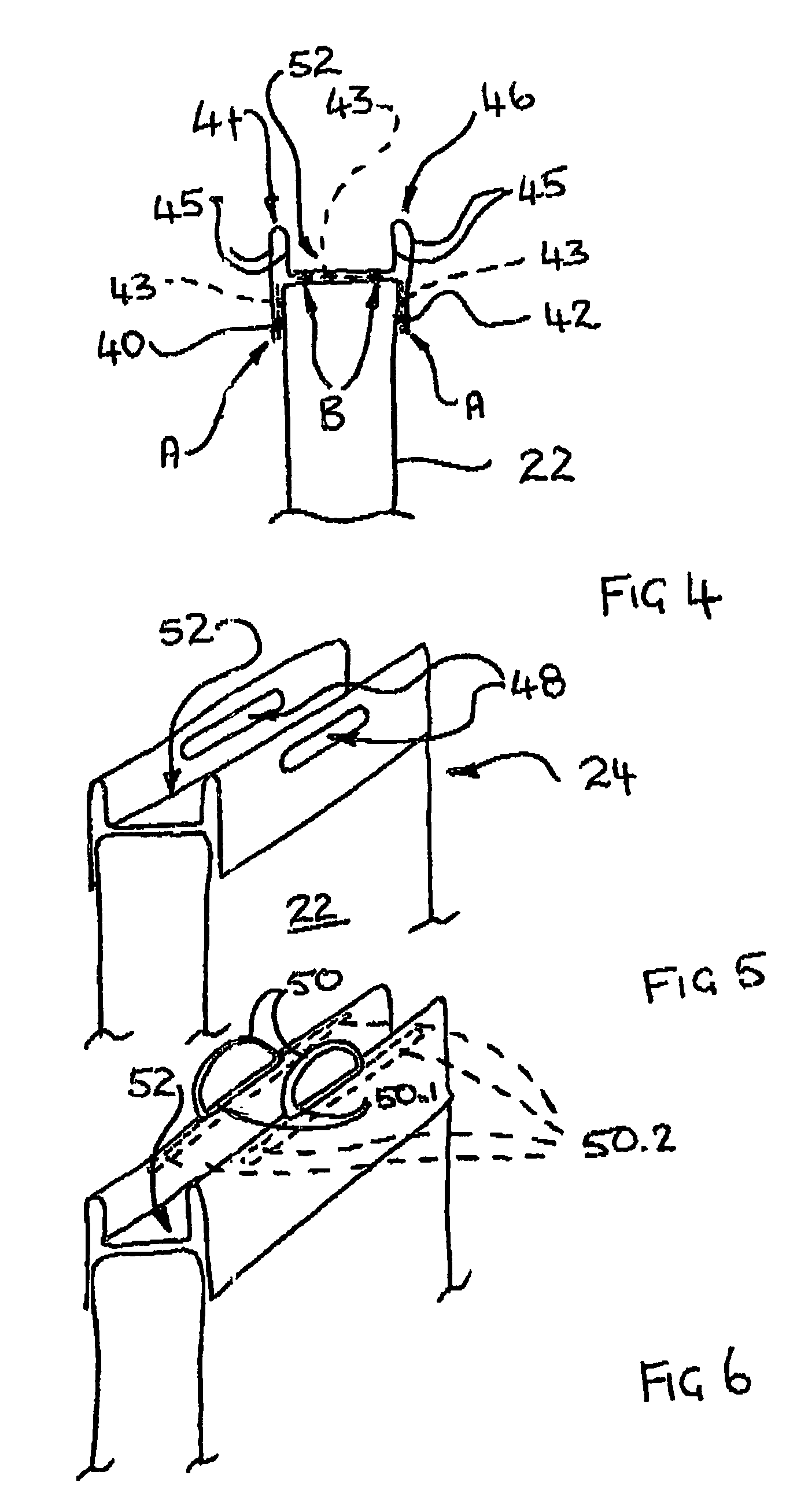

US-8142340-B2 figure 6
6
US-8142340-B2 figure 7
7

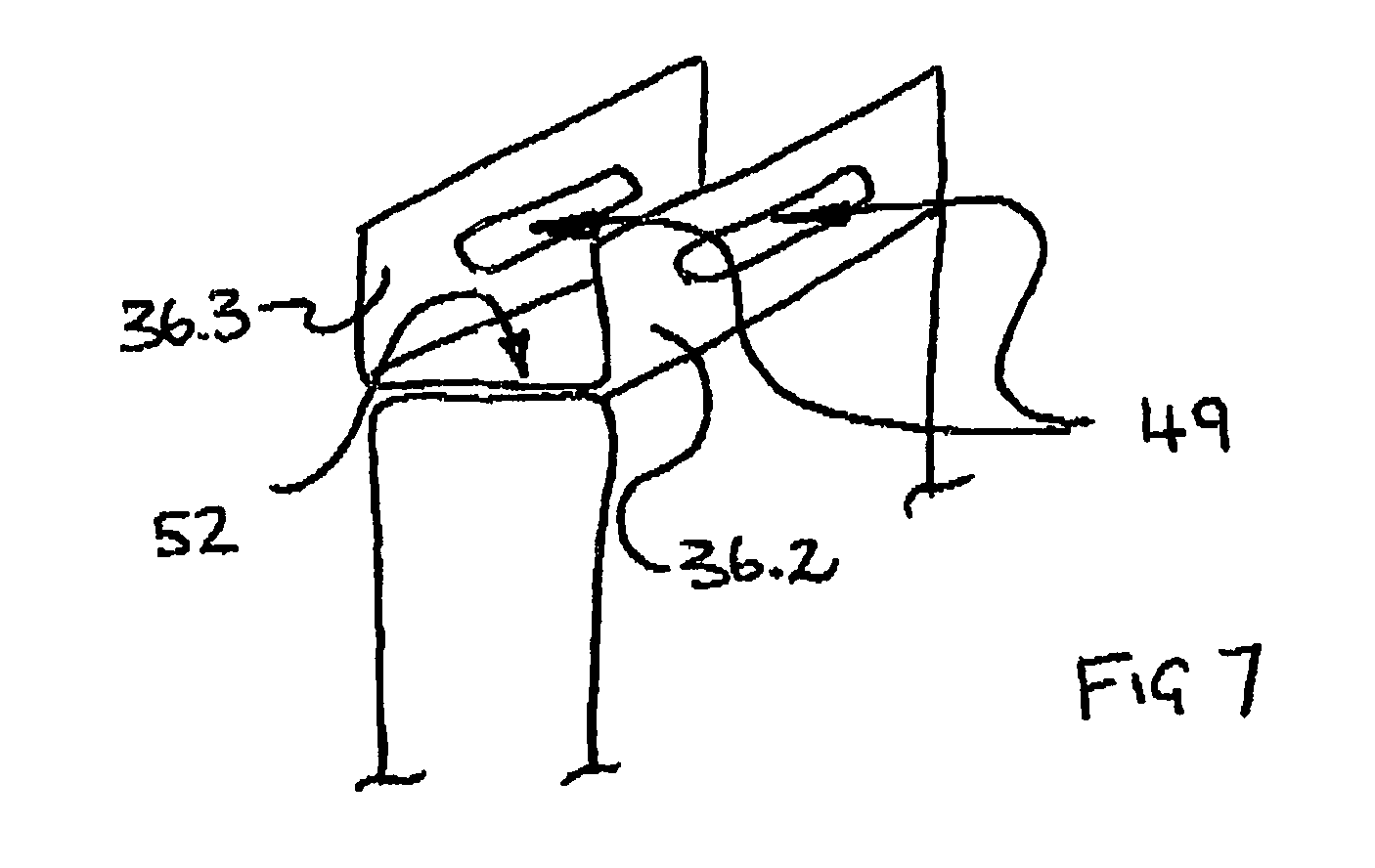

US-8142340-B2 figure 8
8
