用于方便取出多个饮料产品的外包装。
专利摘要
一种外包装包装体，通过在五个饮料产品被包装材料共同包裹的条件下加热和收缩包装材料而获得。在包装材料上以2mm的间隔平行形成三条穿过相邻饮料产品之间间隙部分的穿孔线。当在相邻饮料产品之间的间隙部分用手指推动三个穿孔线部分时，包装材料从推动部分沿垂直方向撕裂。因此，包装的饮料产品DG可以容易地一个接一个地取出。
Original abstractAn overwrap packed body is obtained by heating and shrinking a wrapping material in a condition that five drink products collectively wrapped by the wrapping material. Three perforated lines passing through gap portions between the adjacent drink products are formed on the wrapping material at an interval of 2 mm in parallel. When the three perforated line portions are pushed with fingers in the gap portion between the adjacent drink products, the wrapping material torn from the pushed portion in a vertical direction. Thus, the packed drink products DG can be easily taken out one by one.

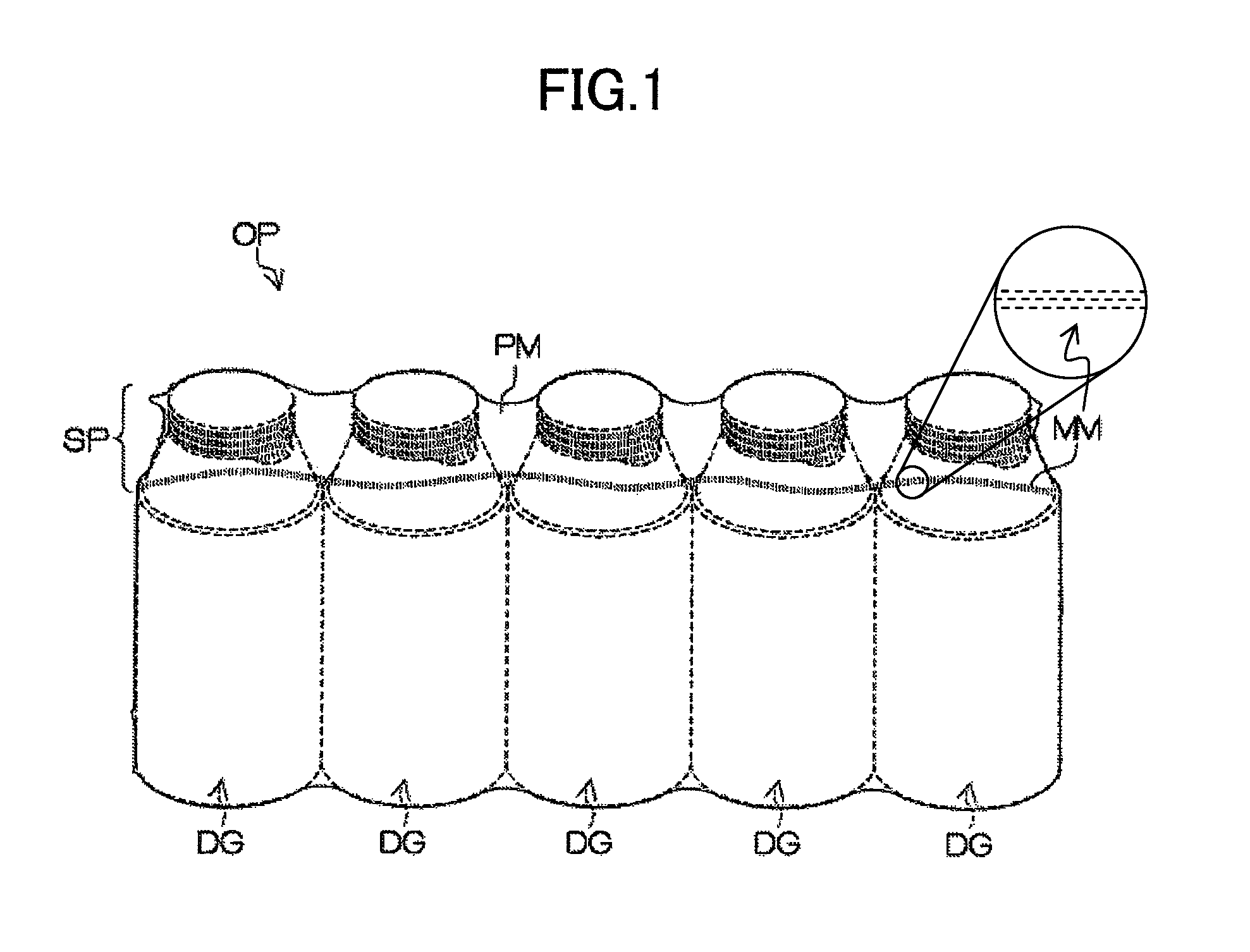

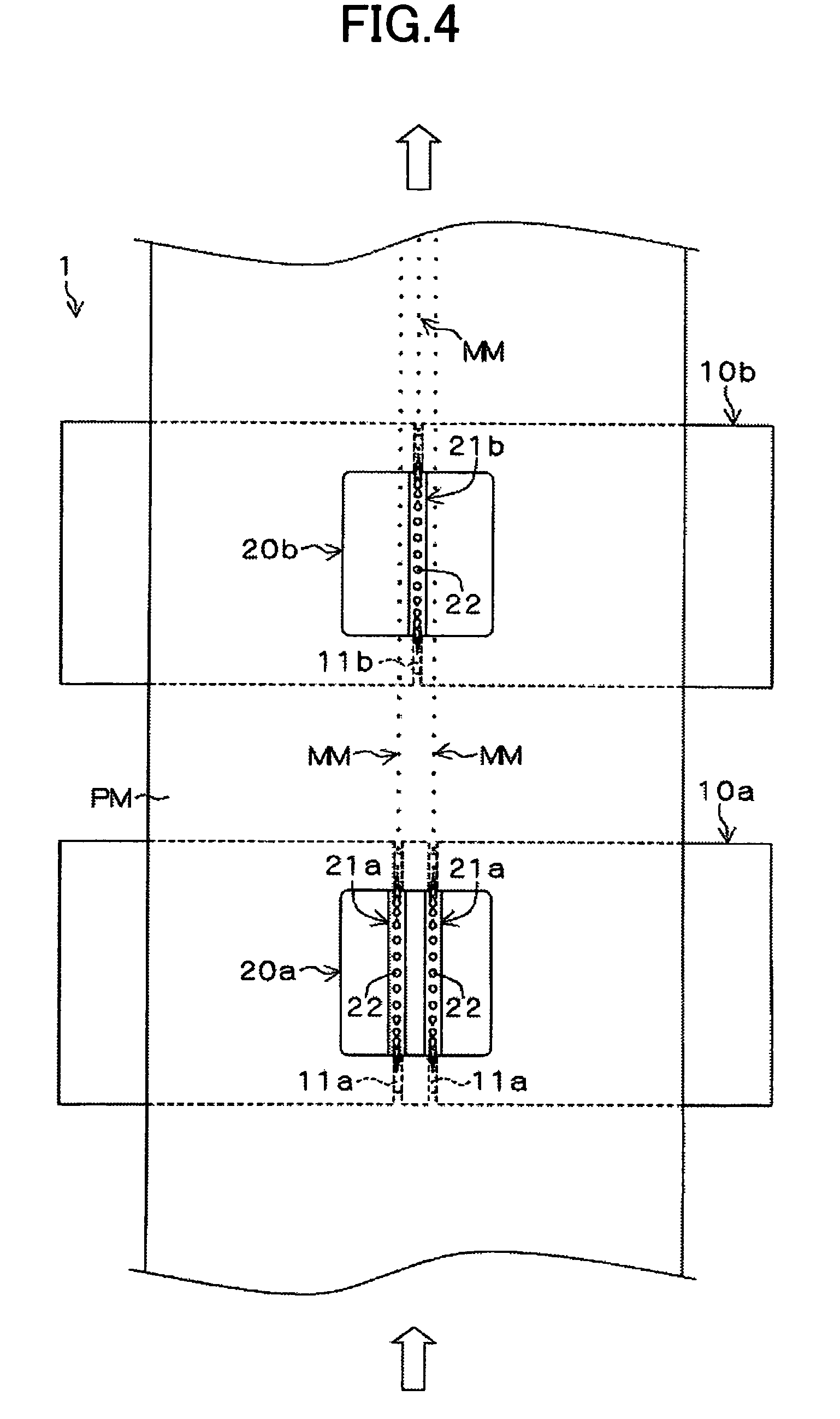

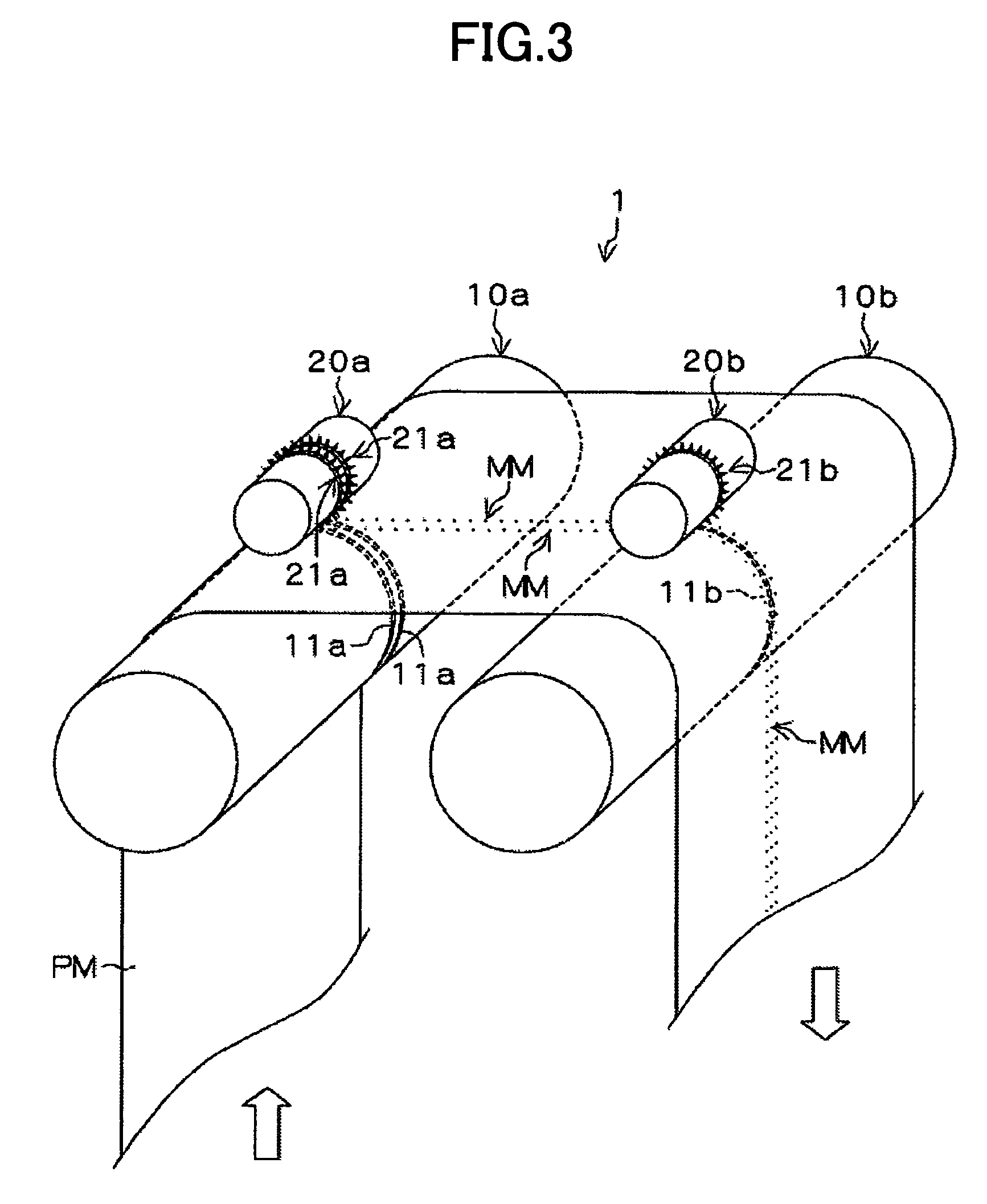

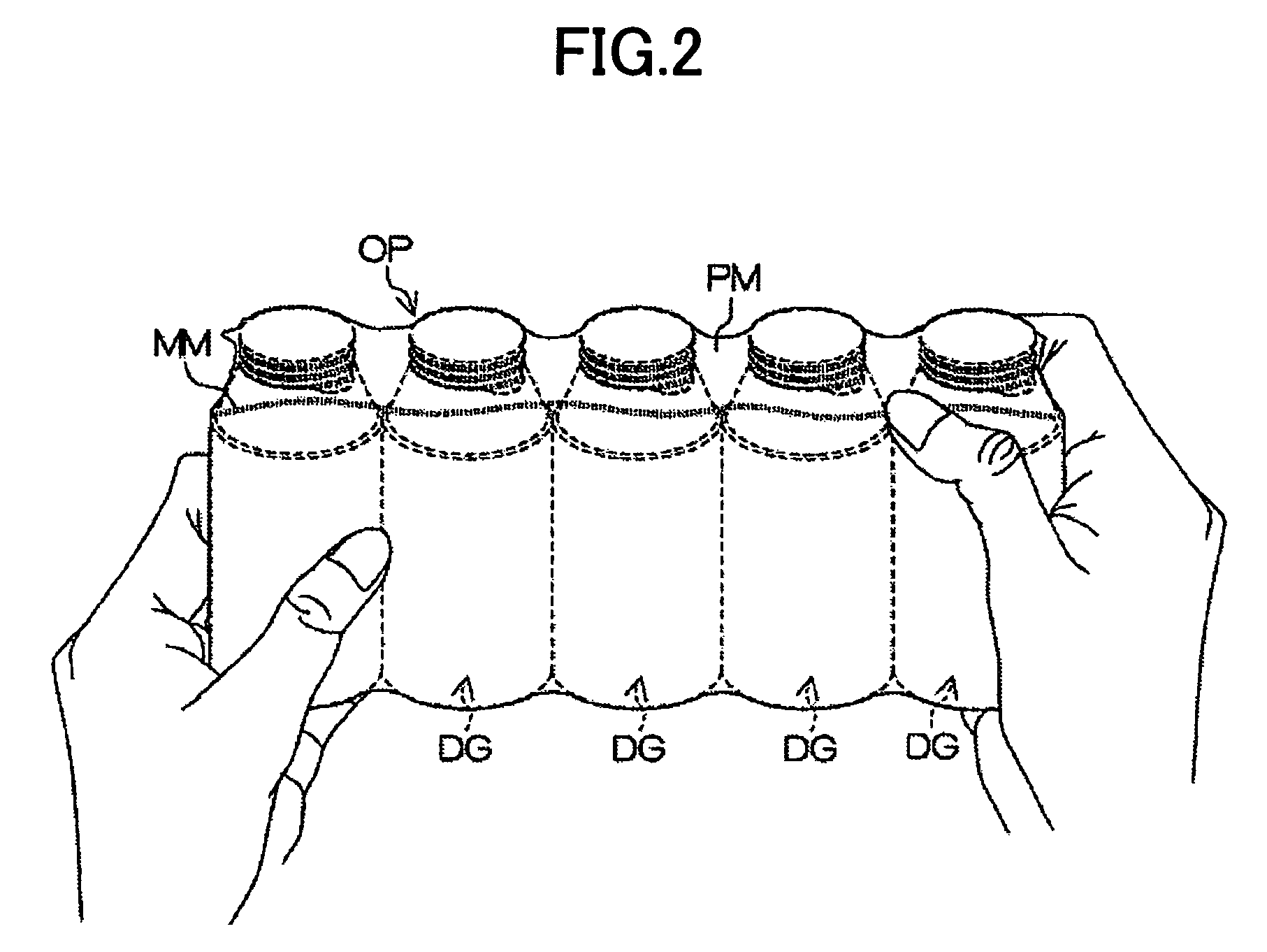

专利附图（8）
