用于平板拖把的挤水装置及清洁系统
Squeezing device for a flat-body wiper and cleaning system
US-8099824-B2一种用于平板拖把的挤水装置，方便挤干拖把罩。
专利摘要

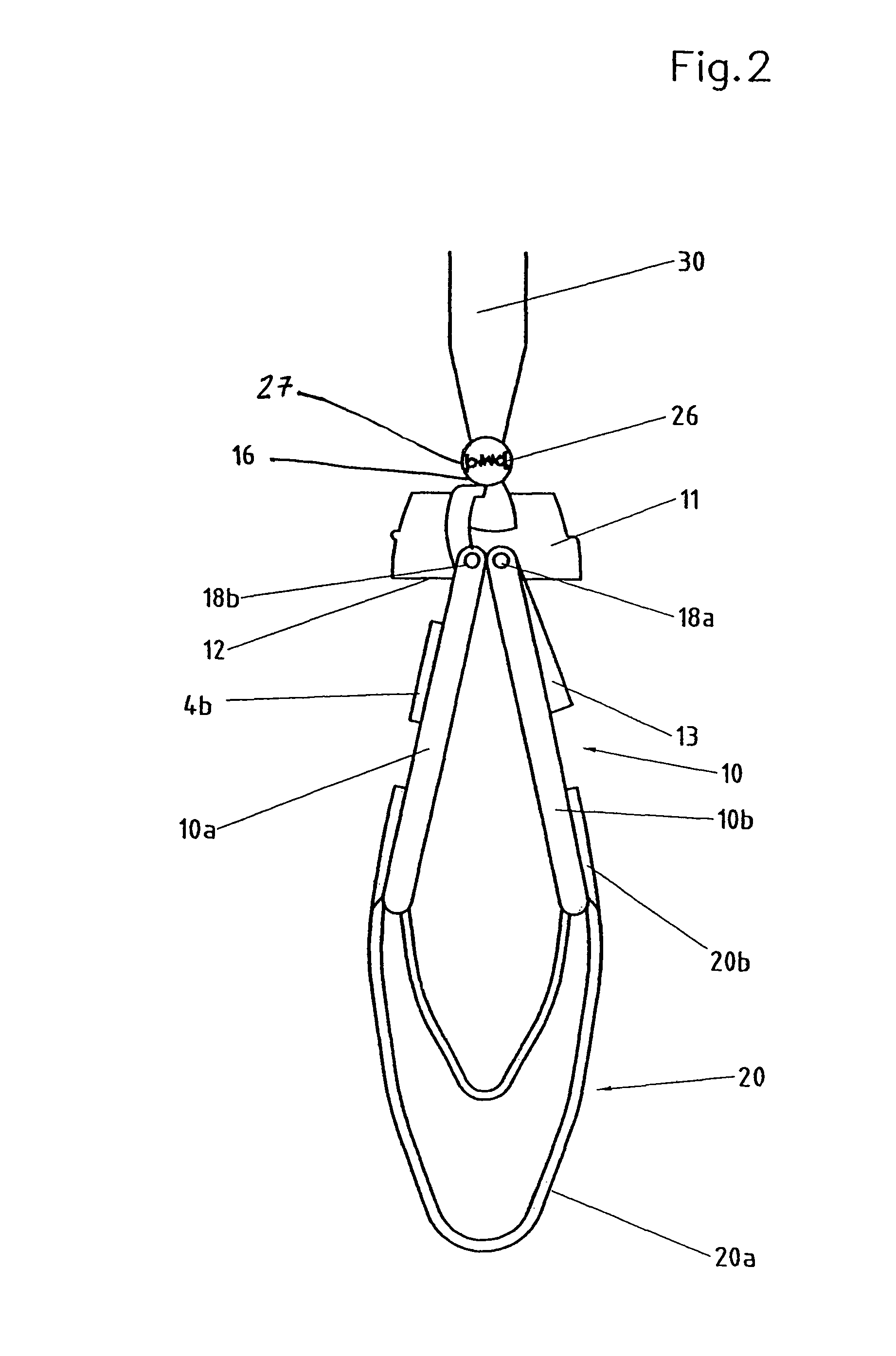

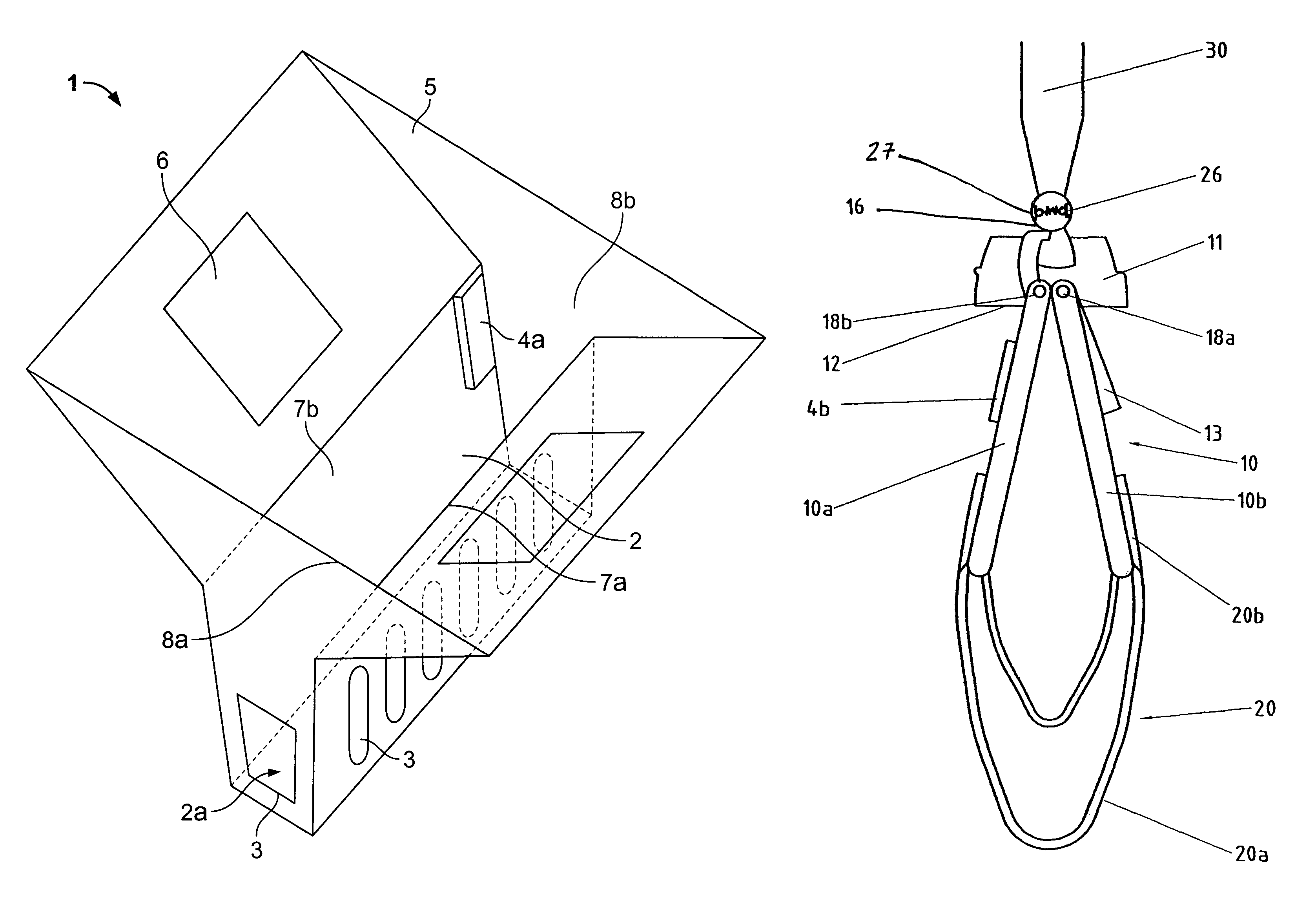

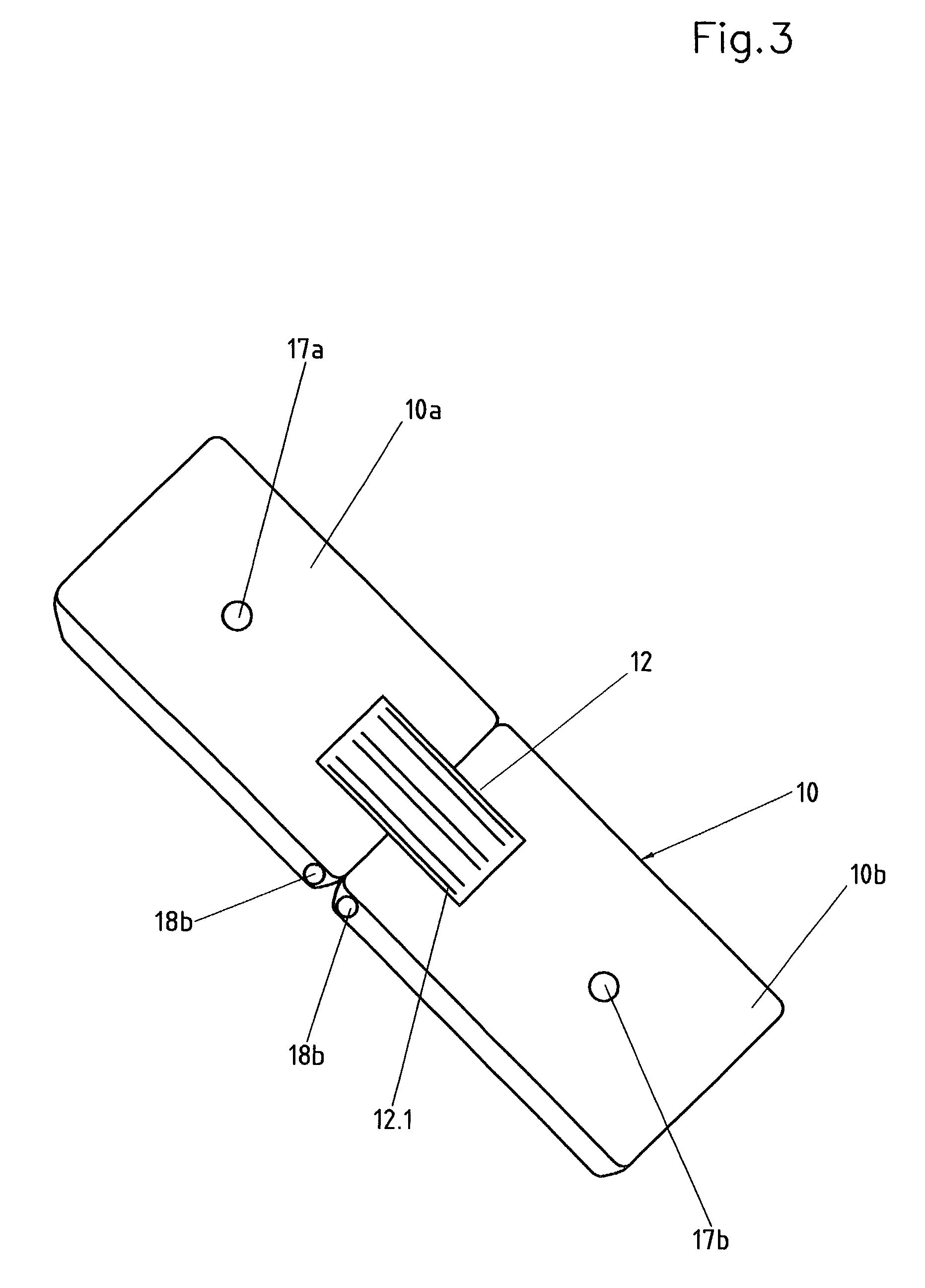

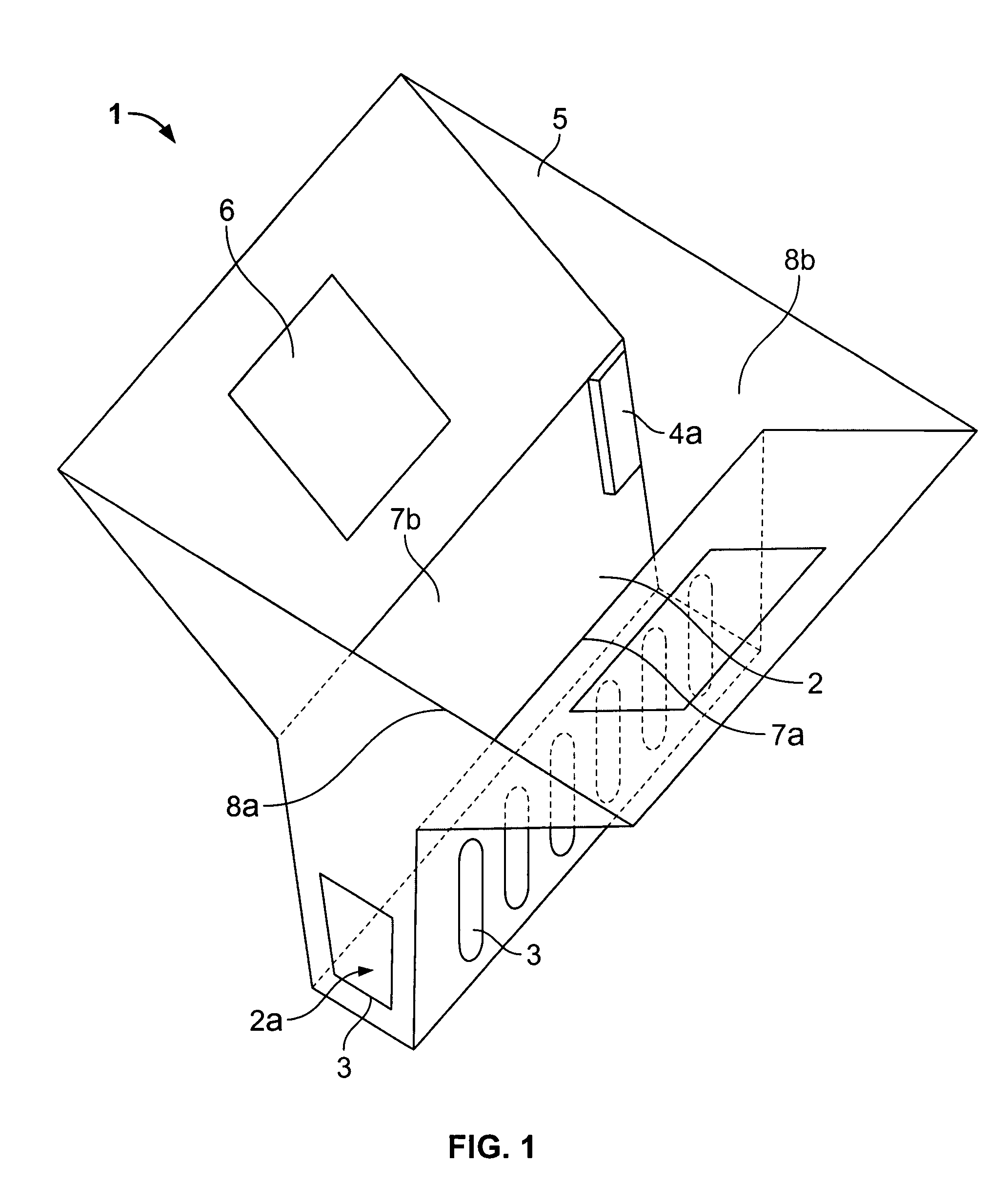

一种用于平板拖把的擦拭罩的挤水装置，拖把罩在拖把板垂直位置时向下悬挂并部分脱离拖把板，拖把板在垂直位置包括向下的压力表面。挤水装置包括漏斗形的挤水轴，在挤水轴的下部区域具有反压力表面。挤水轴被配置为在拖把板垂直位置接收拖把罩和拖把板的至少一部分，使得压力表面与反压力表面的挤压力将拖把罩挤干。挤水轴包括稳定装置，用于稳定拖把板以防止从垂直位置相对于第一平面倾倒。此外，还包括包含该挤水装置的清洁系统以及使用该挤水装置挤压平板拖把的擦拭罩的方法。
Original abstractA squeezing device for a wiping cover of a flat-body wiper, the wiper cover hanging downward and partially detached from a wiper plate of the flat-body wiper in a vertical position of the wiper plate, the wiper plate including a downward facing pressure surface in the vertical position. The squeezing device includes a funnel-shaped squeezing shaft having a counterpressure surface in a lower region of the squeezing shaft. The squeezing shaft is configured to receive the wiper cover and at least a portion of the wiper plate in the vertical position of the wiper plate so that a squeezing pressure of the pressure surface against the counterpressure surface squeezes out the wiper cover. The squeezing shaft includes stabilizing devices configured to stabilize the wiper plate against tipping relative to a first plane from the vertical position. In addition a cleaning system including the squeezing device and a method of squeezing a wiping cover of a flat-body wiper with the squeezing device.
专利附图（8）
