来源记录显示 Expired
由热塑性材料制成的容器,特别是瓶子
Container, in particular a bottle, made of thermoplastic material
US-8096434-B2用于盛装液体,提供增强的底部结构。
专利摘要

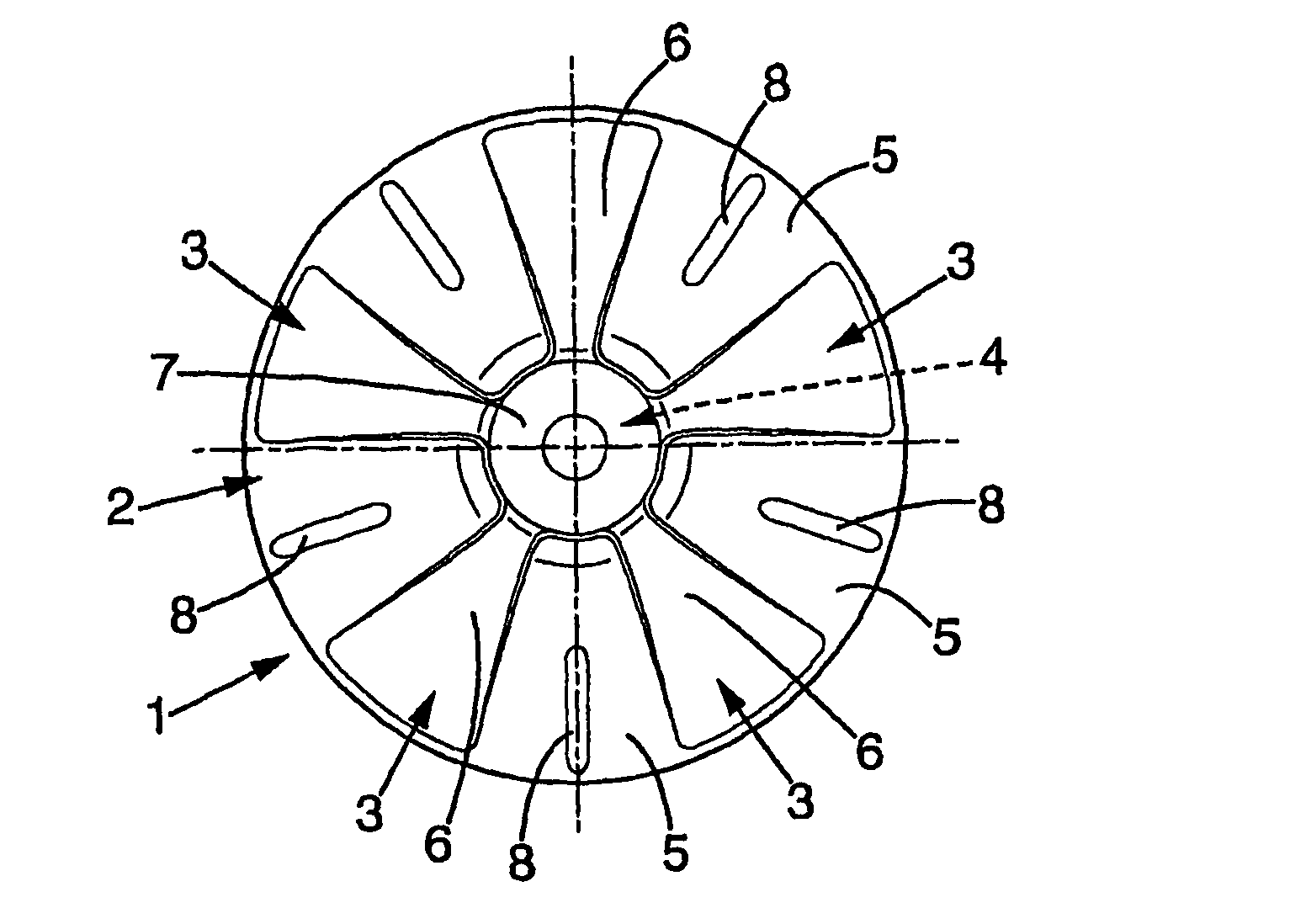

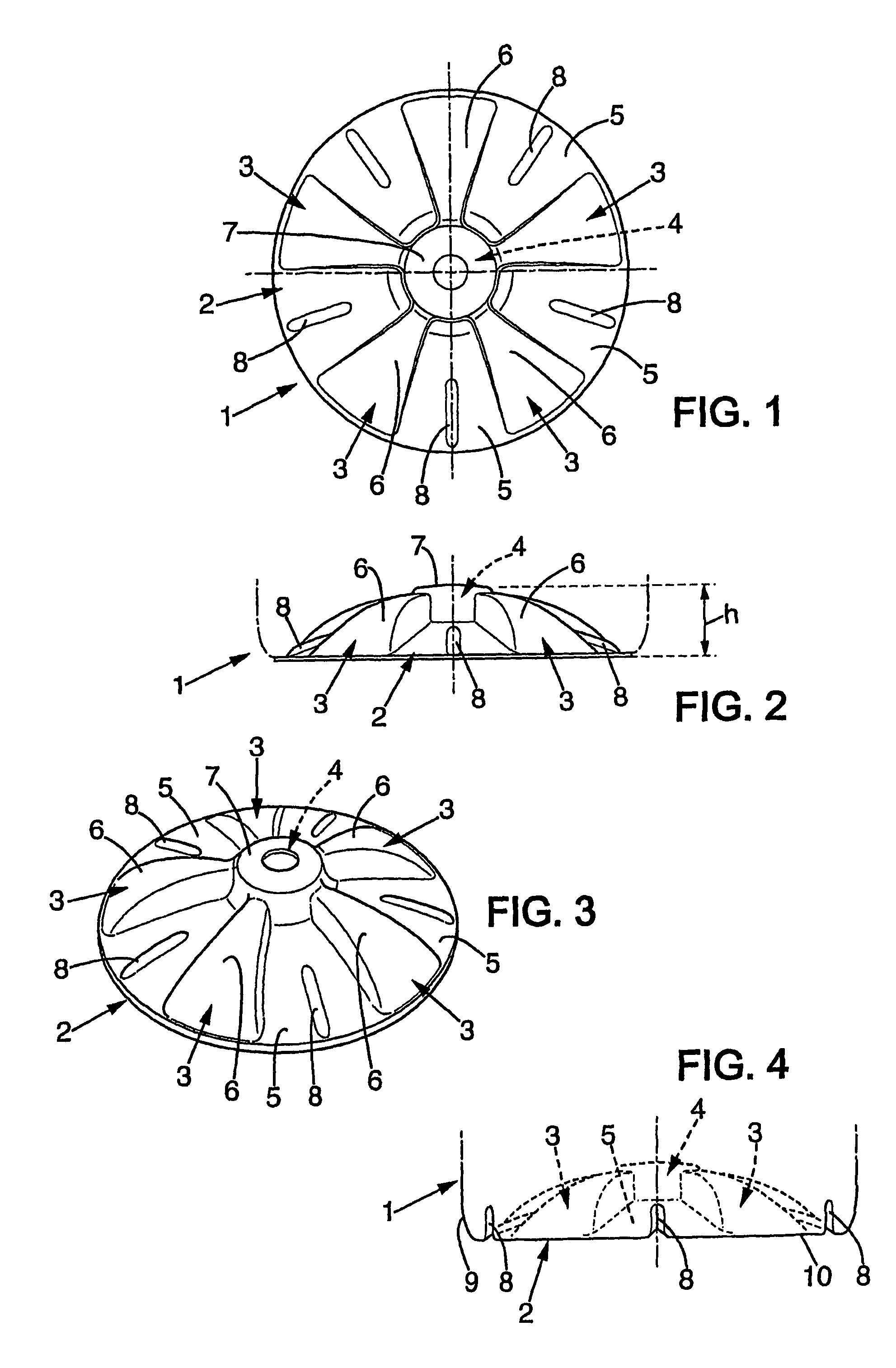

一种通过吹塑或拉伸吹塑加热的预成型件制成的热塑性容器,特别是瓶子,包括一个钟形凸底,其凹面朝外,并设有向内突出并围绕中心凹部辐射的加强压痕,该压痕具有梯形形状,其较小尺寸朝向底部中心;该压痕包括相应的拱形,形成凸形梯形段,凹面朝内,并从座部延伸到中心凹部,紧邻中心凹部的上端与其连接。
Original abstractA thermoplastic container, in particular a bottle, made by blow-molding or stretch blow-molding of a heated preform and including a bell-shaped convex base with its concavity facing outward and provided with reinforcing impressions projecting inward and radiating around a central recess, the impressions having a trapezoid shape with its smaller dimension located toward the center of the base; the impressions include respective arches which form convex trapezoid segments with concavity facing inward and extending from the seat to the central recess by being connected thereto immediately proximate the upper end of the central recess.
专利附图(4)
