带旋转勺的一次性杯子
Disposable cup with a rotating spoon
US-8092072-B2一种带旋转勺的一次性杯子,用于饮用外卖热饮。
专利摘要

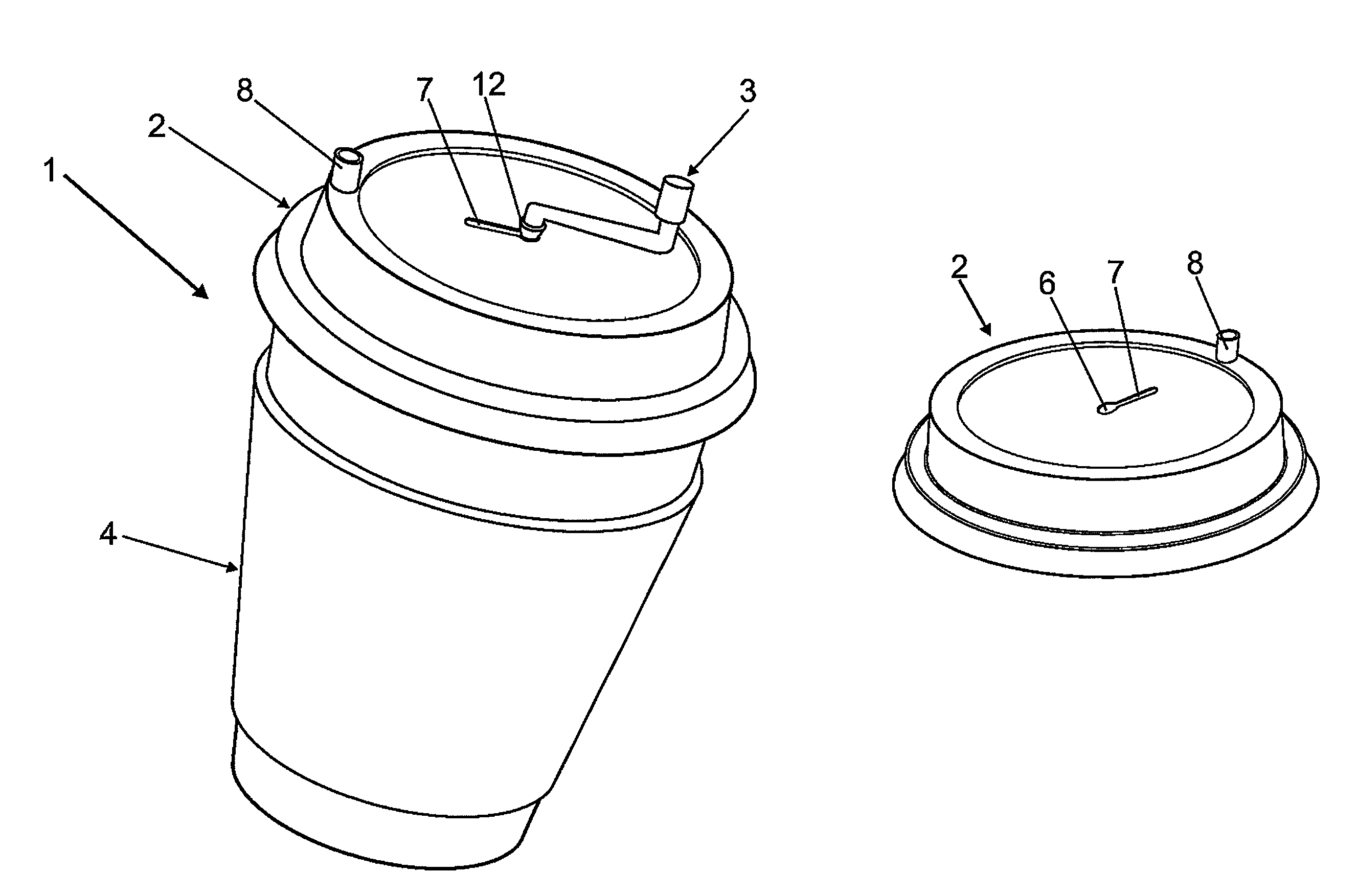

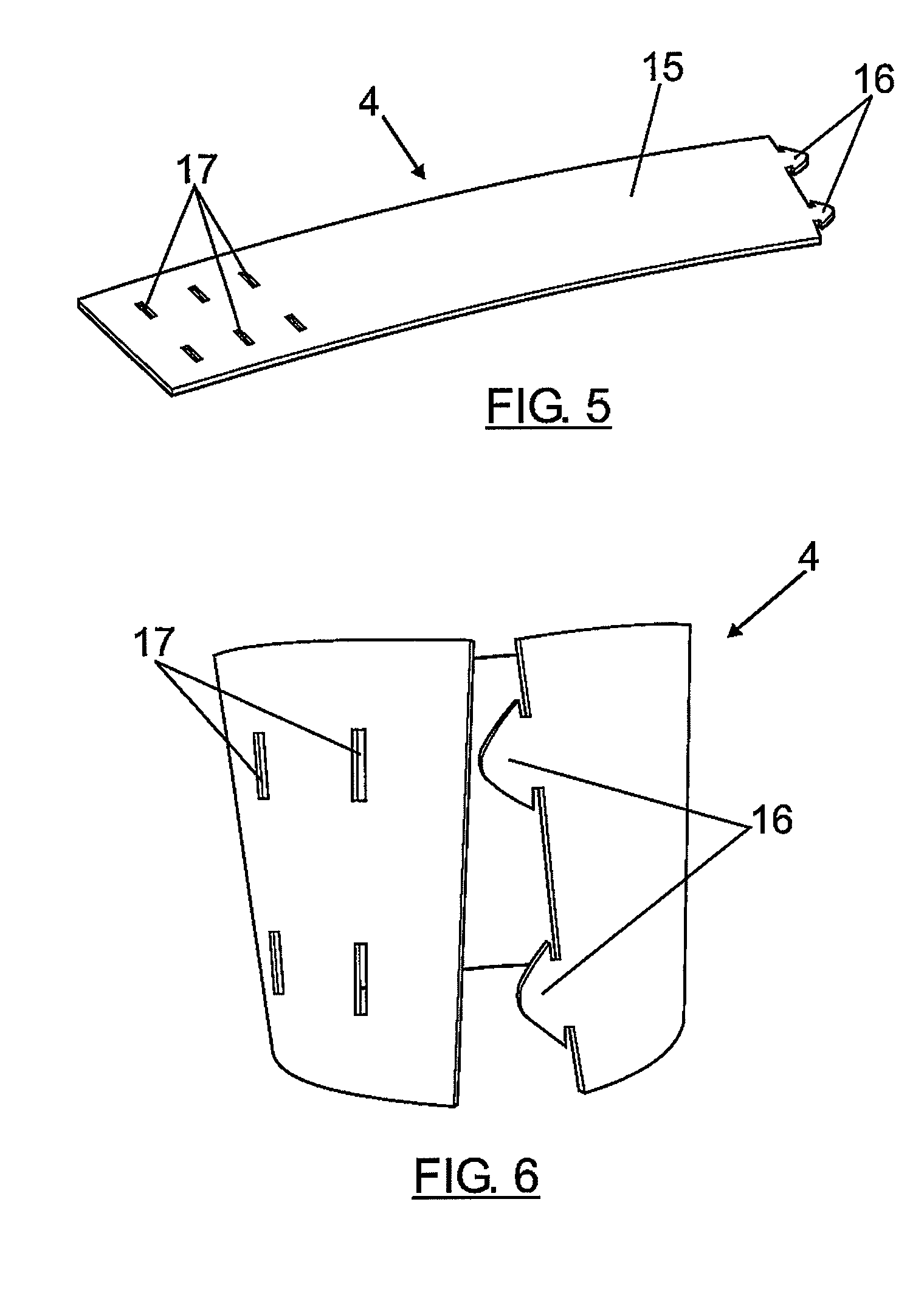

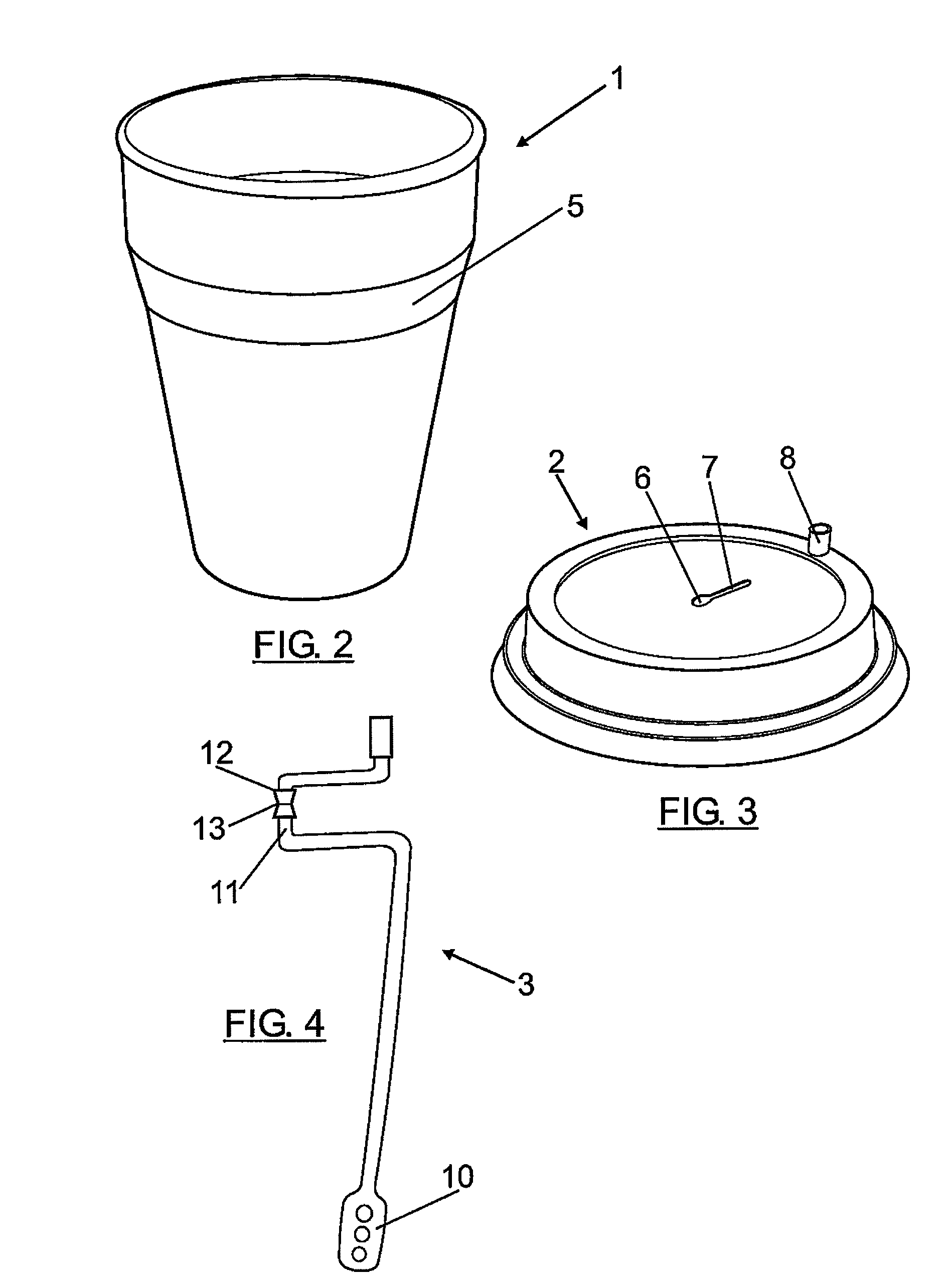

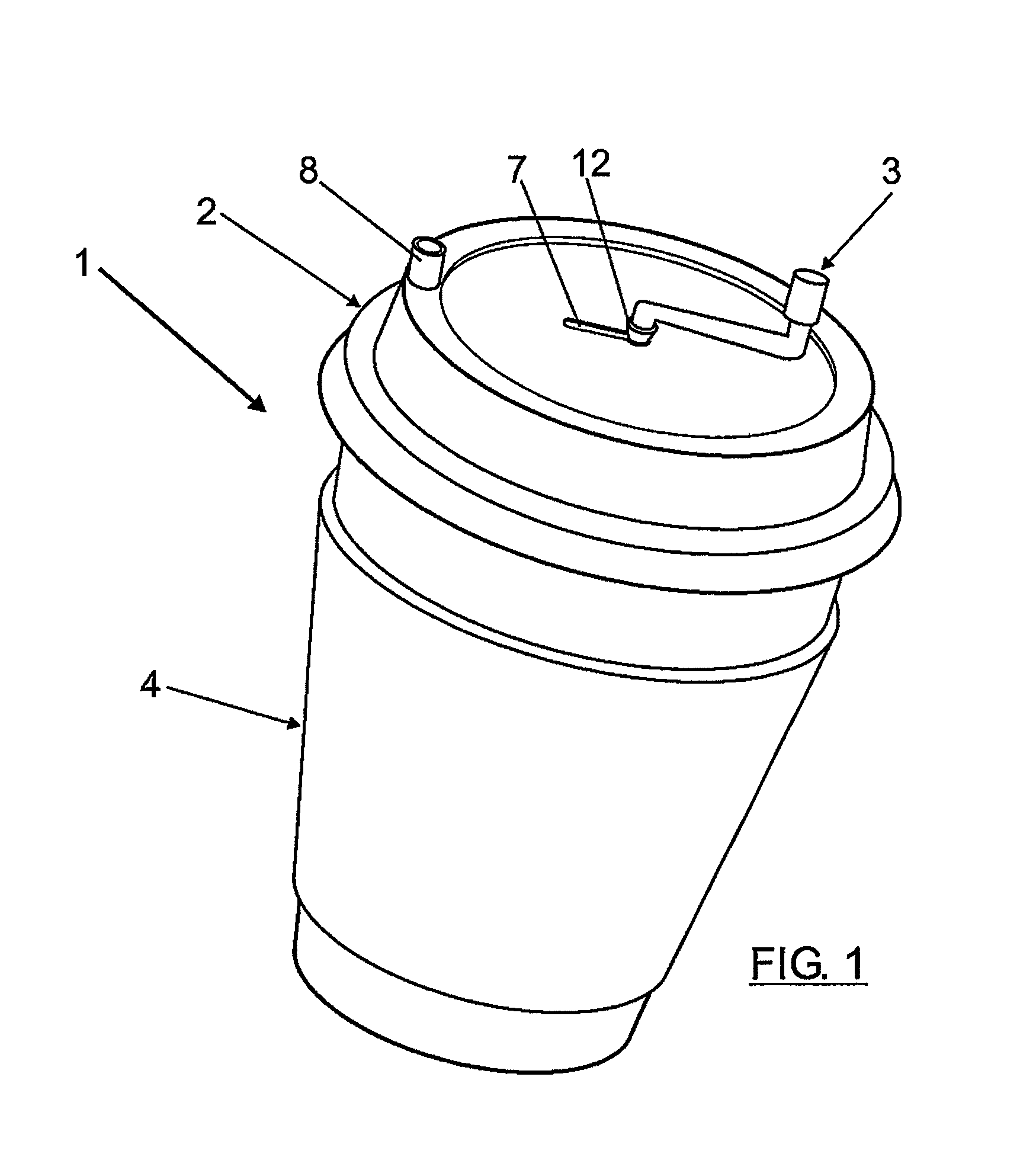

本发明涉及一种带旋转勺的一次性杯子,包括容器(1)、勺子(3)、带有用于勺子通过的孔的盖子(2)以及可彼此联接的套筒(4)。勺子(3)由杆组成,杆的一端具有桨状扩口,另一端附近具有一系列弯曲,限定C形布局,其中间分支具有带中间凹槽的肋(12)并穿过盖子(2)的孔,端部突出并具有曲柄功能。从盖子的孔开始,具有长度和宽度等于或大于桨状扩口截面的径向狭缝(7)。盖子在其周边附近还具有口件或饮用区域(8)。本发明适用于咖啡馆、酒店和餐厅场所饮用外卖热饮,如咖啡。
Original abstractThe invention relates to a disposable cup with a rotating spoon comprising a container ( 1 ), a spoon ( 3 ), a lid ( 2 ) with a hole for the passage of the spoon and a sleeving ( 4 ) which can be coupled to one another. The spoon ( 3 ) consists of a rod having a paddle-shaped flare at one end and a series of bends near the other end which define a C-shaped layout, the central branch of which has a rib ( 12 ) with an intermediate groove and passes through the hole of the lid ( 2 ), the end part projecting with crank functions. A radial slit ( 7 ) with a length and width equal to or greater than the section of the paddle starts from the hole of the lid. The lid further has a mouth piece or drinking area ( 8 ) next to its periphery. The invention is applicable in café, hotel and restaurant establishments for drinking take-away hot beverages, such as coffee.
专利附图(8)
