用于包装，防止儿童打开，确保安全。
专利摘要
一种儿童安全包装，包括一个矩形托盘，其具有一对侧壁、从侧壁延伸的一对横向相对的弹簧臂、每个弹簧臂上的一个指片以及每个指片附近的一个锁定凸耳。一个矩形外壳具有一个敞开的前端、一对侧壁、沿每个侧壁纵向延伸并在外壳敞开前端之前终止的狭槽，以及从每个狭槽在距外壳敞开末端一定距离的位置延伸的锁定凹穴。托盘可滑动地容纳在外壳中，弹簧臂位于外壳侧壁内侧附近，指片可滑动地容纳在狭槽中。在托盘处于外壳内的关闭位置时，指片上的锁定凸耳可弹性地容纳在外壳侧壁上的锁定凹穴中。指片可克服弹簧臂的弹性彼此相向推动，以将锁定凸耳从锁定凹穴中释放，然后沿狭槽向前滑动，直到指片接合狭槽靠近外壳敞开端的端部，以将托盘保持在从外壳敞开末端延伸的打开位置。托盘优选地包括一个一体铰接的盖子，当托盘设置在外壳内时盖子关闭。
Original abstractA child-resistant package includes a rectangular tray having a pair of sidewalls, a pair of laterally opposed spring arms extending from the sidewalls, a finger tab on each spring arm and a locking lug adjacent to each finger tab. A rectangular shell has an open front end, a pair of sidewalls, a slot extending longitudinally along each of the sidewalls and terminating short of the open front end of the shell, and a locking pocket extending from each slot at a position spaced from the open end of the shell. The tray is slidably received in the shell with the spring arms interiorly adjacent to the shell sidewalls and the finger tabs slidably received in the slots. The locking lugs on the finger tabs are resiliently receivable in the locking pockets on the shell sidewalls in the closed position of the tray within the shell. The finger tabs may be pushed toward each other against resiliency of the spring arms to release the locking lugs from the locking pockets, and then slid forwardly along the slots until the finger tabs engage the ends of the slots adjacent to the open end of the shell to retain the tray within the shell in an open position of the tray extending from the open end of the shell. The tray preferably includes an integrally hinged lid that is closed when the tray is disposed within the shell.

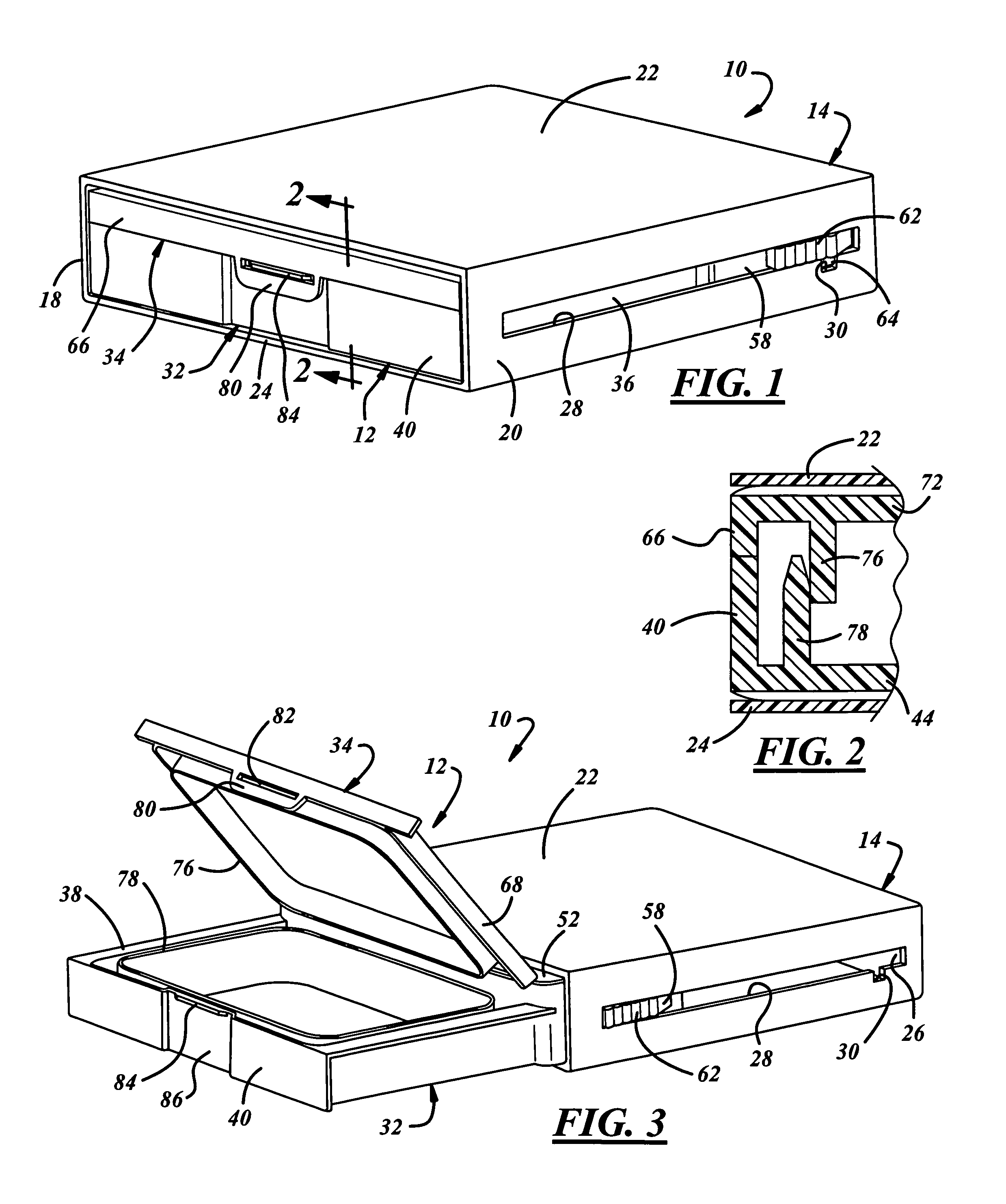

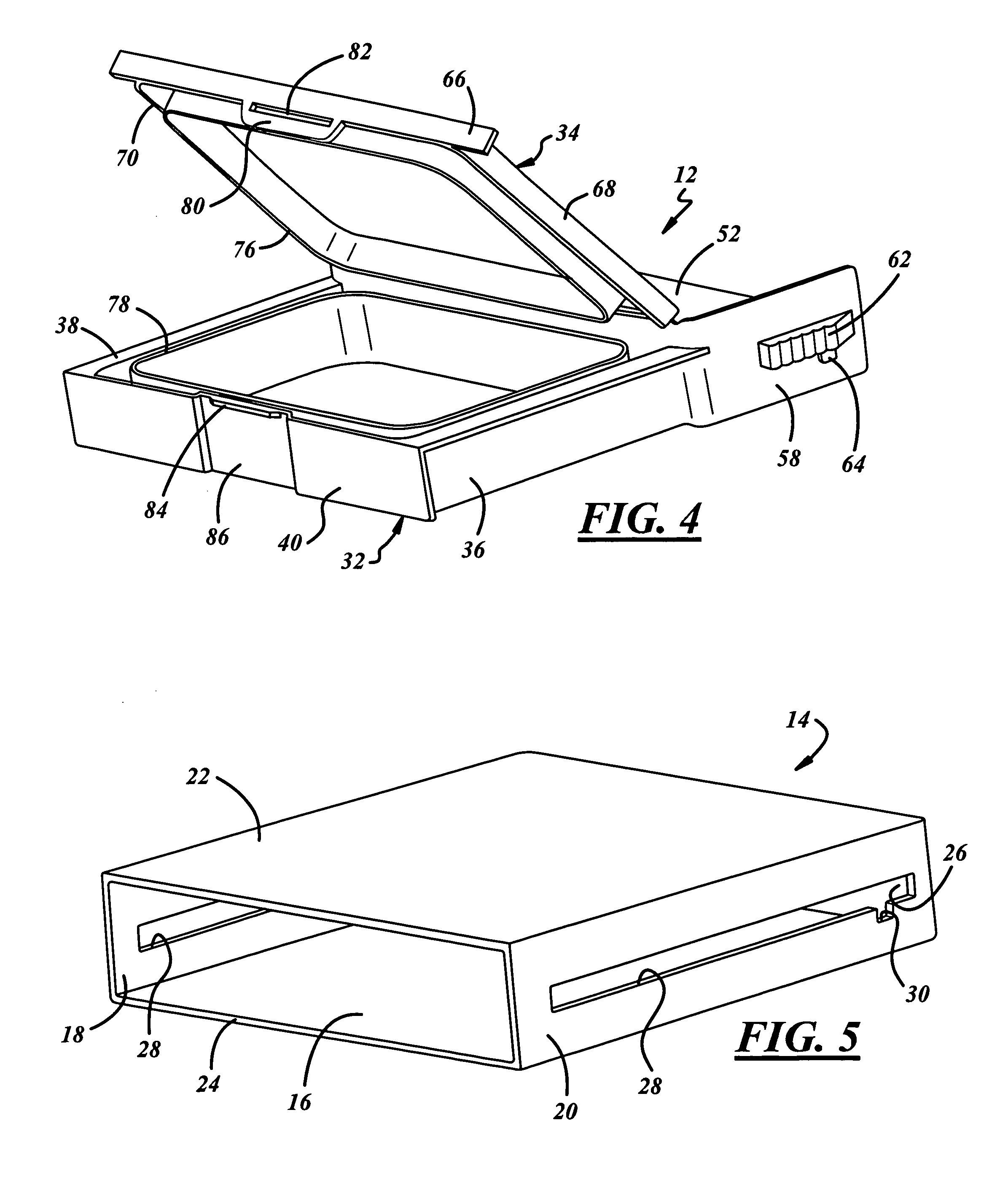

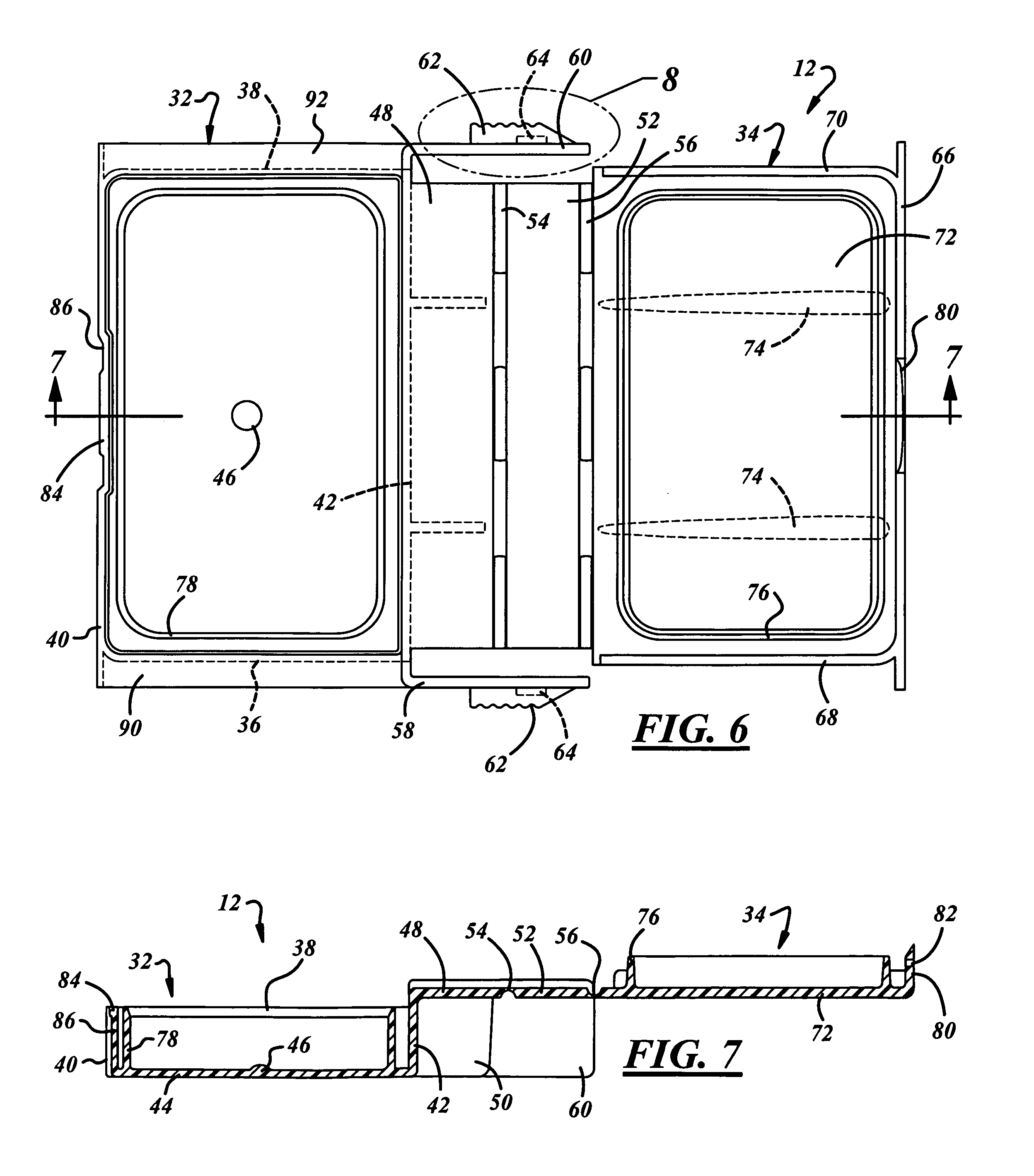

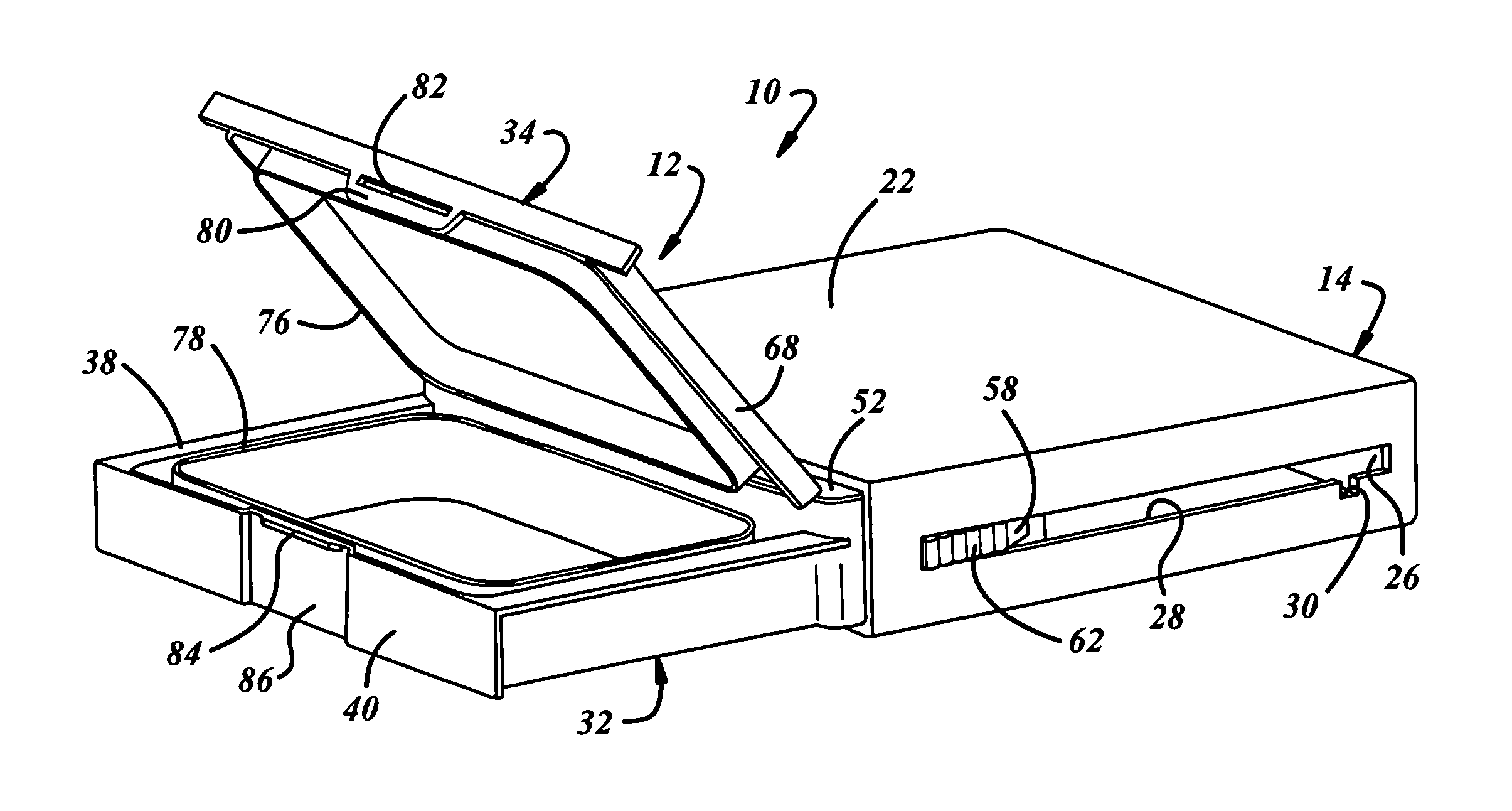

专利附图（8）
