用于自动溶解固体洗涤剂并分配洗涤液。
专利摘要

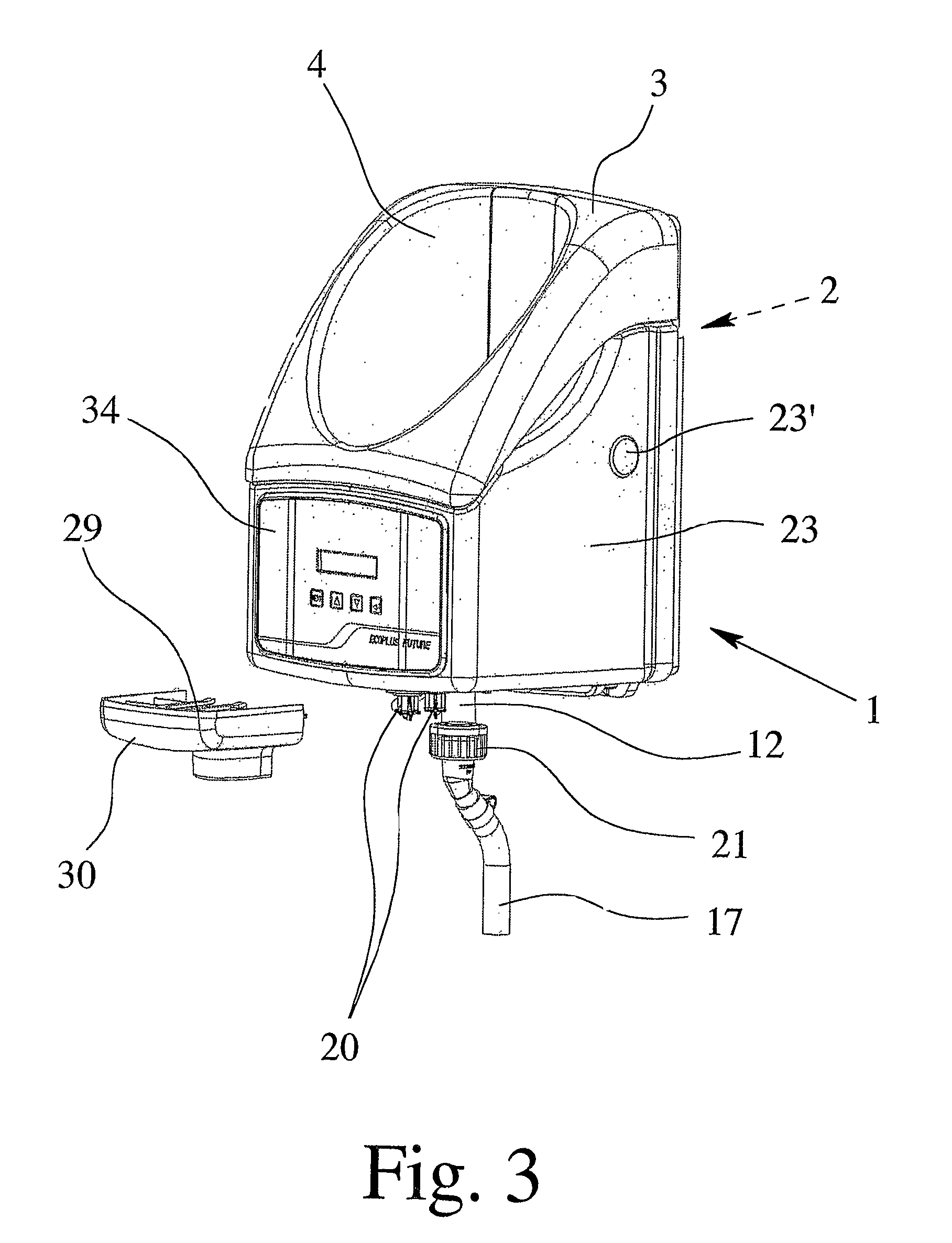

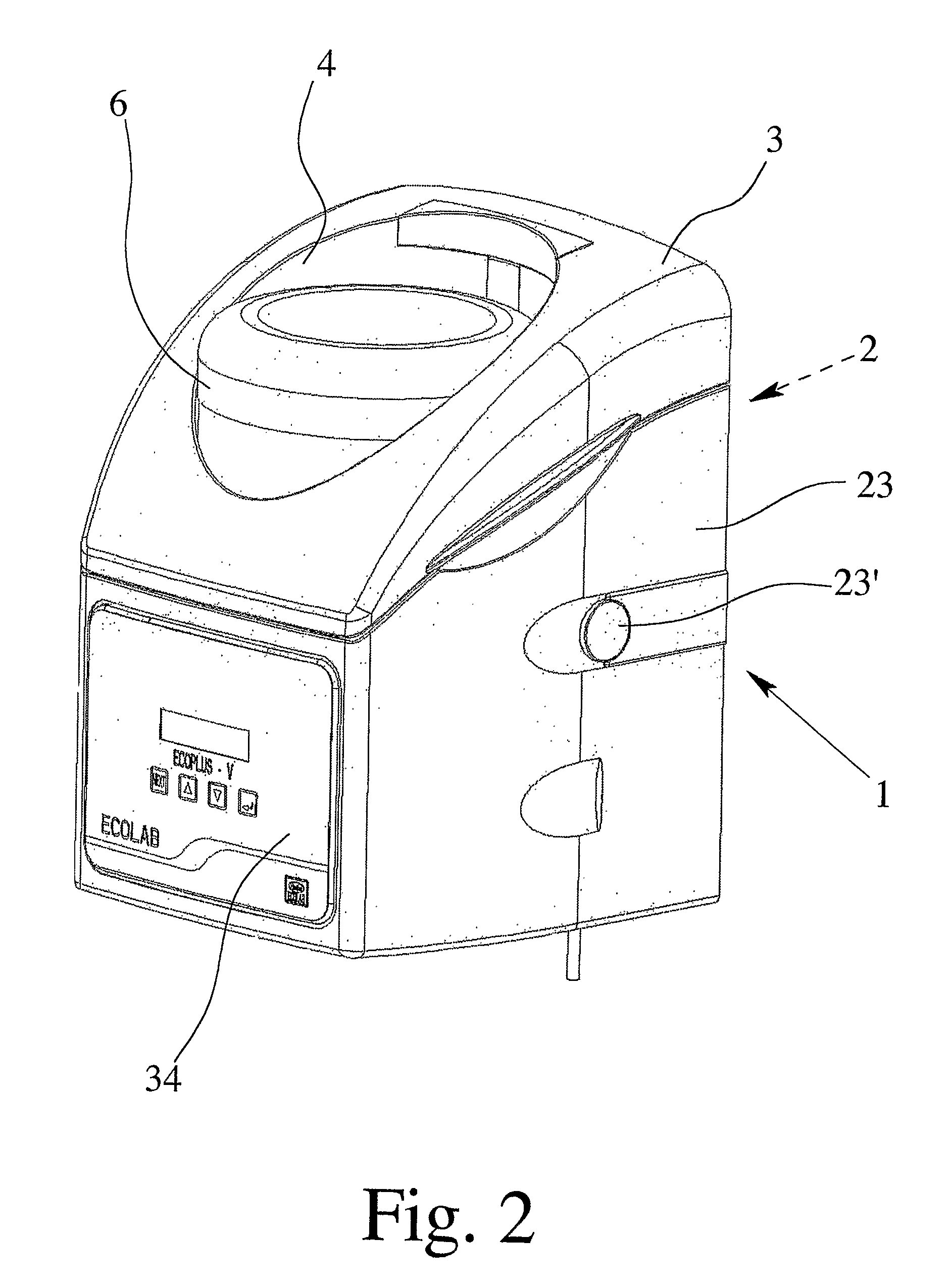

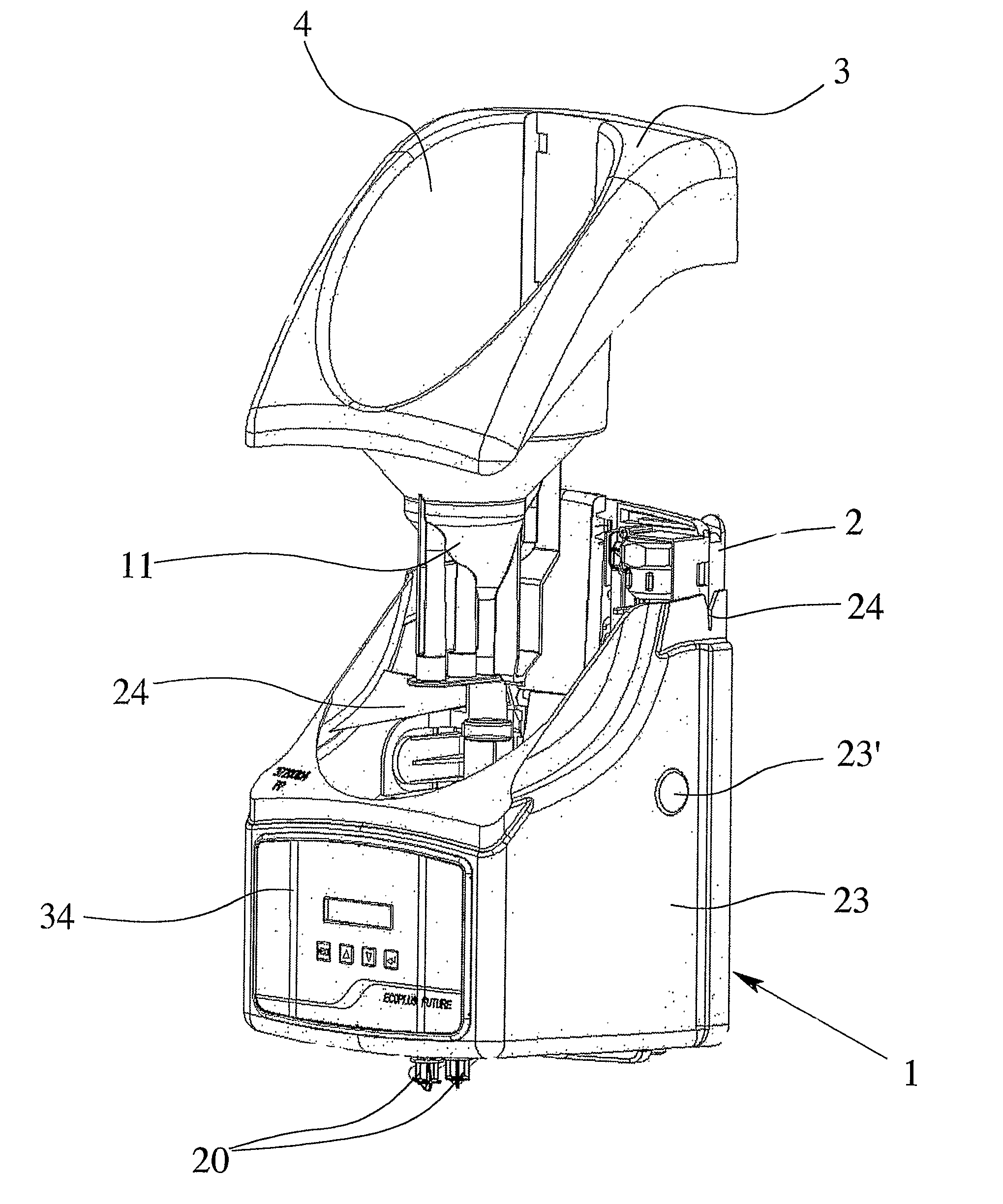

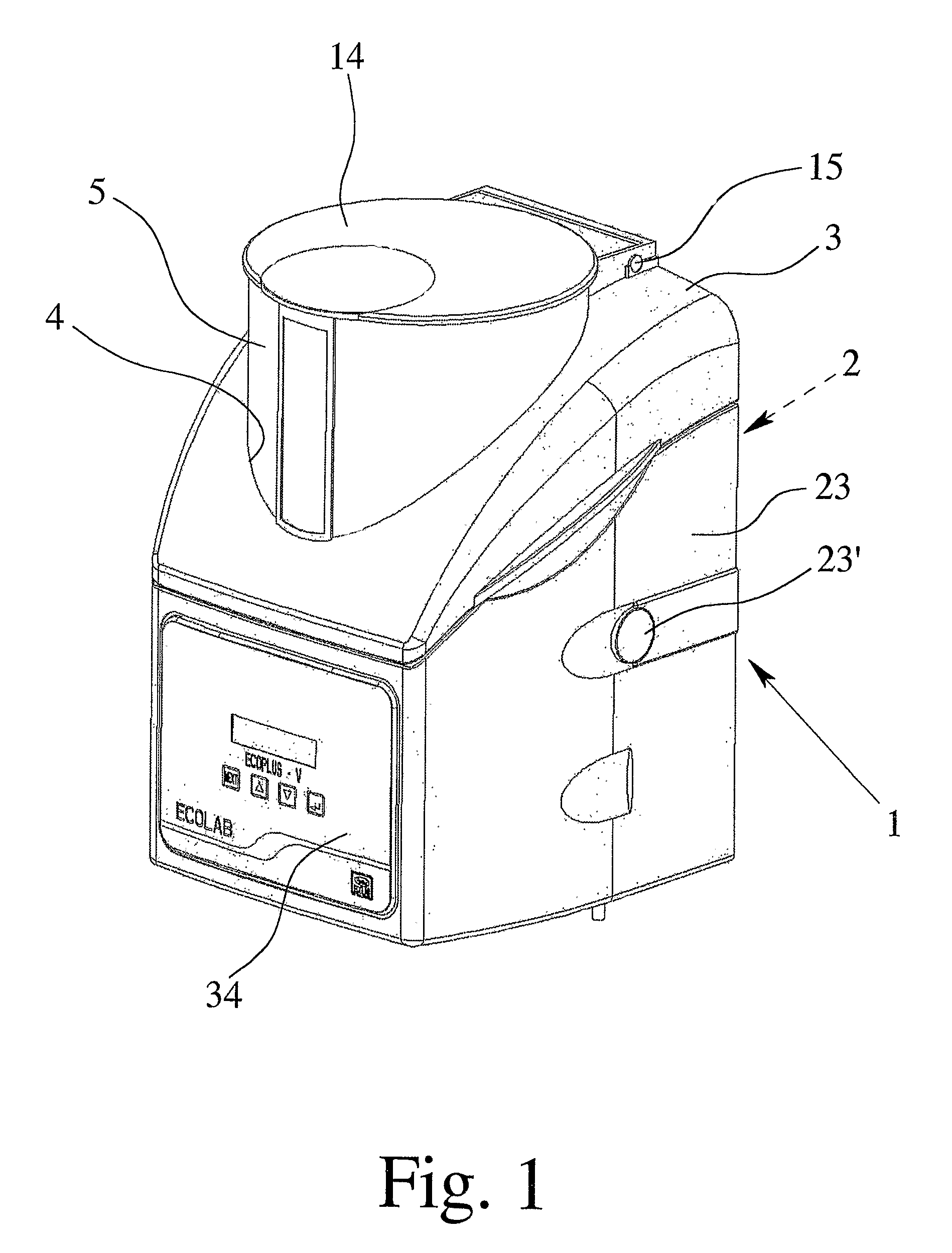

本发明涉及一种洗涤剂分配器，用于通过将部分固体洗涤剂溶解在液体溶剂（特别是水）中形成洗涤剂溶液，并将洗涤剂溶液输送到洗涤剂出口，从而计量一定量的固体洗涤剂。该分配器包括壳体（1），壳体具有用于壁挂等的底盘（2）和固体洗涤剂储存器（3）。固体洗涤剂储存器（3）包括容纳固体洗涤剂的洗涤剂隔室（4）、溶剂施加隔室（7）、液体溶剂分配装置（9）、通向溶剂分配装置（9）的溶剂供应管道（10）、洗涤剂溶液收集装置（11），以及连接到洗涤剂溶液收集装置（11）以将洗涤剂溶液带走至洗涤剂出口的溶液管道（12）。本发明特别方便，因为固体洗涤剂储存器（3）被构造为易于与壳体（1）分离的模块化单元。如果提供用于不同类型固体洗涤剂的不同固体洗涤剂储存器，则即使它们在洗涤剂隔室（4）和/或溶剂施加隔室（7）和/或液体溶剂分配装置（9）方面不同，在形式和附接点方面也与壳体（1）完全兼容。
Original abstractThe invention relates to a detergent dispenser for dosing a quantity of solid detergent by dissolving some of the solid detergent in a liquid solvent, in particular in water, to form a detergent solution, and feeding the detergent solution to a detergent outlet. The dispenser comprises a housing ( 1 ) with a chassis ( 2 ) for wallmounting or the like and a solid detergent reservoir ( 3 ). The solid detergent reservoir ( 3 ) comprises a detergent compartment ( 4 ) holding the solid detergent, a solvent application compartment ( 7 ), a liquid solvent dispensing means ( 9 ), a solvent supply conduit ( 10 ) leading to the solvent dispensing means ( 9 ), a detergent solution collector means ( 11 ), and a solution conduit ( 12 ) connected to the detergent solution collector means ( 11 ) to carry away the detergent solution towards a detergent outlet. The invention is particularly convenient, because the solid detergent reservoir ( 3 ) is constructed as a modular unit easily separable from the housing ( 1 ). If different solid detergent reservoirs ( 3 ) for different types of solid detergent are provided, those are, even if they are different in the detergent compartment ( 4 ) and/or the solvent application compartment ( 7 ) and/or the liquid solvent dispensing means ( 9 ), fully compatible with the housing ( 1 ) as far as form and attachment points are concerned.
专利附图（8）
