来源记录显示 Expired
带有焊接金属引导线的清洗元件
Scrubbing element with welded wire leader
US-8065772-B2用于清洁手术器械内腔，通过引导线牵引刷子。
专利摘要
一种用于手术器械腔体的清洁元件，包括刷子和柔性金属引导线。刷子具有第一端、第二端和金属芯，金属芯限定延伸贯穿刷子的纵向轴线。柔性金属引导线具有第一端和第二端，柔性金属引导线的第二端焊接到刷子的金属芯的第一端。柔性金属引导线适于穿过手术器械的腔体，并通过其第一端拉动穿过腔体，刷子也由于其焊接到柔性金属引导线的第二端而适于被拉动穿过腔体。
Original abstractA cleaning element for lumen of surgical instruments includes a brush and a flexible metal leader. The brush has a first end, a second end, and a metal core, the metal core defining a longitudinal axis extending throughout the brush. The flexible metal leader has a first end and a second end, the second end of the flexible metal leader being welded to the first end of the metal core of the brush. The flexible metal leader is adapted to be fed through the lumen of the surgical instruments and pulled by the first end thereof through the lumen, with the brush also being adapted to be pulled through the lumen due to its being welded to the second end of the flexible metal leader.

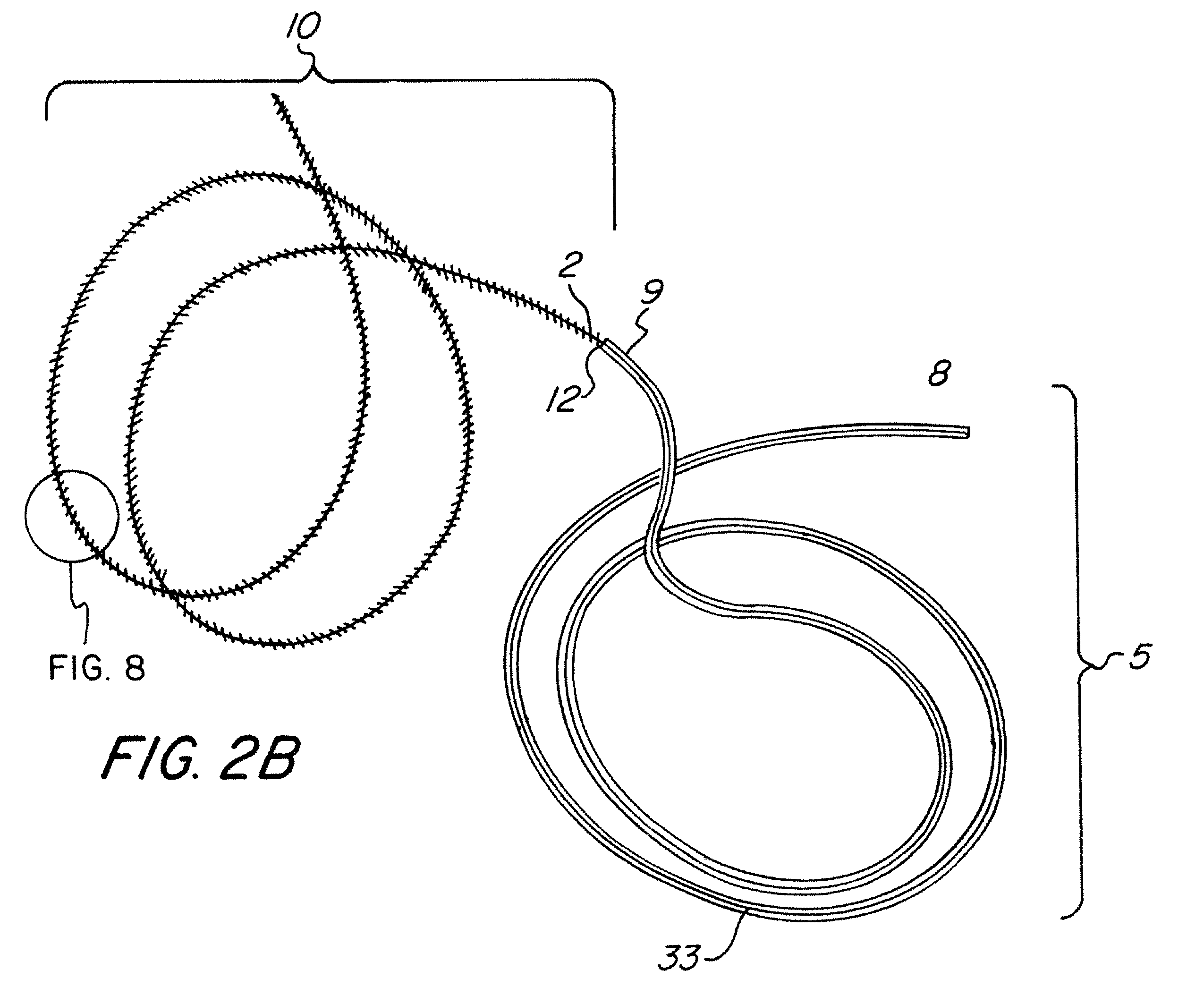

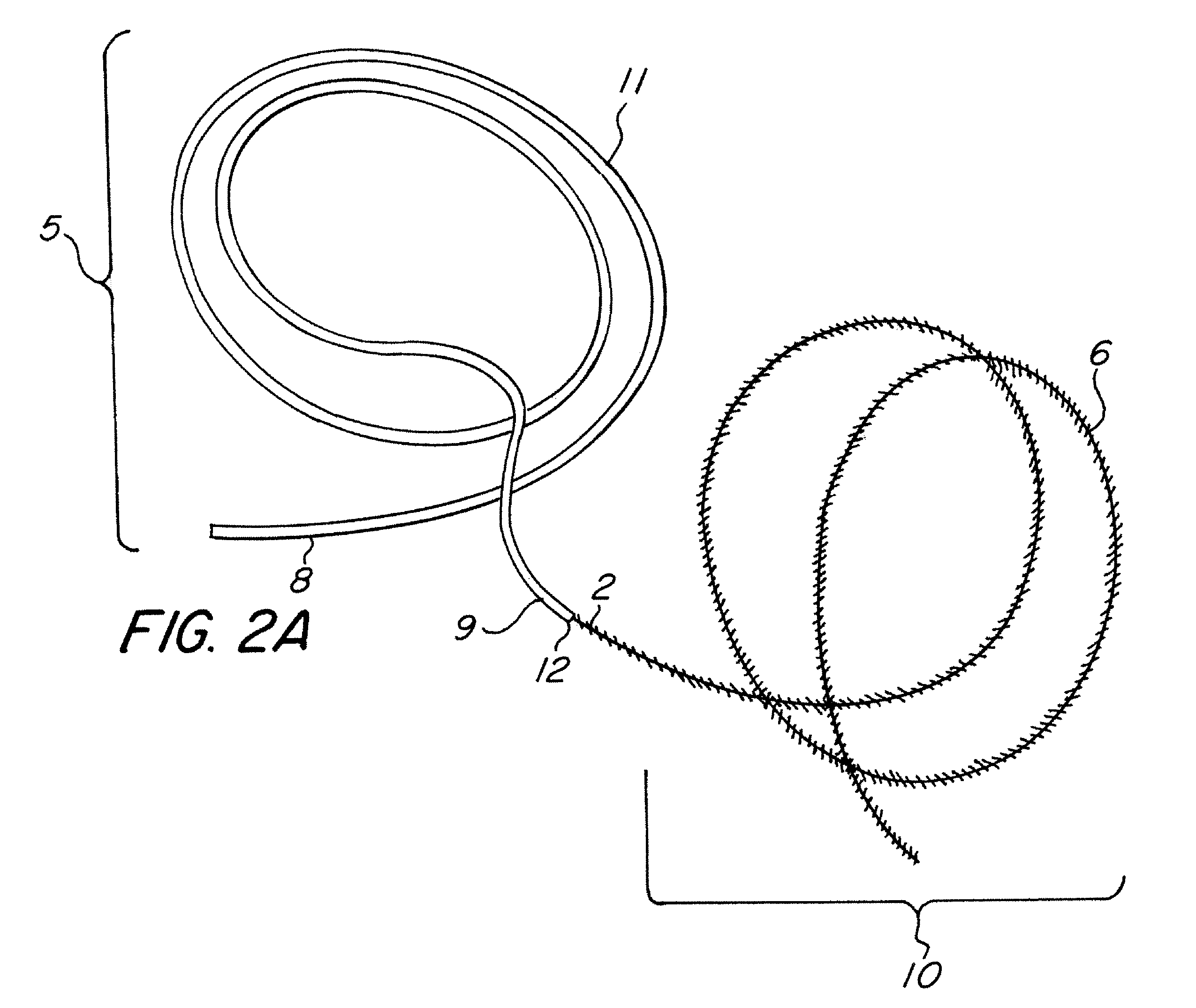

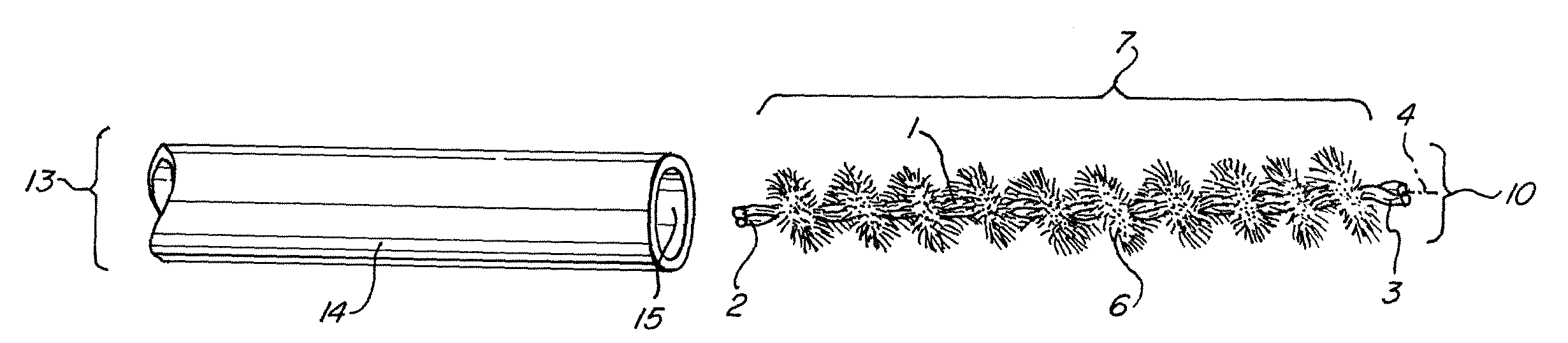

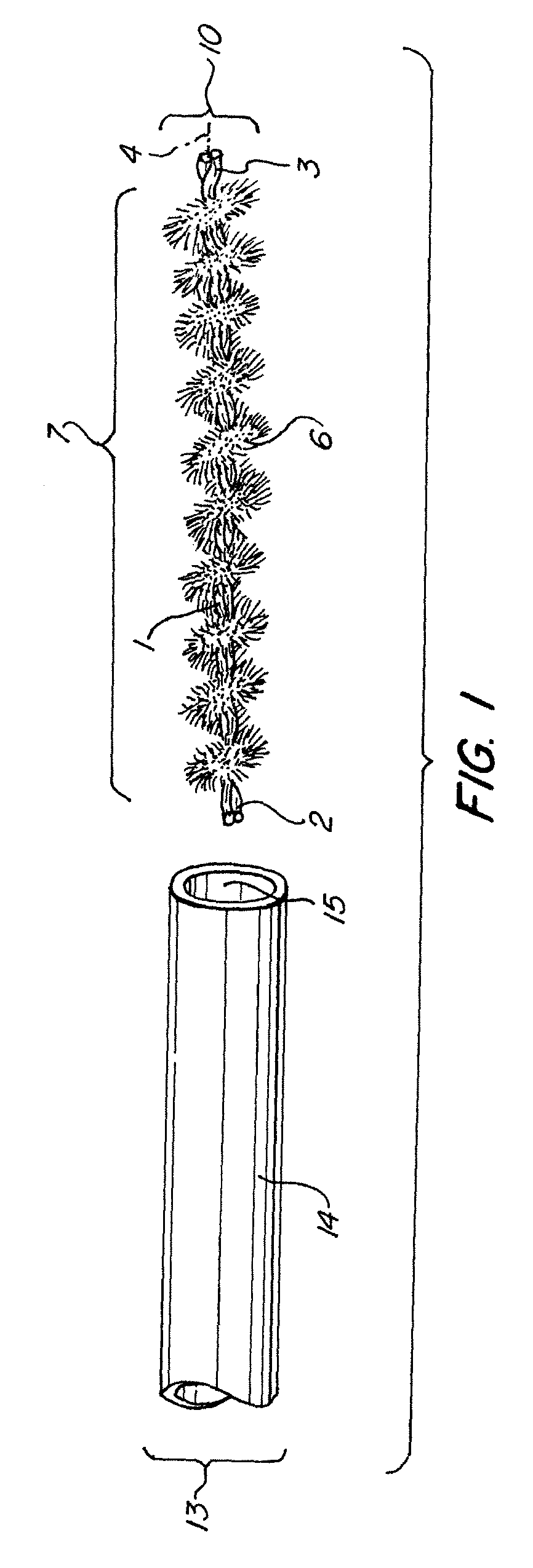

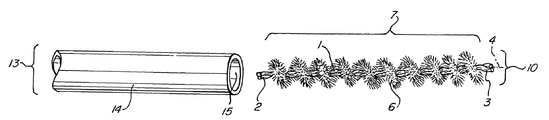

专利附图（8）
