具有标签标识的容器及其构造方法
Container having tab identifiers and method for constructing the same
US-8056799-B2用于包装产品并提供标签标识。
专利摘要
提供了一种用于包装产品的容器。该容器包括片材坯料，该坯料包括第一面板和限定在第一面板内并可相对于第一面板移动的至少一个标签标识。该至少一个标签标识被配置为与至少部分地限定在第一面板内的柔性构件组件配合。该坯料形成容器，该容器包括托盘部分和沿折叠线联接到托盘部分的盖部分。盖部分可围绕折叠线相对于托盘部分在打开配置和关闭配置之间移动。在关闭配置中，托盘部分和盖部分限定用于存储产品的容积。
Original abstractA container for packaging a product is provided. The container includes a blank of sheet material including a first panel, and at least one tab identifier defined within the first panel and moveable with respect to the first panel. The at least one tab identifier is configured to cooperate with a flex member assembly defined at least partially within the first panel. The blank forms the container including a tray portion and a lid portion coupled along a fold line to the tray portion. The lid portion is moveable about the fold line with respect to the tray portion between an open configuration and a closed configuration. In the closed configuration, the tray portion and the lid portion define a volume for storing the product.

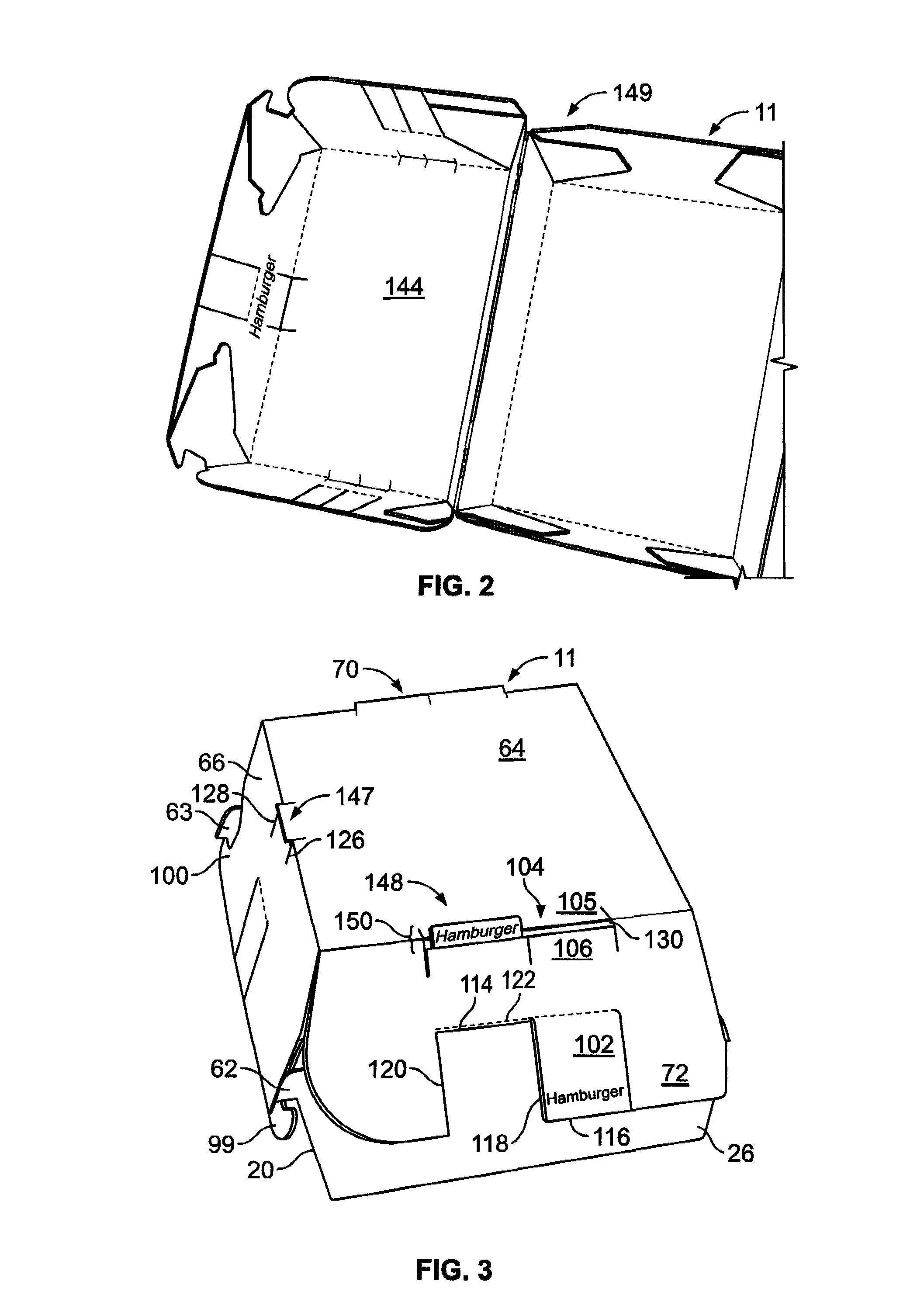

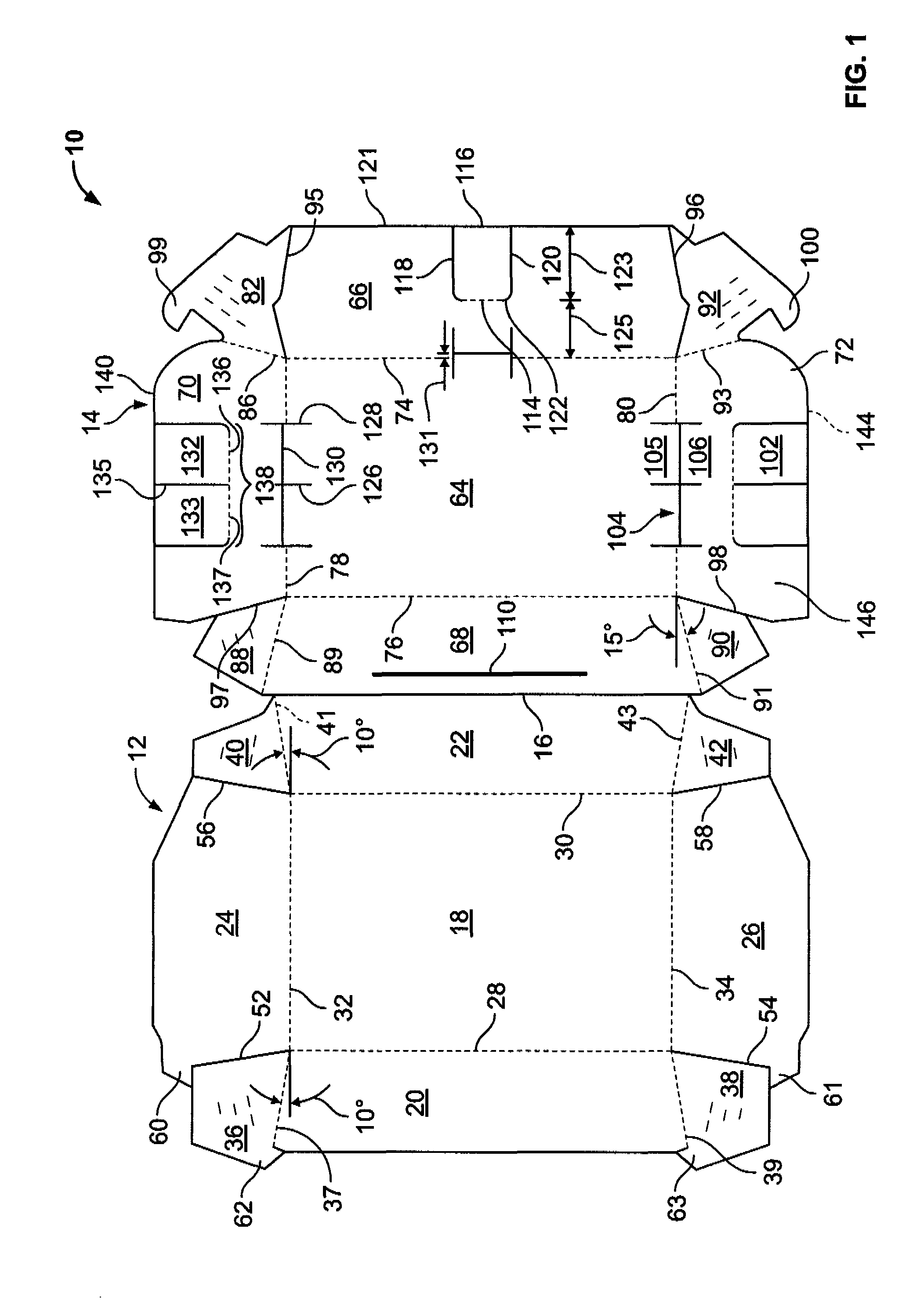

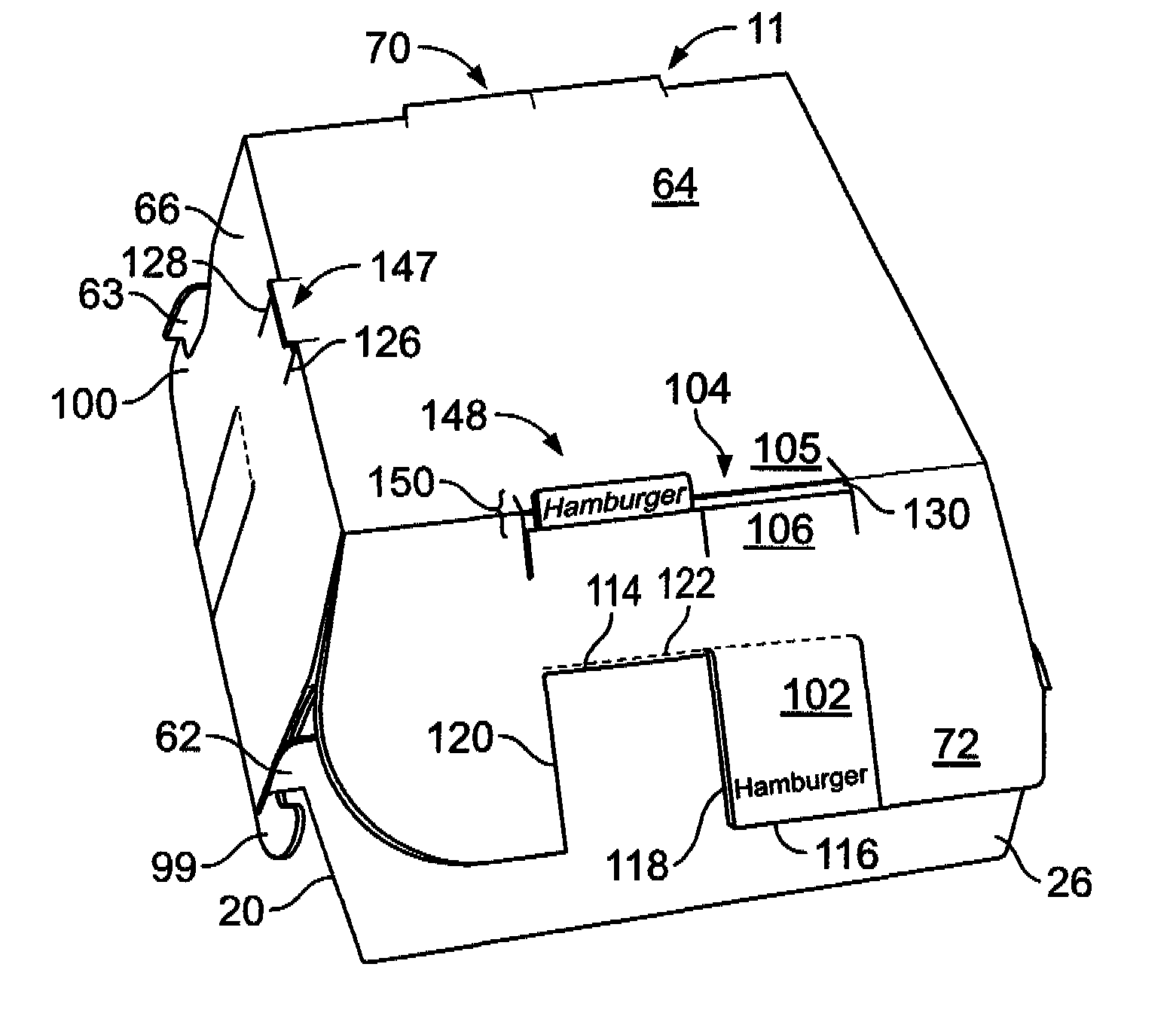

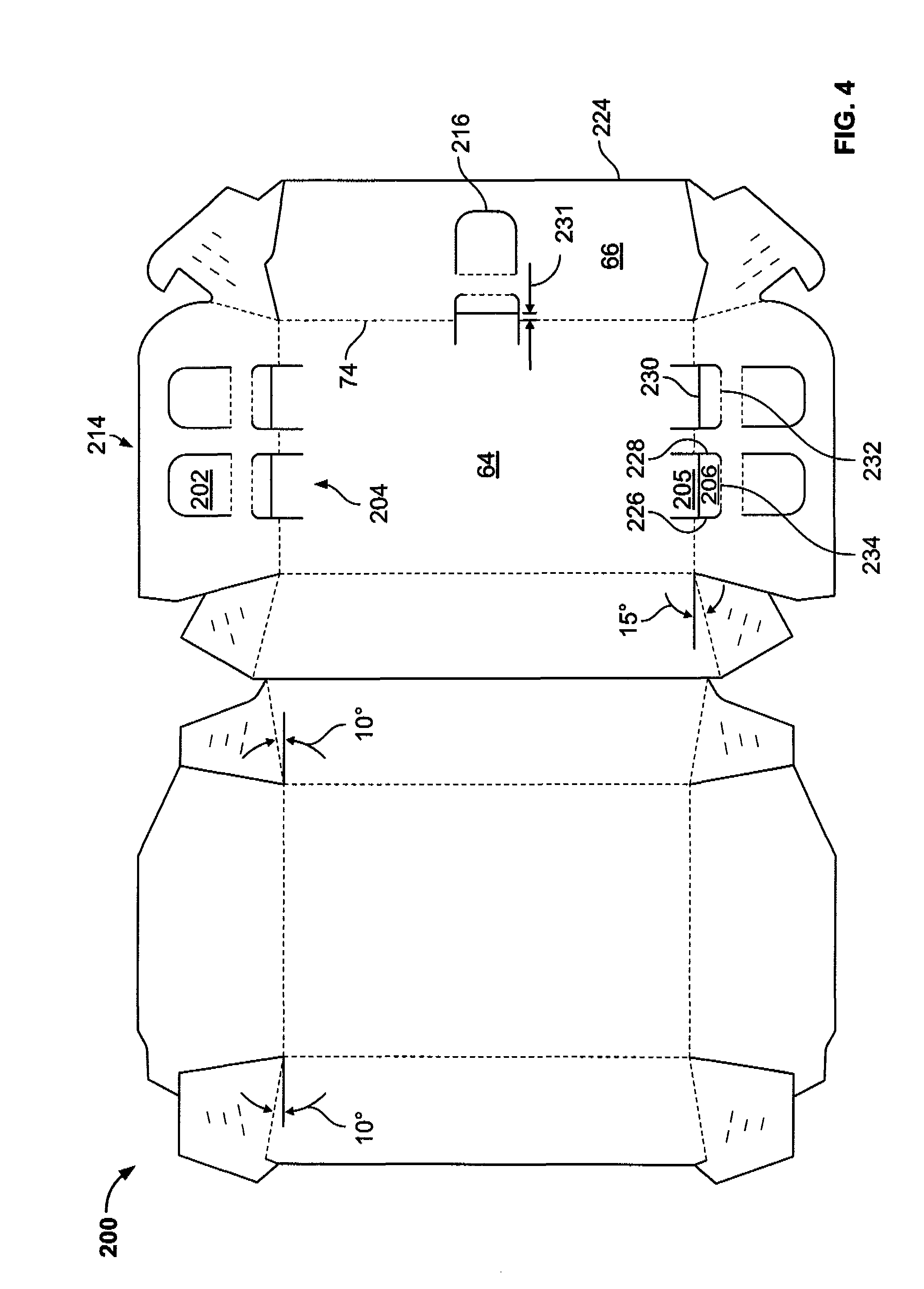

专利附图（8）
