拖把可收集较大碎屑，清洁更高效。
专利摘要
本发明的某些方面涉及一种拖把和/或拖把头，其允许较大的碎屑通过拖把头的至少一部分进入拖把头的收集器。在一些实施例中，拖把头与收集器一体形成。拖把具有连接到拖把头的碎屑收集材料，以在拖把在地板上移动时收集灰尘、污垢和其他相对较小的碎屑。在一个特定实施例中，碎屑收集材料是无纺材料。拖把的碎屑收集材料可以通过多种不同方式连接到拖把上。然而，在一些实施例中，材料通过从拖把头顶表面延伸的多个突起连接。突起穿过灰尘收集材料中的孔。
Original abstractSome aspects of the present invention are related to a mop and/or mop head that allows larger debris to pass over at least a portion of the mop head and into a receptacle of the mop head. In some embodiments, the mop head and the receptacle are integrally formed. The mop has debris collecting material coupled to the mop head to collect dust, dirt, and other relatively small debris as the mop moves over a floor. In one particular embodiment, the debris collecting material is a non-woven material. The debris collecting material of the mop can be connected to the mop many different ways. However, in some embodiments, the material is connected via several projections extending from a top surface of the mop head. The projections pass through apertures in the dust collecting material.

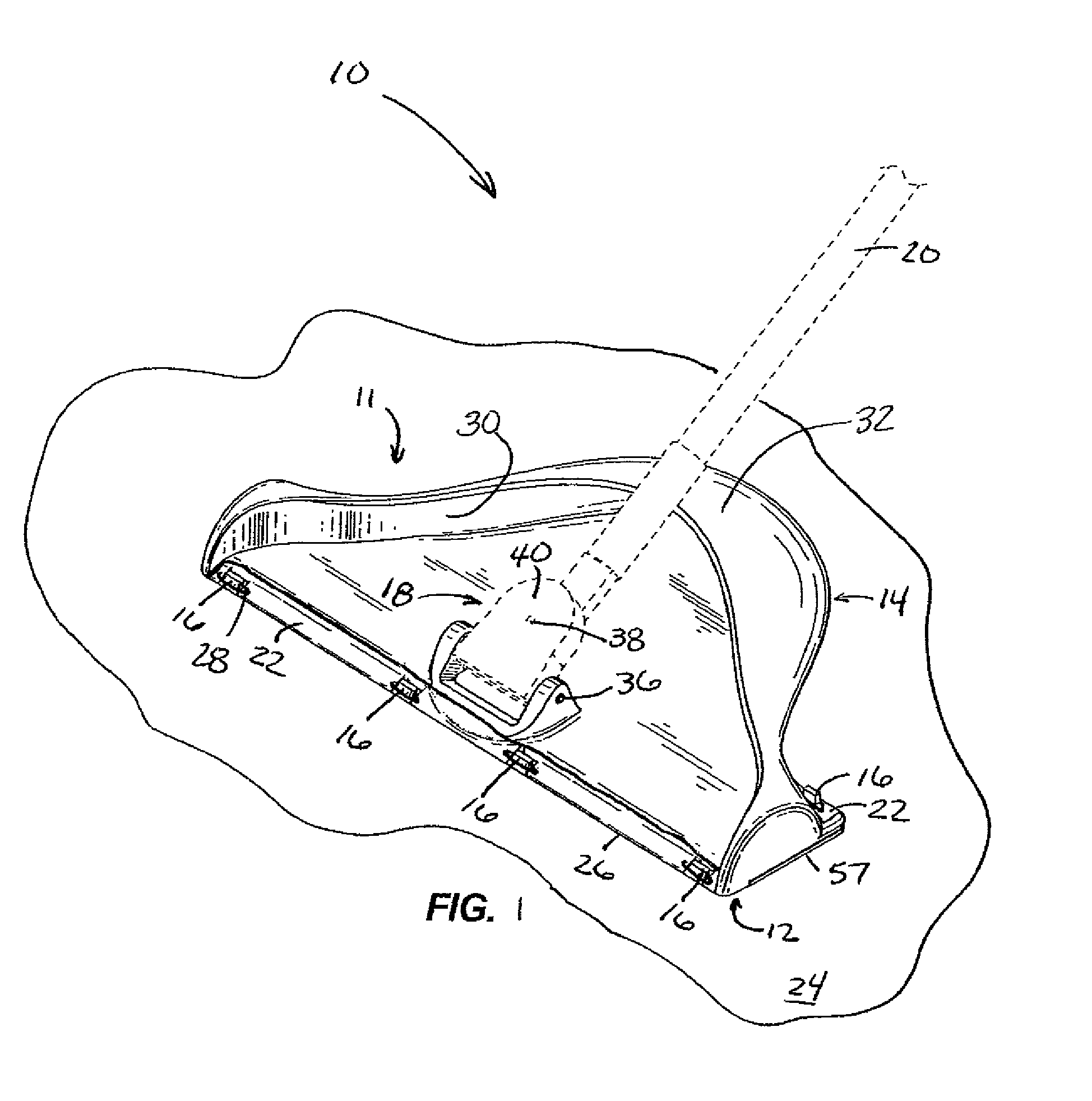

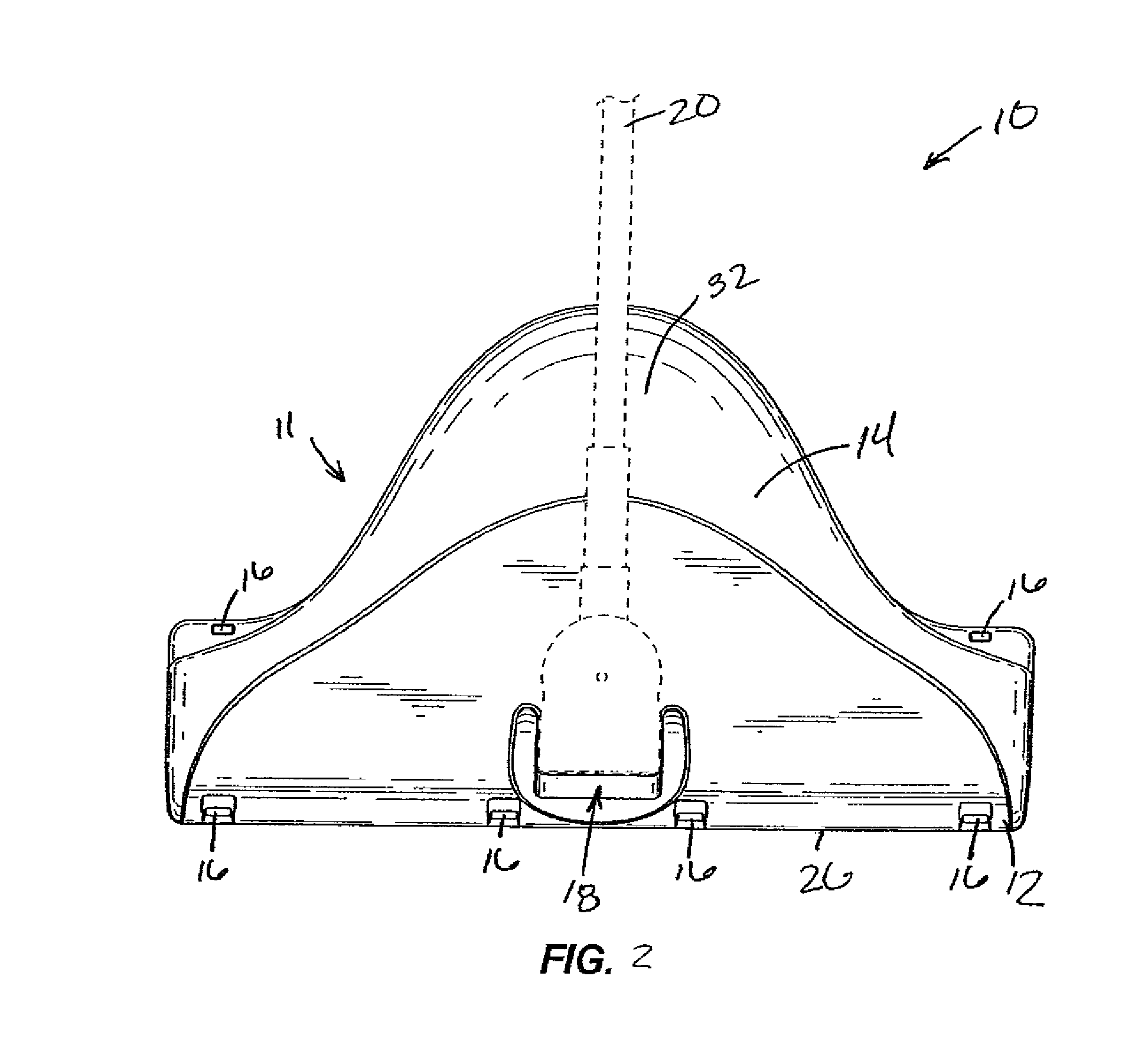

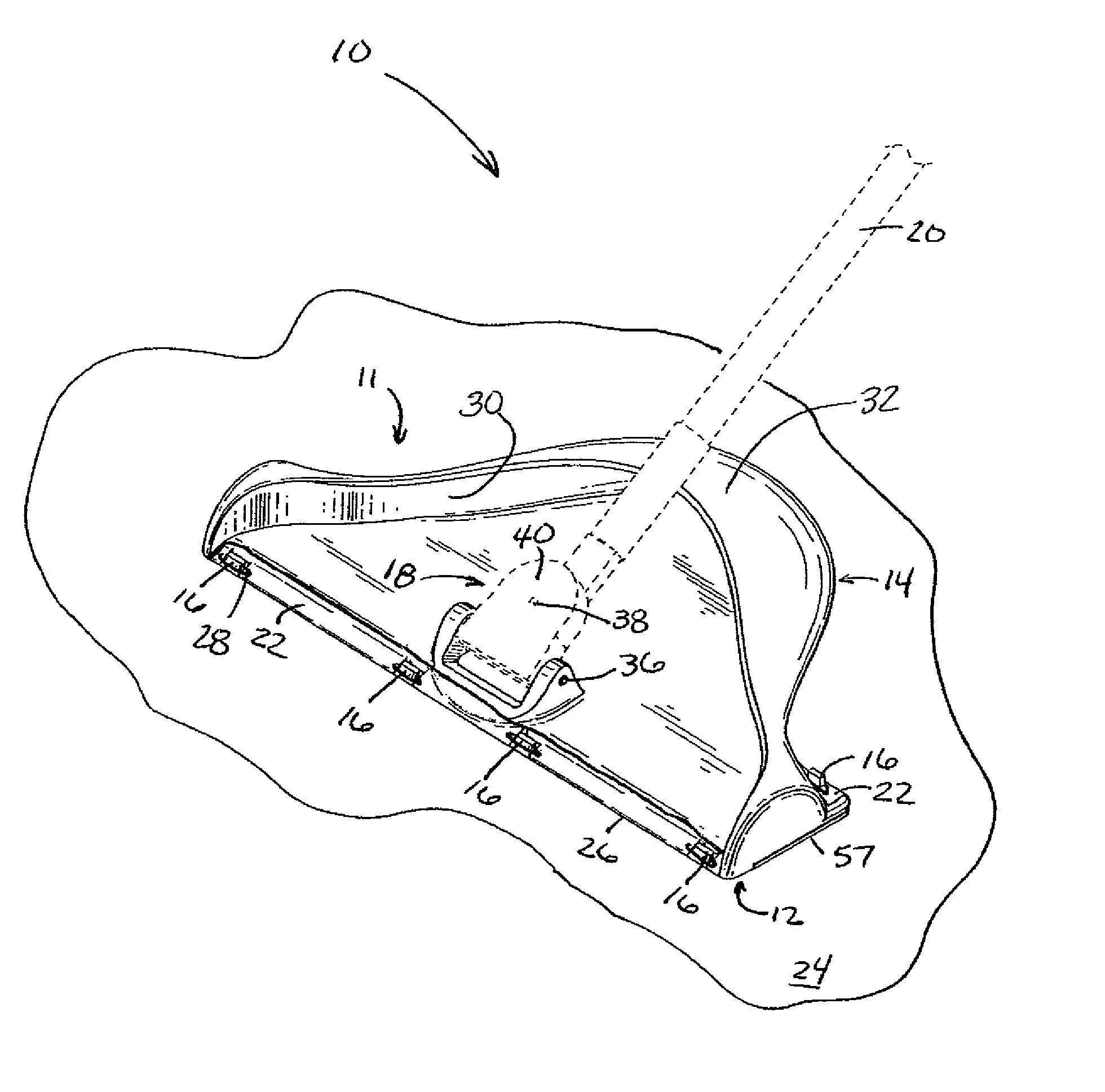

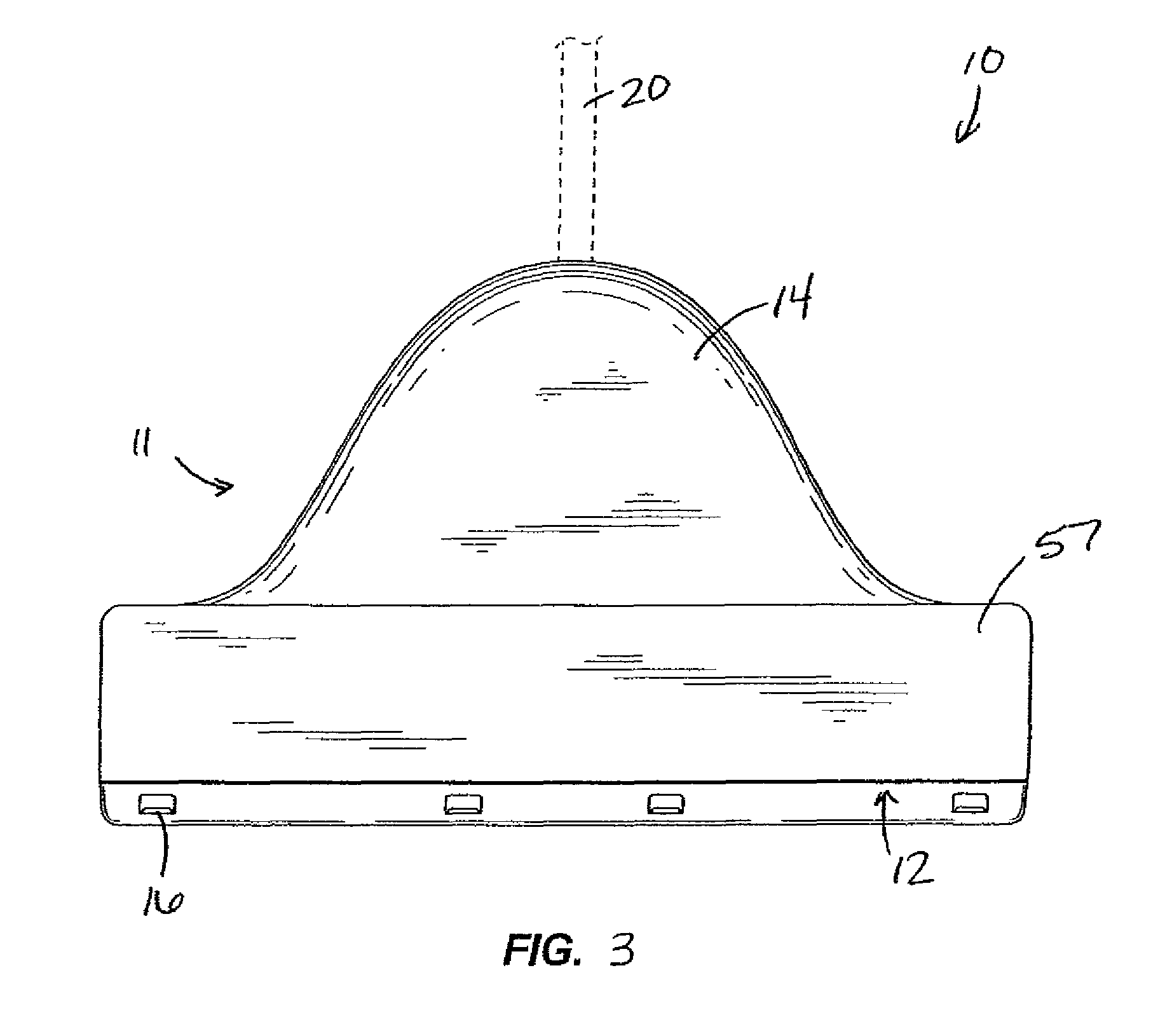

专利附图（8）
