多槽传送式洗碗机及其操作方法

Multitank conveyor-type dishwasher and an operating method for it

US-8042557-B2

用于多槽传送式洗碗机及其操作方法。

专利摘要

一种用于清洗待洗物品（10）的多槽传送式洗碗机（2），包括在传送方向（4）上依次布置的至少两个洗涤区（6，8）；在每两个连续的洗涤区（6，8）之间的液体正向流动装置（26），用于沿与传送方向（4）相反的正向流动方向（28）在这些洗涤区（6，8）之间转移液体；其特征在于，提供液体再循环装置（60），用于将前洗涤区（8）的喷淋液体沿传送方向（4）逆着正向流动方向（28）转移到布置在前洗涤区（8）下游的后洗涤区（6）。

Original abstractMultitank conveyor-type dishwasher ( 2 ) for washing items ( 10 ) to be washed, comprising at least two wash zones ( 6, 8 ) which are arranged in succession in the conveying direction ( 4 ); a liquid forward-flow apparatus ( 26 ) between in each case two successive wash zones ( 6, 8 ) for transferring liquid between these wash zones ( 6, 8 ) in a forward-flow direction ( 28 ) counter to the conveying direction ( 4 ); characterized in that a liquid recirculation apparatus ( 60 ) is provided for transferring sprayed liquid of a front wash zone ( 8 ), as seen in the conveying direction ( 4 ), into a rear wash zone ( 6 ) which is arranged downstream of the front wash zone ( 8 ), as seen in the conveying direction ( 4 ), counter to the forward-flow direction ( 28 ).

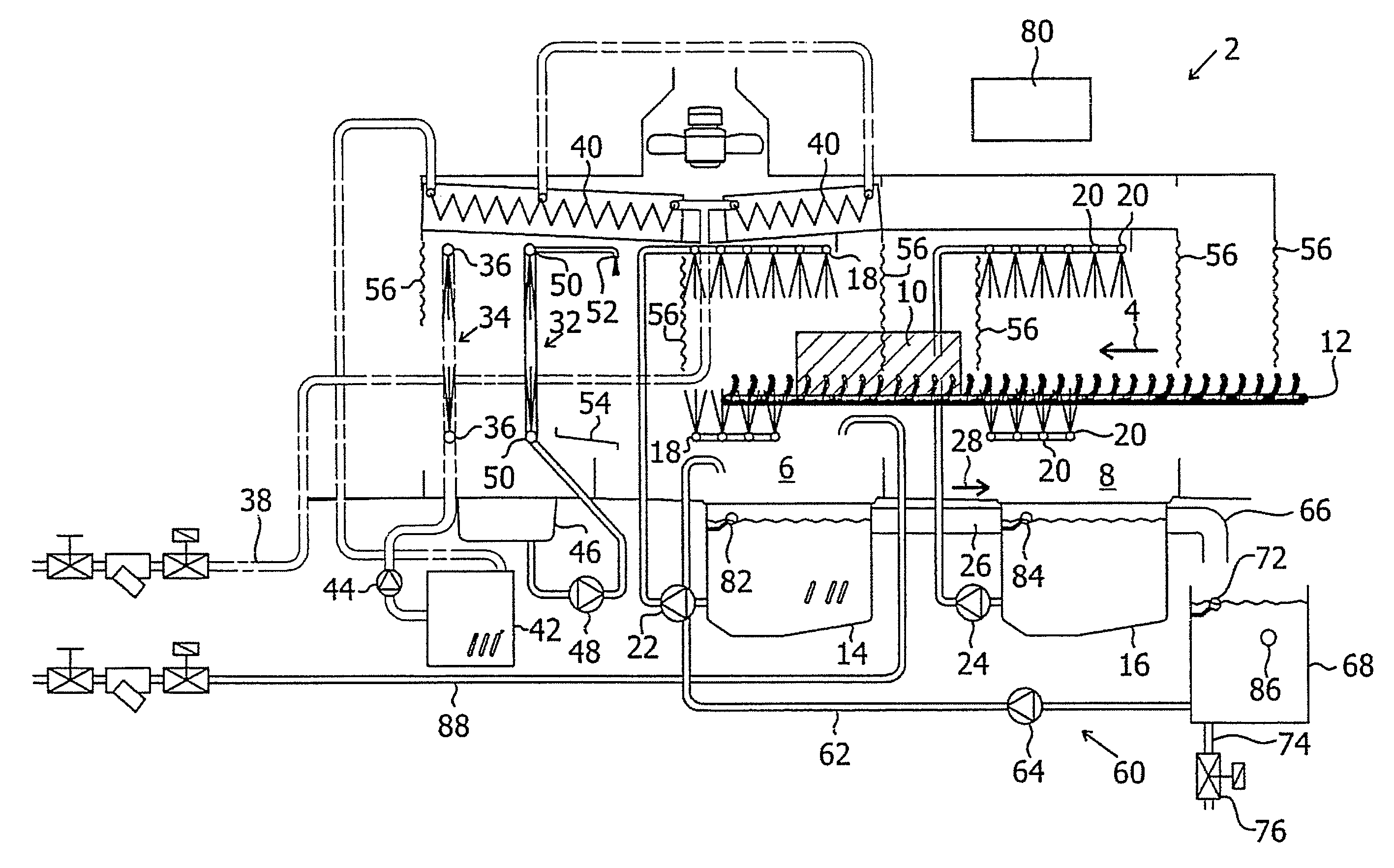

专利附图（8）
