用于组合容器，通过凹槽变形吸收冲击防破裂。
专利摘要

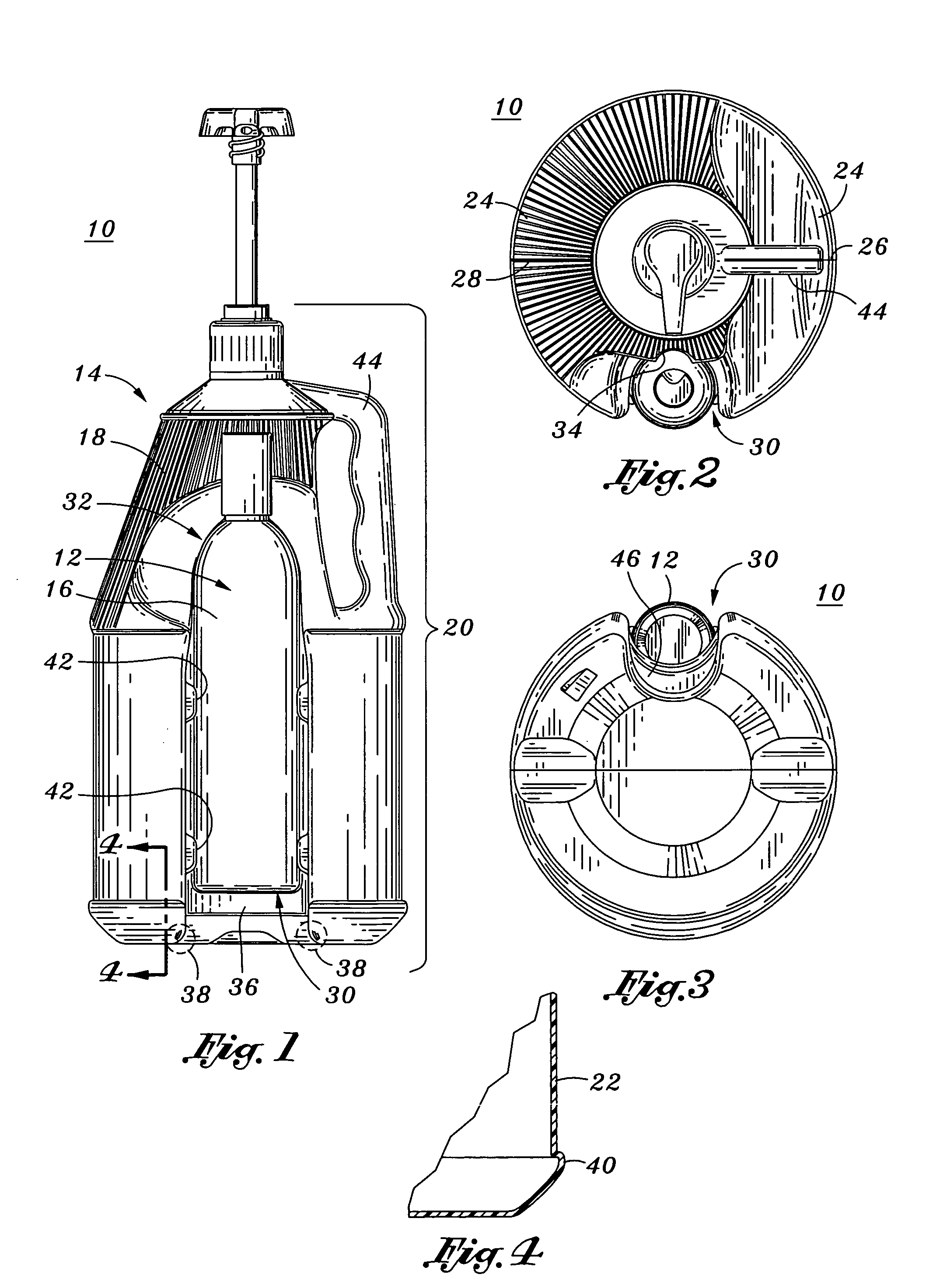

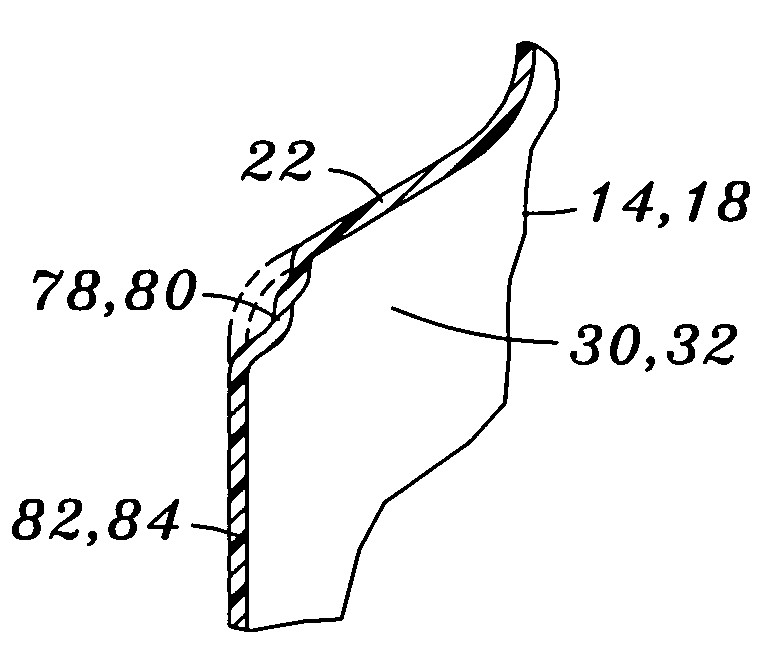

一种容器系统，适于承受冲击，并具有带第一容器主体的第一容器和带第二容器主体的第二容器。第二容器限定第二主体高度和第二主体壁厚。在第二容器主体中形成主体凹槽，用于可释放地接合第一容器的第一容器主体。主体凹槽限定至少一个凹槽顶角和底角以及凹槽垂直边缘，其分别具有凹槽顶角和底角以及垂直边缘壁厚，并且被有意减薄以具有小于第二主体壁厚的厚度。凹槽顶角和底角以及垂直边缘被具体配置为响应于施加在其上的冲击而变形，使得冲击震动的至少一部分被变形吸收，以避免第二容器破裂。
Original abstractA container system is adapted to withstand impacts and features a first container having a first container body and a second container having a second container body. The second container defines a second body height and a second body wall thickness. A body recess is formed in the second container body for releasably engaging the first container body of the first container. A body recess defines at least one recess top and bottom corner and recess vertical edge having a recess top and bottom corner and vertical edge wall thickness, respectively, and which are intentionally thinned so as to have a thickness that is less than the second body wall thickness. The recess top and bottom corners and vertical edges are specifically configured to be deformable in response to an impact imposed thereagainst such that at least a portion of the impact shock is absorbed by the deformation in order to avoid rupture of the second container.
专利附图（8）
