具有无滑动短行程的传送式洗碗机
Conveyor-type dishwasher with a slip-free short stroke
US-8028818-B2一种传送式洗碗机，用于平稳传送餐具架，避免滑动。
专利摘要
本发明涉及一种用于通过传送轨道（5,6）上的传送钩（10）将运输架（12）传送通过具有多个处理区的传送式洗碗机的方法。传送钩（10）沿传送方向（1.1）运输运输架（12），传送轨道（5,6）由旋转轴（3）驱动。传送钩（10）在传送轨道（5,6）的前进行程（VH）和返回行程（RH）期间绕平行于传送方向（1.1）的轴（8）枢转（11）。本发明还涉及一种传送式洗碗机，包括传送轨道（5,6），其上保持有传送钩（10）。传送钩（10）安装成可在平行于运输架（12）传送方向（1.1）的轴（8）上枢转。
Original abstractThe invention relates to a method for transporting a transportation rack ( 12 ) through a conveyor-type dishwasher which has a plurality of treatment zones by means of transportation catches ( 10 ) which are accommodated on transportation rails ( 5, 6 ). The transportation catches ( 10 ) transport transportation racks ( 12 ) in the conveying direction ( 1.1 ), with the transportation rails ( 5, 6 ) being driven by means of a rotary shaft ( 3 ). The transportation catches ( 10 ) pivot ( 11 ) about a shaft ( 8 ), which runs parallel to the conveying direction ( 1.1 ), during a forward stroke (VH) of the transportation rails ( 5, 6 ) and during the return stroke (RH) of said transportation rails. The invention also relates to a conveyor-type dishwasher comprising transportation rails ( 5, 6 ) on which transportation catches ( 10 ) are held. The transportation catches ( 10 ) are mounted such that they can pivot on shafts ( 8 ) which are oriented parallel to the conveying direction ( 1.1 ) of the transportation rack ( 12 ).

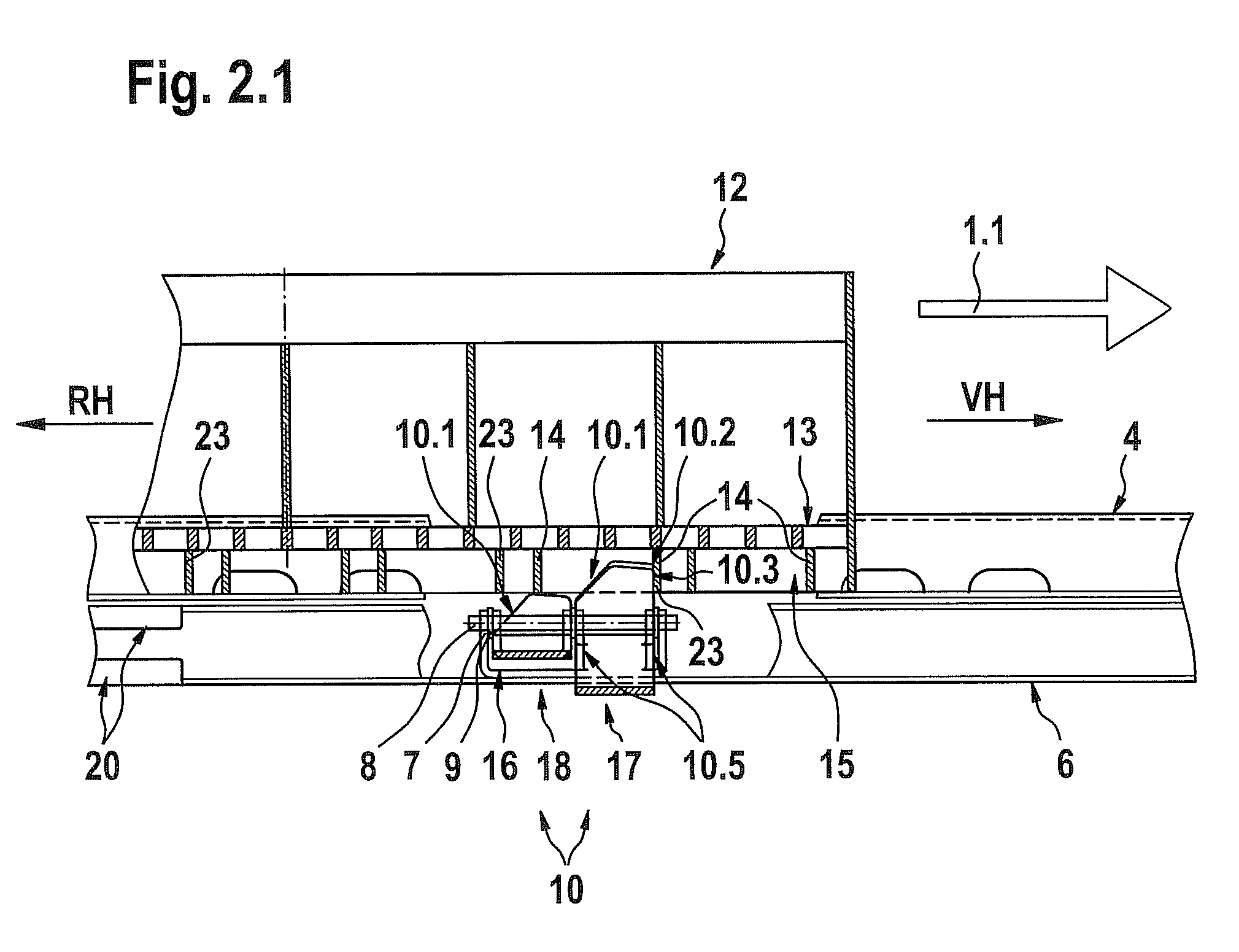

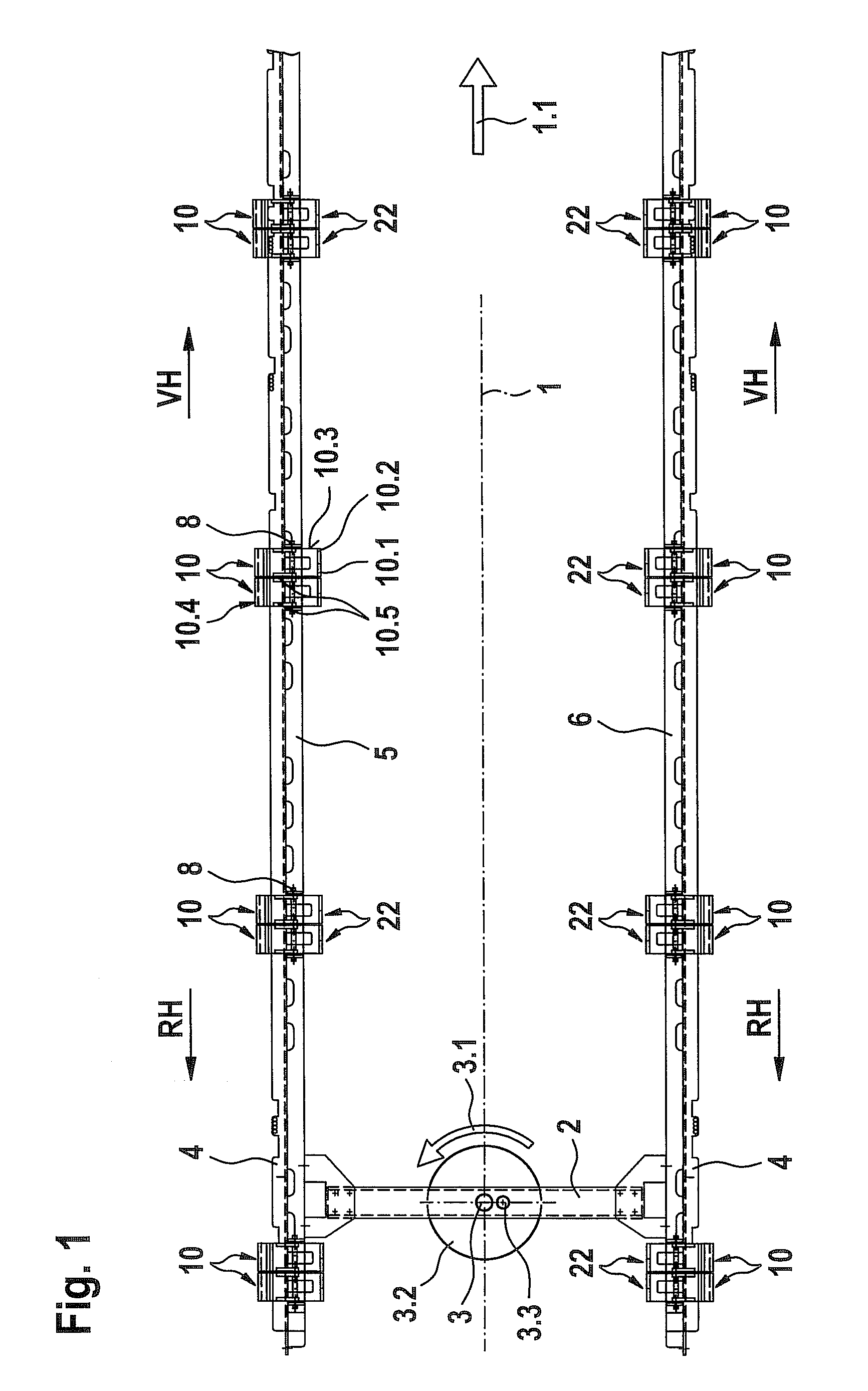

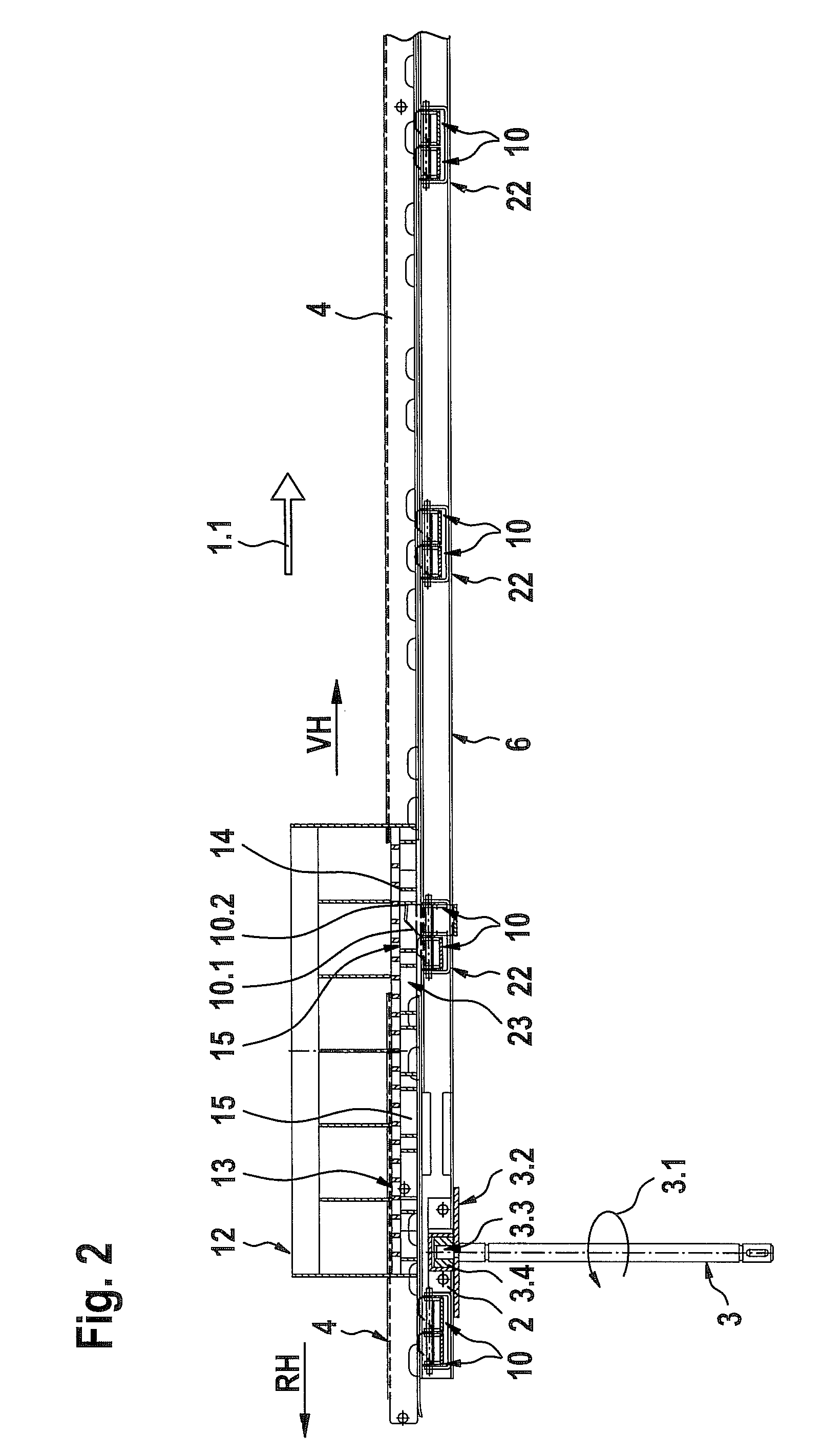

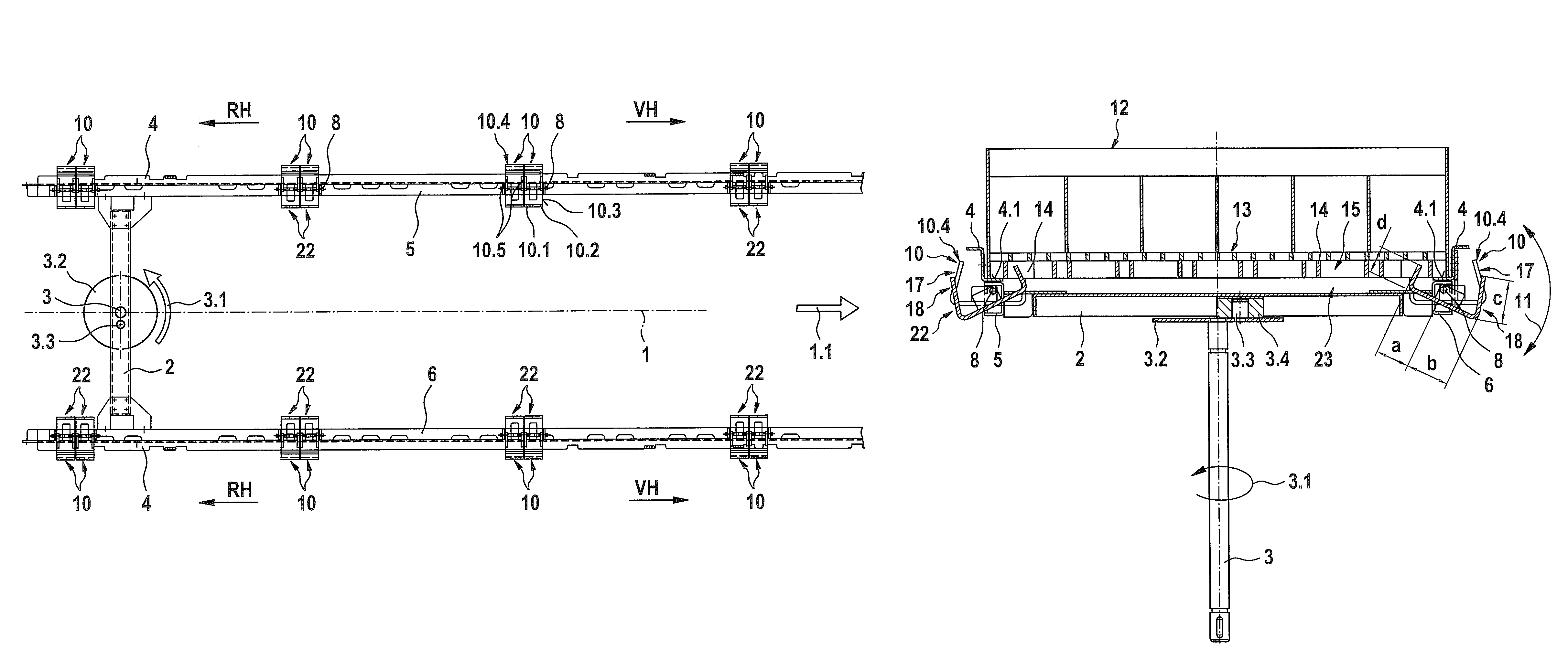

专利附图（8）
